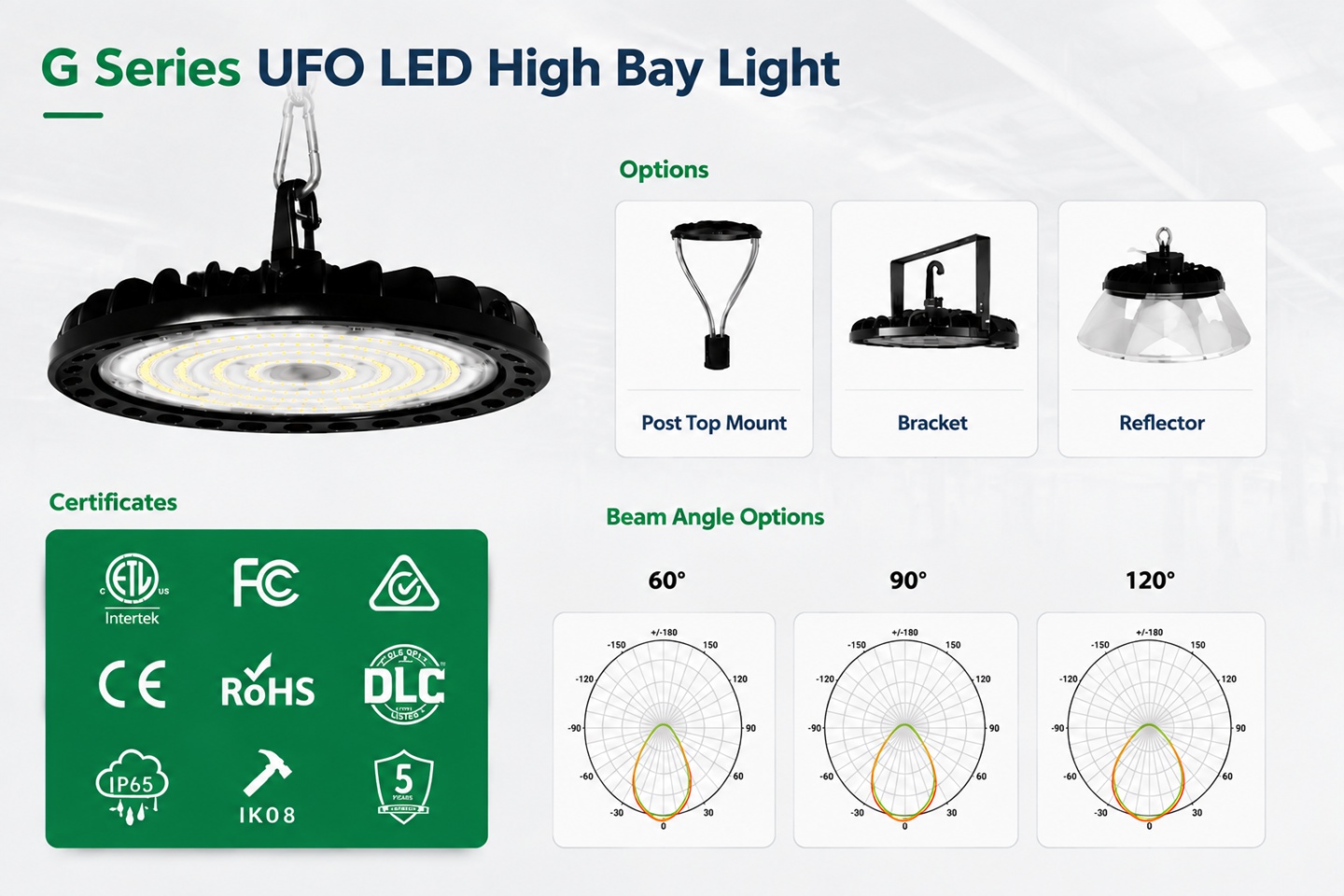

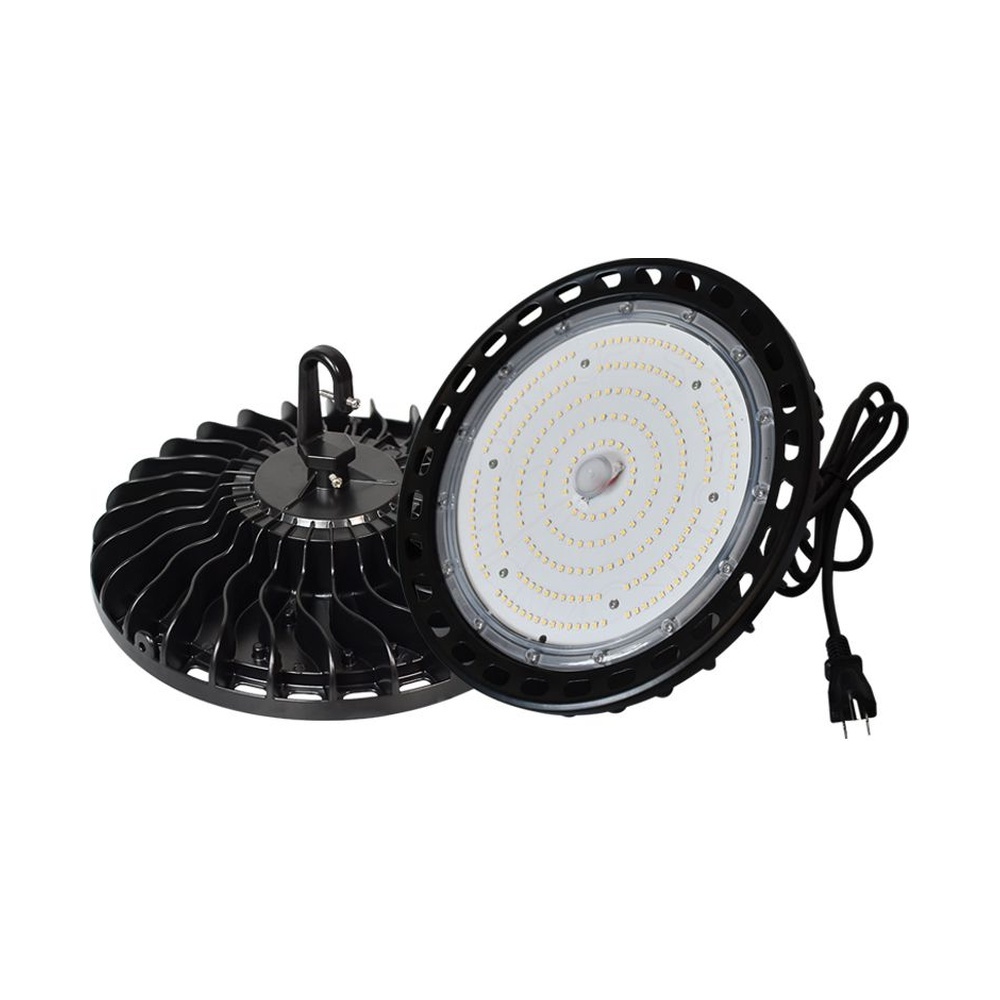

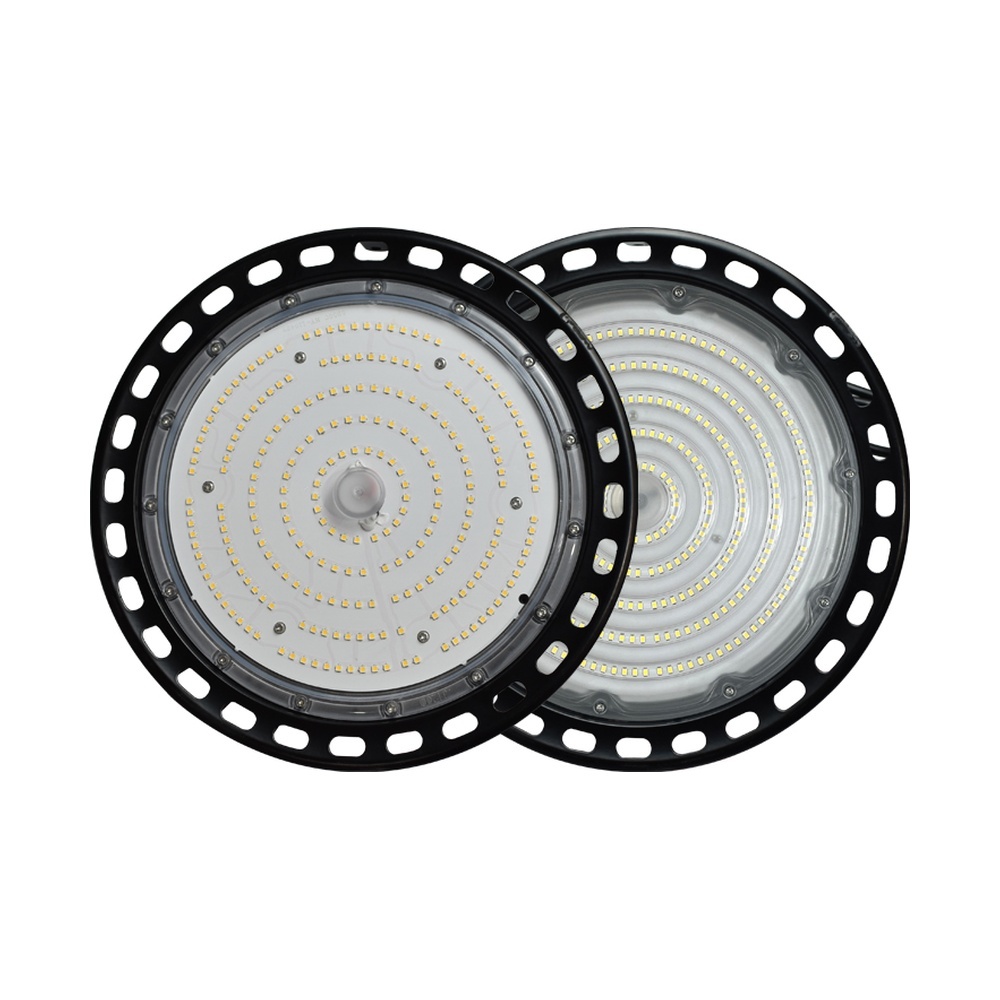

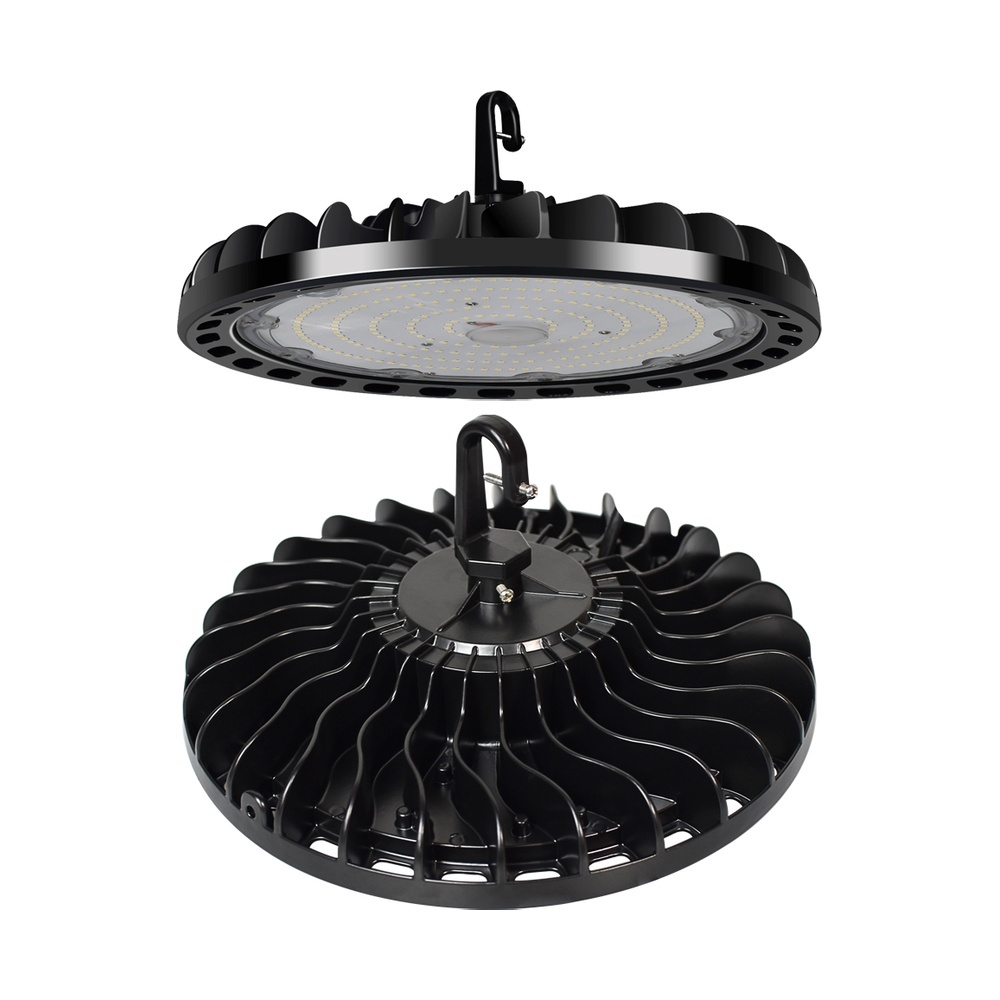

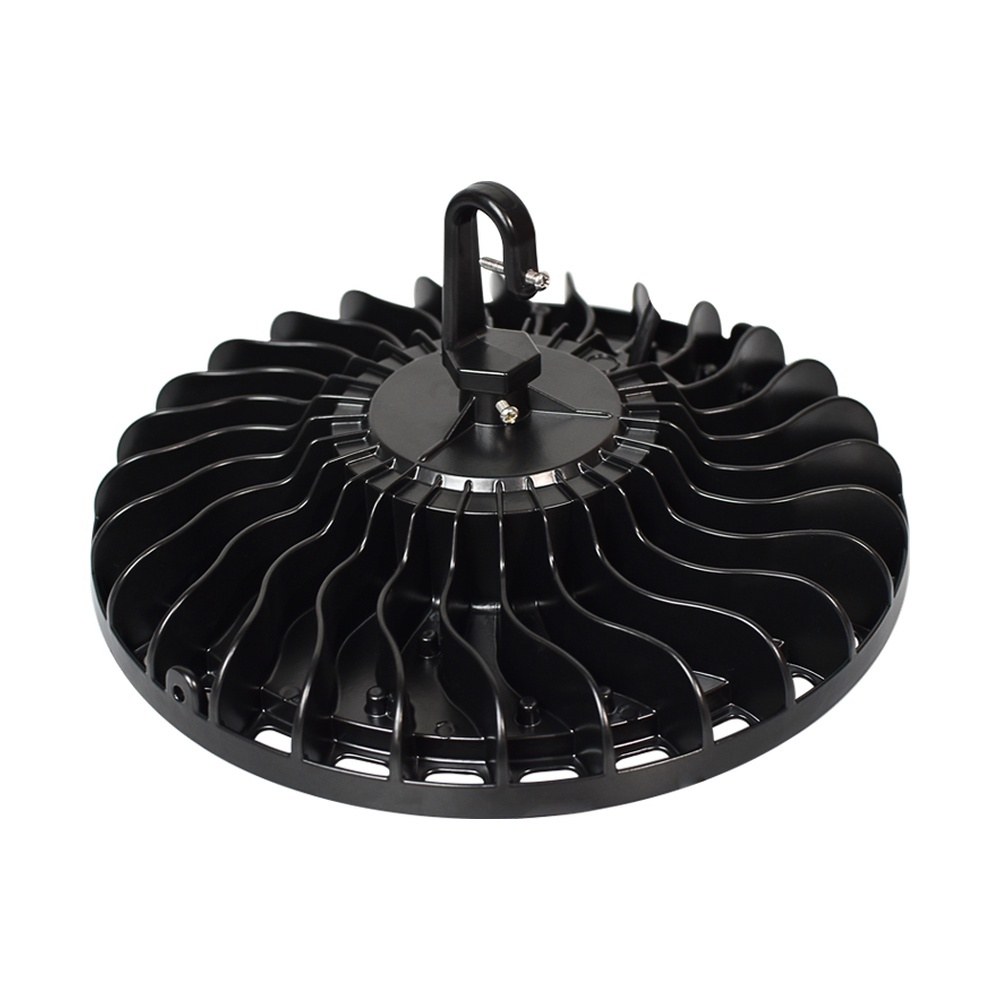

Reliable Industrial UFO LED High Bay LightingThe EZCOLED G Series UFO LED High Bay Light is designed for industrial and commercial facilities requiring efficient, durable and uniform high-bay illumination. Available in 100W, 150W and 200W, the G Series delivers 140 lm/W luminous efficacy, making it suitable for both new lighting projects and conventional high-bay replacement applications. Its die-cast aluminum housing provides effective heat dissipation and supports reliable long-term operation. The compact UFO high bay design also helps simplify installation and reduces the space required for transportation and storage.
Flexible Lighting for Different ProjectsDifferent industrial spaces require different light distributions. The G Series offers 60°, 90° and 120° beam angle options, allowing lighting designers and contractors to select the appropriate distribution according to mounting height, aisle layout and illuminated area. Color temperature options include 3000K, 4000K, 5000K, 5700K and 6500K, while non-dimming and 0-10V dimming configurations are available for different project requirements.
Built for Industrial EnvironmentsWith an IP65 protection rating and IK08 impact resistance, the G Series LED UFO High Bay Light is designed for demanding industrial and commercial environments. It operates on AC100–277Vinput and features a power factor above 0.95. Whether used as a warehouse LED high bay light, factory high bay light, workshop lighting fixture or general industrial high ceiling light, the G Series provides a practical balance of lighting performance, durability and installation flexibility.
Specifications:
| Power |
100W |
150W |
200W |
| Model Number |
HC-UFO-100G |
HC-UFO-150G |
HC-UFO-200G |
| Dimensions |
Ø230*130mm |
Ø275*130mm |
Ø320*130mm |
| Efficacy |
140LM/W |
| Color Temperature |
3000K 4000K 5000K 5700K 6500K |
| Input Voltage |
AC100-277V 50/60Hz |
| Surge protection |
4KV-Line-Line |
| Beam Angle |
60°, 90°, 120° LENS optional |
| Chips |
SMD3030 |
| CRI |
CRI>80 |
| Waterproof Rate |
IP65 |
| PF |
>0.95 |
| Dimmable |
Non-dim or 0-10V dimming Options |
| Life Time @L70 |
>100,000Hrs |
| Operating Temperature |
-30°C to +45°C |
| Impact resistance |
IK 08 |

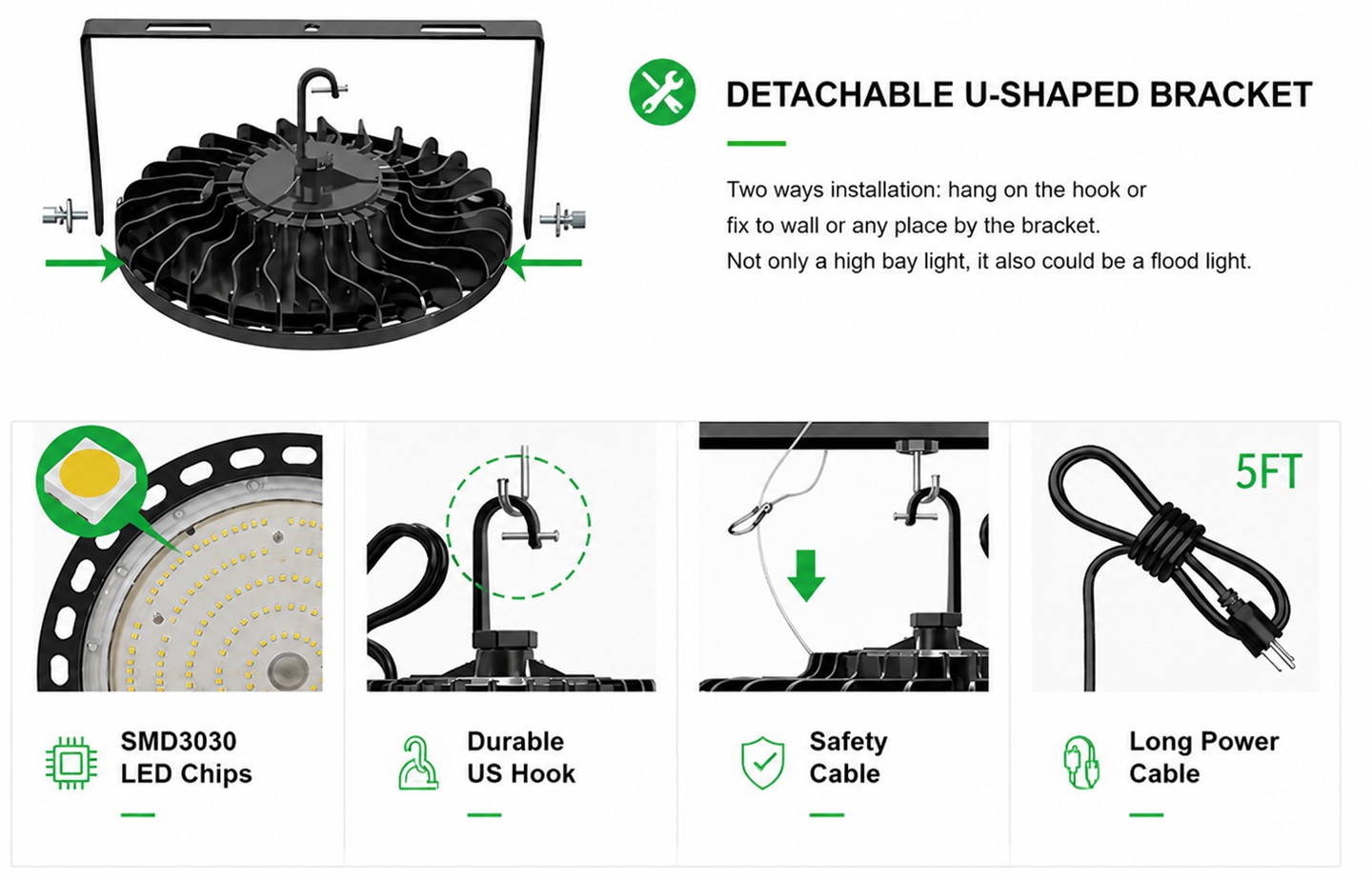

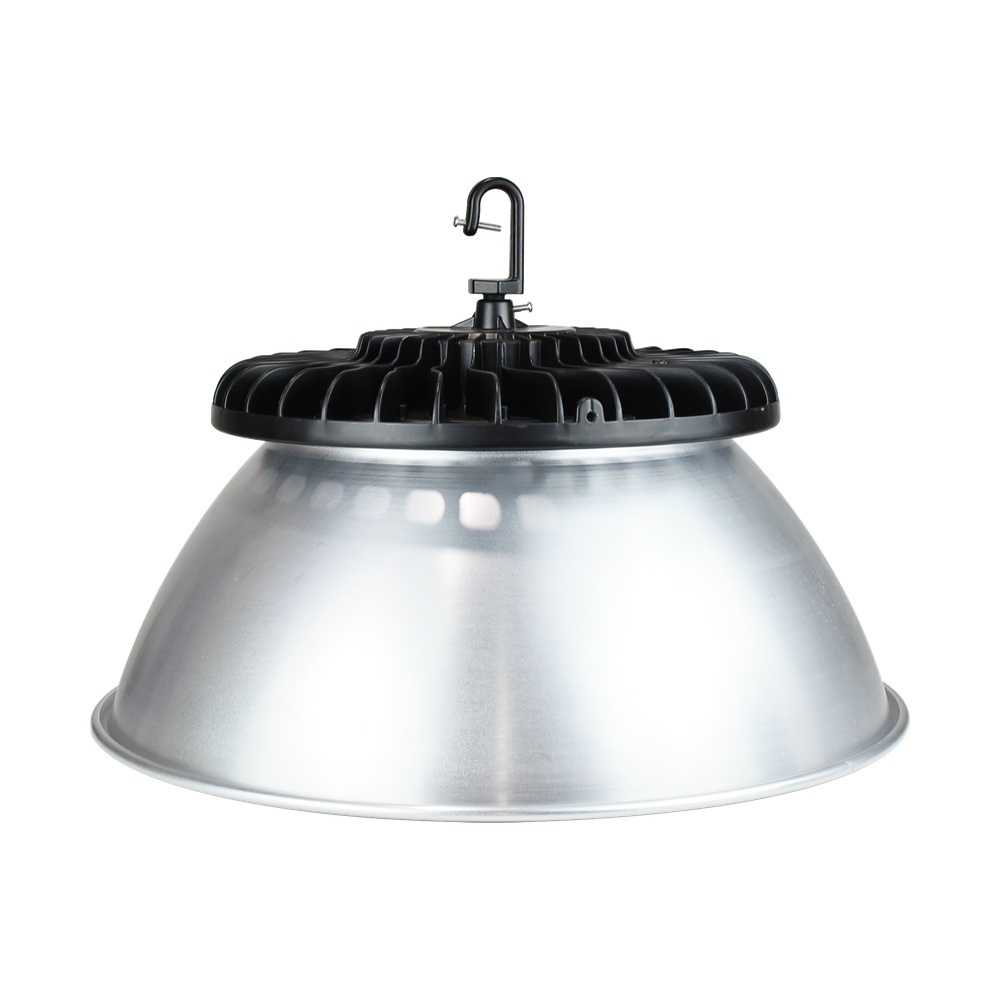

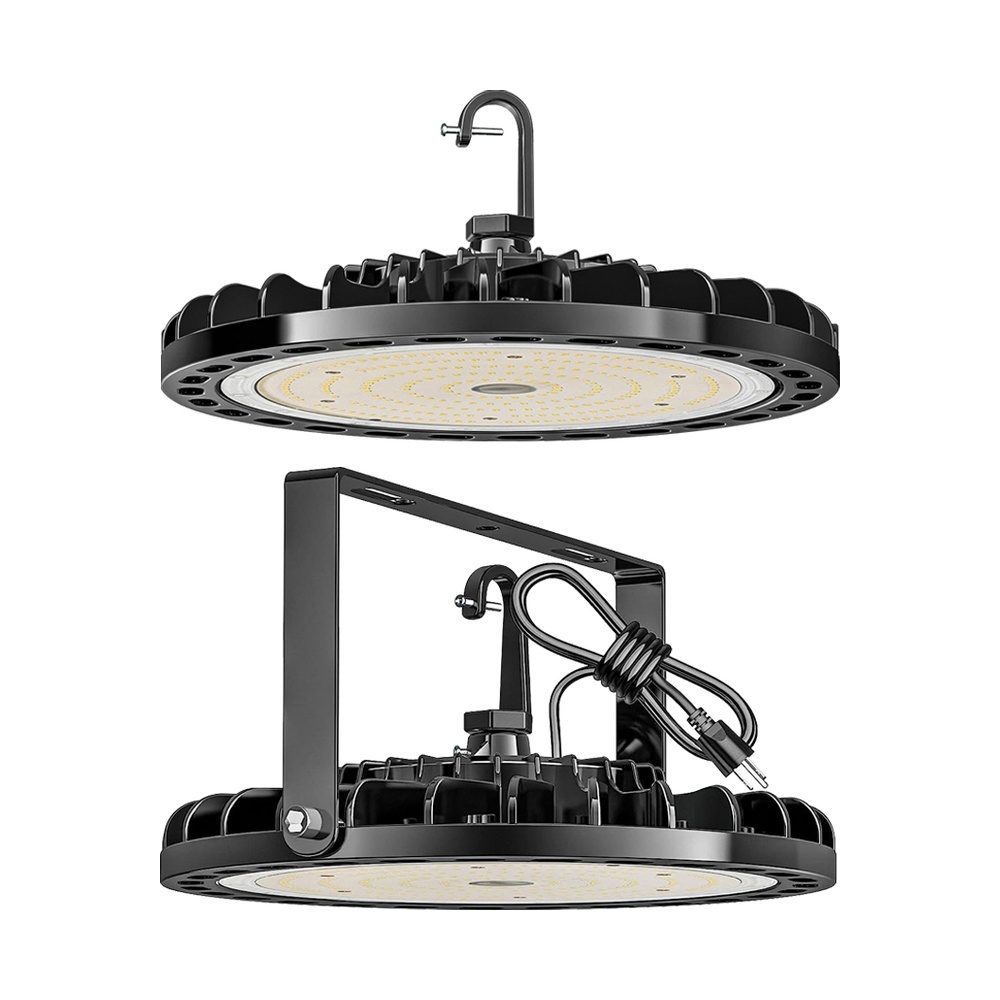

| Mounting Option |
Post Top Mount / Bracket Mounting / Reflector |
| Switching Cycles |
＞100,000 times |
Applications:
Industrial ApplicationsThe G Series UFO LED High Bay Light is ideal for warehouses, factories, workshops, production areas, logistics centers and storage facilities, providing bright and uniform illumination for high-ceiling industrial spaces.
Commercial & Large SpacesIt can also be used in sports halls, supermarkets, exhibition spaces, parking areas and other large commercial facilities. Multiple wattage and beam angle options make it adaptable to different mounting heights and lighting layouts.
FAQ：
Q1. What is the G Series UFO LED High Bay Light used for?
The G Series is designed for high-ceiling industrial and commercial spaces such as warehouses, factories, workshops, logistics centers, sports halls and supermarkets. It provides efficient and uniform illumination for large areas.
Q2. What wattages are available for the G Series LED High Bay Light?
The G Series is available in 100W, 150W and 200W, with a luminous efficacy of 140 lm/W. Different wattages can be selected according to mounting height, required illumination and project layout.
Q3. Is the G Series UFO High Bay Light waterproof?
Yes. The G Series has an IP65 protection rating, helping protect the fixture against dust and water ingress and making it suitable for demanding industrial and commercial environments.
Q4. What beam angles are available for this UFO LED High Bay Light?
The G Series offers 60°, 90° and 120° beam angle options. Narrower beam angles are useful when more concentrated light distribution is required, while wider angles can cover larger areas.
Q5. Does the G Series LED High Bay support dimming?
Yes. The G Series is available with 0-10V dimming, as well as non-dimming configurations. This gives lighting projects greater flexibility in controlling illumination levels and energy consumption.
