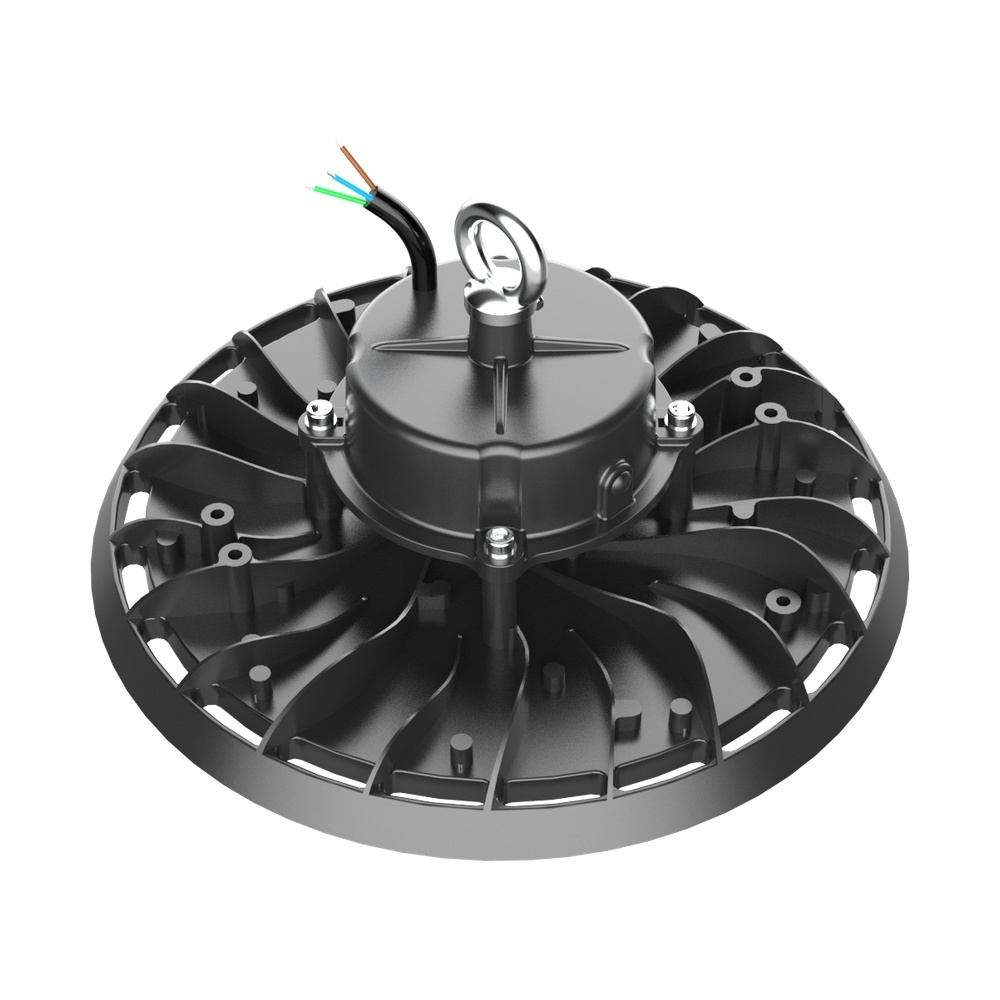

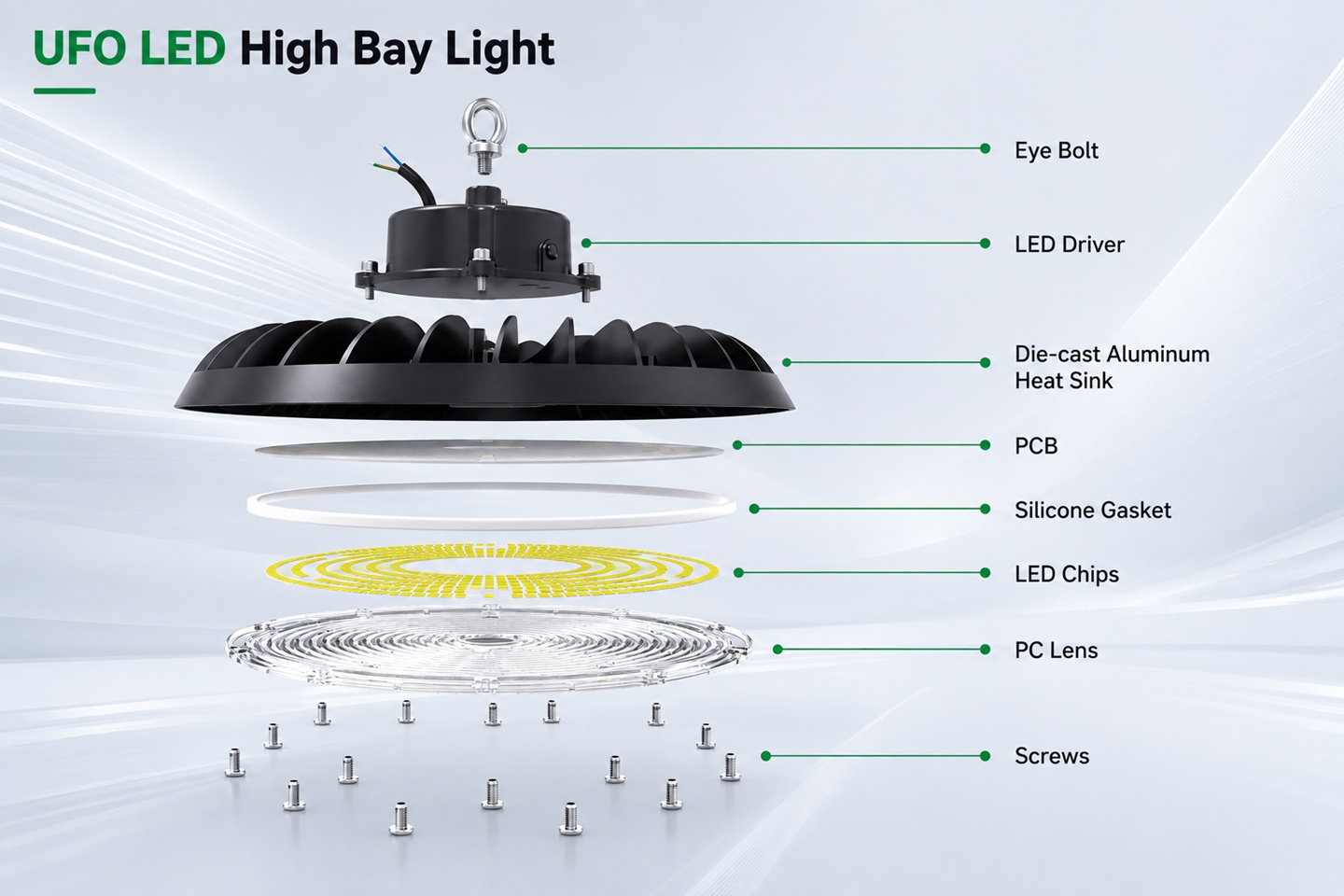

Design & Housing: Next-Gen Cost-Optimized Lightweight Die-Cast Aluminum Design
Power Options: 100W / 150W / 200W / 240W
Luminous Efficacy: Up to 160 – 190 lm/W high-output performance
Ingress & Impact Rating: IP65 Waterproof & Dustproof, IK08 Impact Resistance
Control Compatibility: 0-10V Dimming; Plug-and-Play Zhaga / Microwave Motion Sensors
Optical Lens Angles: 60° / 90° / 120° glare-reducing optical lens options
Warranty: 5-Year Factory Warranty
| Power | 100W | 150W | 200W | 240W |
| Model Number | HC-UFO-100L02 | HC-UFO-150L02 | HC-UFO-200L02 | HC-UFO-240L02 |

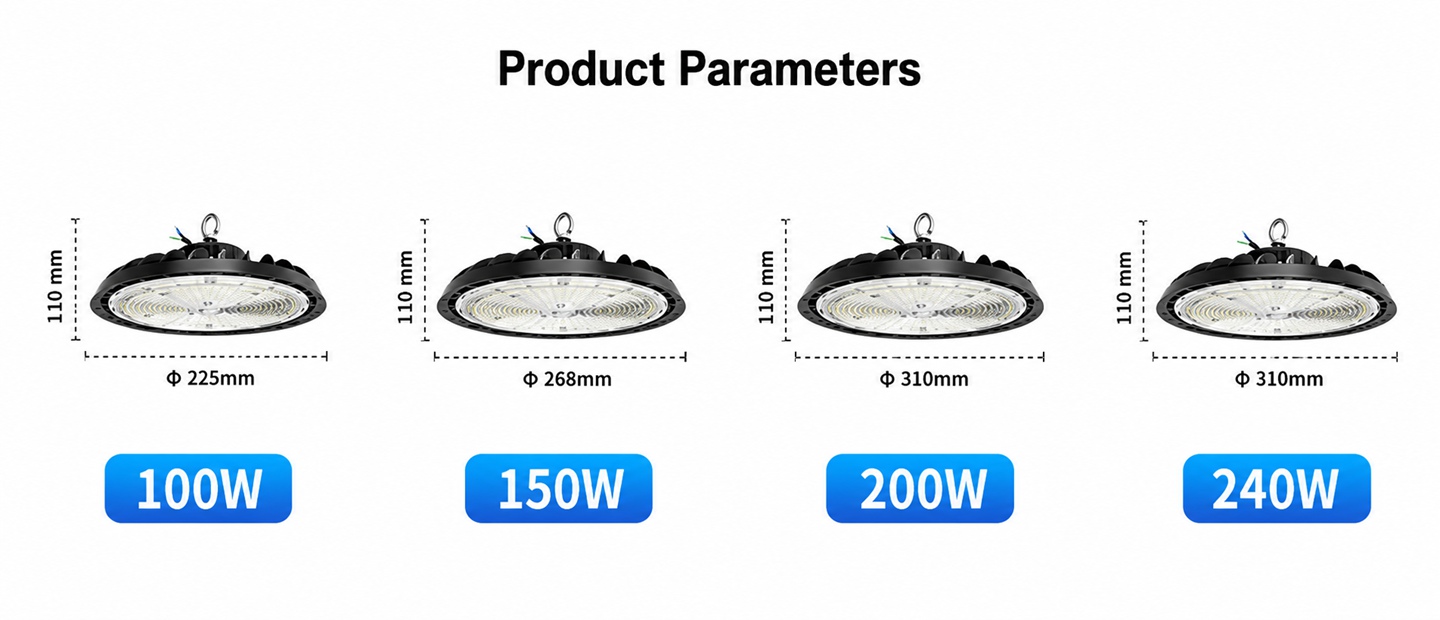

| Dimensions | Ø225*115mm | Ø268*115mm | Ø310*115mm | Ø310*115mm |
| Efficacy | 130-140LM/W (Standard) 150/185/210 LM/W optional | |||
| Color Temperature | 3000K 4000K 5000K 5700K 6500K | |||
| Input Voltage | AC100-277V 50/60Hz | |||
| Surge protection | 4KV-Line-Line | |||
| Beam Angle | 60°, 90°, 120° LENS optional | |||

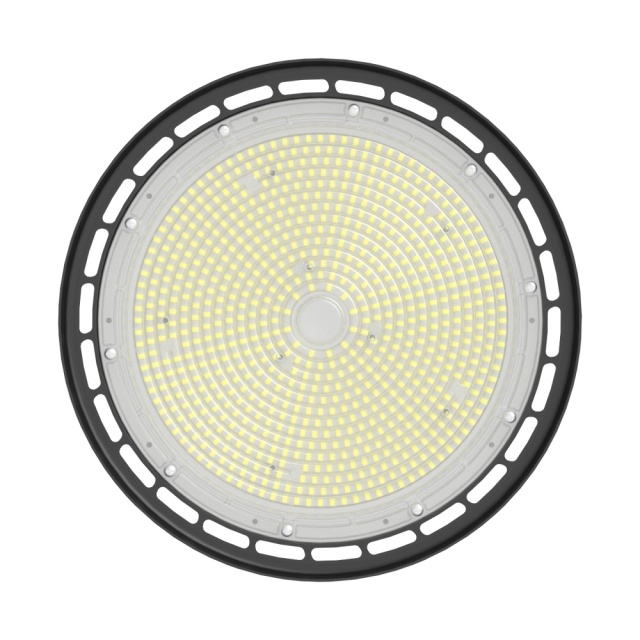

| Chips | SMD2835 | |||
| CRI | CRI>80 | |||
| Waterproof Rate | IP65 | |||
| Dimmable | Non-dim, 0-10V dim, Microwave sensor options | |||
| Life Time @L70 | >100,000Hrs | |||
| Operating Temperature | -30°C to +45°C | |||
| Impact resistance | IK 08 | |||

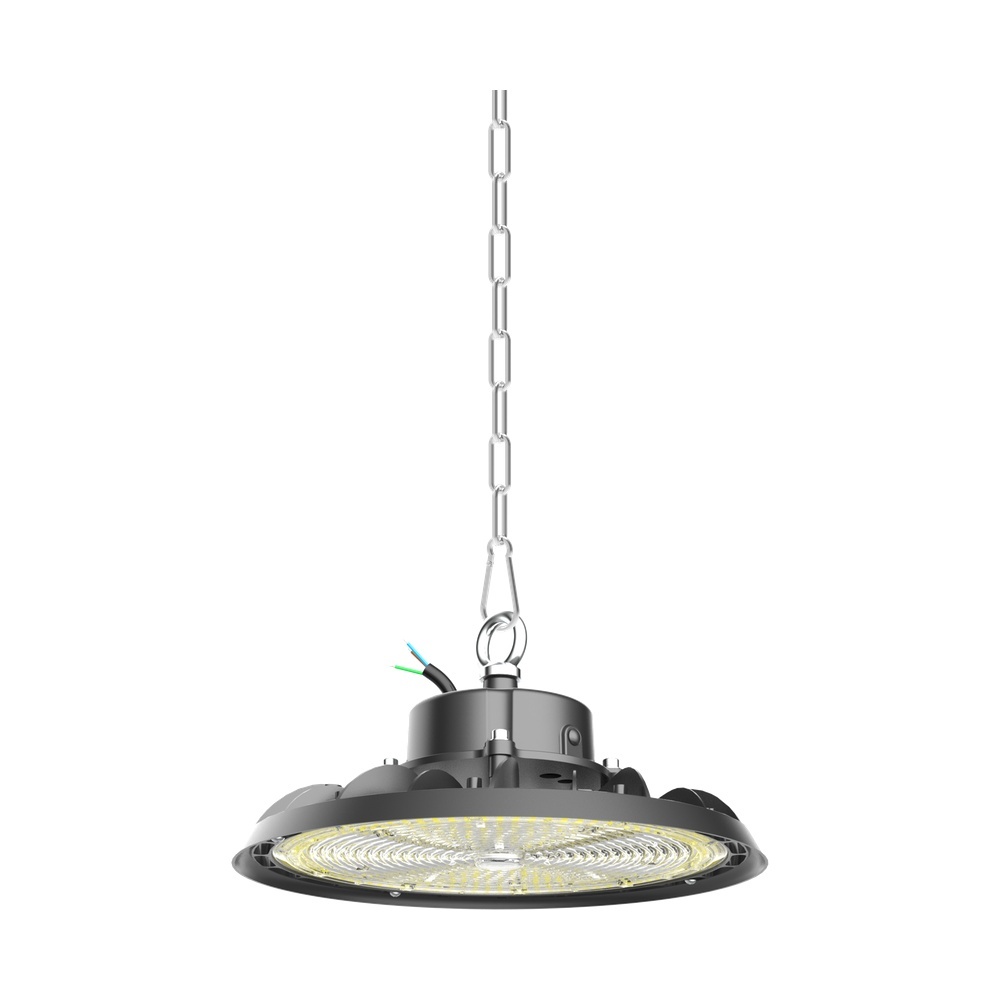

| Mounting Option | Loop Hanging / Bracket Mounting | |||
| Switching Cycles | ＞100,000 times | |||
Q1: What is the L02 Series UFO LED High Bay Light designed for?

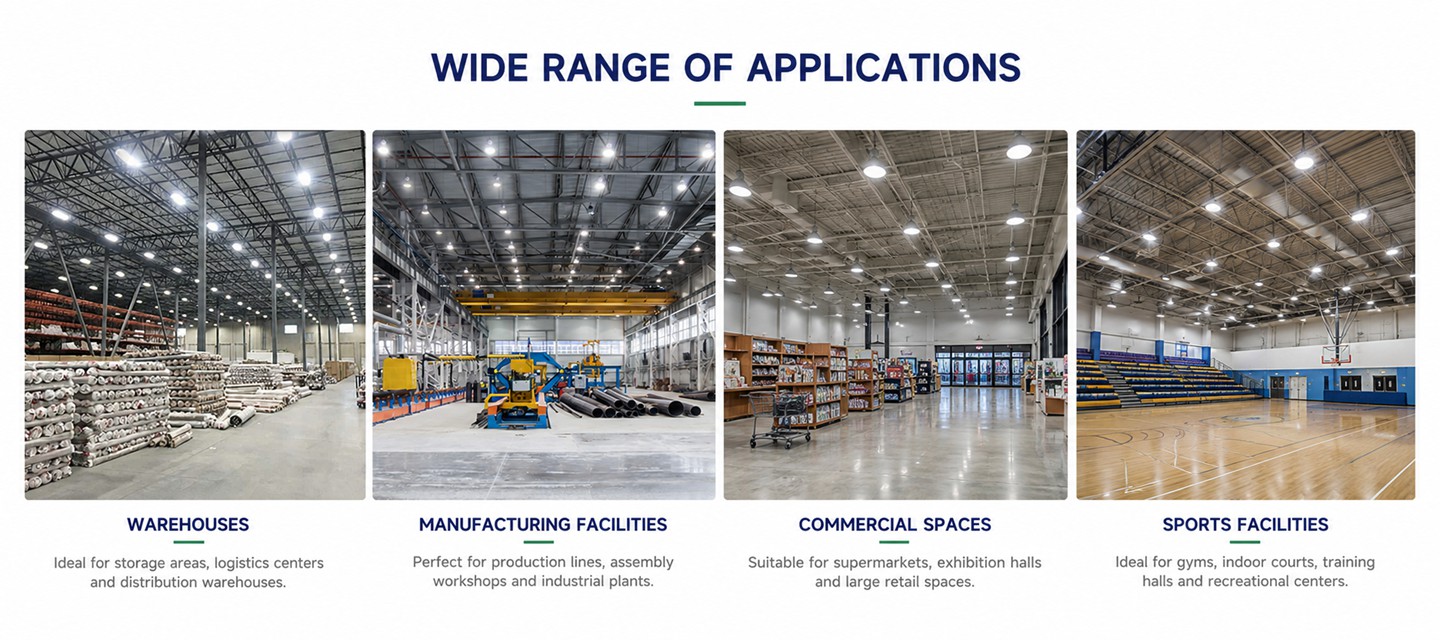

A: The L02 Series is a cost-effective industrial UFO LED high bay designed for warehouses, factories, workshops and other high-ceiling applications. Its optimized housing design helps control project costs while maintaining the key performance required for industrial lighting.
Q2: What wattages are available for the L02 Series LED High Bay?
A: The L02 Series is available in 100W, 150W, 200W and 240W. Adjustable power configurations are also available, allowing distributors and contractors to cover different project requirements with fewer product variations.
Q3: What is the luminous efficacy of the L02 Series?
A: Standard versions deliver approximately 130–140 lm/W, while 150 lm/W, 185 lm/W and 210 lm/W options are available for projects requiring higher energy efficiency. This gives buyers flexibility to balance initial cost, lumen output and energy savings.
Q4: What beam angles are available?
A: The L02 Series supports 60°, 90° and 120° beam angles. Narrower beam angles can provide more concentrated illumination for higher mounting positions, while wider beam angles provide broader coverage for open areas and lower mounting heights.
Q5: Is the L02 Series suitable for large-volume industrial lighting projects?
A: Yes. The L02 Series is particularly suitable for distributors, contractors and large-volume projects where competitive pricing, flexible configurations and reliable industrial performance are important. It supports multiple wattages, CCT options, beam angles, 0-10V dimming and optional sensors.
