Compact Industrial High Bay Lighting

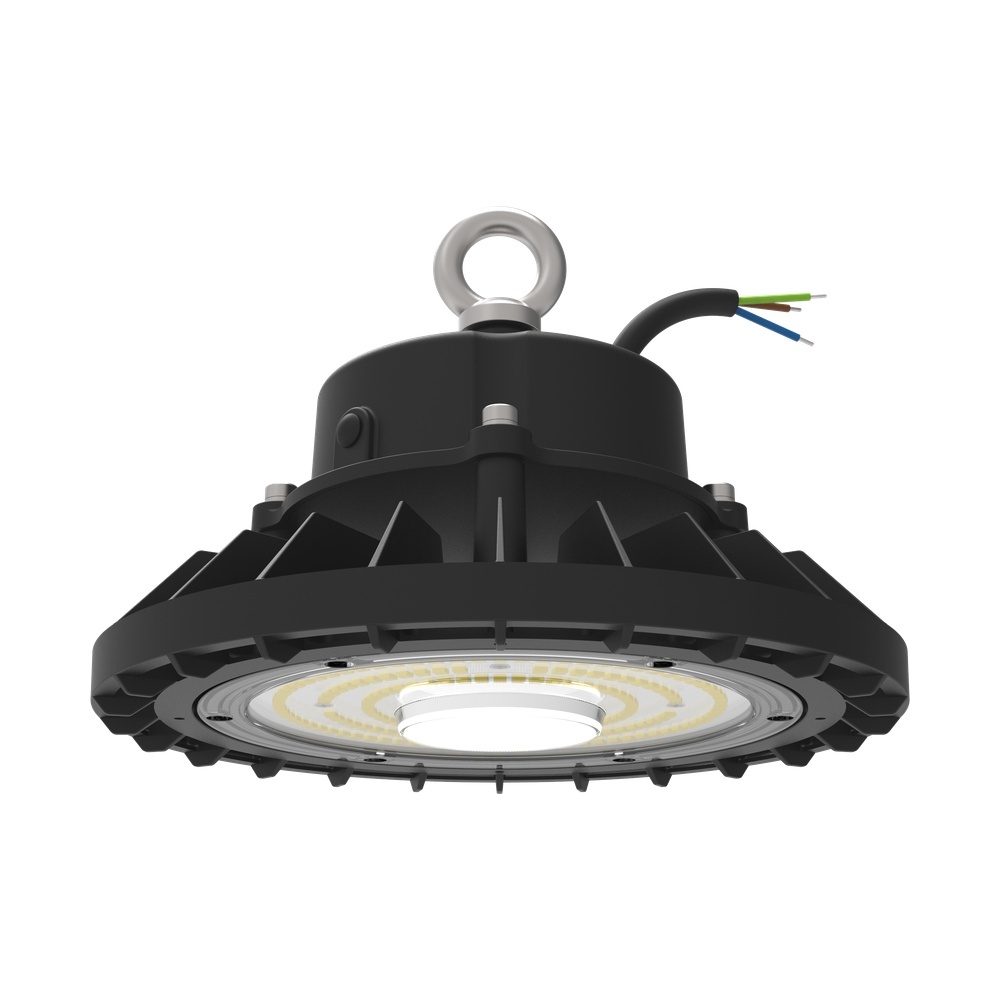

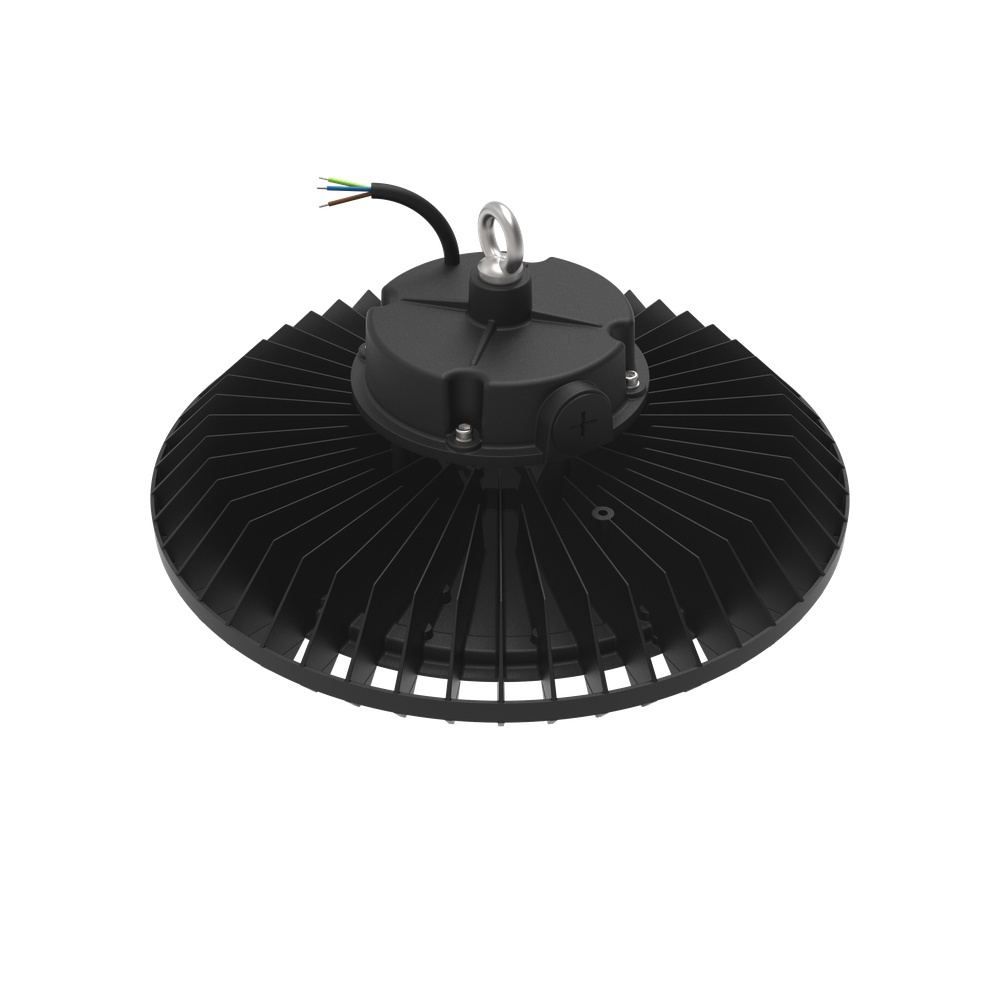

HY06 Series UFO LED High Bay Light delivers efficient, uniform illumination in a compact die-cast aluminum housing. Available from 60W to 300W, it provides 140 lm/W standard efficacy with 160, 190 and 210 lm/W options, making it suitable for energy-efficient warehouse lighting, factory lighting and industrial LED lighting projects.
Flexible for Different Projects
With IP65 protection, IK08 impact resistance and 60°, 90° or 120° beam angles, the HY06 adapts easily to different mounting heights and lighting layouts. Optional 0–10V dimming, motion sensors, brackets and reflectors provide additional flexibility for new installations and LED lighting retrofit projects.
Specifications:
| Power |
60W |
100W |
150W |
200W |
240W |
300W |
| Model Number |
HC-UFO-HY0660 |
HC-UFO-HY06100 |
HC-UFO-HY06150 |
HC-UFO-HY06200 |
HC-UFO-HY06240 |
HC-UFO-HY06300 |
| Dimensions |
Ø200*145mm |
Ø241*145mm |
Ø281*148mm |
Ø321*152mm |
Ø321*152mm |
Ø361*165mm |
| Efficacy |
140LM/W (Standard) 160/190/210 LM/W optional |
| Color Temperature |
3000K 4000K 5000K 5700K 6500K |
| Input Voltage |
AC100-277V 50/60Hz |
| Surge protection |
4KV-Line-Line |
| Beam Angle |
60°, 90°, 120° LENS optional |
| Chips |

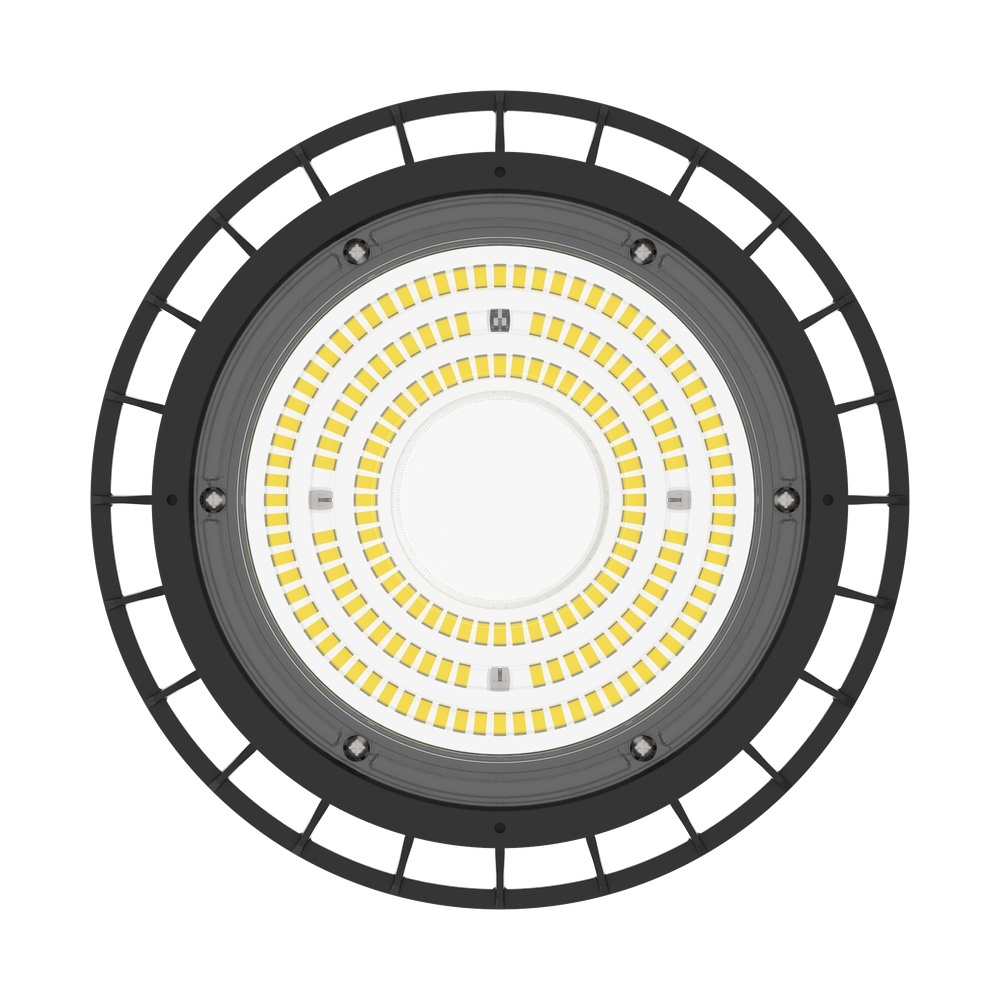

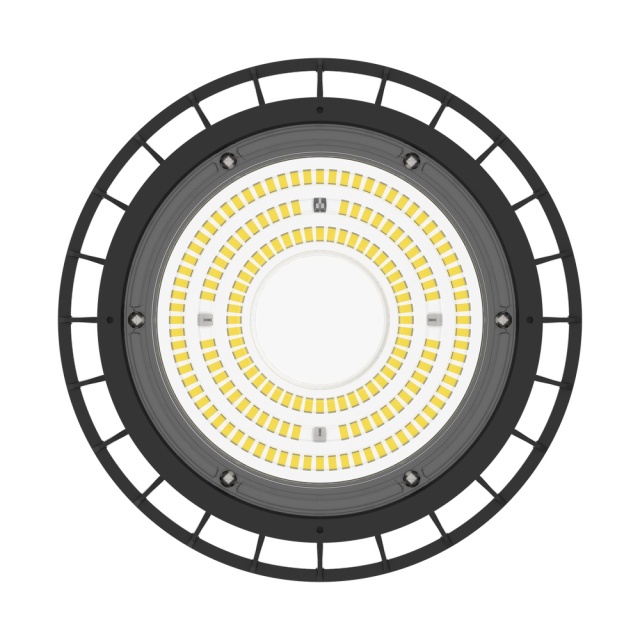

SMD3030 |
| CRI |
CRI>80 |
| Waterproof Rate |
IP65 |
| Dimmable |

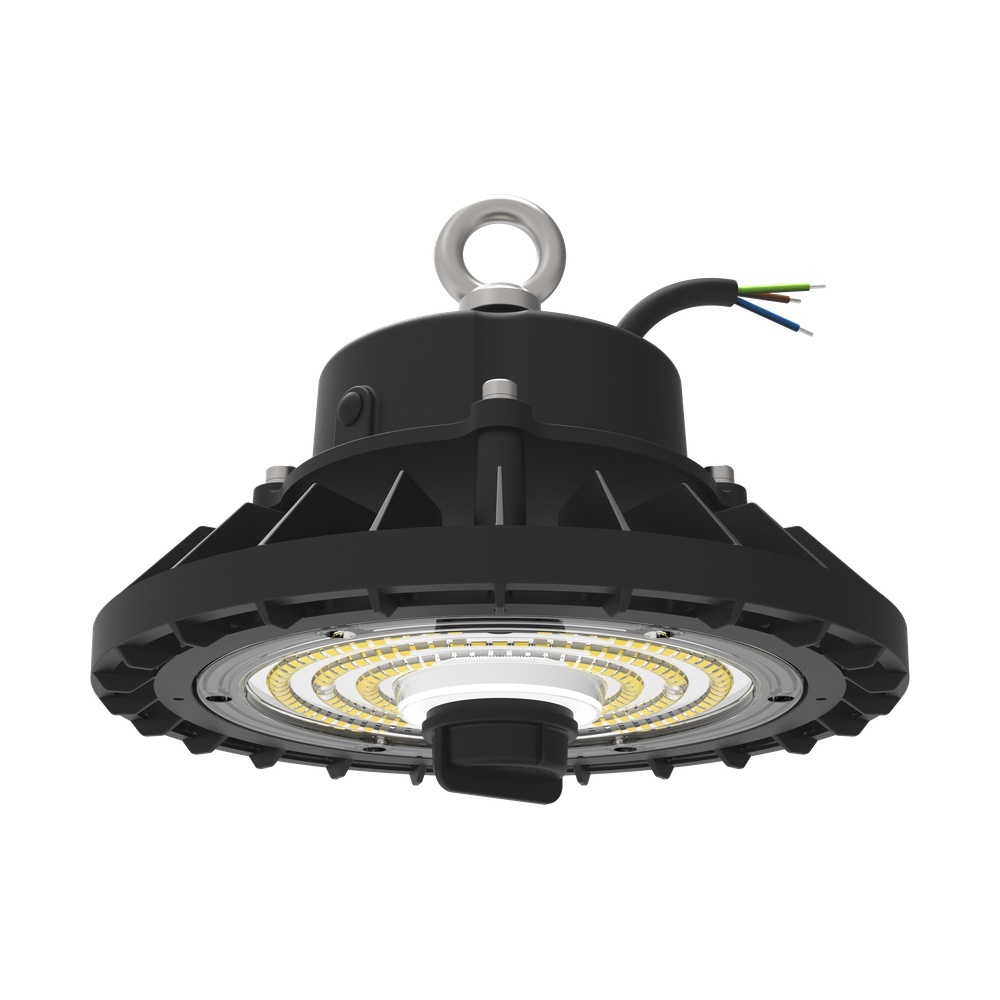

Non-dim, 0-10V dim, Microwave sensor options |
| Life Time @L70 |
>100,000Hrs |
| Operating Temperature |
-30°C to +45°C |
| Impact resistance |
IK08 |

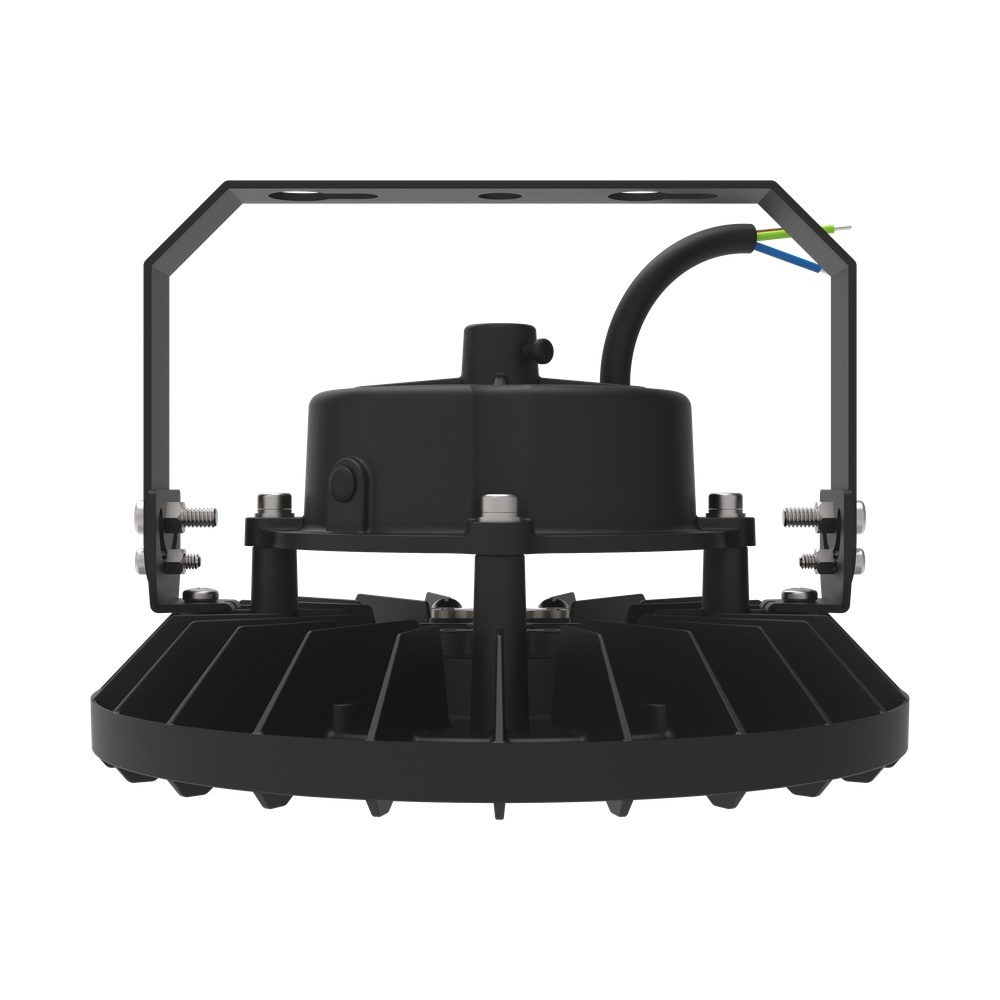

| Mounting Option |

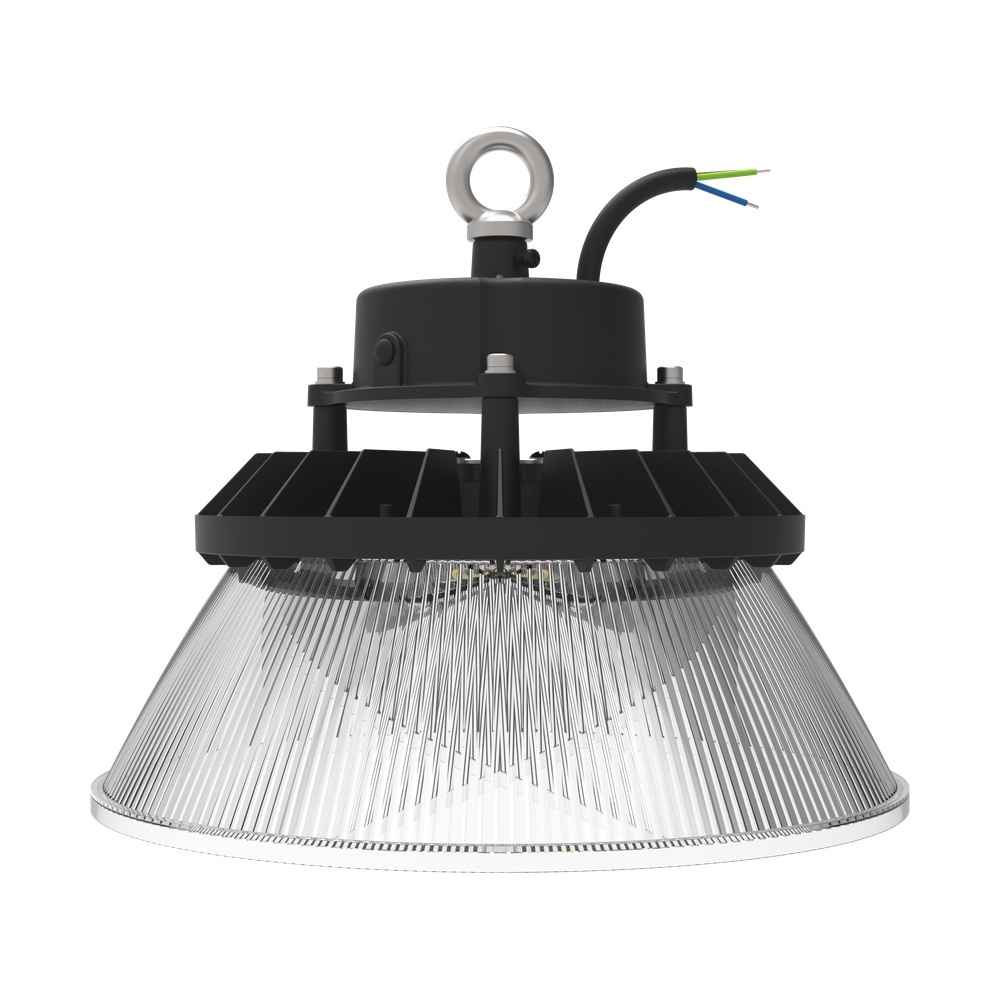

Reflector / Bracket Mounting |
| Switching Cycles |
＞100,000 times |
Applications:HY06 Series UFO High Bay Light is ideal for warehouses, factories, workshops, production areas and logistics centers, providing efficient illumination for medium and high-ceiling industrial spaces.
Its compact housing, multiple wattages and selectable optical configurations also make it suitable for indoor sports facilities, commercial buildings, parking areas and other large indoor spaces.

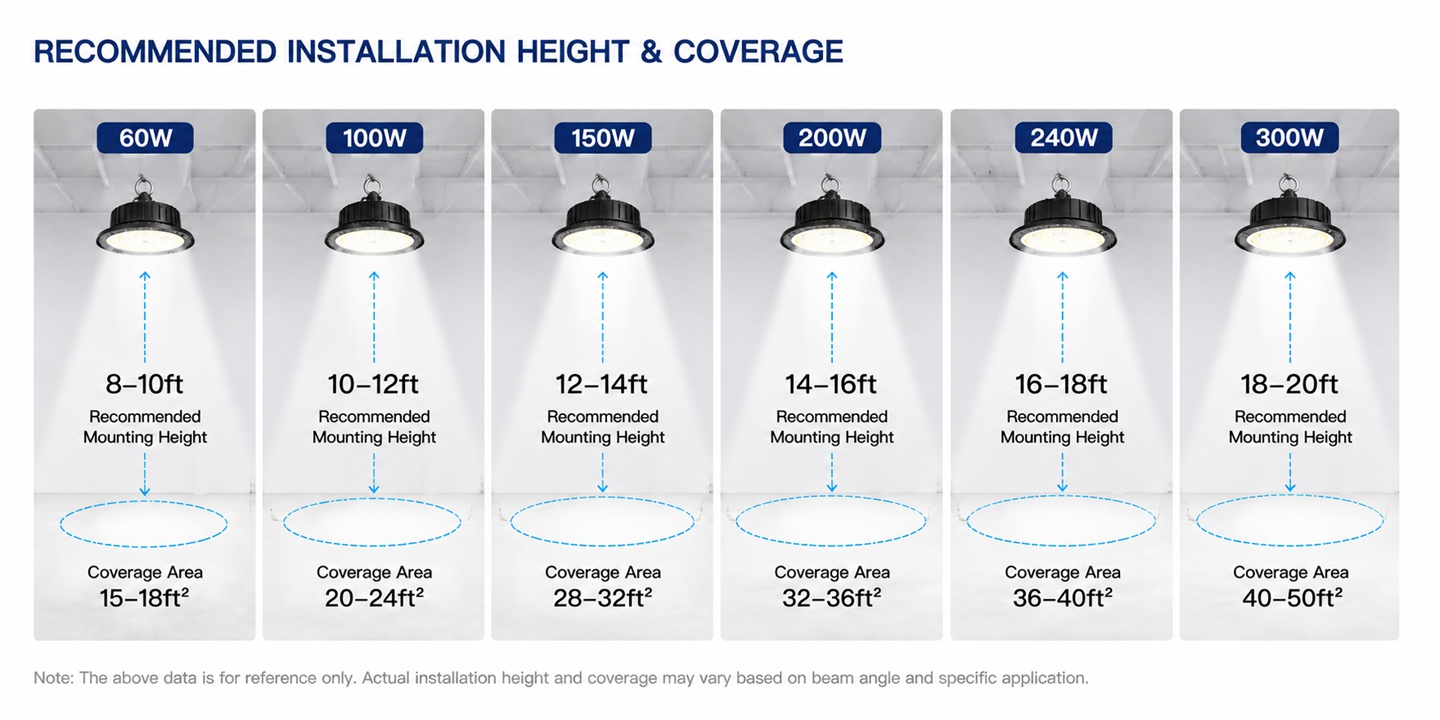

FAQ:Q1. What wattages are available for the HY06 Series UFO LED High Bay Light?A: The HY06 Series is available in 60W, 100W, 150W, 200W, 240W and 300W. This range allows the fixture to cover different mounting heights and industrial lighting requirements while maintaining a compact UFO high bay design.Q2. What is the maximum wattage of the HY06 UFO High Bay Light?A: The maximum power of the HY06 Series is 300W. For applications requiring higher wattages, EZCOLED offers other UFO high bay series designed for higher-output industrial lighting projects.Q3. How efficient is the HY06 Series UFO LED High Bay Light?A: The standard HY06 provides 140 lm/W, while 160 lm/W, 190 lm/W and 210 lm/W versions are available. Higher-efficacy options can deliver the required lumen output with lower energy consumption.Q4. What beam angles and control options are available?A: The HY06 Series supports 60°, 90° and 120° beam angles for different mounting heights and coverage requirements. Non-dimming, 0–10V dimming and motion sensor options are also available for different industrial lighting projects.Q5. Where is the HY06 Series UFO High Bay Light typically used?A: The HY06 is designed for warehouses, factories, workshops, logistics centers, production facilities, indoor sports areas and other high-ceiling spaces. Its IP65 housing and IK08 impact resistance make it suitable for demanding industrial environments.
