200W–2000W Scalable Modular LED Flood Light | Single & Double-Row Series

No.HC-MZ200-A

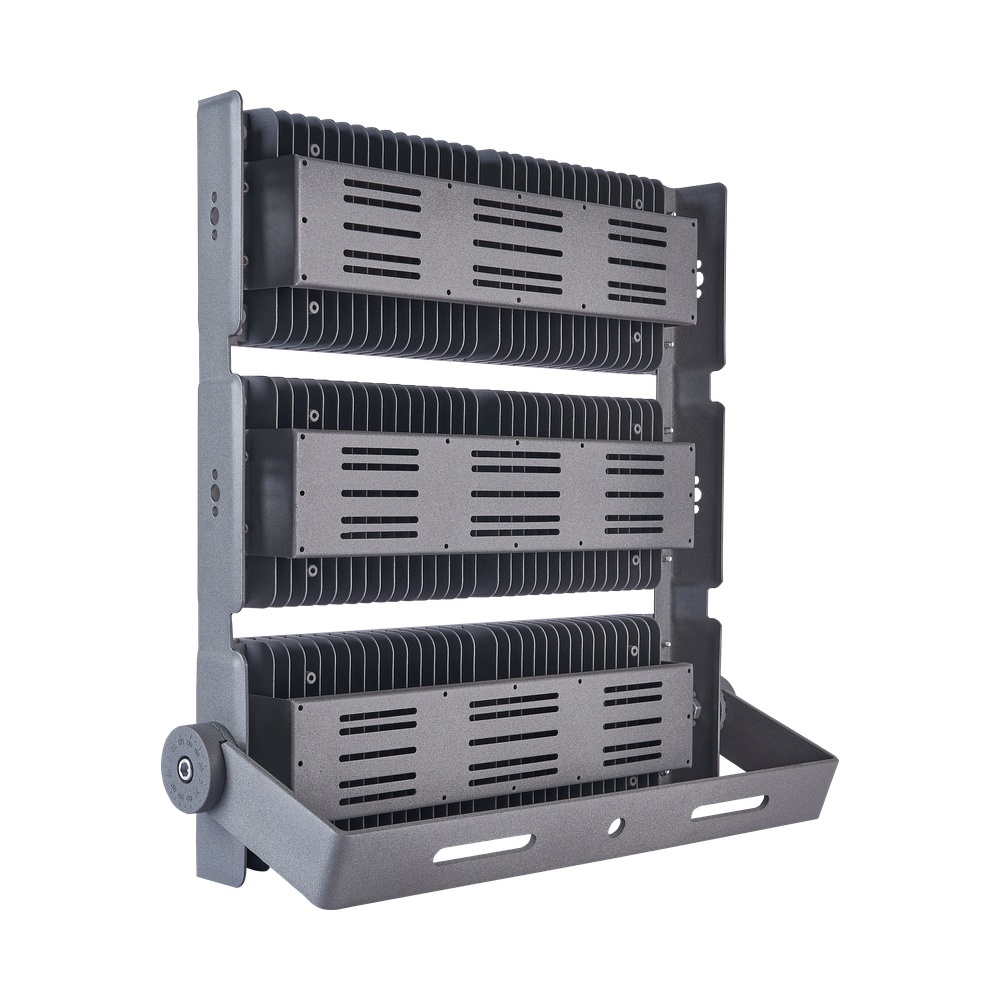

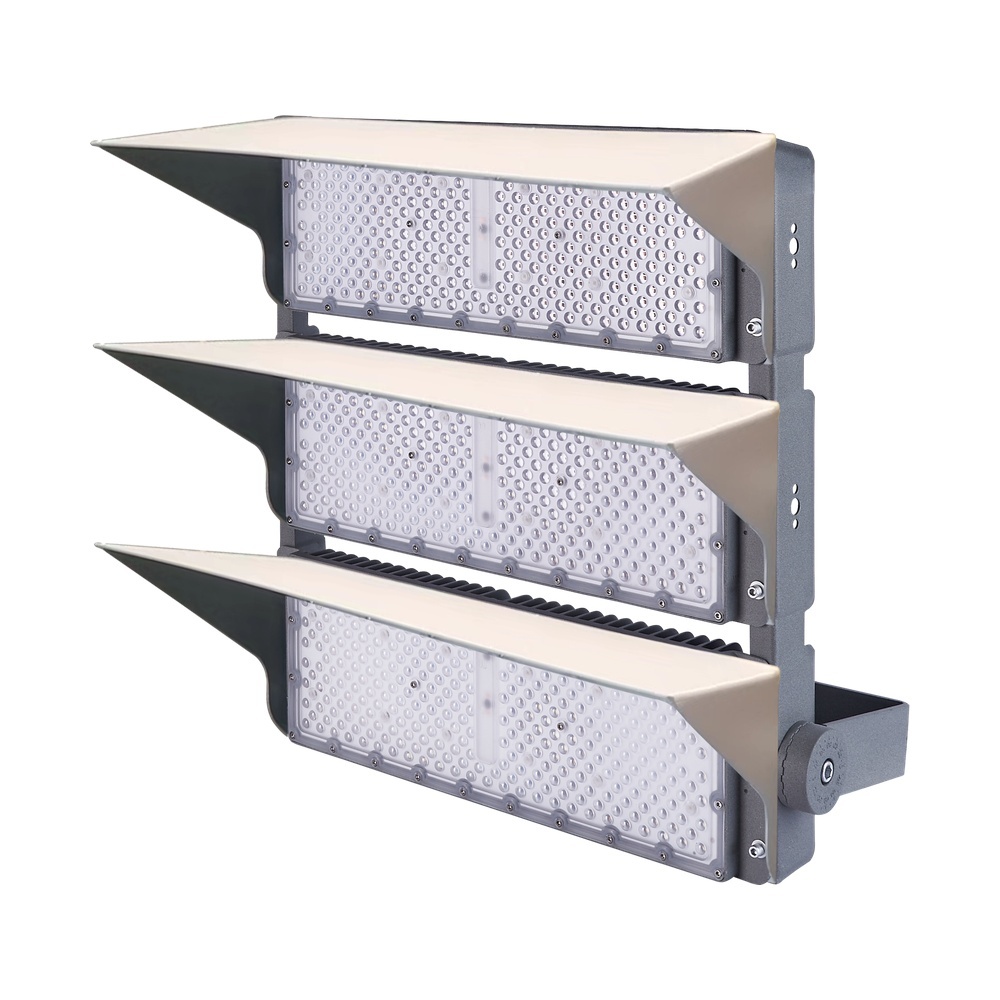

High Power Modular LED Flood Light is designed for large-scale outdoor lighting projects requiring powerful illumination and flexible configurations. Featuring single-row and double-row modular combinations, it supports multiple wattage options from 200W to 2000W to meet different project requirements.

With a durable aluminum housing, efficient thermal management, and adjustable mounting design, this modular flood light delivers reliable performance for stadiums, ports, airports, industrial areas, and other high-power lighting applications.

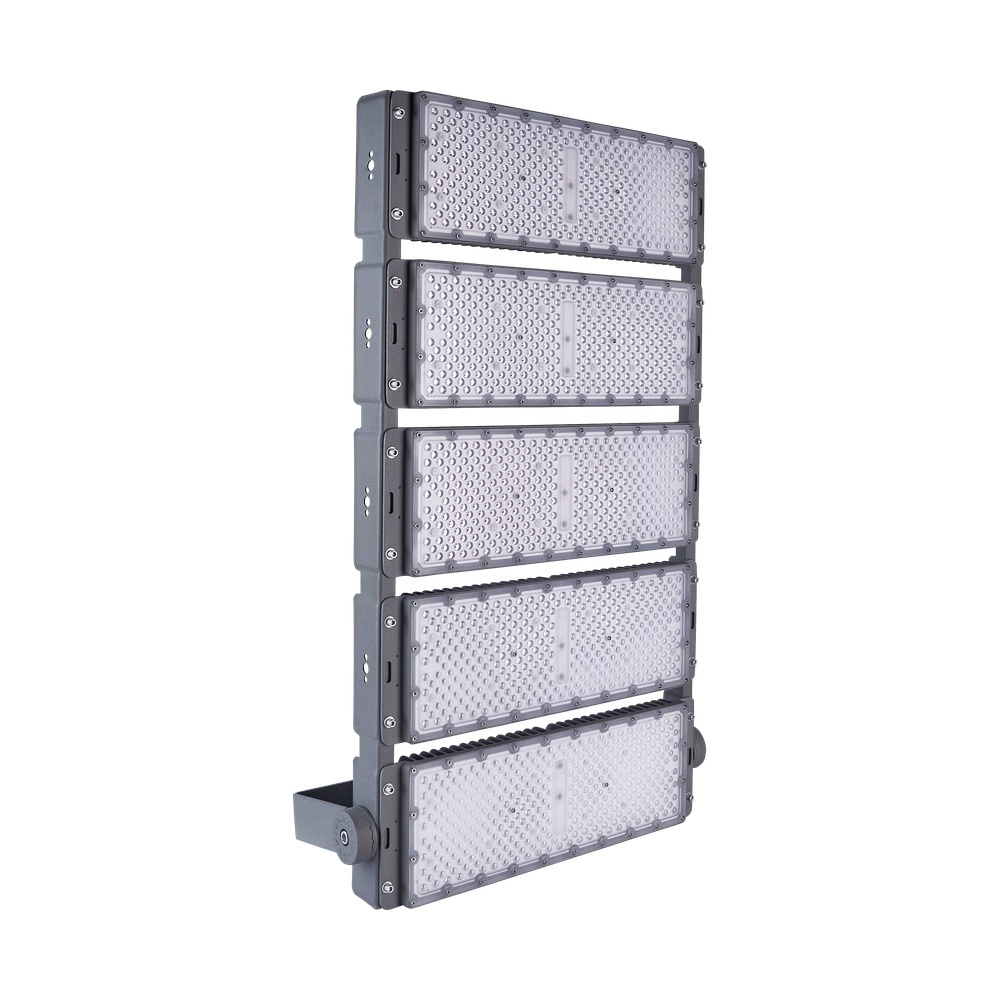

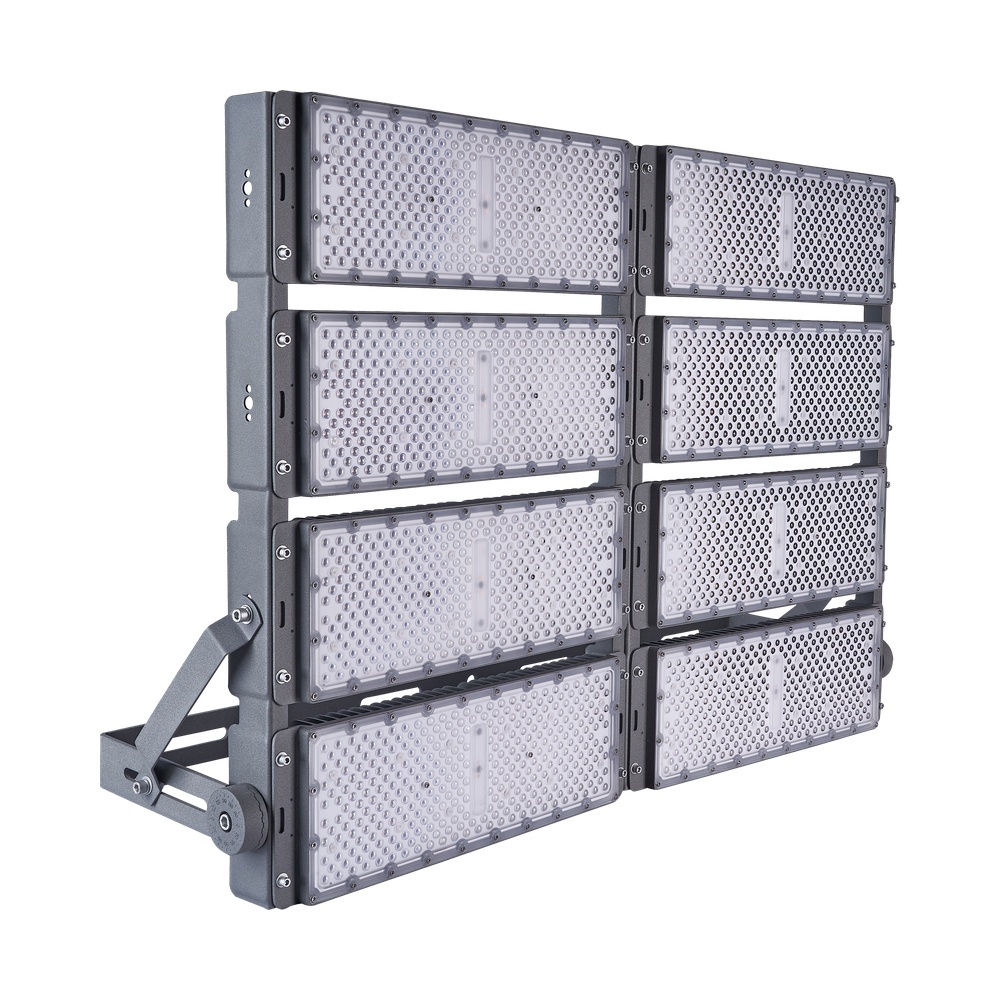

High Power Modular Configuration
Supports single and double-row module combinations from 200W up to 2000W, providing flexible solutions for different lighting projects.

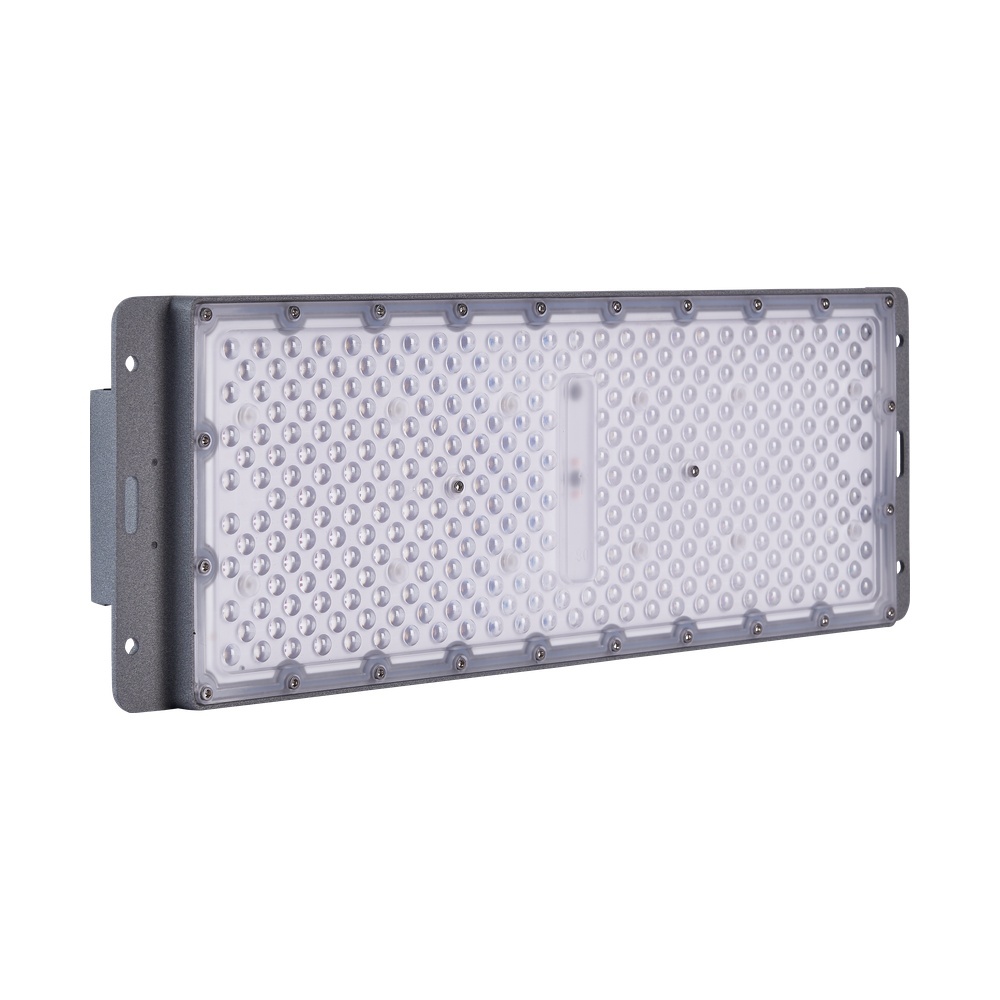

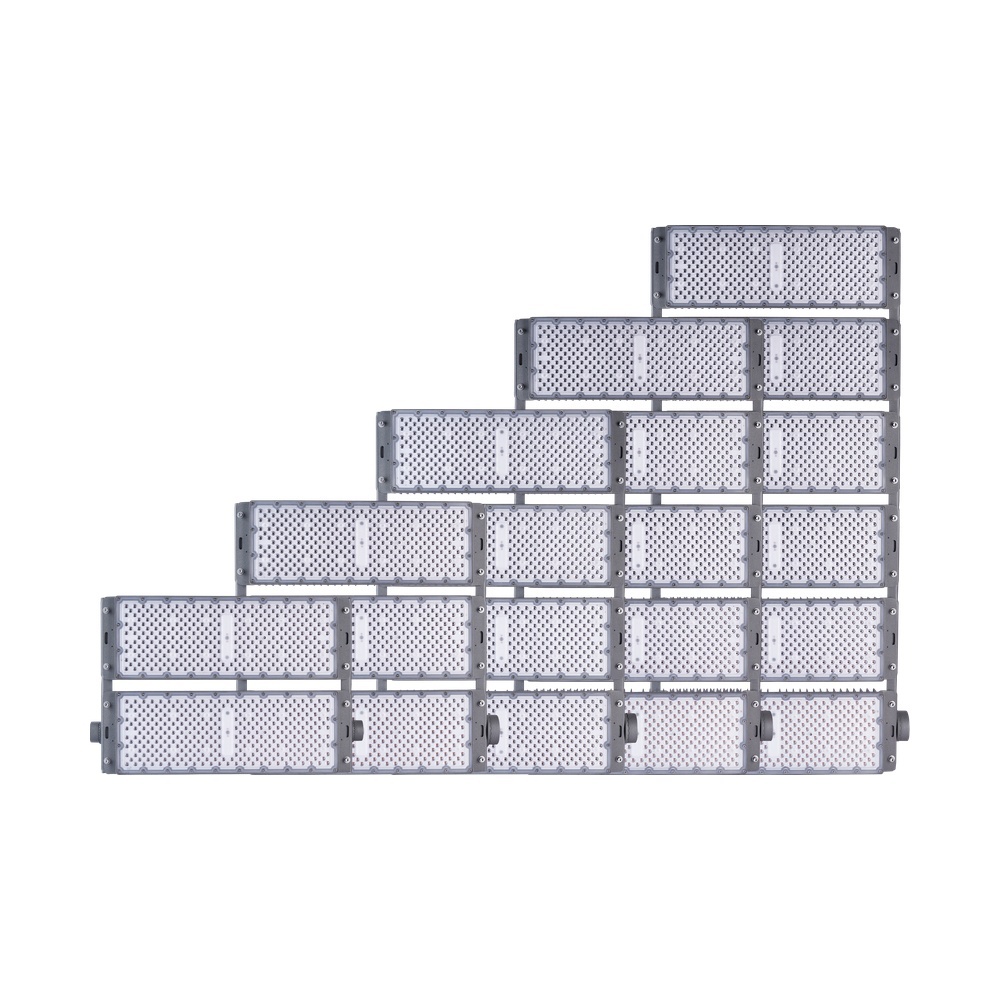

Scalable Design for Large Projects
Modular structure allows customized power configurations while simplifying installation, maintenance, and future upgrades.

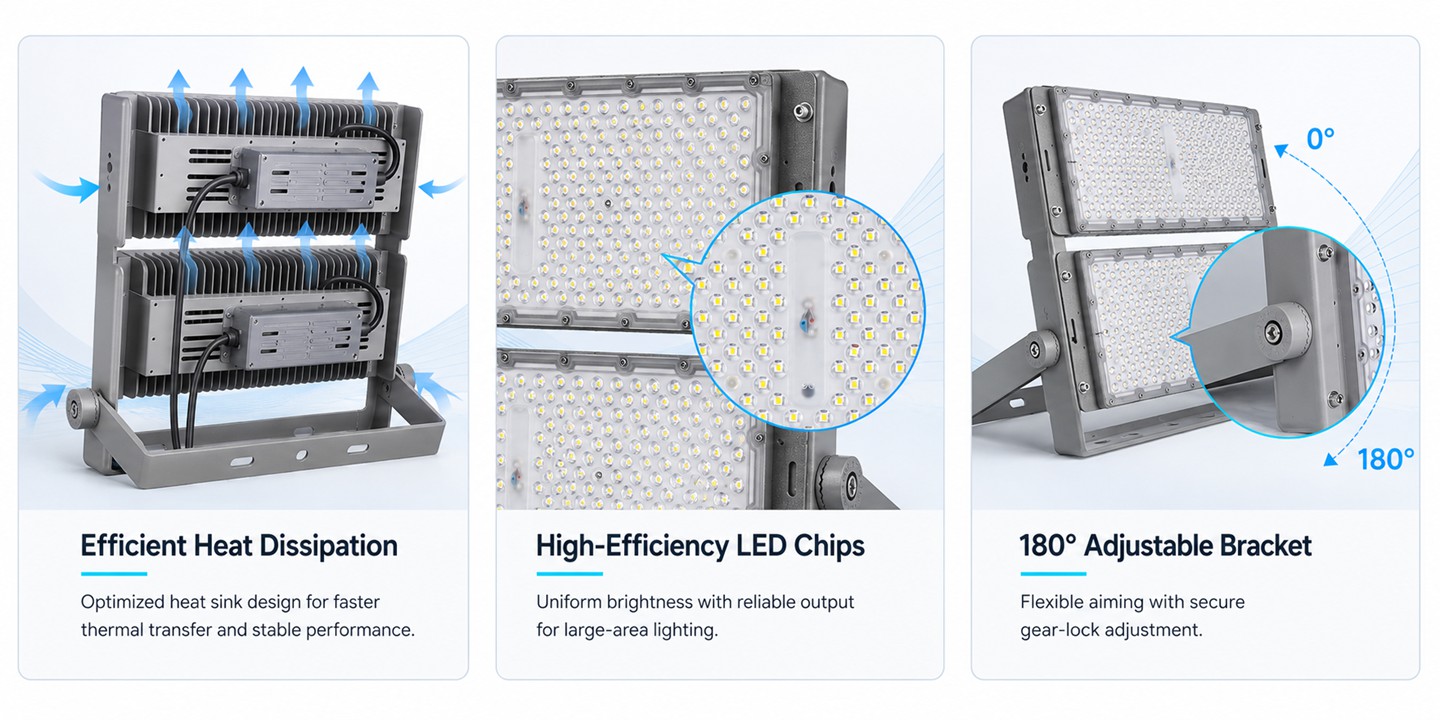

Efficient Thermal Management
Large-area aluminum heat dissipation structure helps maintain stable operation and extend LED lifespan.

Flexible Beam Adjustment
Adjustable mounting bracket enables precise lighting direction for different outdoor applications.

Built for Harsh Outdoor Environments
IP65 protection design ensures reliable operation in various weather conditions.

GET A QUOTE

Download

View all downloads

Product Description

200W-2000W High Power Modular LED Flood Light is a professional outdoor lighting solution engineered for high-output applications. Unlike standard modular flood lights, this series focuses on large-area illumination with single-row and double-row modular combinations, allowing customers to select the ideal power configuration from 200W to 2000W.

Designed for stadium lighting, high mast lighting, industrial yards, ports, airports, and large commercial spaces, this high power LED flood light combines powerful LED modules, optimized heat dissipation, and flexible installation options. The modular design also helps reduce maintenance costs by allowing easier replacement and configuration adjustments.

Built with a robust aluminum housing and outdoor protection structure, the fixture provides long-lasting performance in demanding environments while delivering uniform and efficient illumination.

Specifications:

Production Name	Modular LED Flood Lights
Series No	MZ200 Series

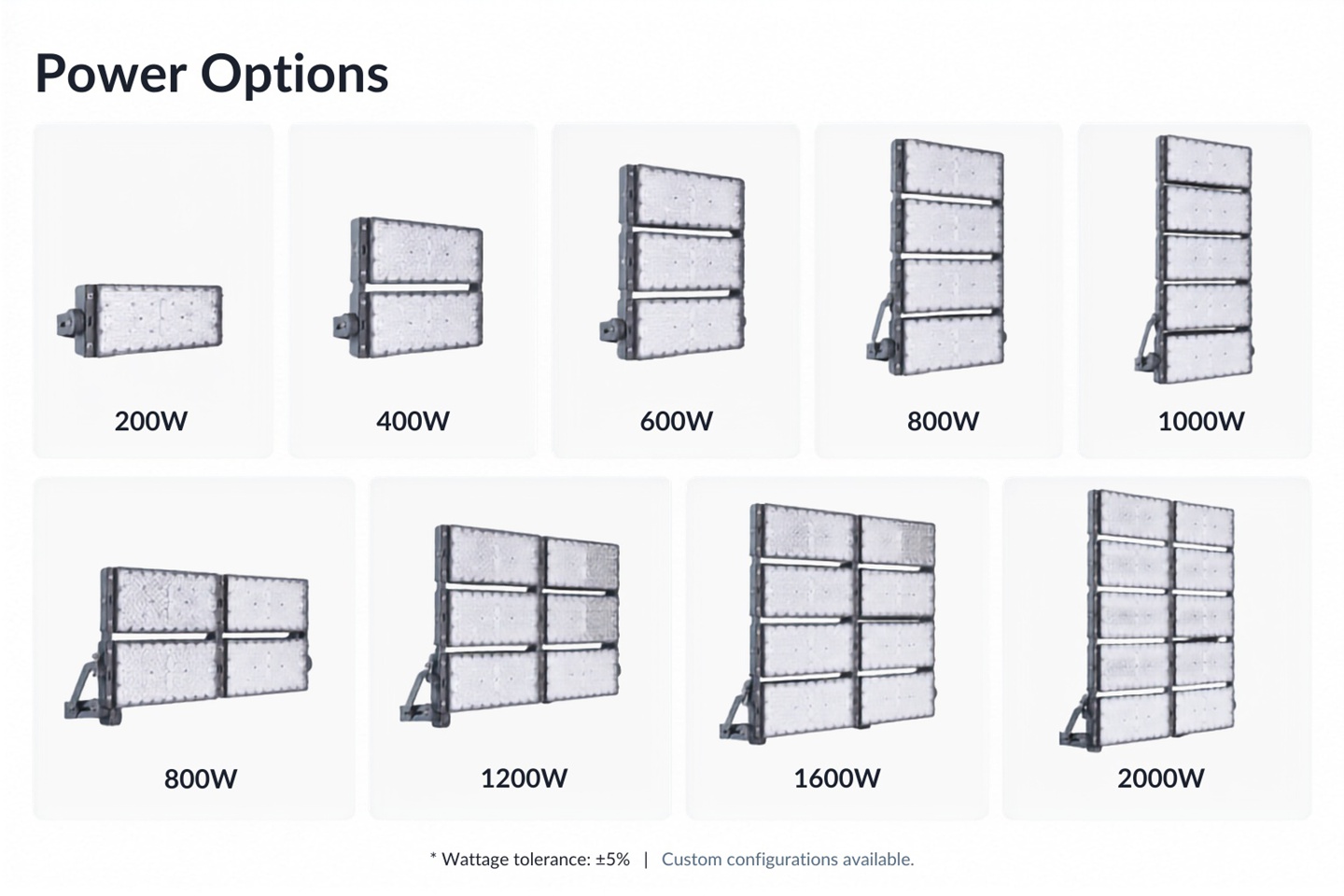

Power	200W, 400W, 600W, 800W, 1000W, 1200W, 1600W, 2000W
Efficacy	140lm/W
Input Voltage	100-277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	4KV
IP Rating	IP65
IK Rating	IK08
CCT	3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	140x70°
Mounting Option	Floor,Ceiling,Suction wall,Column
Warranty	3-5Years
Certification	CE, CB, ROHS, RCM, SAA

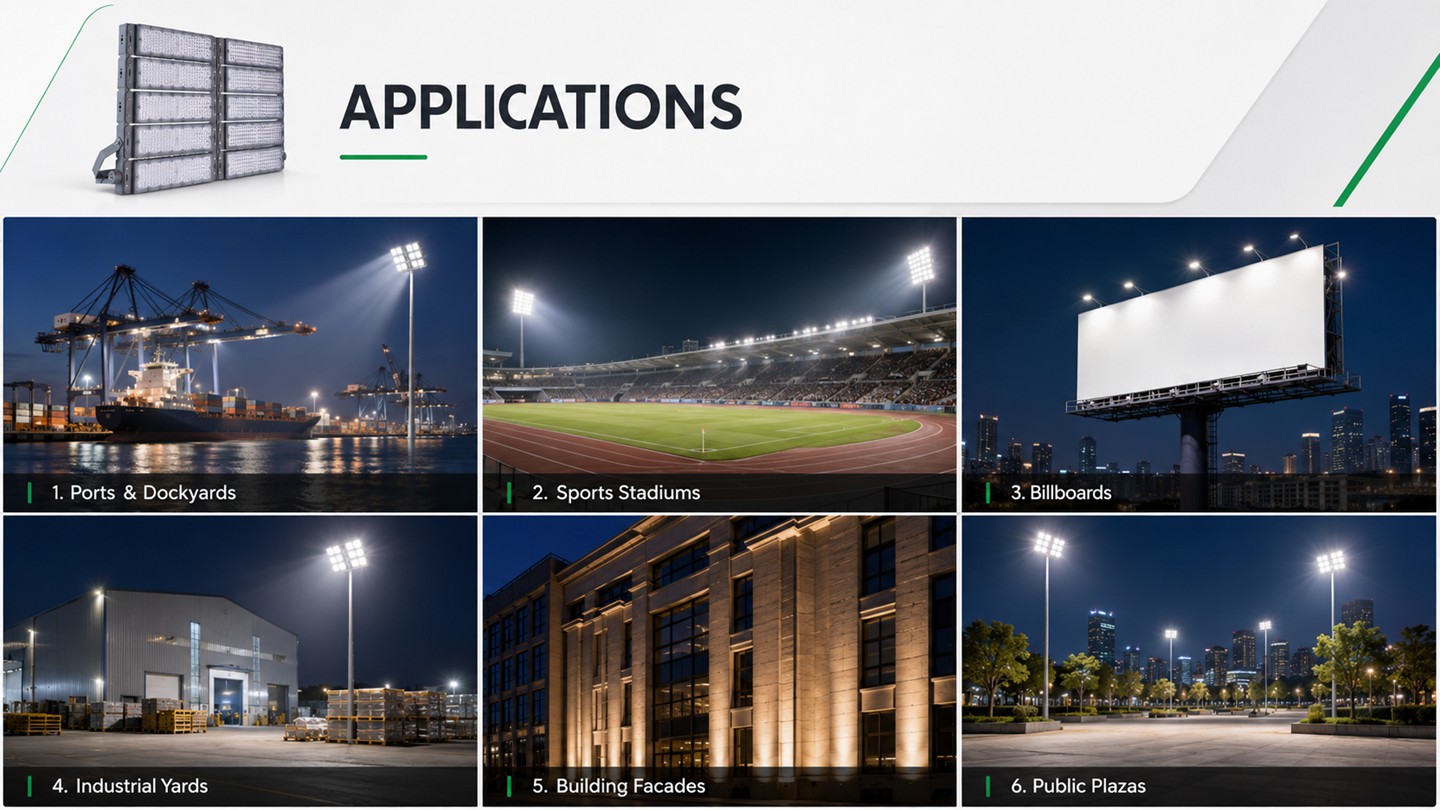

Stadium & Sports Lighting
The high power modular LED flood light provides strong and uniform illumination for stadiums, football fields, basketball courts, and large outdoor sports venues where high brightness and wide coverage are required.

Industrial & Large Area Lighting
Ideal for ports, airports, warehouses, factories, parking areas, construction sites, and high mast lighting projects requiring reliable high-output outdoor illumination.

FAQ:

Q1: What is the power range of this modular LED flood light?
A: This modular LED flood light supports flexible configurations from 200W to 2000W, including single-row and double-row module combinations for different project lighting requirements.

Q2: What makes this high power flood light different from standard LED flood lights?
A:The main difference is the modular combination design. Multiple LED modules can be assembled together to achieve higher wattage output, making it suitable for large-scale projects instead of regular outdoor lighting applications.

Q3: Can I customize the wattage configuration?
A:Yes. The modular structure allows customized configurations based on project requirements, including different module quantities, power levels, and installation solutions.

Q4: Where can this 200W-2000W LED flood light be used?
A:It is widely used for stadiums, high mast lighting, ports, airports, industrial facilities, parking areas, warehouses, and large outdoor commercial spaces.

Q5: Is this modular LED flood light suitable for outdoor environments?
A:Yes. With a durable aluminum housing and IP65 protection design, it is suitable for outdoor applications requiring reliable operation under different weather conditions.
