| Power | 50W | 100W | 150W | 200W |
| Model Number | HC-TLLD50 | HC-TLLD100 | HC-TLLD150 | HC-TLLD200 |
| Dimensions | 520*240*78.5mm | 605*240*78.5mm | 690*240*78.5mm | 775*240*78.5mm |
| Efficacy | 140LM/W (150lm/w optional) | |||
| Color Temperature | 3000K 4000K 5000K 5700K 6500K | |||
| Input Voltage | AC100-277V 50/60Hz | |||
| Beam Angle | 70x140° | |||
| Chips | SMD3030 | |||
| CRI | CRI>80 | |||
| Waterproof Rate | IP65 | |||
| Smart Control optional | NEMA/loTController or Photocell sensor Optional | |||
| Life Time @L70 | >100,000Hrs | |||
| Operating Temperature | -30°C to +45°C | |||
| Impact resistance | IK08 | |||

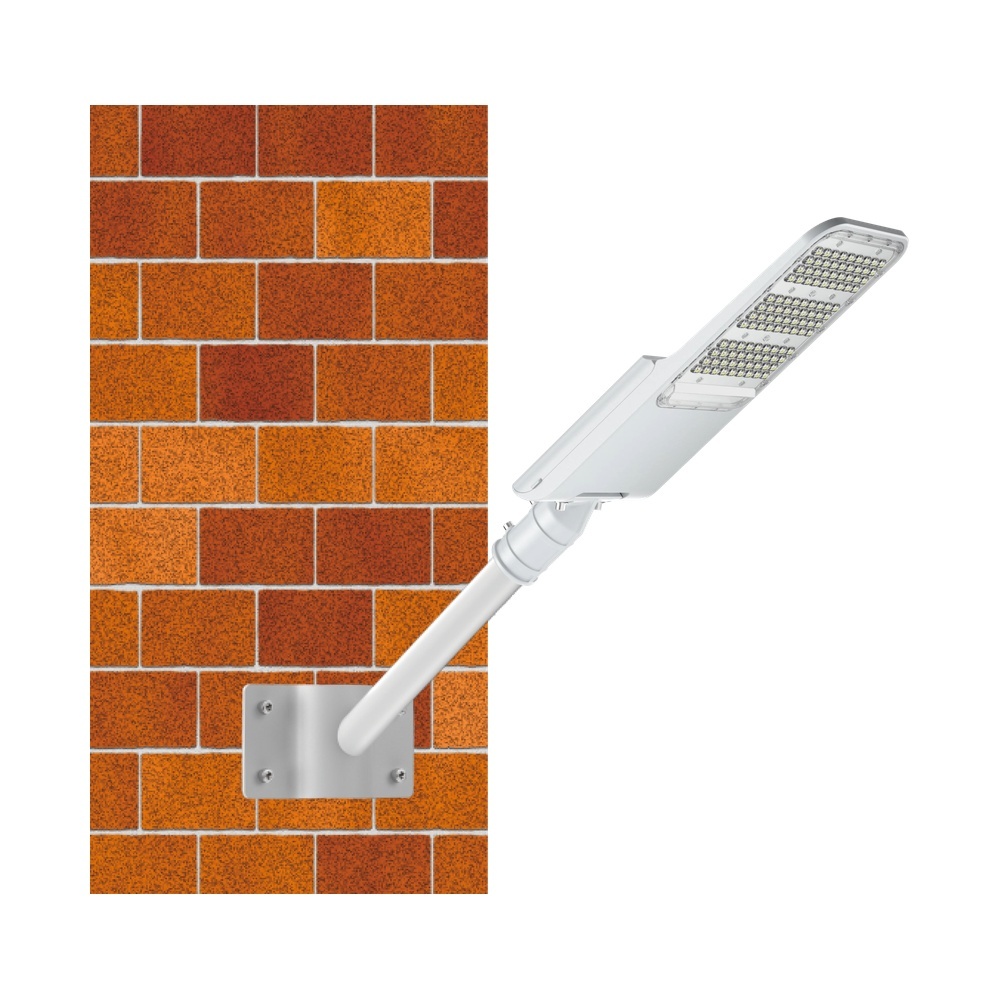

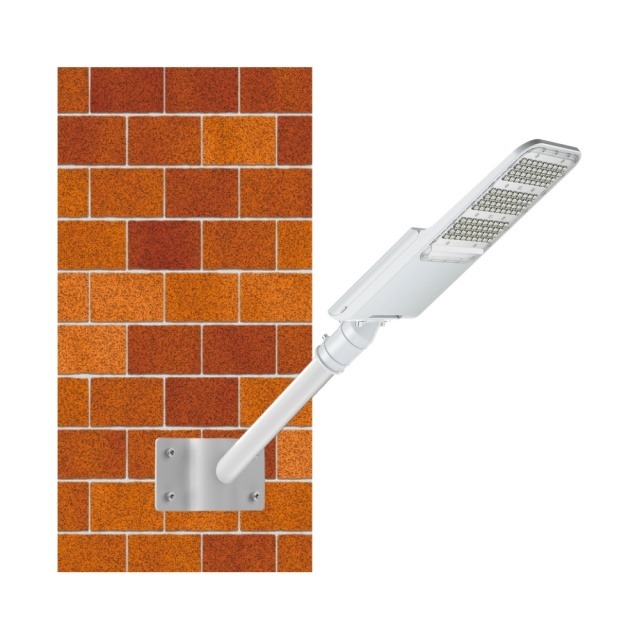

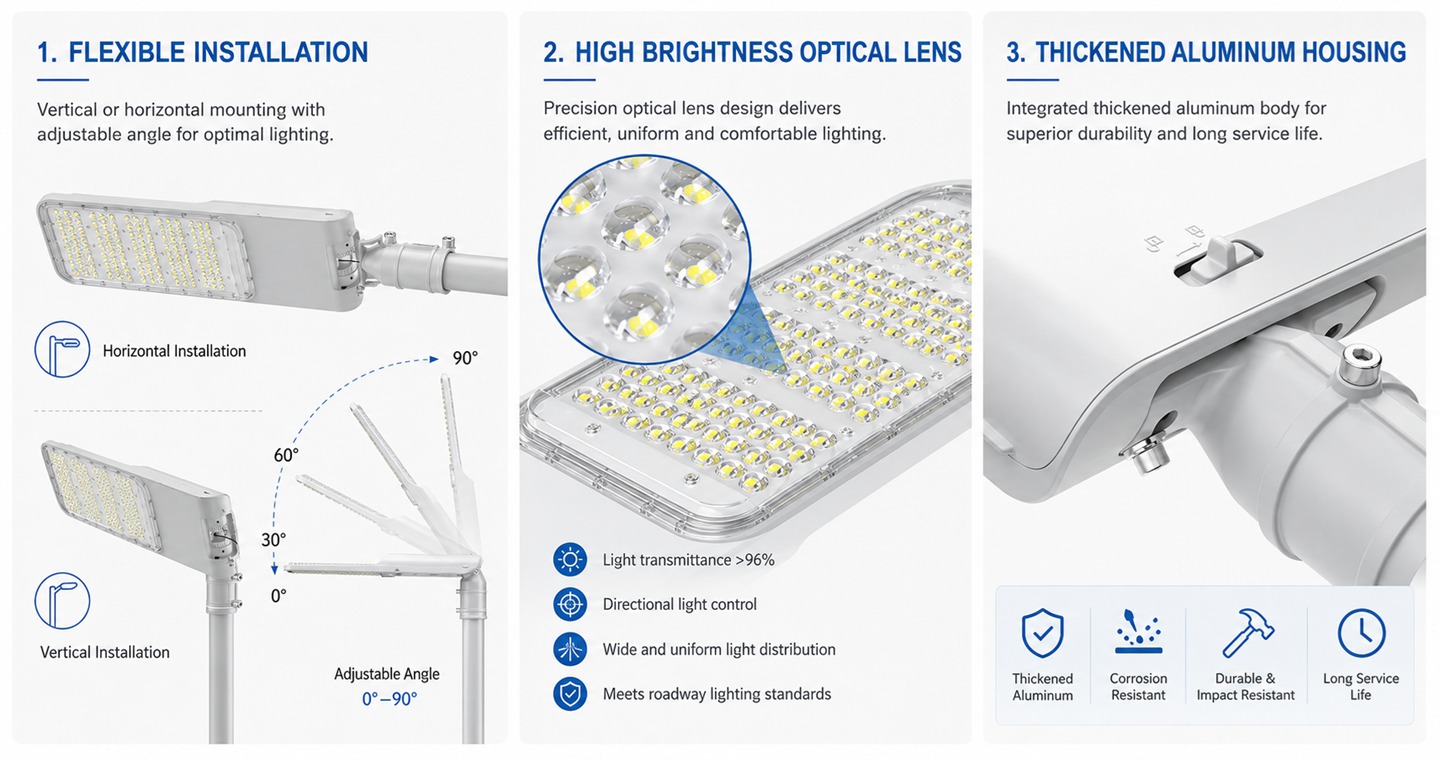

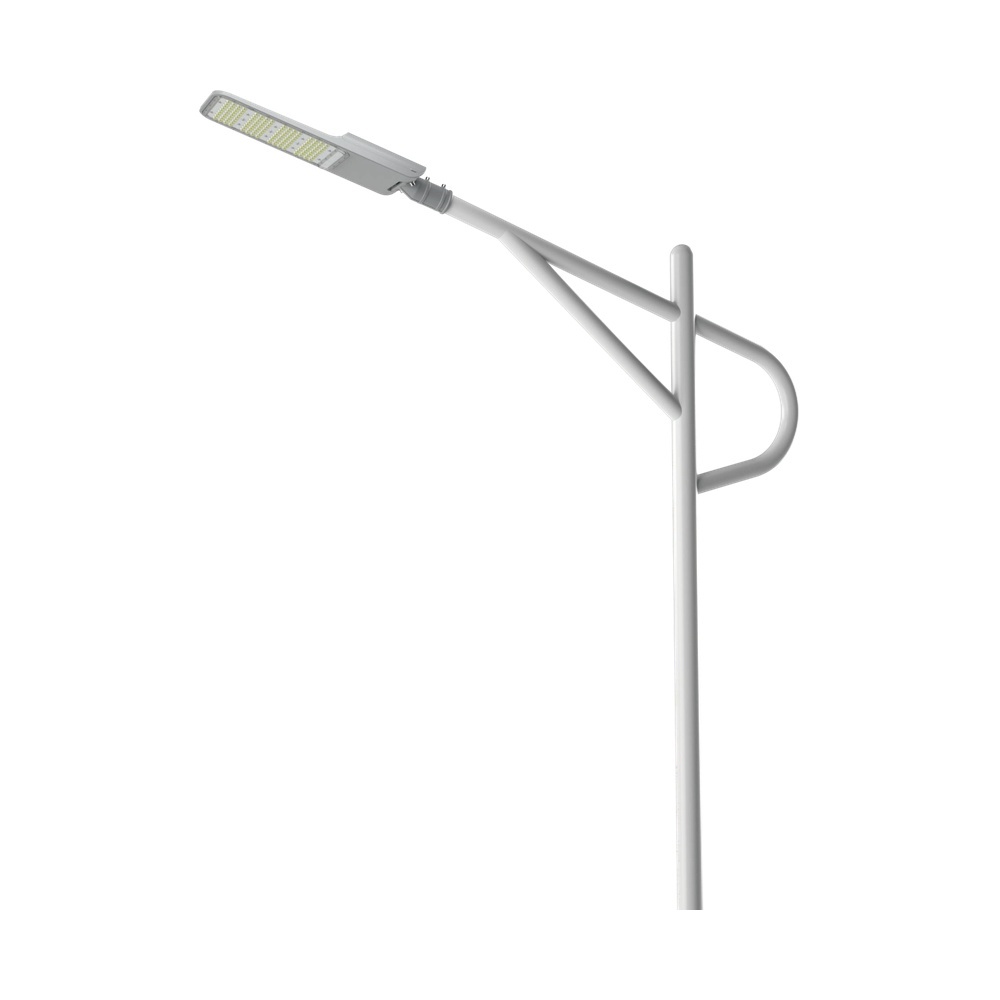

| Mounting Option | Pole / Wall Mounting | |||
| Switching Cycles | ＞100,000 times | |||

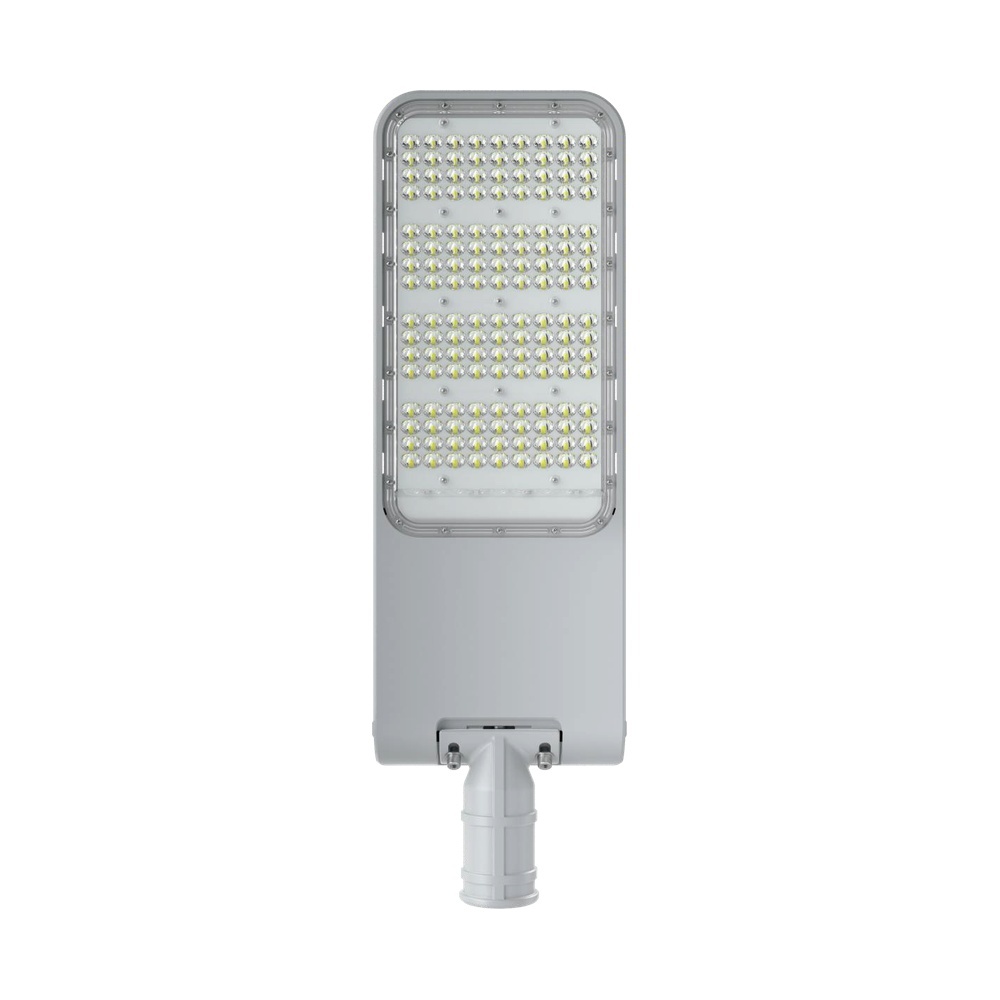

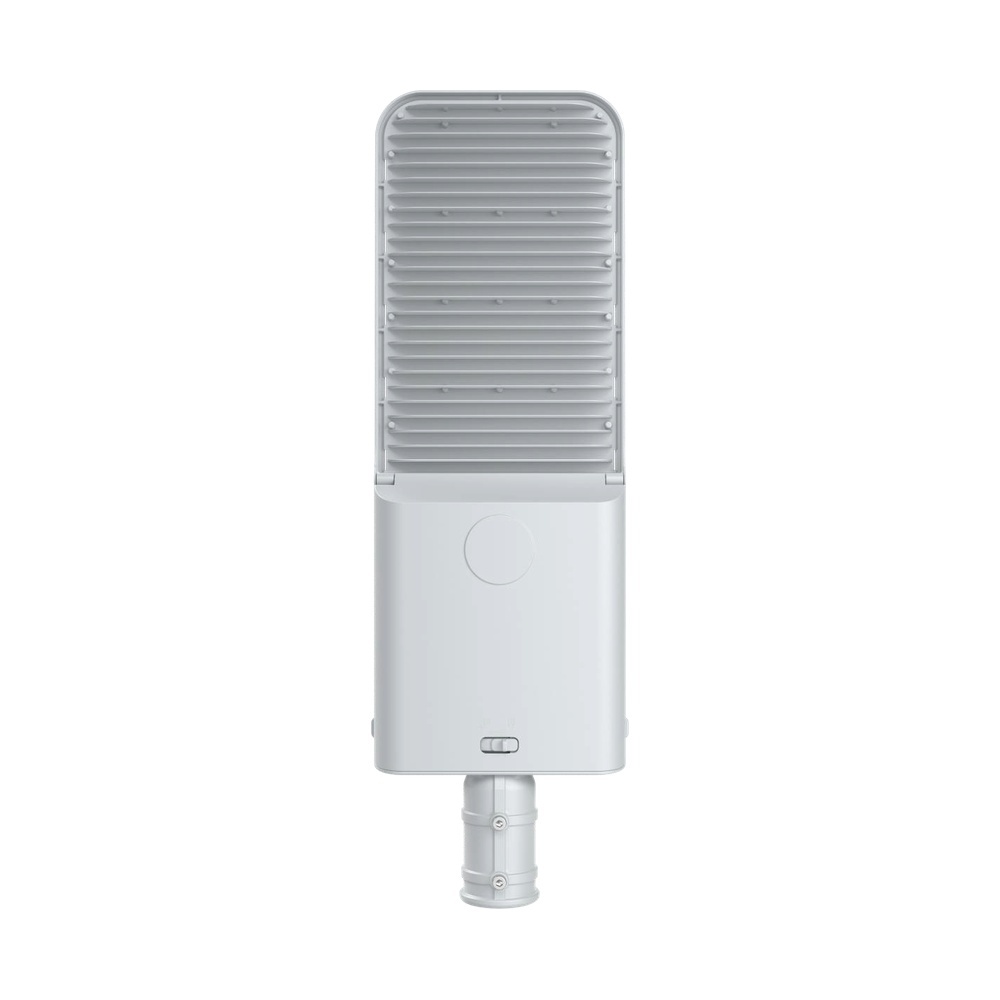

TLLD outdoor LED street light delivers efficient roadway illumination with a standard luminous efficacy of 140 lm/W, while configurations up to 150 lm/W are available for projects requiring higher energy efficiency. Its 70° × 140° optical distribution helps direct light along road surfaces, improving useful illumination while supporting more uniform outdoor lighting.
Built for demanding outdoor environments, the fixture features IP65 weather protection, IK08 impact resistance, AC100–277V input and a durable aluminum housing. Optional photocell sensors and NEMA/IoT controllers provide additional flexibility for automatic dusk-to-dawn operation and smart street lighting projects.
TLLD Series is suitable for urban roads, residential streets, rural roads, industrial parks, parking areas, campuses and other public outdoor spaces. Four wattage options make it easier to match different road widths, mounting heights and project lighting requirements.It is also suitable for contractors, distributors and infrastructure projects requiring a dependable commercial LED street light with wide-voltage compatibility, outdoor durability and optional smart lighting control.
FAQ:

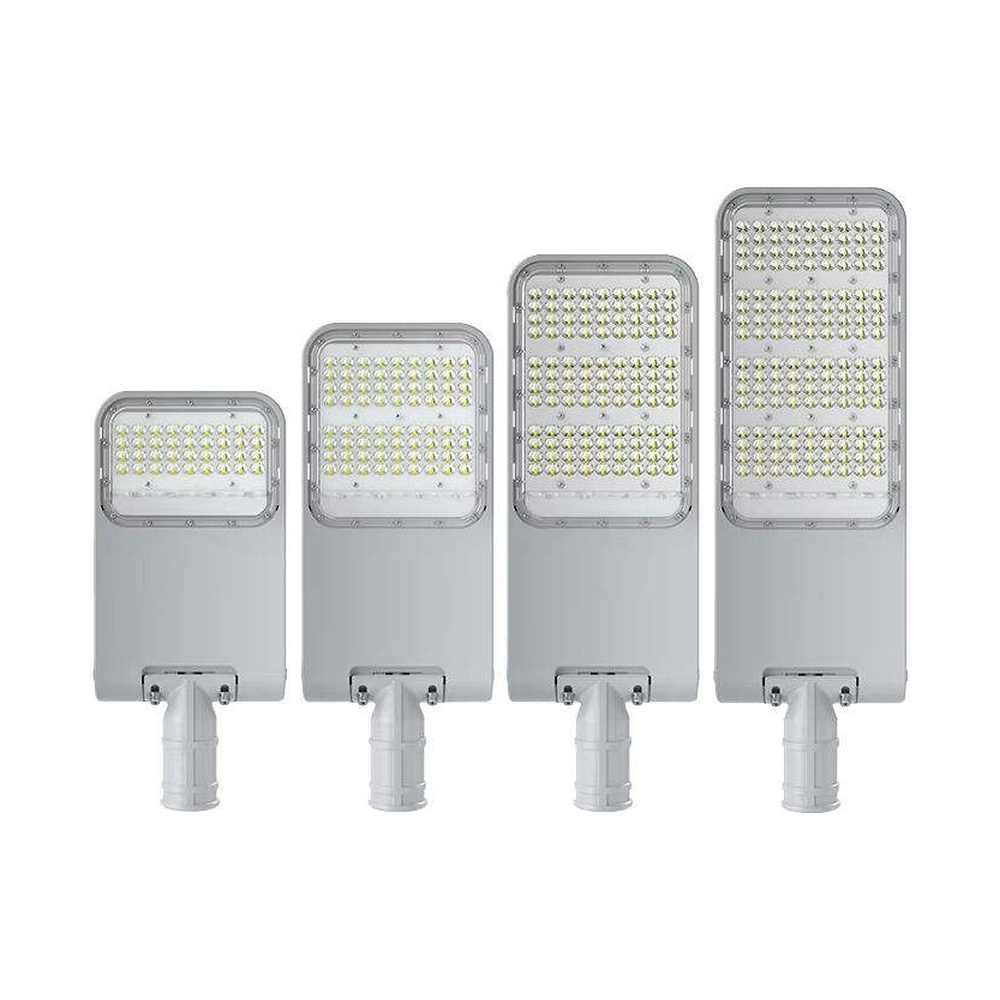

Q1. What wattages are available for the TLLD LED street light ?
The TLLD Series is available in 50W, 100W, 150W and 200W. Lower wattages can be considered for smaller roads and residential applications, while higher wattages are better suited to wider roads, industrial areas and larger outdoor spaces. Final wattage selection should be based on pole height, road width, pole spacing and required illumination levels.
Q2. How efficient is the TLLD LED street light ?
The TLLD LED street light provides 140 lm/W standard luminous efficacy, with versions up to 150 lm/W optional. This high-efficiency design helps deliver strong roadway illumination while reducing electricity consumption and long-term operating costs.
Q3. Is the TLLD LED street light suitable for rainy outdoor environments ?
Yes. The TLLD Series has an IP65 waterproof rating, making it suitable for normal outdoor exposure to rain, dust and changing weather conditions. Its IK08-rated housing also provides additional resistance against physical impact.

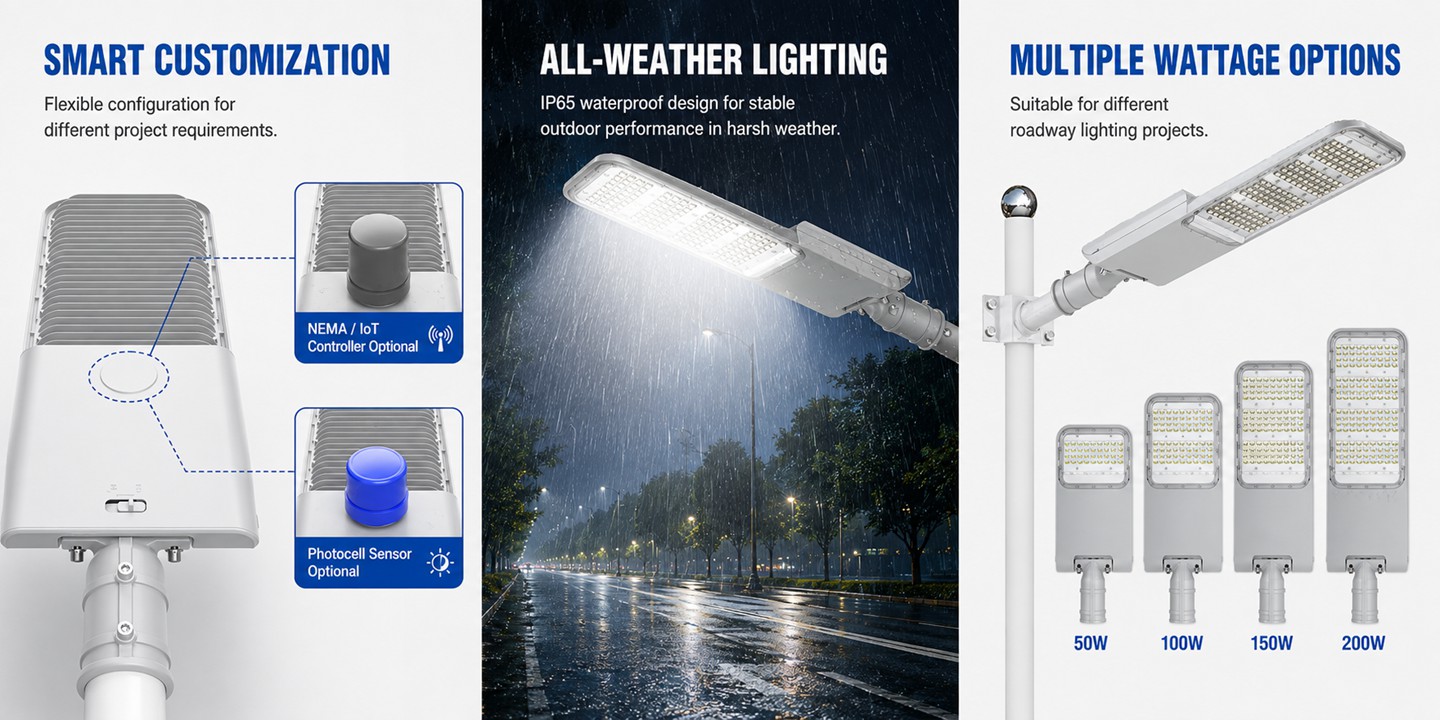

Q4. Does this LED street light support photocell or smart lighting control ?
Yes. Photocell sensors and NEMA/IoT controllers are available as optional configurations. A photocell can automatically switch the light on at night and off during daylight, while compatible smart controllers can support more advanced roadway lighting management.
Q5. What color temperature and voltage options are available ?
The TLLD Series supports 3000K, 4000K, 5000K, 5700K and 6500K color temperatures and operates on AC100–277V, 50/60Hz. This wide voltage range makes the fixture suitable for a variety of international commercial and infrastructure lighting projects.
