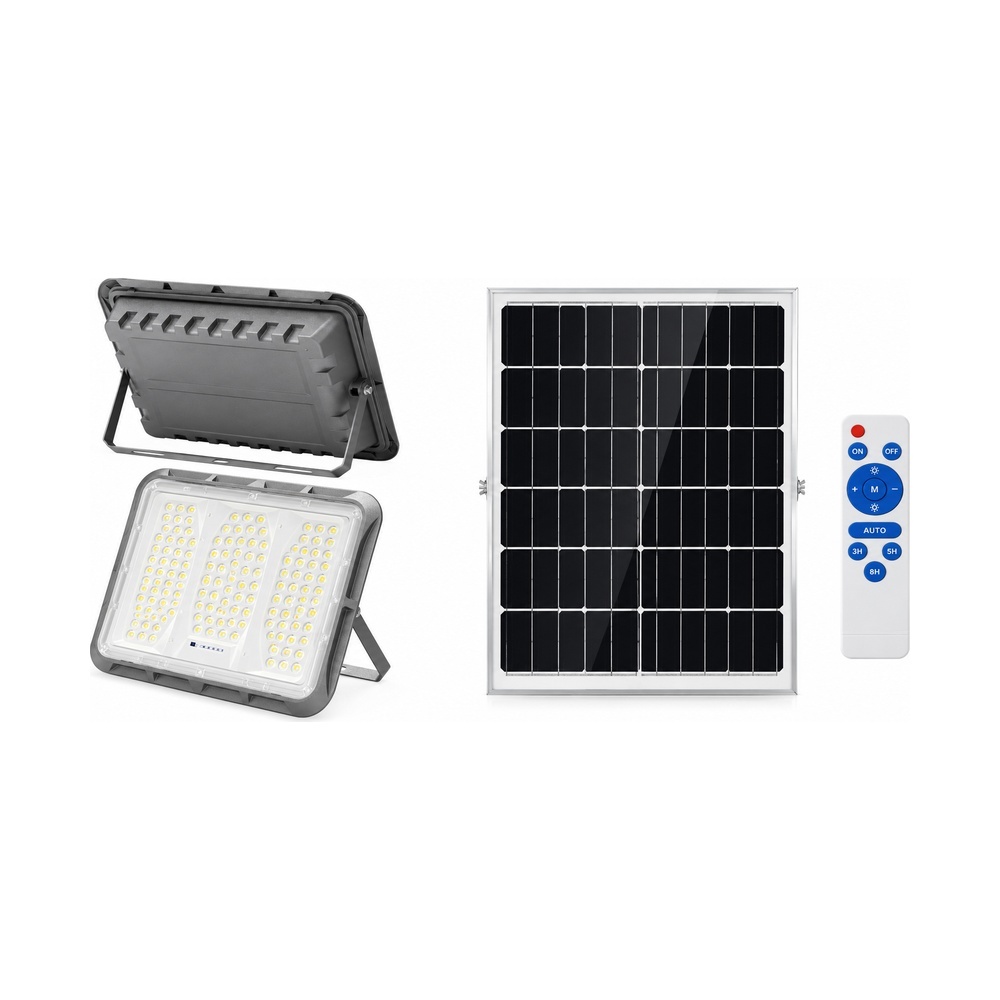

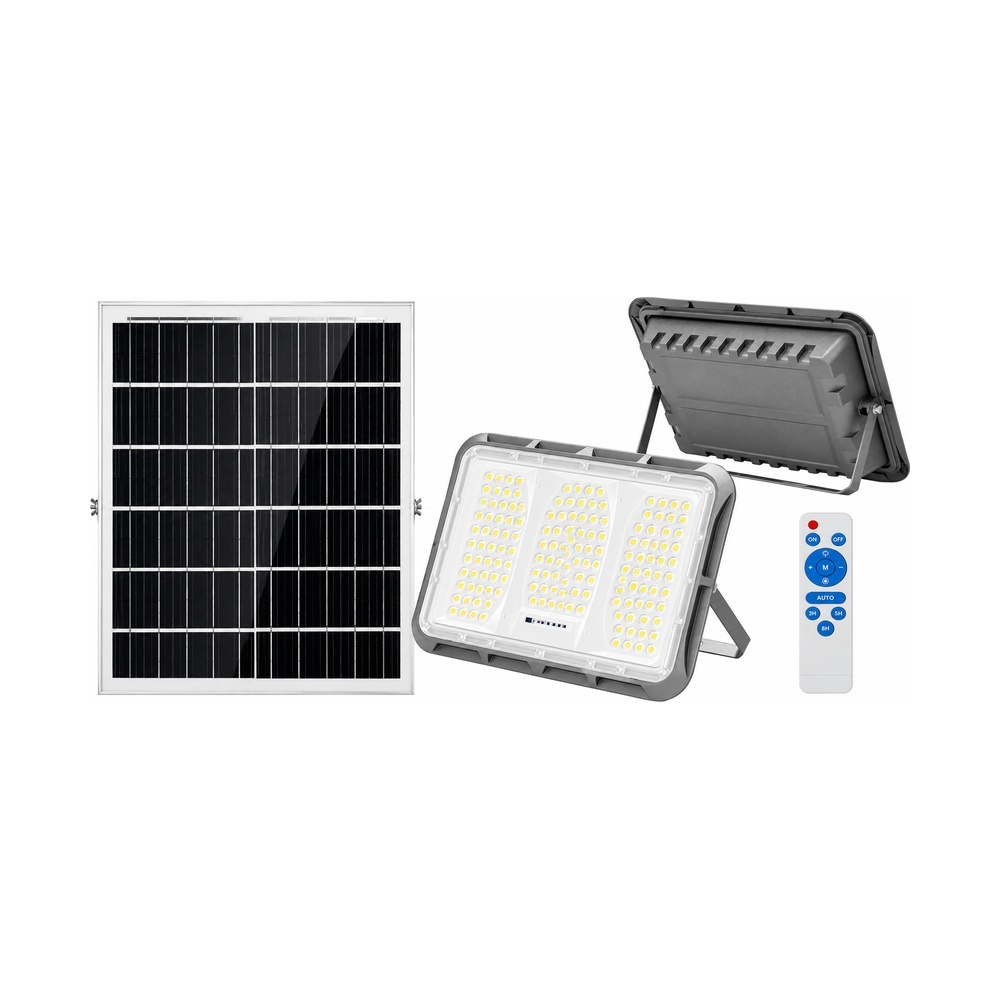

The HC-TTG02-JL ABS housing solar flood light is designed for outdoor locations that need convenient, independent illumination without conventional electrical wiring. Its split solar configuration allows the monocrystalline solar panel to be positioned for effective sunlight collection while the LED flood light can be aimed separately toward the required lighting area.
Powered by a LiFePO4 battery and SMD LED light source, the system supports intelligent light control, remote control and automatic daytime charging. A visible charging indicator simplifies status monitoring, while IP65 protection and selectable 90° or 120° beam angles provide flexibility for residential and general outdoor area lighting.

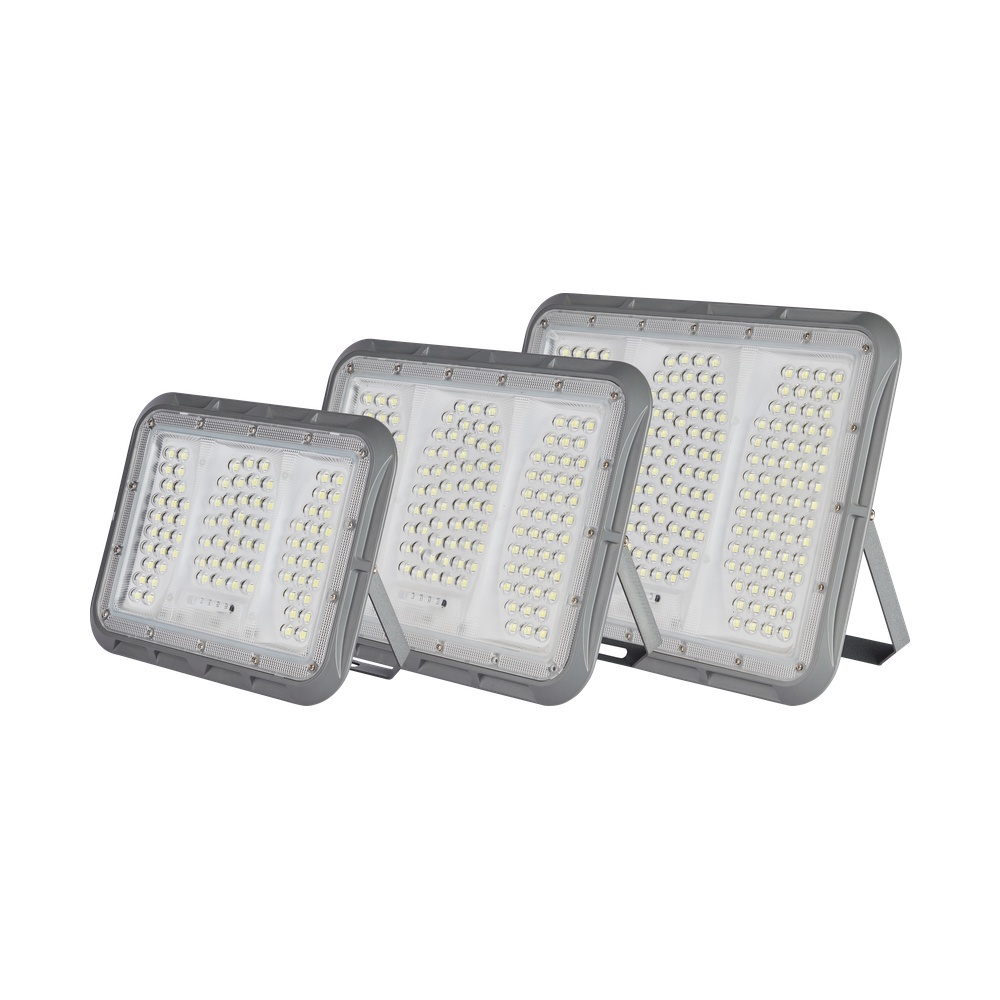

| Power | 100W | 150W | 200W | 300W | 500W | 1000W |
| Model Number | HC-TTG02-JL100 | HC-TTG02-JL150 | HC-TTG02-JL200 | HC-TTG02-JL300 | HC-TTG02-JL500 | HC-TTG02-JL1000 |
| Dimensions | 240x190x65mm | 280x220x65mm | 330x260x65mm | 390x300x65mm | 460x355x66mm | 540x415x66mm |
| Solar Panel | 6V 8W Mono | 6V 12W Mono | 6V 20W Mono | 6V 25W Mono | 6V 30W Mono | 6V 35W Mono |
| Battery Capacity | 3.2V 5Ah | 3.2V 10Ah | 3.2V 15Ah | 3.2V 20Ah | 3.2V 25Ah | 3.2V 30Ah |
| Battery | LiFePO4 | |||||
| Color Temperature | 6500K (Other CCT optional) | |||||
| Charging Time | 4-6 hours | |||||
| Beam Angle | 90° or 120° | |||||
| Chips | SMD | |||||
| CRI | CRI>80 | |||||
| Waterproof Rate | IP65 | |||||
| Light Time | 12hrs per night, 2-3 rainy days | |||||
| Controller | Intelligent light control / Remote Control | |||||
| Main Materials | Aluminium + PC lens | |||||
| Warranty | 2 years | |||||
| Functions | Automatic Charging In The Daytime, Automatic lighting at night | |||||
The HC-TTG02-JL is suitable for courtyards, gardens, driveways, garages, entrances, patios, backyards and building surroundings. Automatic light control makes it especially useful for locations where users prefer lighting that operates with minimal daily intervention.
It can also provide solar-powered illumination around farms, small parking areas, recreational spaces, workshops and remote outdoor facilities. The separate solar panel enables flexible placement when the best sunlight direction differs from the required lighting direction.
Q1: What makes the HC-TTG02-JL different from a standard solar flood light?
A: The HC-TTG02-JL combines automatic solar operation with a visible charging indicator, allowing users to check system status more easily while still benefiting from intelligent day/night lighting and remote control.
Q2: Does this solar flood light automatically turn on at night?
A: Yes. The intelligent light control supports automatic charging during the daytime and automatic illumination after dark, reducing the need for daily manual operation.
Q3: How long can the HC-TTG02-JL operate after charging?
A: The specified operating time is approximately 12 hours per night, with support for around 2–3 rainy days depending on sunlight, model, battery condition and operating mode. Typical charging time is approximately 4–6 hours under suitable sunlight.
Q4: What is the difference between the 90° and 120° beam options?
A: The 90° beam provides more concentrated area lighting, while the 120° beam spreads illumination across a wider area. The appropriate option depends on mounting height, installation distance and desired coverage.
Q5: Does the HC-TTG02-JL require electrical wiring?
A: No grid connection is required for normal solar operation. The separate solar panel converts sunlight into stored battery energy, making the fixture suitable for outdoor locations where conventional wiring is unavailable or inconvenient.
