Description

Product Description：

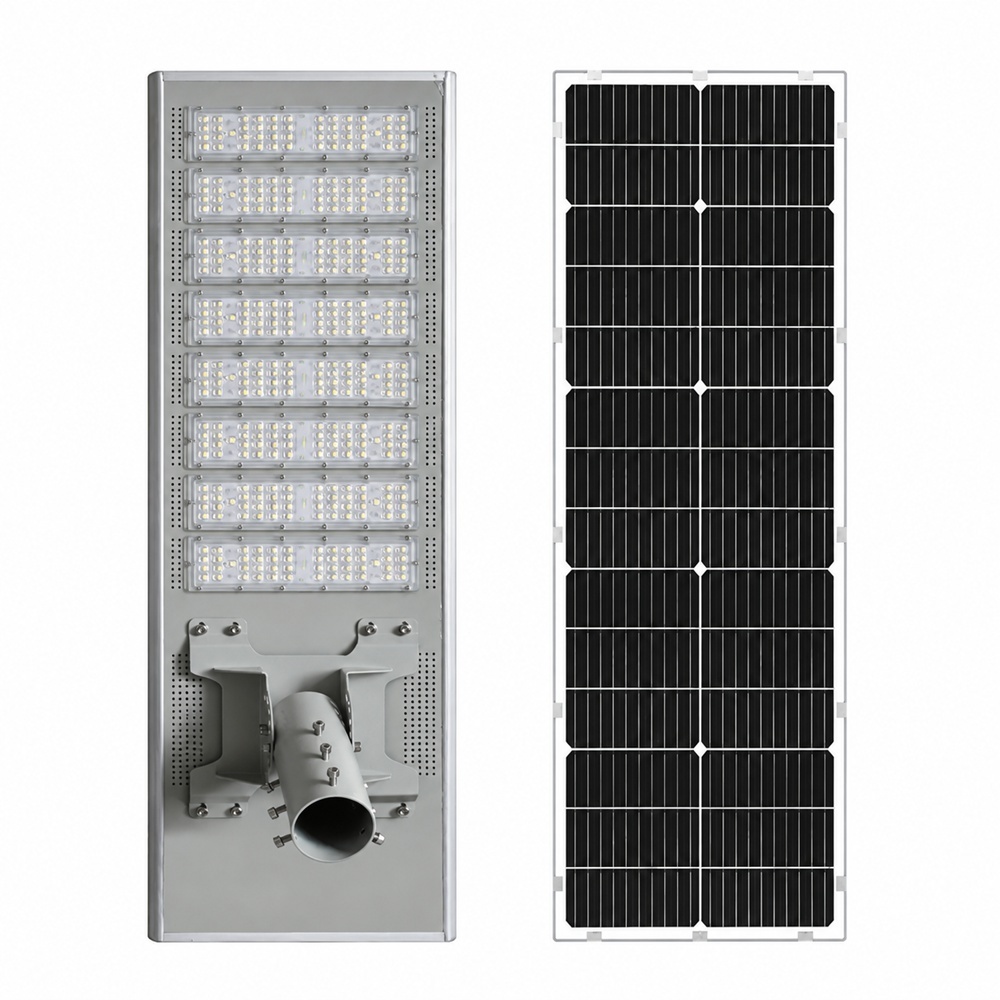

Solar LED street light is designed for outdoor areas where grid wiring is unavailable, expensive or inconvenient. The integrated solar lighting system uses a monocrystalline solar panel with MPPT charging and LiFePO4 battery storage to provide efficient energy collection and dependable nighttime lighting

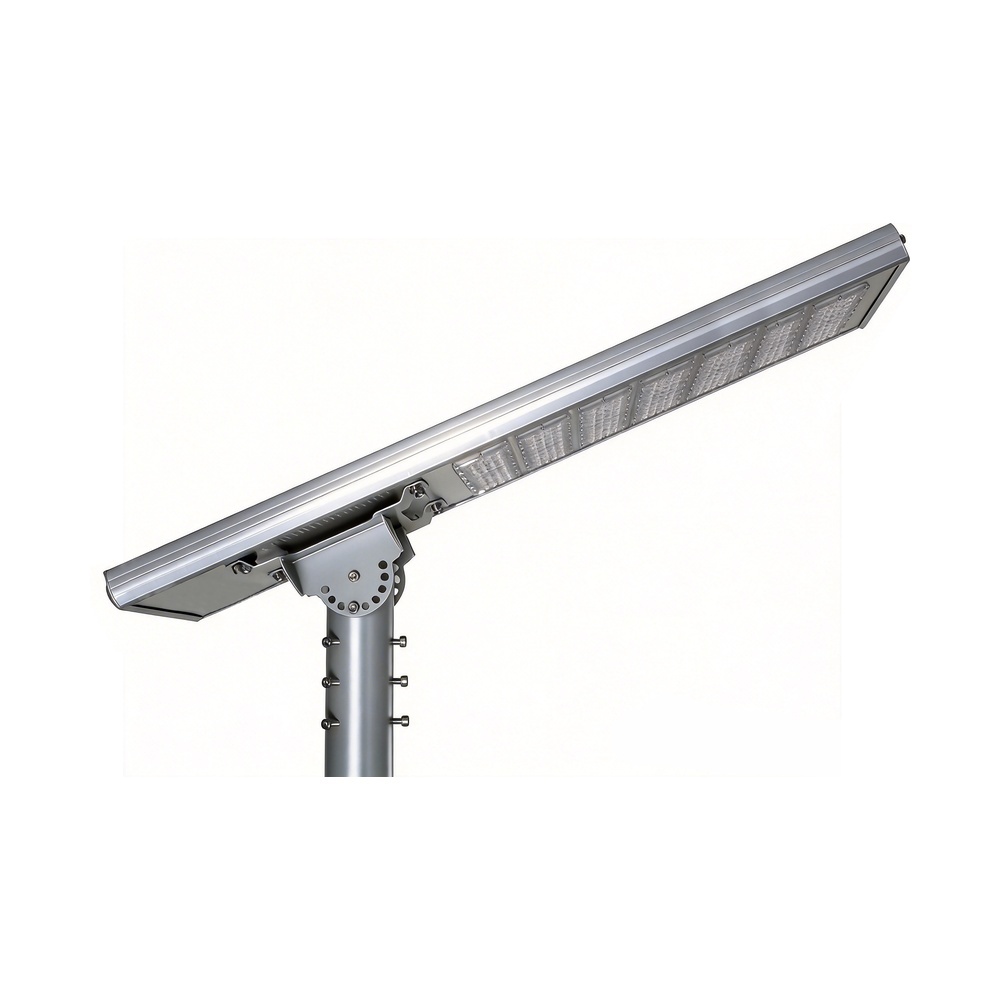

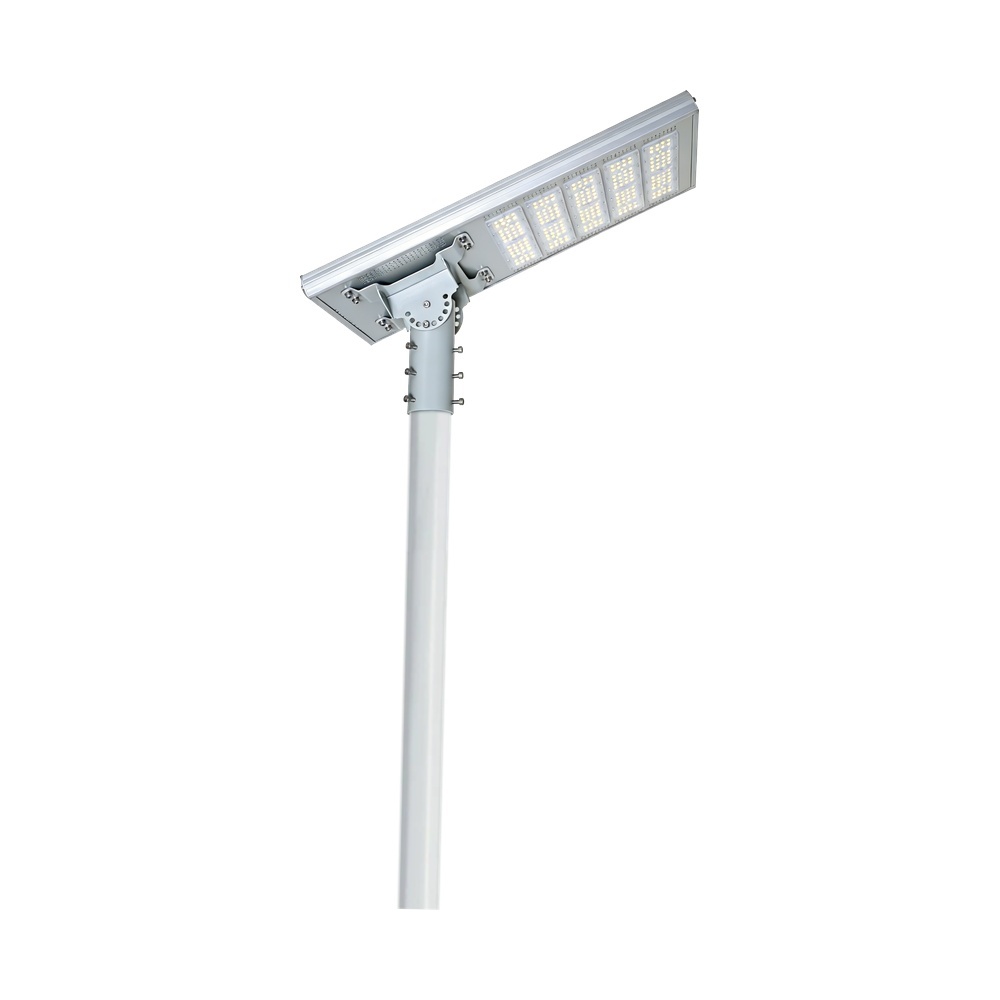

Its adjustable lamp structure allows the lighting direction to be adapted to different road layouts, while optional PIR or microwave sensing supports intelligent lighting control. This all-in-one solar street light is suitable for roads, communities, parks, campuses and other outdoor solar lighting applications requiring simple installation and low daily maintenance.

Specifications:

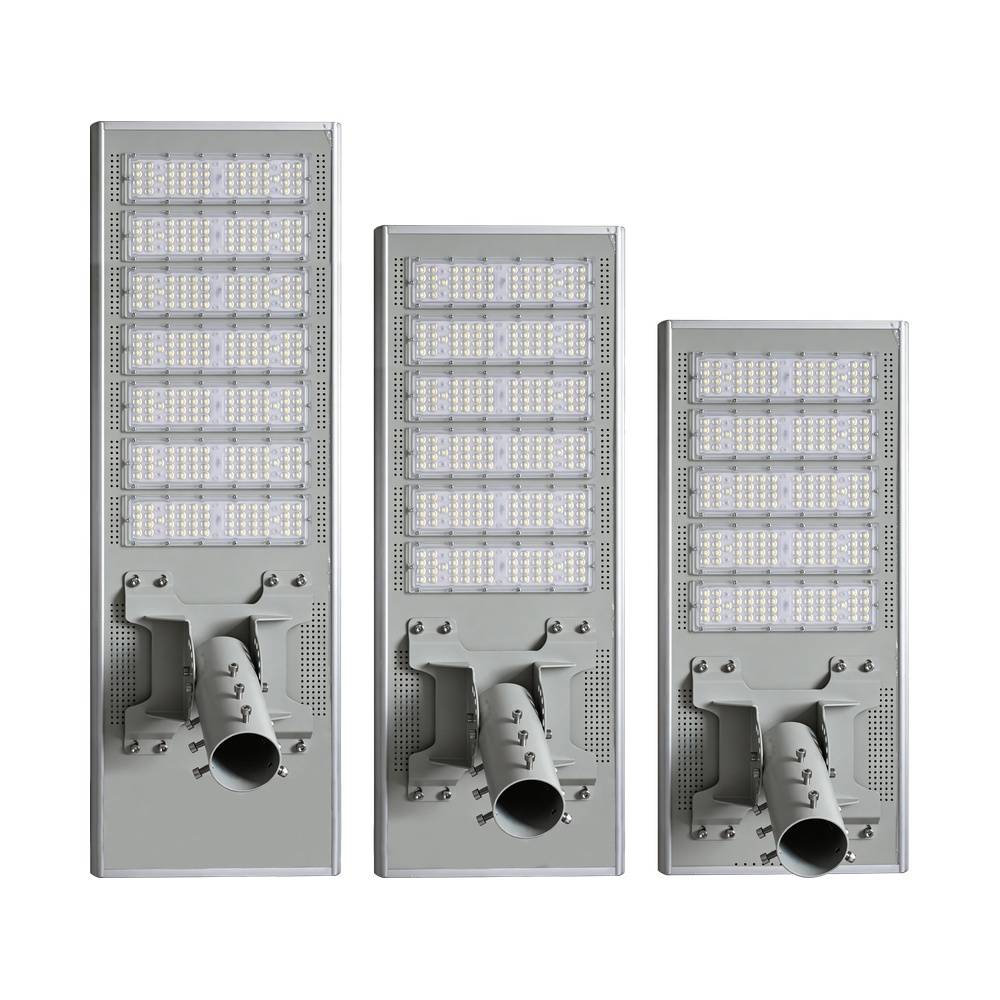

Power	300W	400W	500W	600W	700W
Model Number	HC-LDLY-DL300	HC-LDLY-DL400	HC-LDLY-DL500	HC-LDLY-DL600	HC-LDLY-DL700
Dimensions	800x365x50mm	900x365x50mm	1070x365x50mm	1310x365x50mm	1510x365x50mm
Solar Panel	50W / Mono	60W / Mono	70W / Mono	80W / Mono	100W / Mono
Battery Capacity	3.2V / 45AH	3.2V / 60AH	3.2V / 75AH	3.2V / 90AH	3.2V / 105AH
Battery	LiFePO4
Color Temperature	6500K (Other CCT optional)
Charging Time	6-7 hours
Bean Angle	70x140°
Chips	SMD5054
CRI	CRI>80
Waterproof Rate	IP65
Light Time	12hrs per night, 3-5 rainy days
Controller	MPPT
Sensor Optional	PIR / Microwave optional
Working Mode	Time + Sensor / Custom
Installation Height	6-9M

It is suitable for urban roads, community roads, campuses, parks, parking lots and public outdoor areas, providing independent solar-powered illumination without conventional underground cabling.
It can also be used for rural roads, farms, remote areas and developing infrastructure projects where access to the electrical grid is limited or where a self-contained outdoor lighting solution is preferred.

FAQ:

Q1. How long can the LDLY-DL solar street light operate at night?
A: The LDLY-DL is designed to provide approximately 12 hours of lighting per night and can support around 3–5 rainy days, depending on solar conditions, system configuration and selected operating mode.

Q2. What battery and solar controller does this all-in-one solar street light use?
A: The series uses a LiFePO4 battery together with an MPPT solar controller. MPPT technology helps manage solar charging efficiently, while LiFePO4 provides stable energy storage for regular outdoor operation.

Q3. Does the LDLY-DL support motion sensors?
A: Yes. PIR and microwave motion sensors are optional. The working mode can also be configured with time control, sensor control or customized operating settings according to project requirements.

Q4. What mounting height is recommended for this solar street light?
A: The recommended installation height is approximately 6–9 meters. The exact height and spacing should be selected according to road width, required illumination and the specific HC-LDLY-DL configuration.

Q5. Where is the LDLY-DL all-in-one solar street light commonly used?
A: It is suitable for urban and rural roads, residential communities, campuses, parks, parking areas, farms and remote locations. Its self-contained solar design is particularly useful where grid connection or underground cabling is difficult.
