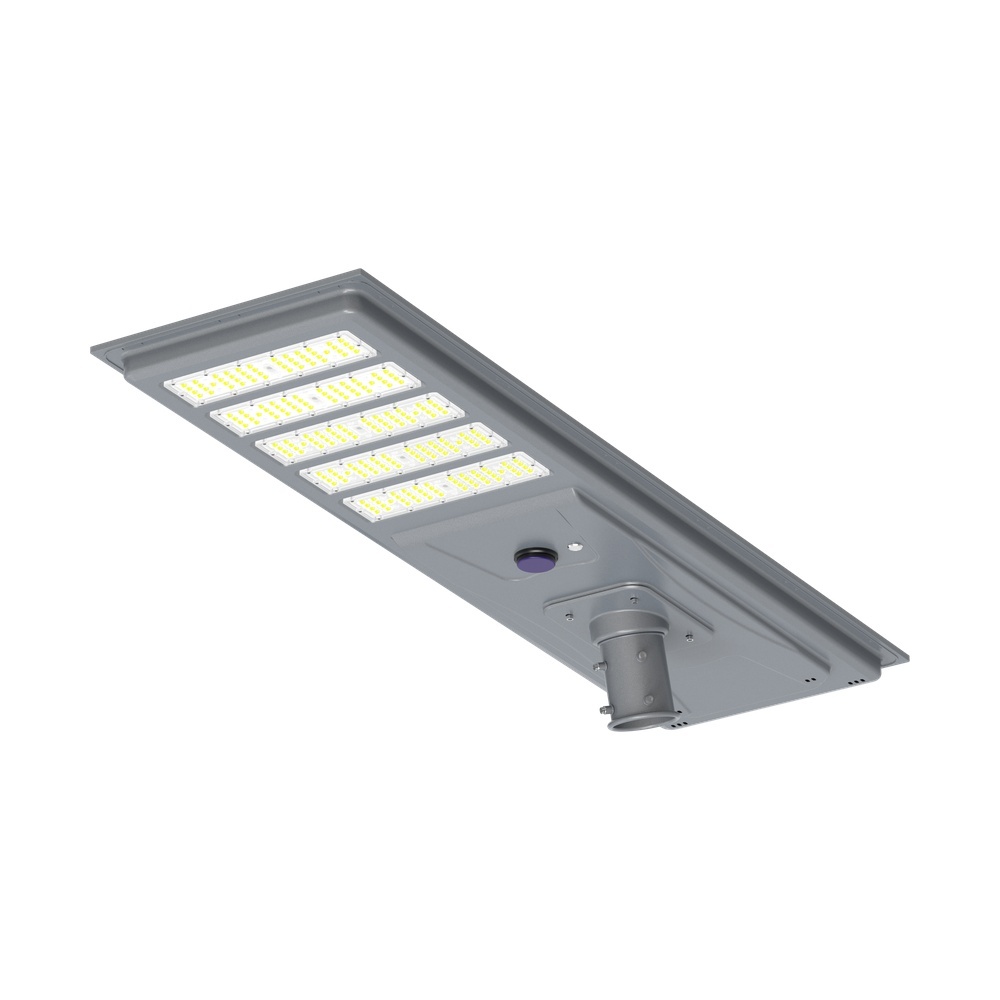

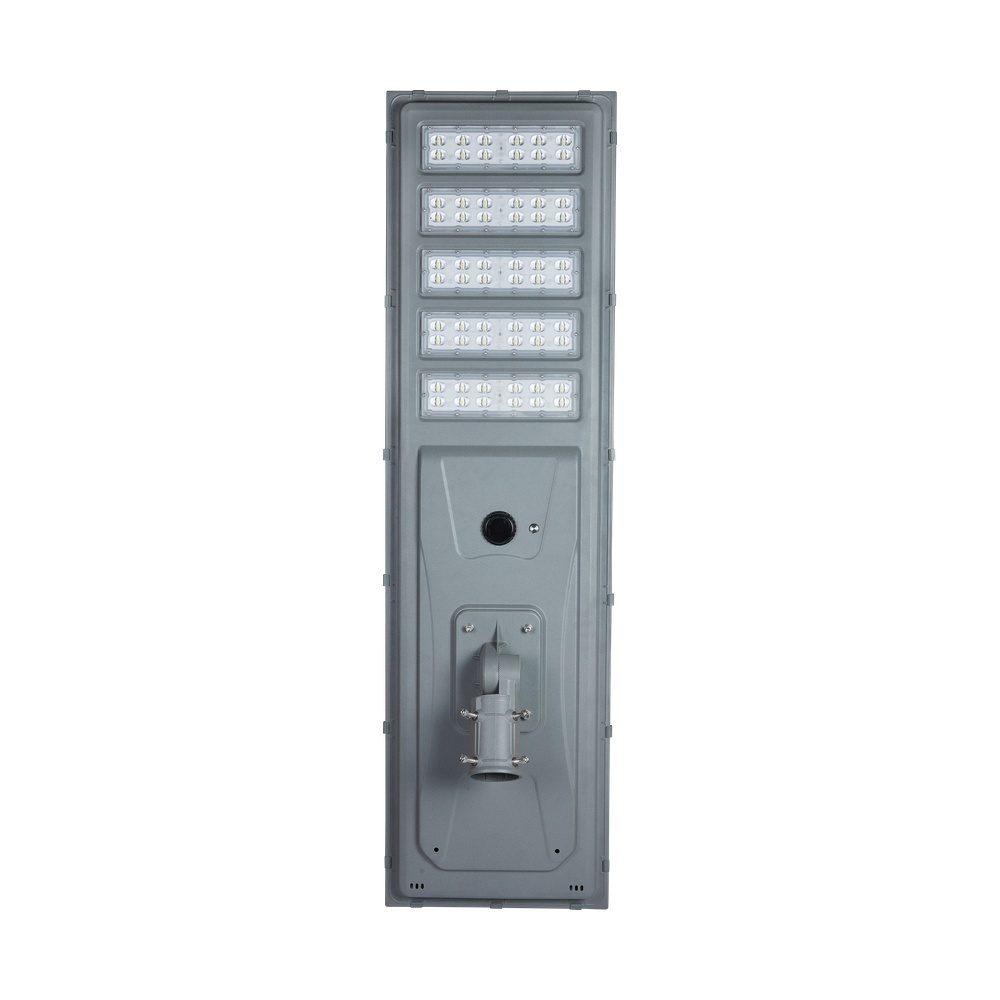

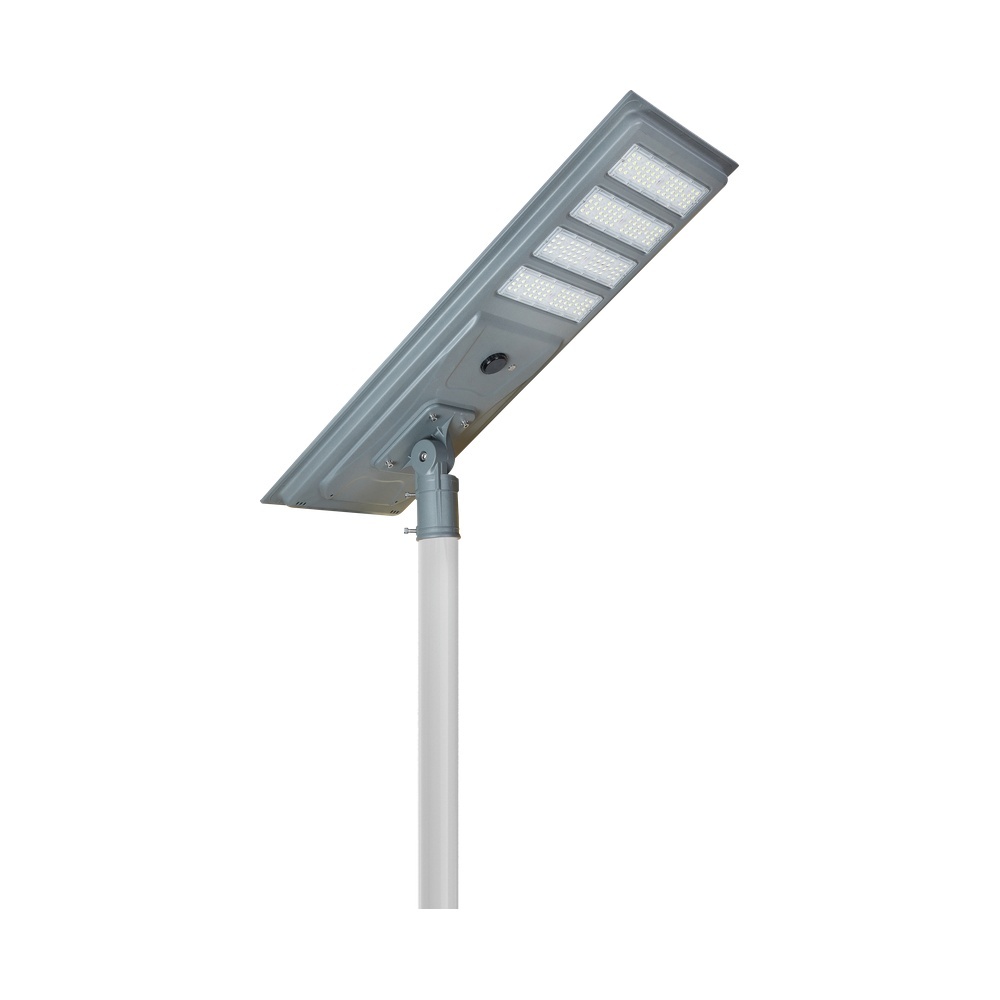

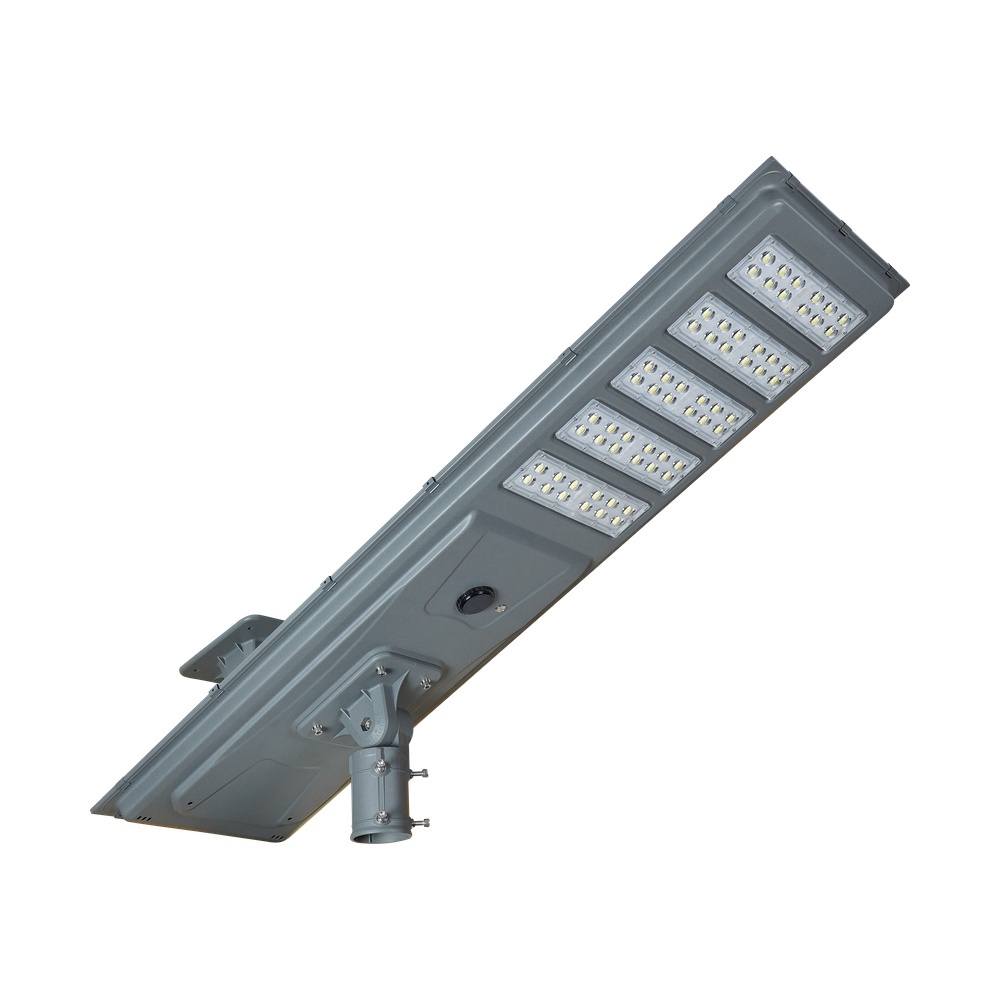

TLD07 all-in-one solar street light combines solar generation, energy storage, LED illumination and intelligent control in a self-contained road lighting solution. Monocrystalline solar panels, LiFePO4 battery technology and MPPT charging help provide dependable off-grid operation for locations where grid wiring is unavailable or costly.
With multiple size configurations and optional PIR or microwave sensing, the HC-TLD07 can adapt to different road widths, installation conditions and lighting strategies. Its integrated structure reduces cabling and routine maintenance, making this solar LED street light for road projects suitable for municipal, rural and community lighting applications.
| Power | 300W | 400W | 500W |
| Model Number | HC-TLD07-300 | HC-TLD07-400 | HC-TLD07-500 |
| Dimensions | 887x400x250mm | 1160x400x250mm | 1435x400x250mm |

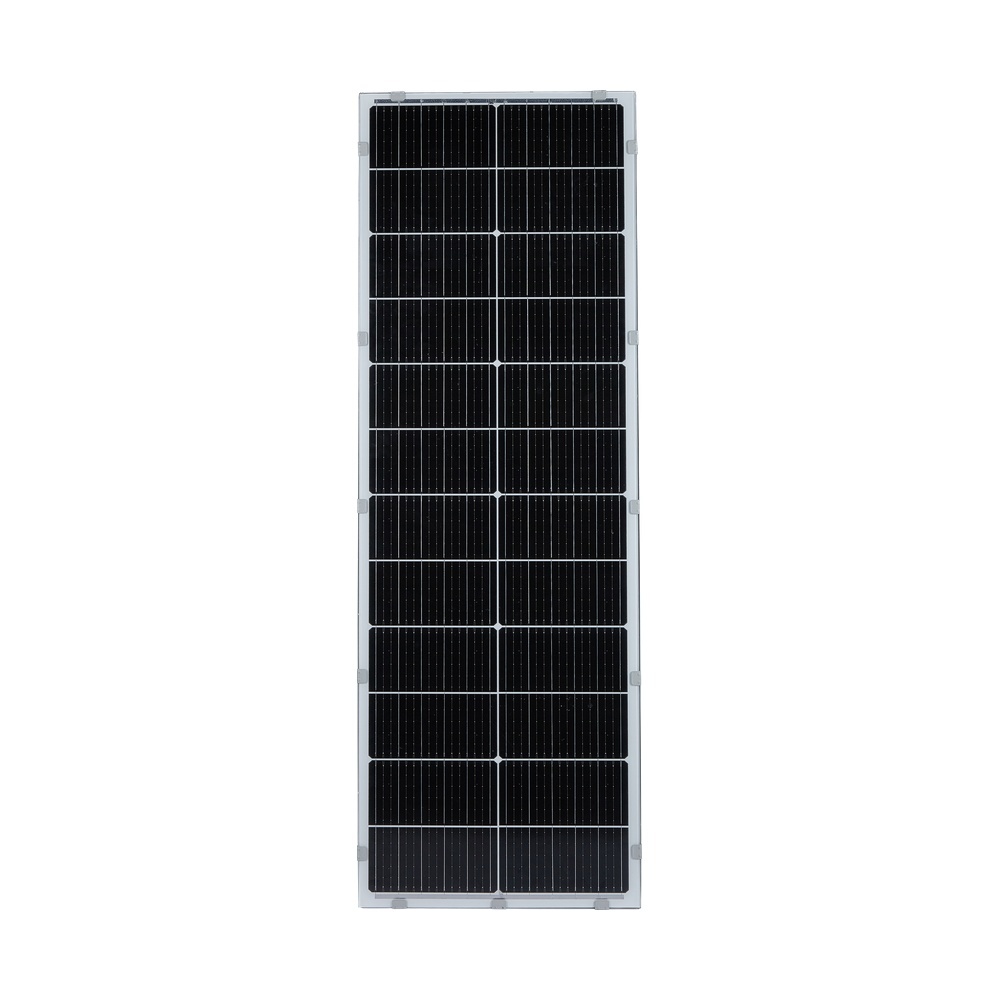

| Solar Panel | 6V/60W | 18V/60W Mono | 6V/80W | 18V/80W Mono | 6V/100W | 18V/100W Mono |
| Battery Capacity | 3.2V-40AH / 3.2V-75AH | 3.2V-54AH / 3.2V-96AH | 3.2V-68AH / 3.2V-108AH |
| Battery | LiFePO4 | ||
| Color Temperature | 6500K (Other CCT optional) | ||
| Charging Time | 6-7 hours | ||
| Beam Angle | 70x140° | ||
| Chips | SMD3030/SMD5050 | ||
| CRI | CRI>80 | ||
| Waterproof Rate | IP65 | ||
| Light Time | 12hrs per night, 3-5 rainy days | ||
| Controller | MPPT | ||
| Sensor Optional | PIR / Microwave optional | ||
| Working Mode | Time + Sensor / Custom | ||
| Installation Height | 6-9M | ||
The HC-TLD07 is suitable for municipal roads, community streets, rural roads, village roads, sidewalks and residential access roads, particularly where conventional cable installation is difficult or uneconomical.
It is also suitable for remote infrastructure, developing road networks and off-grid outdoor projects, where intelligent solar lighting can reduce installation work and ongoing electricity requirements.
FAQ:
Q1. What is the HC-TLD07 solar street light mainly designed for?
A: The HC-TLD07 is designed primarily for road and outdoor infrastructure projects, including municipal roads, rural roads, communities, village streets and pedestrian routes. Its integrated solar design reduces the need for underground electrical cabling.
Q2. What model options are available for the HC-TLD07?

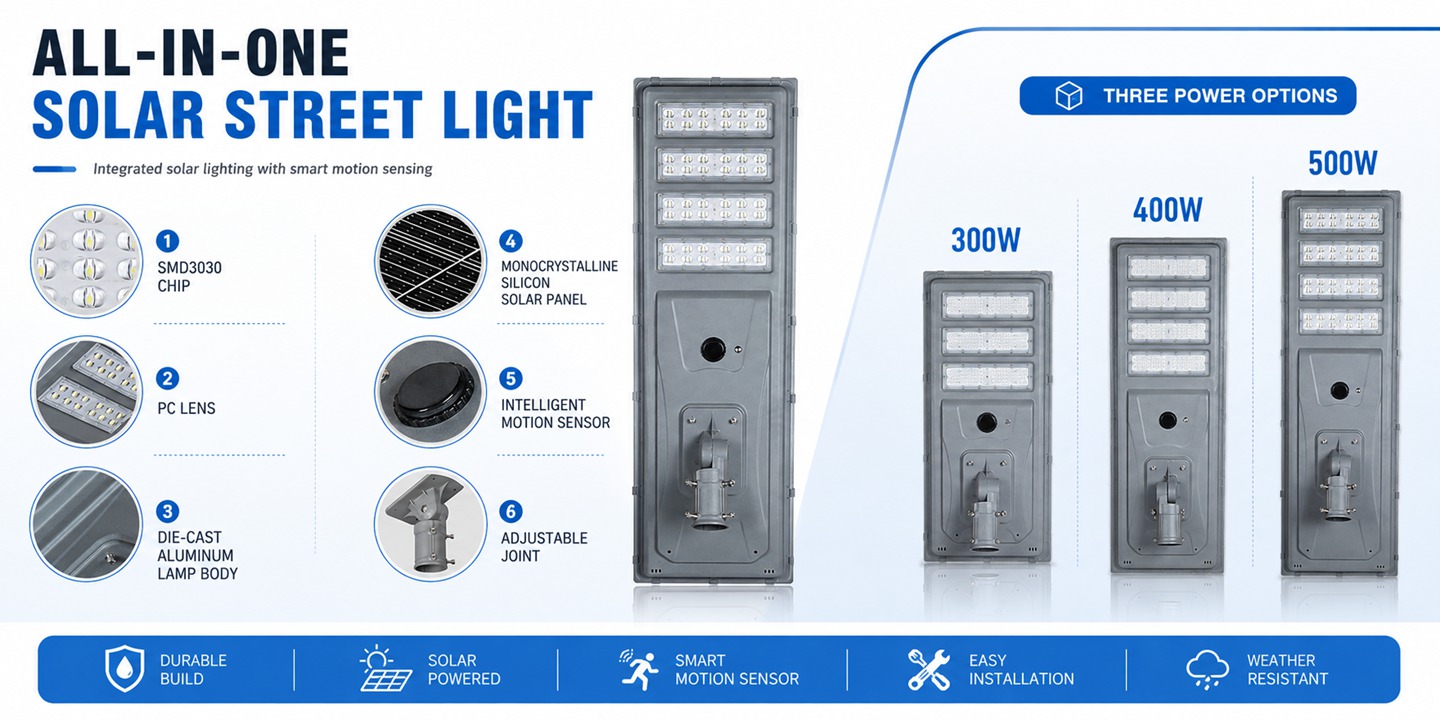

A: The HC-TLD07 series is available in 300W, 400W and 500W model options. The listed solar panel configurations increase from approximately 60W to 100W depending on the selected version.
Q3. Does the HC-TLD07 support motion-sensing lighting?
A: Yes. The series supports optional PIR or microwave motion sensors, together with time-based or customized operating modes. This allows brightness and energy consumption to be managed according to project requirements.
Q4. How long can the HC-TLD07 operate at night?
A: The listed system is designed for approximately 12 hours of lighting per night and around 3–5 rainy days, depending on sunlight conditions, battery configuration and the selected smart operating mode.
Q5. Does the HC-TLD07 require grid electricity?
A: No. The HC-TLD07 operates as an independent solar lighting system. Its solar panel charges the LiFePO4 battery during the day, and the stored energy powers the LED light at night, making it suitable for off-grid and remote road projects.
