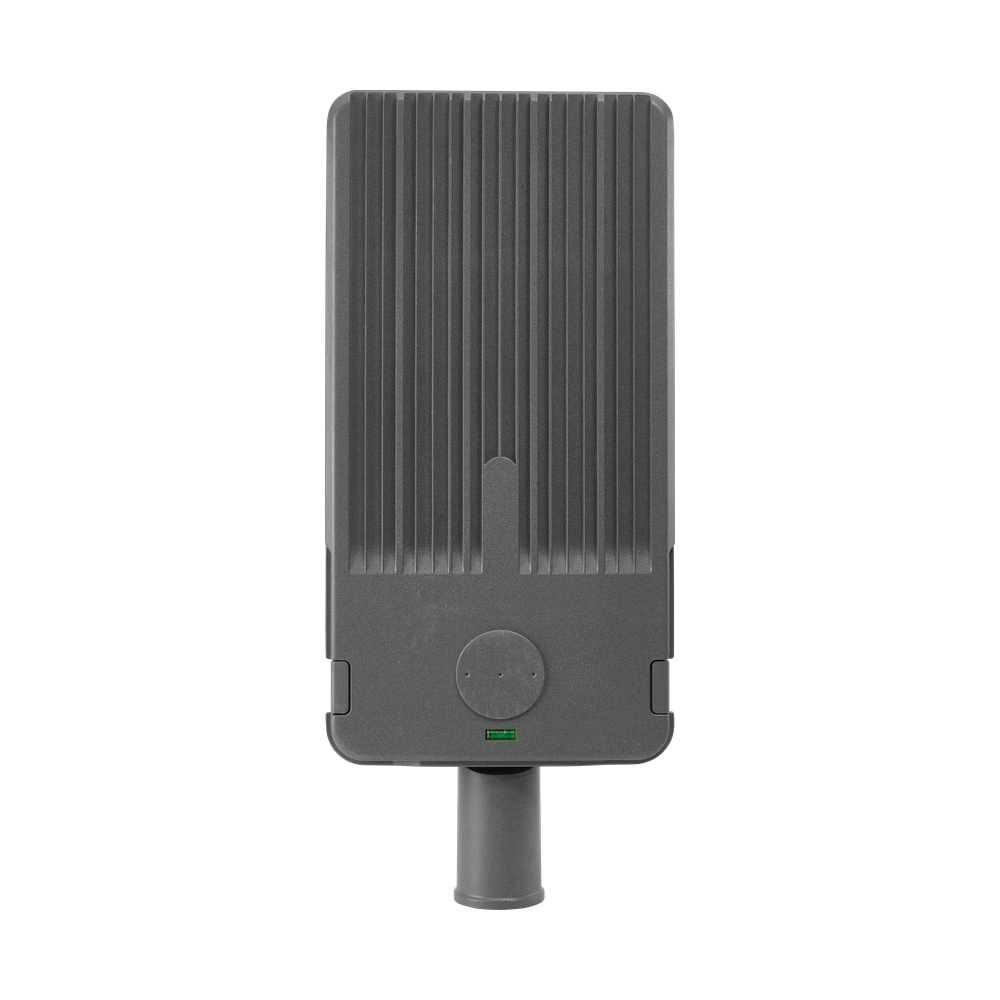

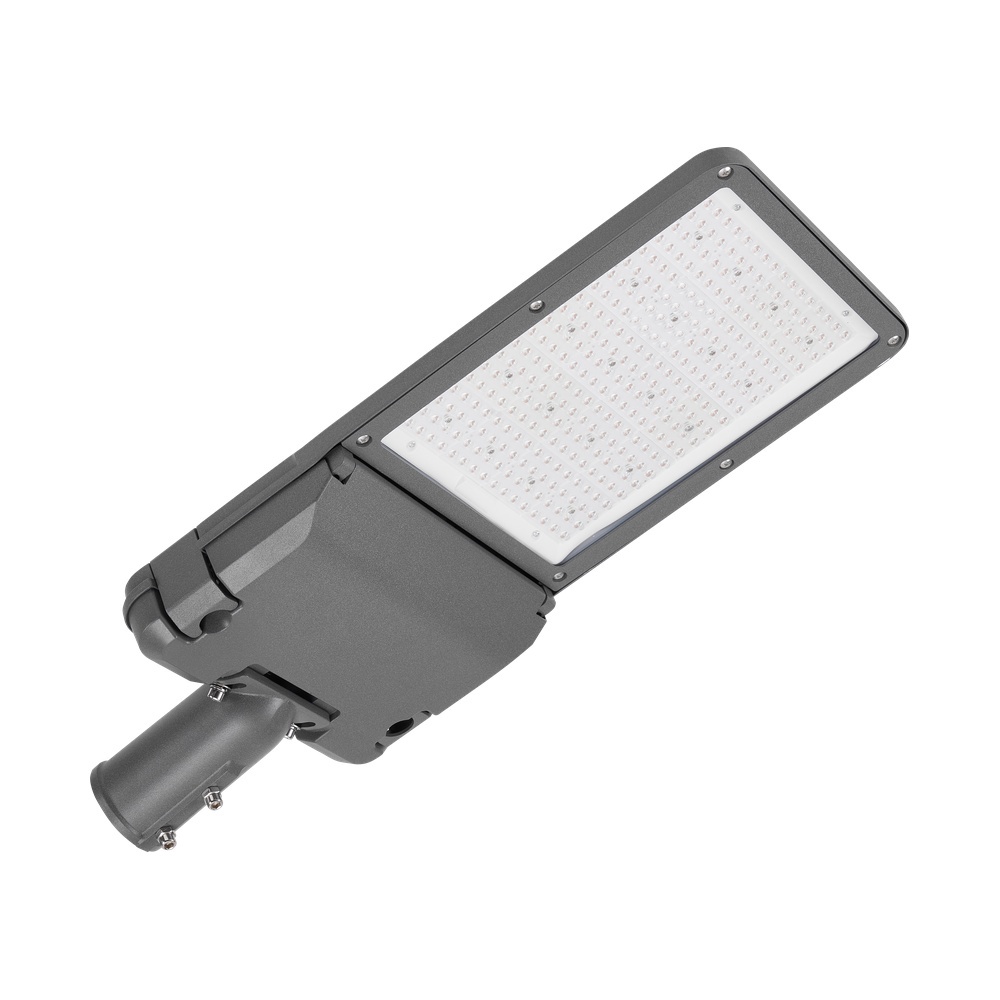

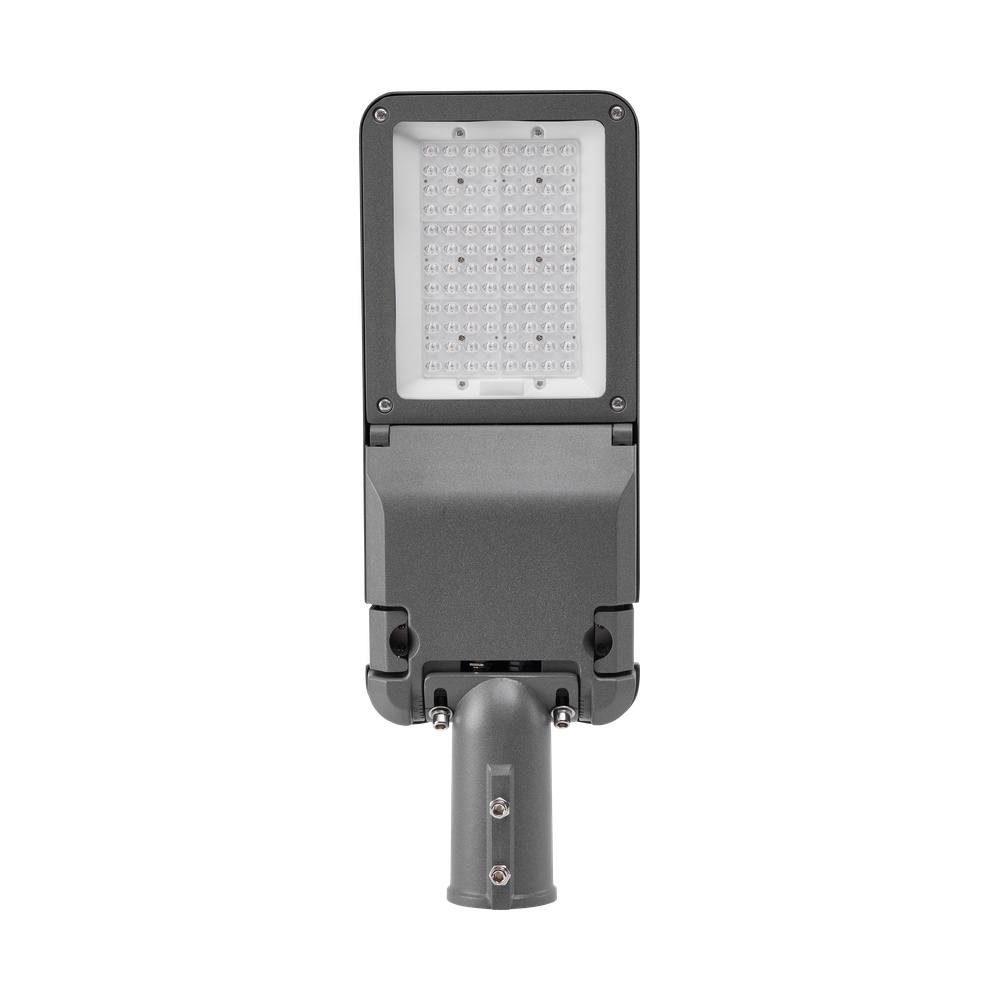

Product Description:BL07 outdoor LED street light combines efficient LED performance with a robust die-cast aluminum housing for reliable roadway illumination. Using SMD3030 LEDs and Type II optical distribution, it delivers efficient light onto streets and roadways while reducing unnecessary energy consumption. Its standard efficiency is approximately 140 lm/W, with configurations up to 150 lm/W available.Designed for professional outdoor lighting projects, the BL07 features IP65 waterproof protection, IK08 impact resistance, CRI>80 and AC100–277V input. Optional 0–10V dimming and sensor control provide additional flexibility for energy-saving street lighting systems, while pole and wall mounting options simplify installation across different applications.Specifications:
| Power |
50W |
75W |
100W |
150W |
180W |
200W |
250W |
| Model Number |
HC-BL07LD50 |
HC-BL07LD75 |
HC-BL07LD100 |
HC-BL07LD150 |
HC-BL07LD180 |
HC-BL07LD200 |
HC-BL07LD250 |
| Dimensions |
520*180*81mm |
520*180*81mm |
520*215*85mm |
520*215*85mm |
520*215*85mm |
620*265*81mm |
620*265*81mm |
| Efficacy |
140LM/W (150lm/w optional) |
| Color Temperature |
3000K 4000K 5000K 5700K 6500K |
| Input Voltage |
AC100-277V 50/60Hz |
| Beam Angle |
Type II |
| Chips |
SMD3030 |
| CRI |
CRI>80 |
| Waterproof Rate |
IP65 |
| Dimmable |
Non-dim, 0-10V dim, Microwave sensor options |
| Life Time @L70 |
>100,000Hrs |
| Operating Temperature |
-30°C to +45°C |
| Impact resistance |
IK08 |

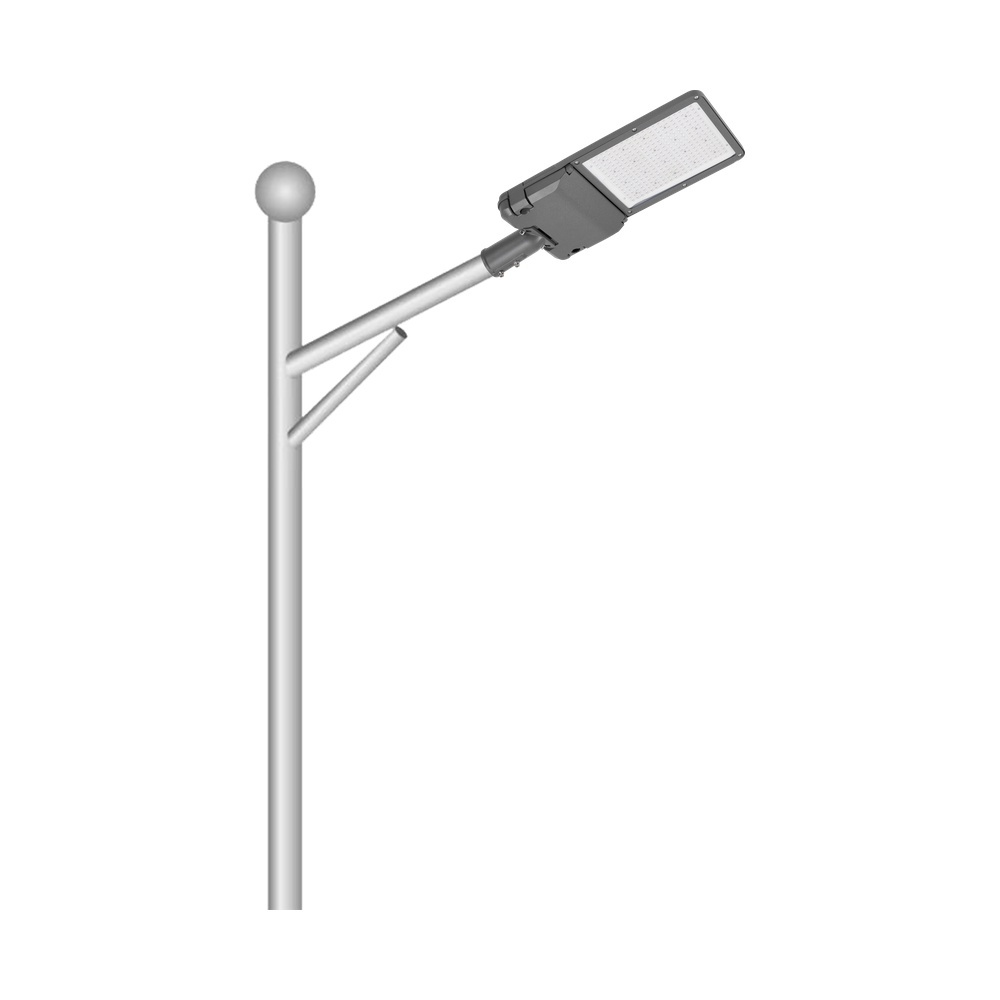

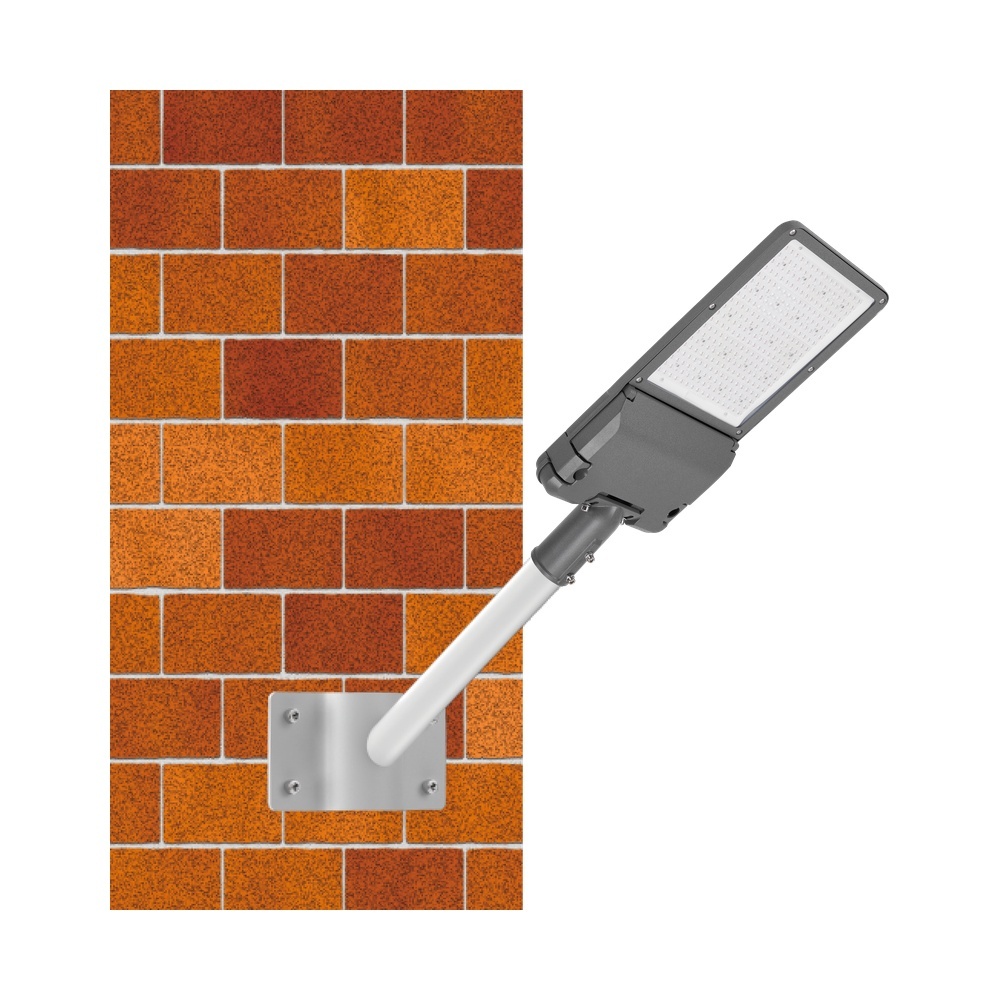

| Mounting Option |
Pole / Wall Mounting |
| Switching Cycles |
＞100,000 times |
Applications:
BL07 Series is suitable for urban roads, residential streets, rural roads, industrial parks, parking areas and public outdoor spaces, providing dependable nighttime illumination for both infrastructure and commercial projects.
Its broad 50W–250W power range makes it suitable for different pole heights and project scales, from smaller residential roads to wider urban and industrial roadways. The product page recommends installation on approximately 6–13 meter poles, depending on project requirements
FAQ:
Q1. What wattages are available for the BL07 LED street light?
The BL07 Series is available in 50W, 75W, 100W, 150W, 180W, 200W and 250W, allowing contractors and distributors to select different outputs for residential streets, urban roads and larger outdoor lighting projects.
Q2. How efficient is the BL07 LED street light?
The BL07 provides approximately 140 lm/W standard luminous efficacy, with configurations up to 150 lm/W available. This helps provide high light output while reducing electricity consumption compared with traditional roadway lighting.
Q3. Is the BL07 suitable for outdoor and rainy environments?
Yes. The BL07 is rated IP65, providing protection against dust and water exposure during normal outdoor operation. Its die-cast aluminum housing and IK08 impact resistance also improve durability in roadway environments.

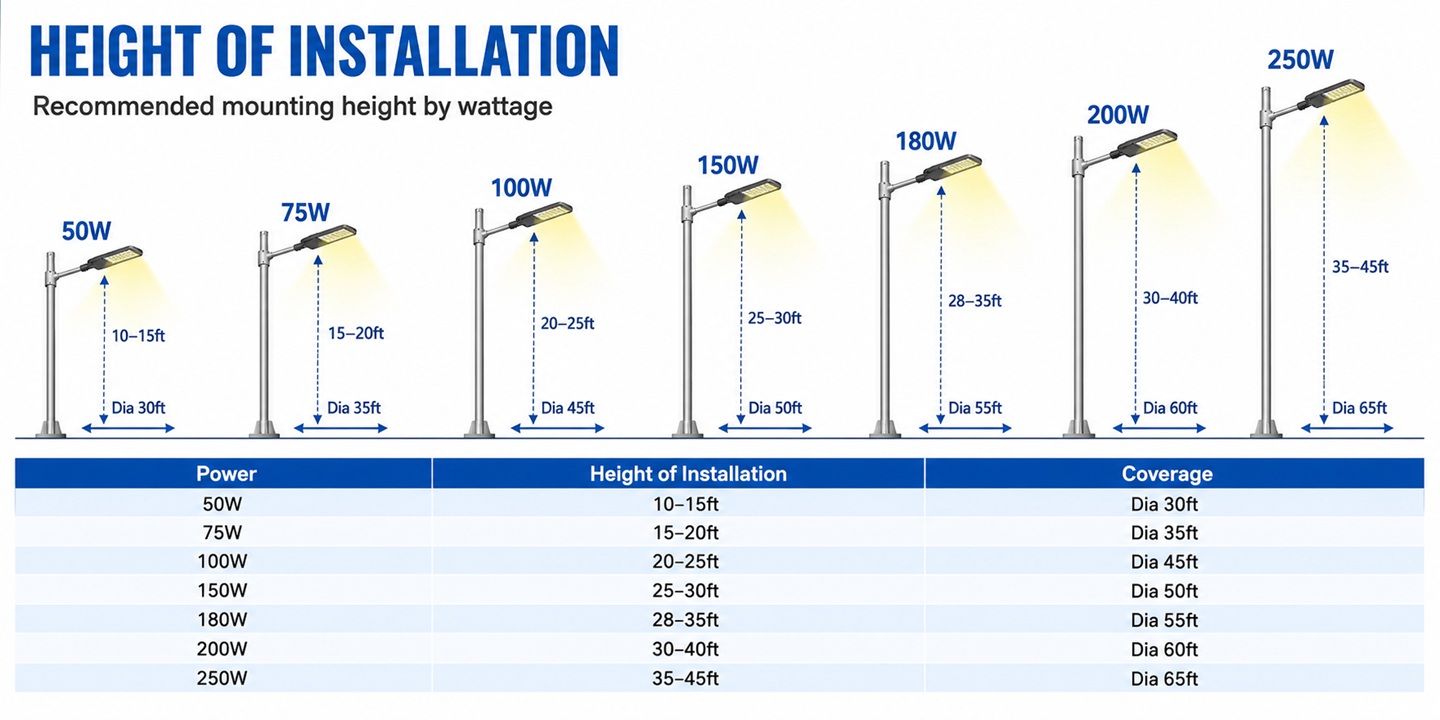

Q4. What mounting height is suitable for the BL07 LED street light?
The BL07 is designed for lamp poles of approximately 6–13 meters. Lower-wattage versions are generally suitable for lower mounting heights, while higher-power versions can be used for taller poles and wider roadways. Final wattage and spacing should be confirmed through the project's road width, pole spacing and lighting calculations.
Q5. Does the BL07 LED street light support smart lighting control?
Yes. Depending on configuration, the BL07 can support 0–10V dimming and microwave sensor options. These functions allow project designers to create more energy-efficient outdoor lighting systems according to operating schedules and actual lighting demand.
