Product Deescriptions:

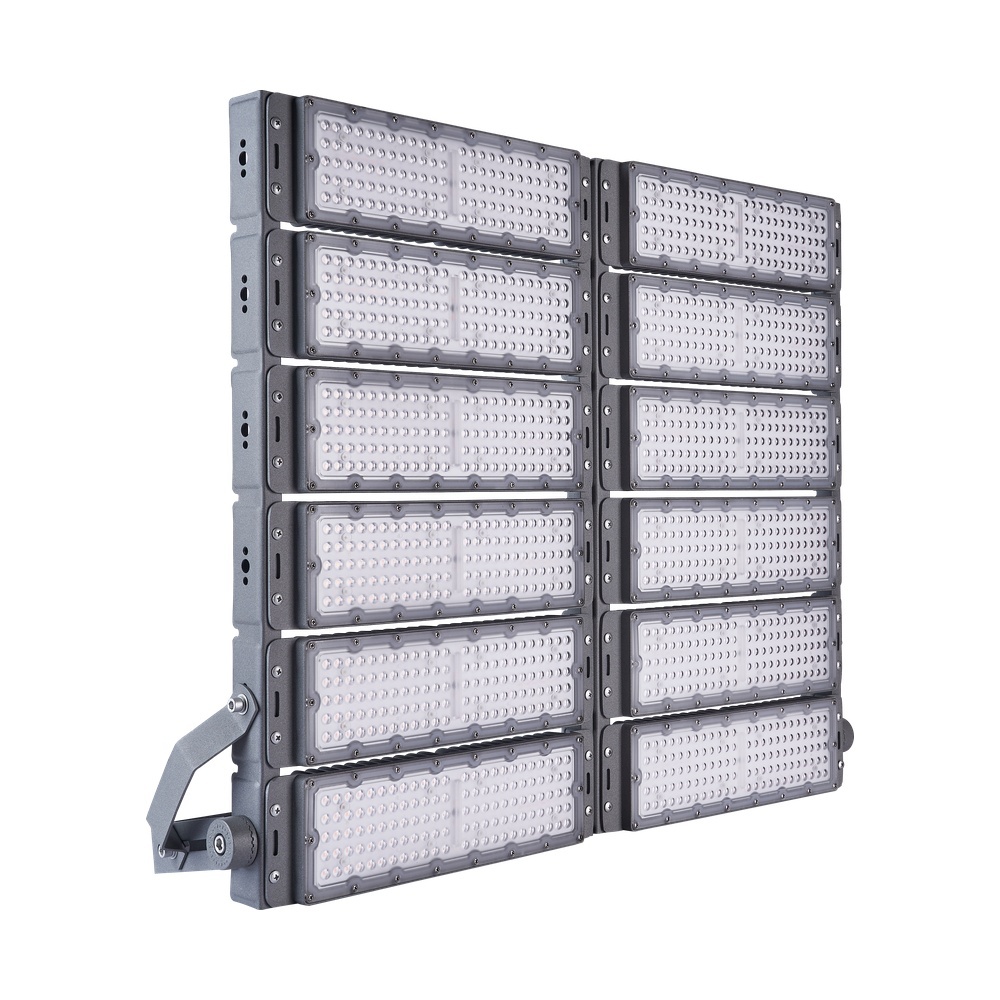

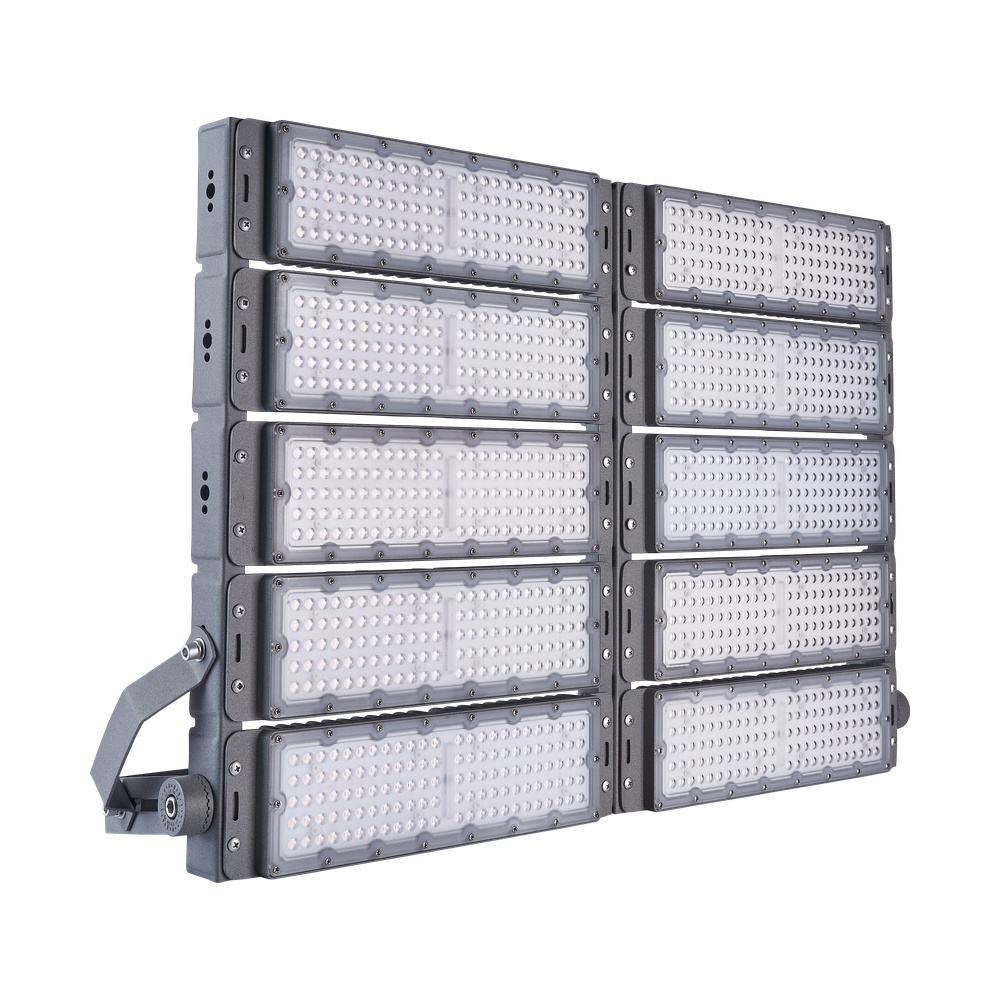

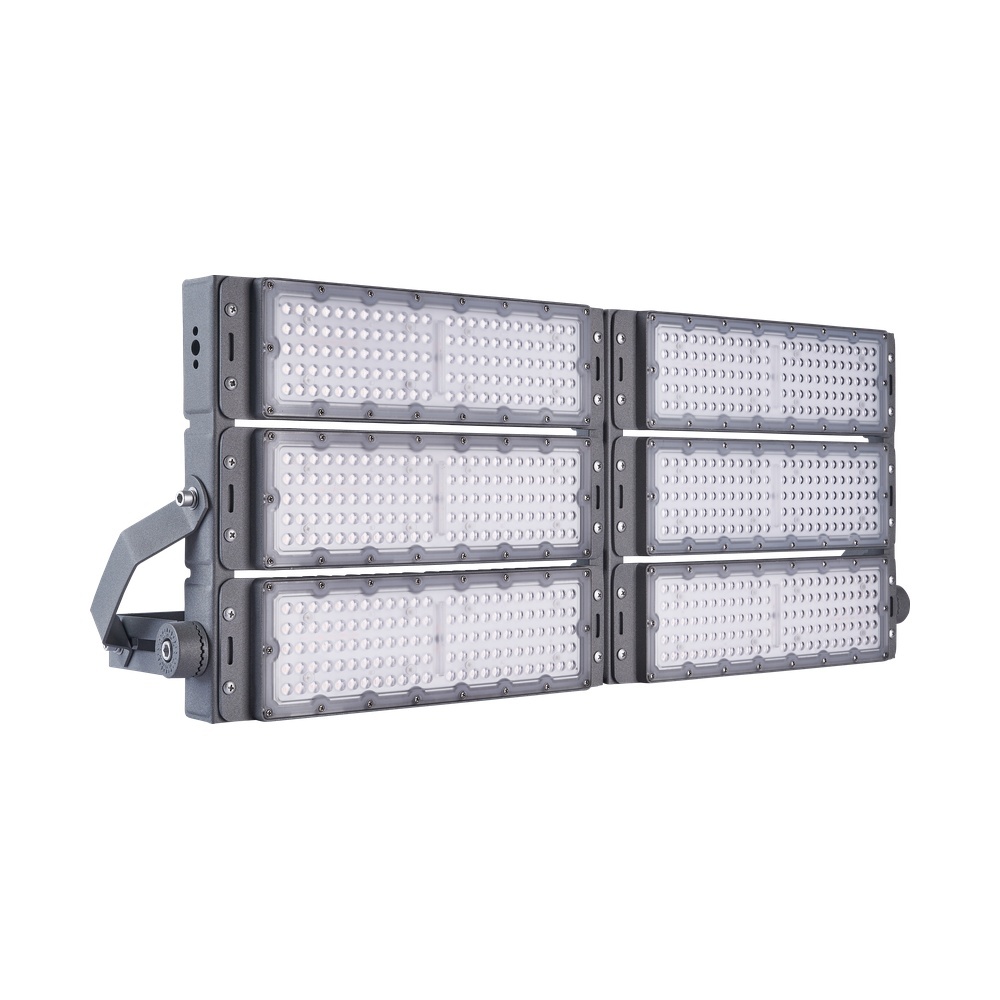

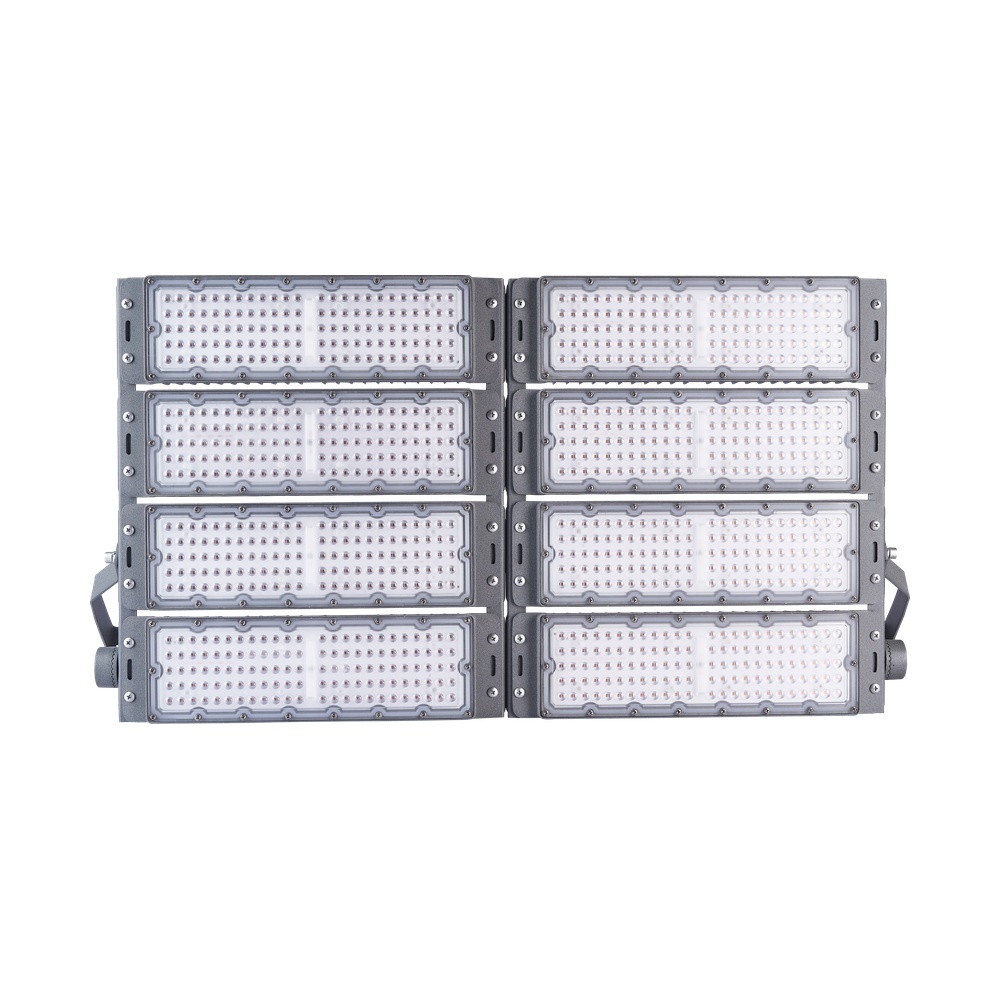

High Power Modular LED Flood Light Fixture is a professional outdoor lighting solution engineered for high-power applications. Its dual-row modular structure combines multiple LED units to deliver powerful and uniform illumination, making it suitable for large areas where traditional flood lighting cannot provide sufficient brightness.

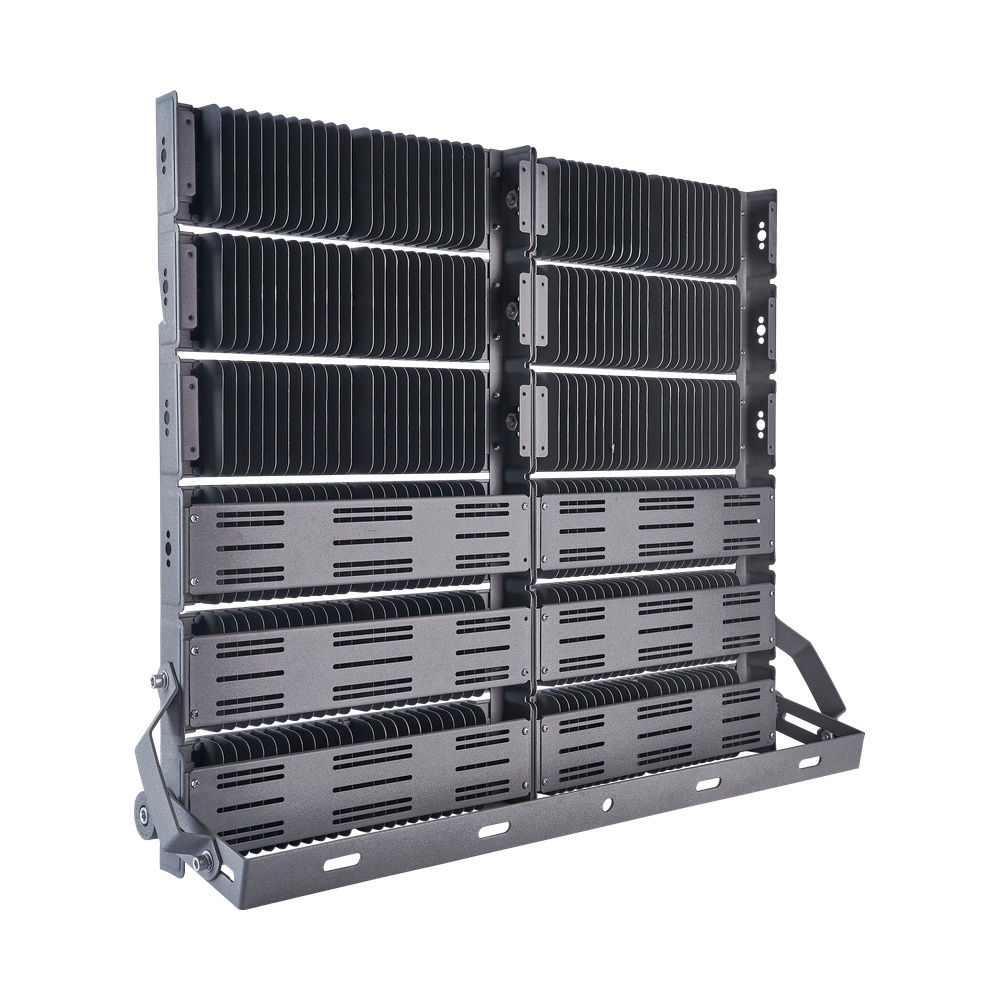

Designed with a die-cast aluminum housing, efficient heat dissipation system, and adjustable mounting bracket, this high-power LED flood light ensures stable operation and easy installation. It is widely used for stadium lighting, high mast lighting, ports, industrial yards, and large commercial outdoor spaces.
| Production Name | Modular High Power LED Flood Lights |
| Series No | MZ100 Series |
| Power | 600W, 800W, 1000W, 1200W |
| Efficacy | 140lm/W |
| Input Voltage | 100-277 VAC, 50 / 60 Hz |
| Power Factor | >0.95 |
| Surge Protection | 4KV |
| IP Rating | IP65 |
| IK Rating | IK08 |
| CCT | 3000K, 4000K, 5000K, 5700K, 6500K |
| CRI | Ra>80 |
| Operating Temperature | -40°C to + 50°C |
| Beam Angle | 140x70° |
| Mounting Option | Floor,Ceiling,Suction wall,Column |
| Warranty | 3-5Years |
| Certification | CE, CB, ROHS, RCM, SAA |
FAQ:
Q1: How does this High Power Modular LED Flood Light differ from smaller models like the HC-MZ100-A?
A1: The primary difference lies in the structural chassis and total wattage capacity. While single-row models like the HC-MZ100-A cater to lower-wattage, localized area lighting, this fixture features a heavy-duty dual-row modular combination framework. This layout supports much higher wattages, provides greater thermal dissipation surface area, and enables long-throw illumination for high-mast and stadium applications.
Q2: Can the individual modules on this dual-row high bay/flood light be adjusted independently?
A2: Yes. Each modular row features an independent angle-adjustment mechanism. This allows lighting engineers to angle upper and lower rows differently, customizing the beam spread to cover both distant targets and near-field ground areas simultaneously without creating hot spots or dark shadows.
Q3: What mounting heights are recommended for high-power dual-row modular floodlights?
A3: Due to its high lumen density and long-throw optics, this dual-row modular series is optimized for high-mast poles ranging from 15 to 50 meters (50 to 160+ feet) in height, making it ideal for stadiums, ports, and large industrial yards.

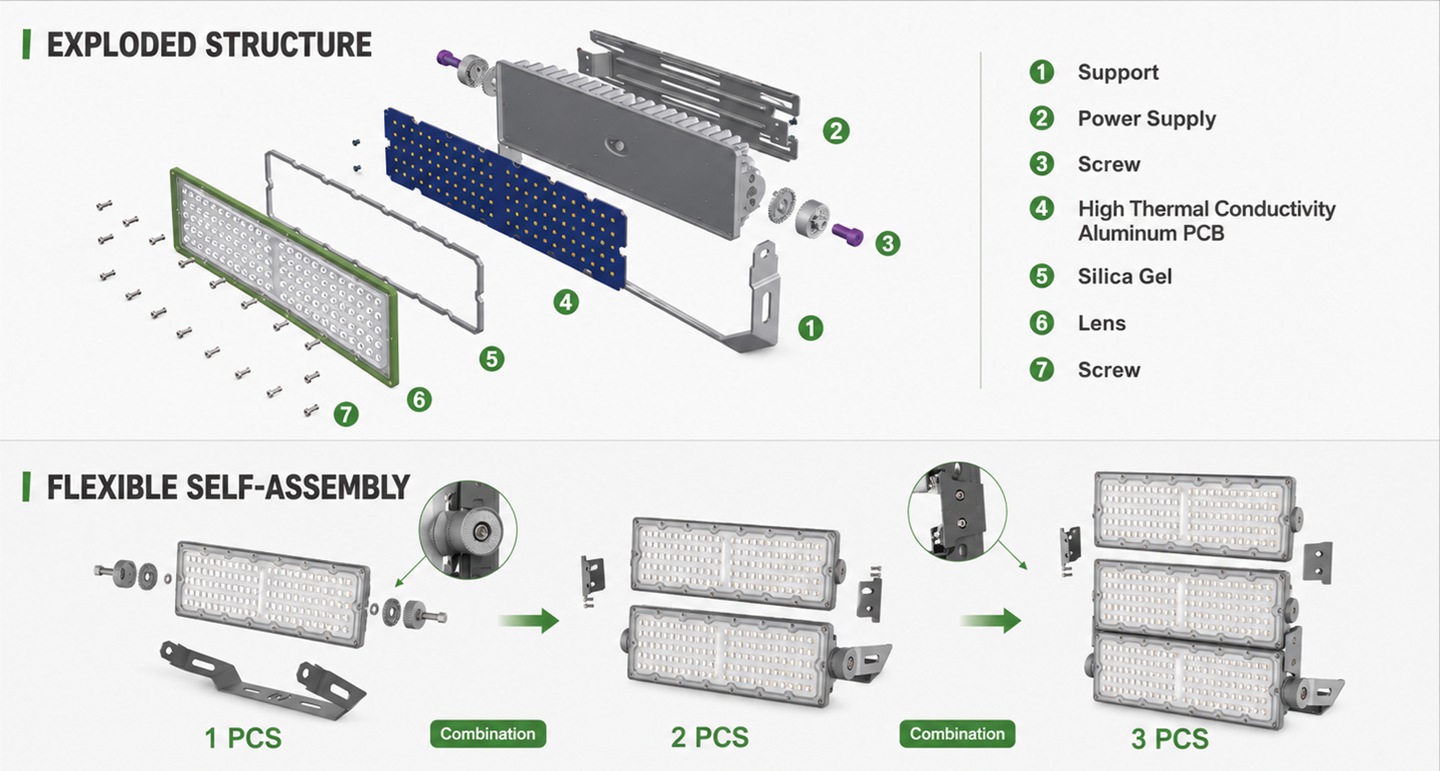

Q4: How does the modular design benefit maintenance and long-term servicing?
A4: The modular construction ensures hassle-free, lower-cost maintenance. If a driver or LED board ever needs service years down the line, individual modules or driver boxes can be serviced or swapped out independently without replacing the entire fixture assembly.
Q5: Is this high-power floodlight protected against lightning strikes and corrosive coastal environments?
A5: Absolutely. Built for rugged outdoor environments, the fixture includes integrated surge protection to safeguard against power spikes and lightning strikes. Furthermore, its heavy-duty die-cast aluminum body receives an anti-corrosion powder coat and stainless steel hardware, making it fully salt-spray resistant for coastal ports.
