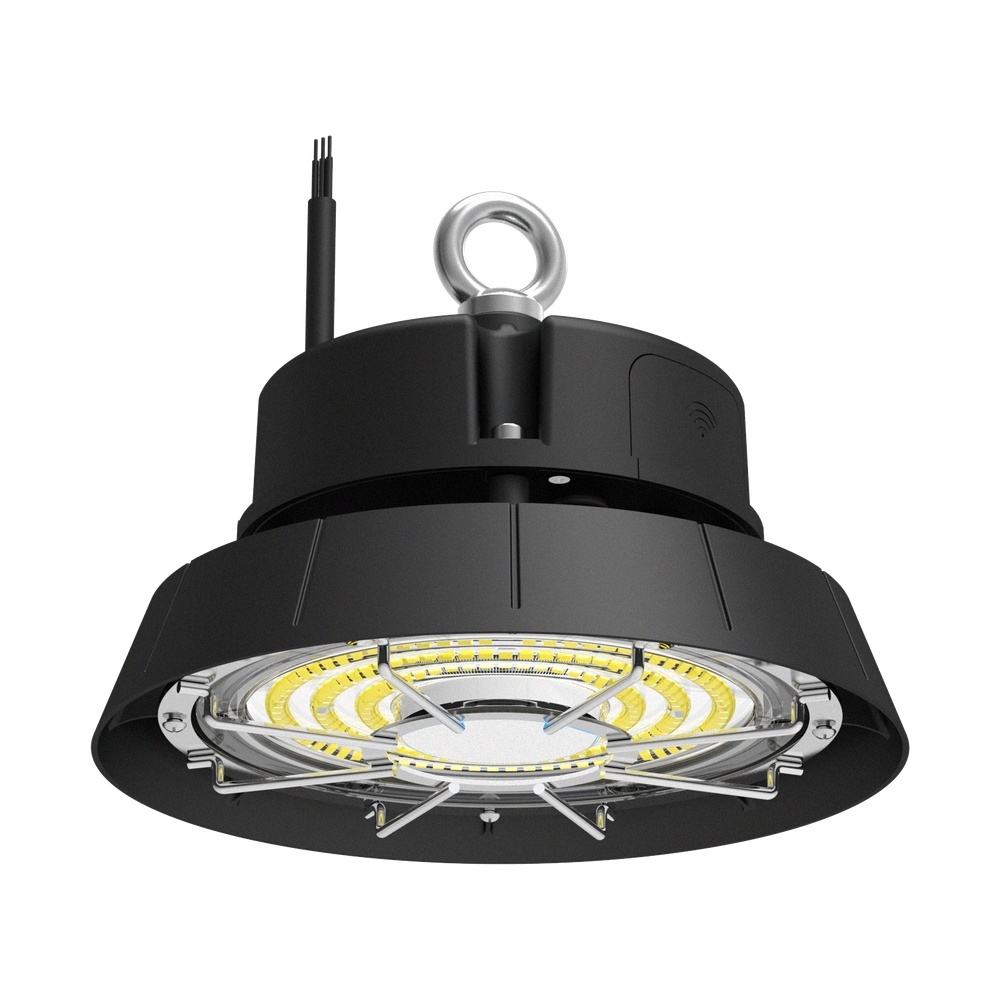

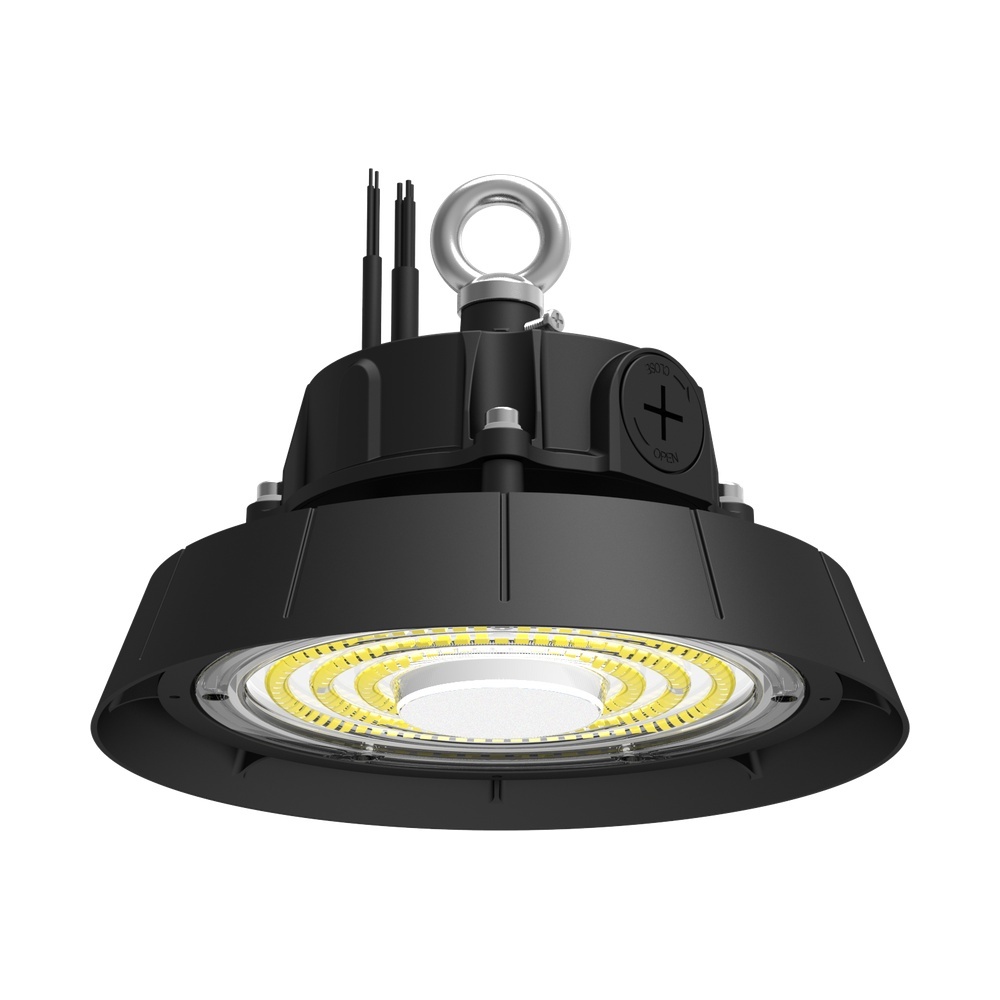

H03 Series UFO Highbay LED Light is a high-performance, commercial-grade luminaire designed for high-ceiling environments like warehouses and factories. Featuring a rugged die-cast aluminum housing, ultra-thin thermal profile, and advanced optics, this IP65-rated fixture delivers superior luminous efficacy with up to 70% energy savings over traditional HID systems, providing a durable, flicker-free, and maintenance-free lighting solution compatible with smart control accessories.
Powerful Industrial LED High Bay Lighting The HB03 Series UFO LED High Bay Light combines high lumen output, efficient thermal management and flexible configurations for demanding industrial lighting projects. Available from 60W to 500W, it offers up to 210 lm/W luminous efficacy, with 60°, 90° and 120° beam angles for different mounting heights and illumination requirements.

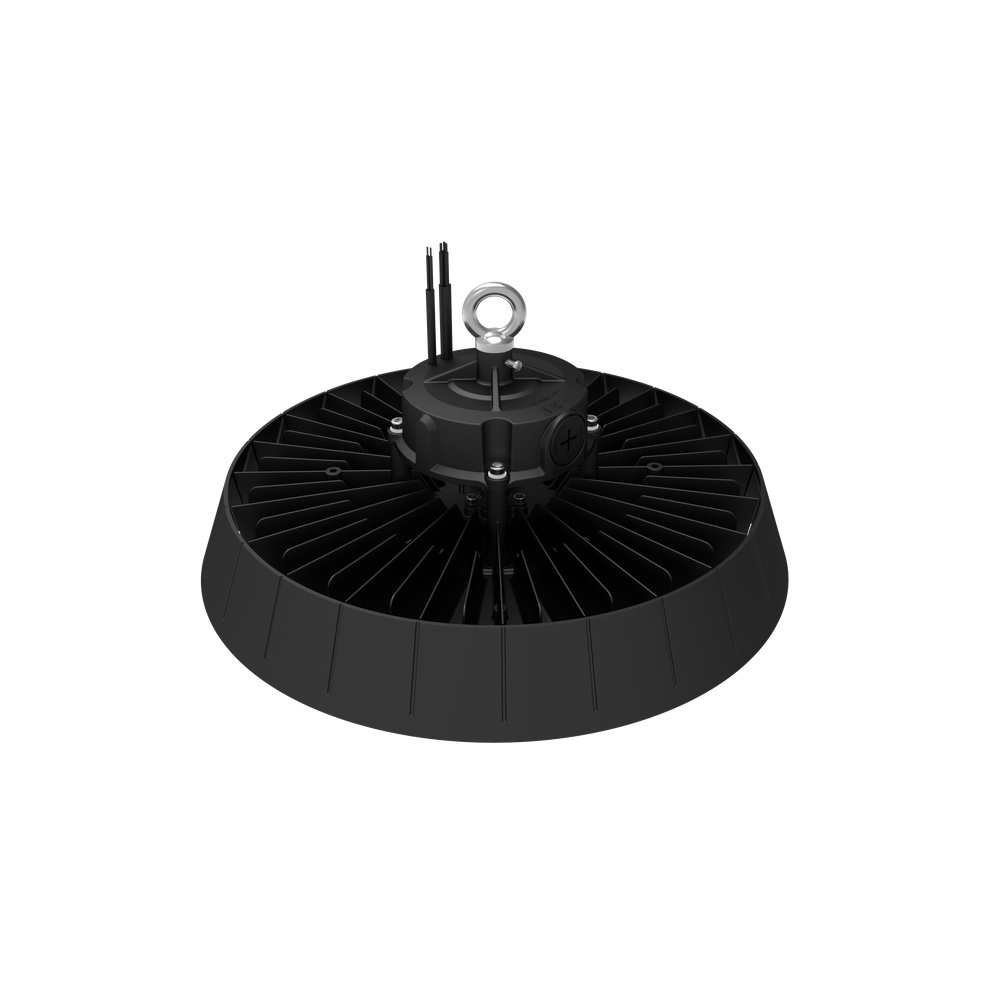

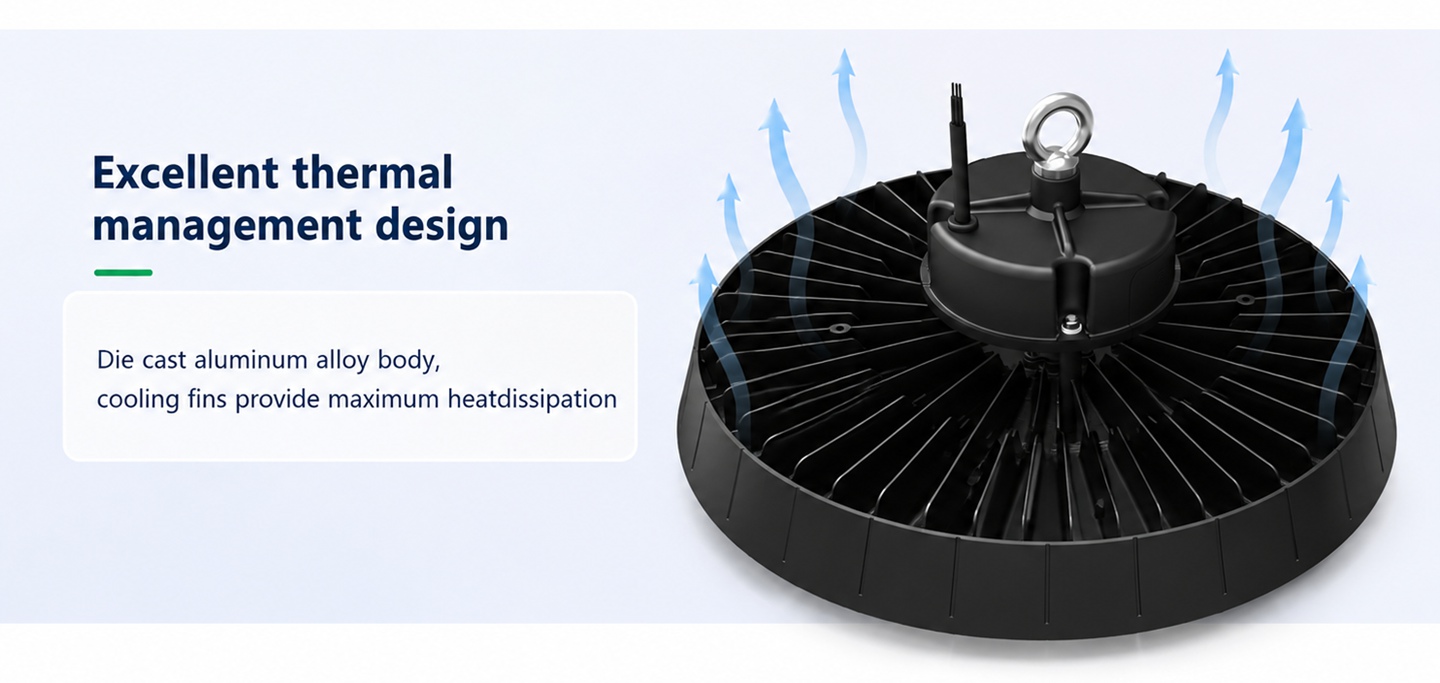

Flexible for Different Projects Designed with a durable die-cast aluminum housing, IP65 protection and IK08 impact resistance, the HB03 provides reliable performance in warehouses, factories and other industrial environments. Optional power & CCT selectable settings, 0–10V dimming, motion sensors, brackets and reflectors make this UFO high bay light easy to configure for different projects.
Specifications:
Power
60W
100W
150W
200W
240W
300W
500W
Model Number
HC-UFO-HB0360
HC-UFO-HB03100
HC-UFO-HB03150
HC-UFO-HB03200
HC-UFO-HB03240
HC-UFO-HB03300
HC-UFO-HB03500
Dimensions
Ø200*107mm
Ø240*111mm
Ø280*113mm
Ø320*117mm
Ø360*130mm
Ø360*137mm
Ø450*166mm
Efficacy
140LM/W (Standard) 160/190/210 LM/W optional
Color Temperature
3000K 4000K 5000K 5700K 6500K
Input Voltage
AC100-277V 50/60Hz
Surge protection
4KV-Line-Line
Beam Angle
60°, 90°, 120° LENS optional
Chips
SMD2835
CRI
CRI>80
Waterproof Rate
IP65
Dimmable
Non-dim, 0-10V dim, Microwave sensor options
Life Time @L70
>100,000Hrs
Operating Temperature
-30°C to +45°C
Impact resistance
IK08
Mounting Option

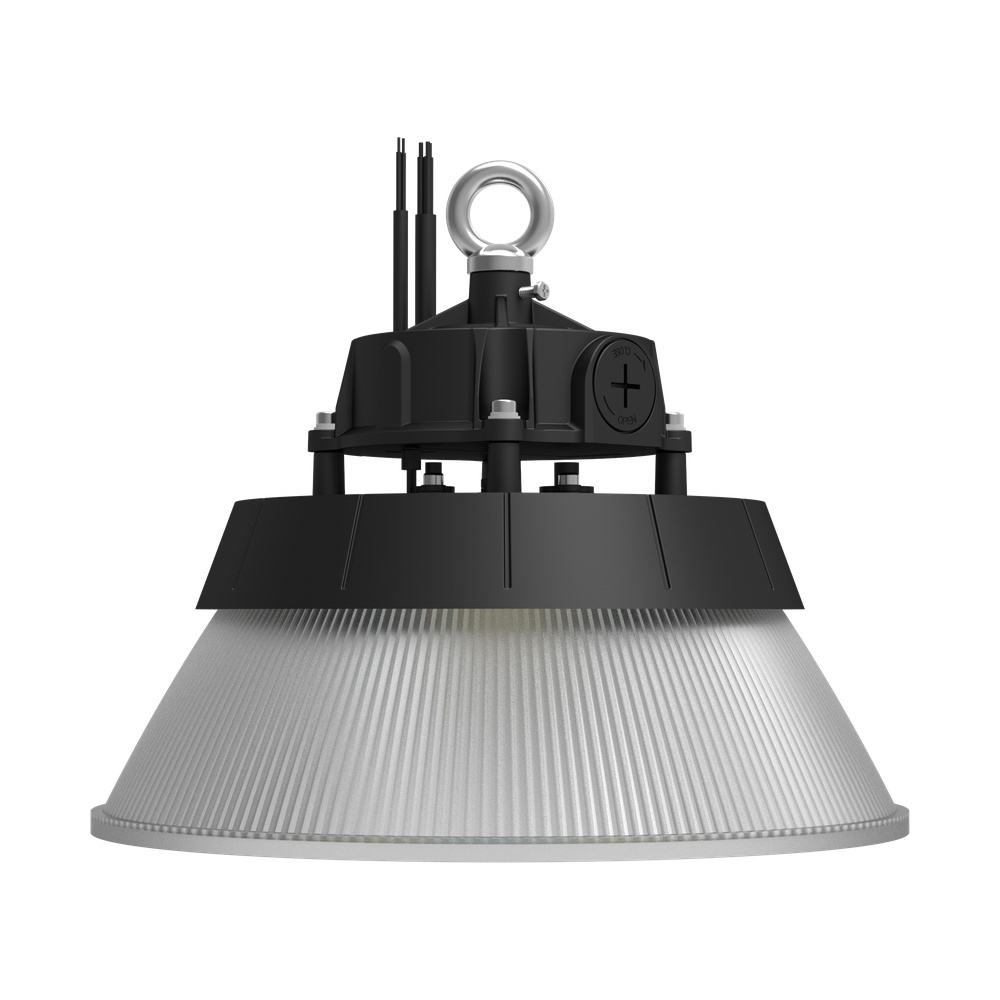

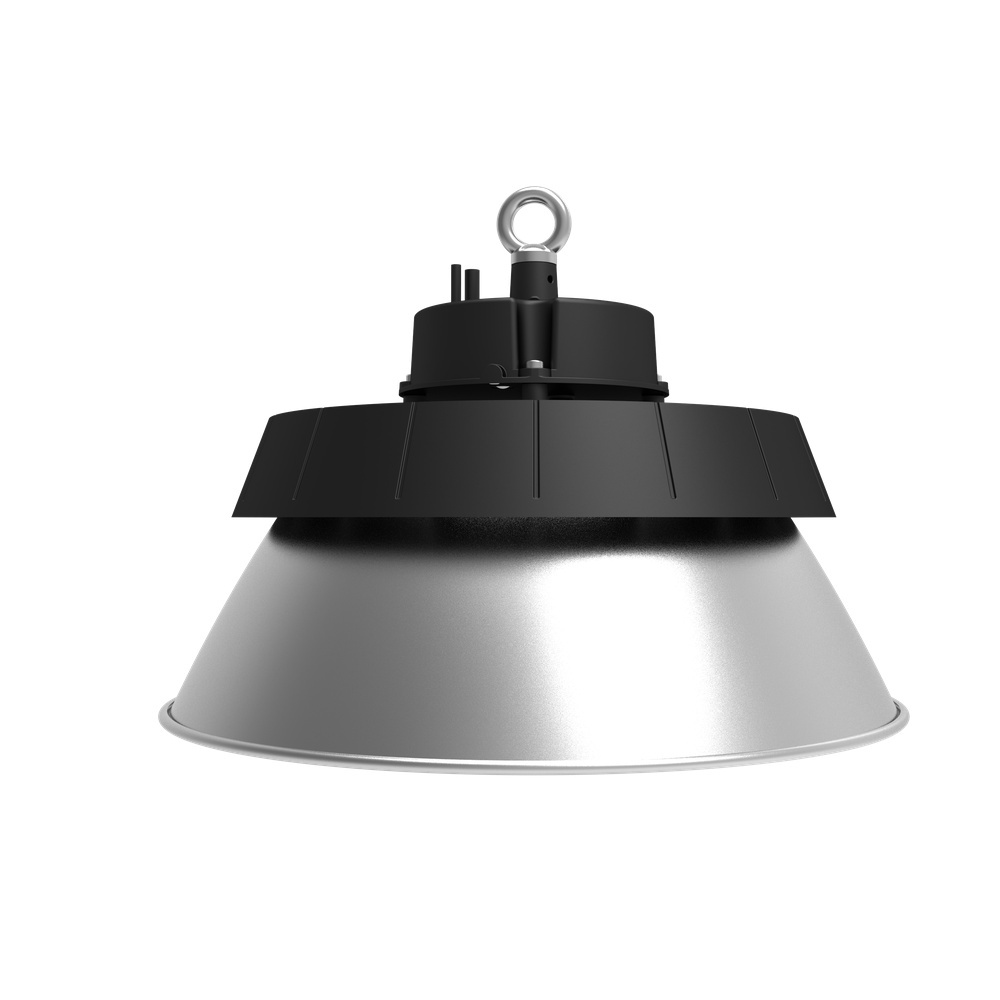

Reflector / Bracket Mounting
Switching Cycles
＞100,000 times
Applications:
HB03 Series UFO High Bay Light is ideal for warehouses, logistics centers, factories, production workshops and other industrial facilities requiring powerful and uniform illumination. Its wide wattage range makes it suitable for different ceiling heights and project sizes. It can also be used in indoor sports facilities, commercial spaces and parking areas. Multiple beam angles, mounting accessories and optional intelligent controls provide greater flexibility for both new installations and lighting retrofit projects
FAQ:

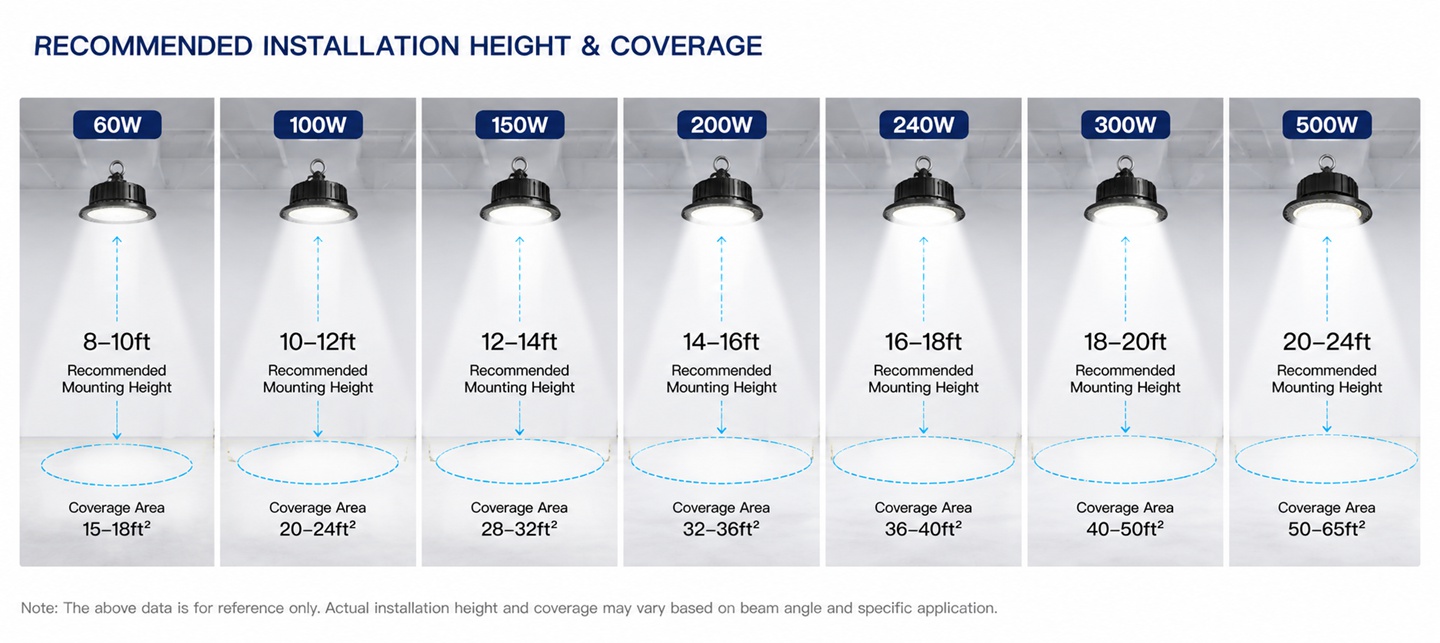

Q1: What ceiling heights are recommended for installing the HB03 Series UFO Highbay LED Light? A1: The H03 Series is engineered for mounting heights between 12 feet and 45 feet (4 to 14 meters). For lower ceiling installations (12–20 ft), a 120° beam angle ensures broad, uniform coverage, while narrower 60° or 90° beam lenses are ideal for higher ceilings (above 20 ft) to direct illumination down to ground level.
Q2: How does the HB03 Series UFO high bay compare to traditional metal halide fixtures in energy savings? A2: The H03 Series achieves up to 160–180 lm/W efficacy, allowing you to replace a 400W metal halide fixture with a 150W H03 LED light. This results in an immediate 60% to 70% reduction in electricity consumption without sacrificing light output or uniformity. Q3: Is the HB03 Series suitable for damp or dusty industrial environments? A3: Yes, the H03 Series features a fully sealed IP65-rated housing that protects internal components against water jets, steam, and heavy airborne dust. Combined with an IK08 impact-resistant lens and corrosion-resistant powder coating, it performs reliably in harsh industrial atmospheres.
Q4: Can motion sensors or smart controls be retrofitted onto the HB03 Series LED high bay? A4: Absolutely. The fixture comes equipped with standard 0-10V dimming wires and can be paired with plug-and-play microwave motion sensors, PIR sensors, or daylight harvesting modules to enable automated dim-to-off control for maximum energy conservation.

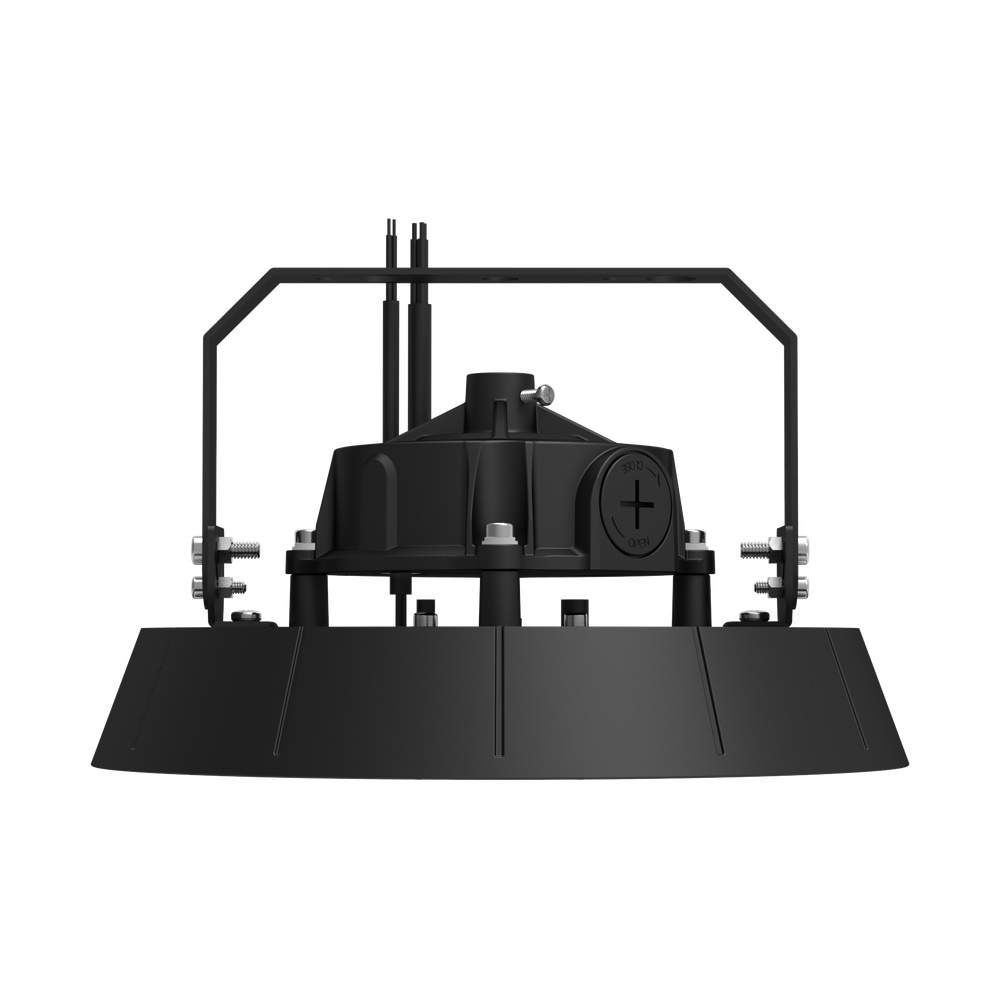

Q5: What mounting options are available for the HB03 Series UFO high bay fixture? A5: The H03 Series supports flexible installation methods, including standard ring/hook mounting for chain suspension, U-bracket surface mounting for adjustable angle wall/ceiling placement, and pendant rod mounting to accommodate diverse architectural requirements.
