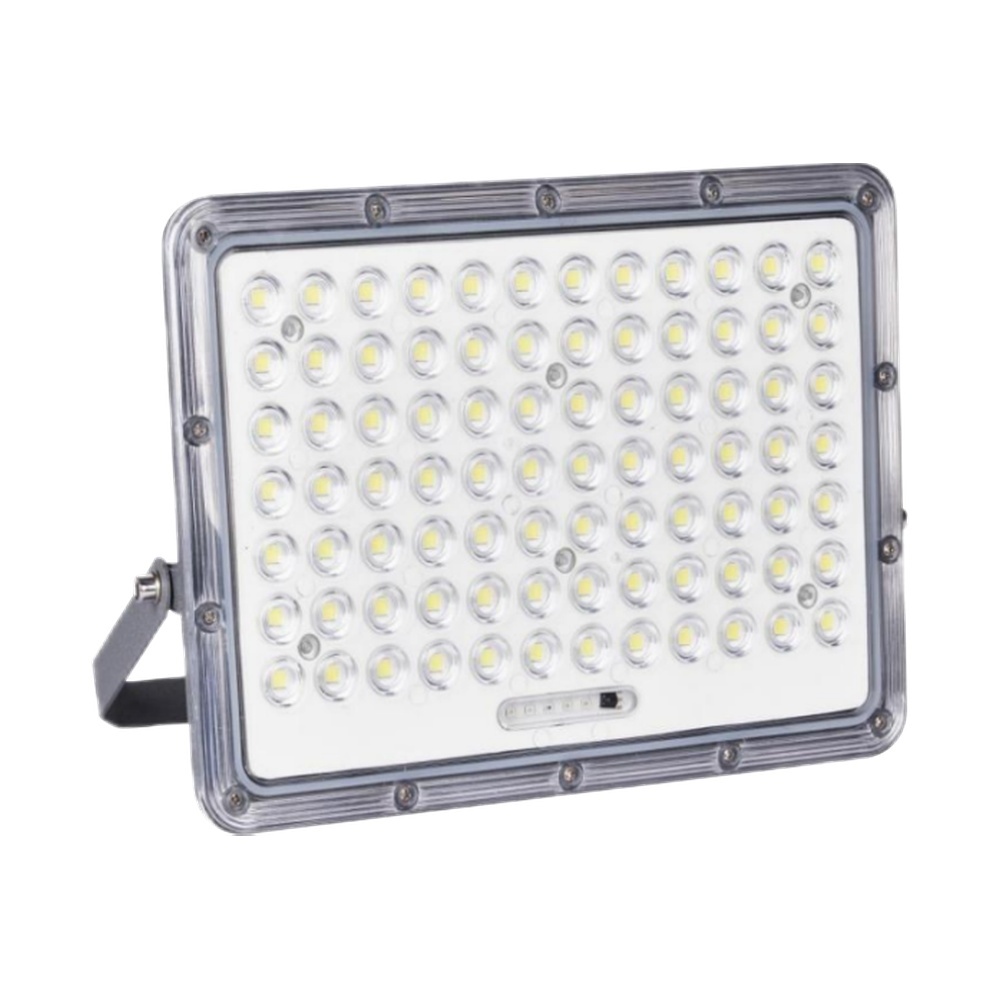

TTG-XL02 aluminum solar LED flood light is designed as a practical split solar lighting system for locations where electrical wiring is unavailable or inconvenient. The separate mono solar panel collects energy during the day, while the aluminum flood light can be independently positioned to illuminate entrances, yards, garages, courtyards and other outdoor areas.
A LiFePO4 battery, high-brightness SMD LEDs, IP65 protection and 90° beam angle support dependable outdoor operation. The integrated battery level indicator provides a clear view of remaining power, while intelligent light control enables automatic daytime charging and nighttime illumination. Remote control adds convenient manual adjustment when required.
Specifications:

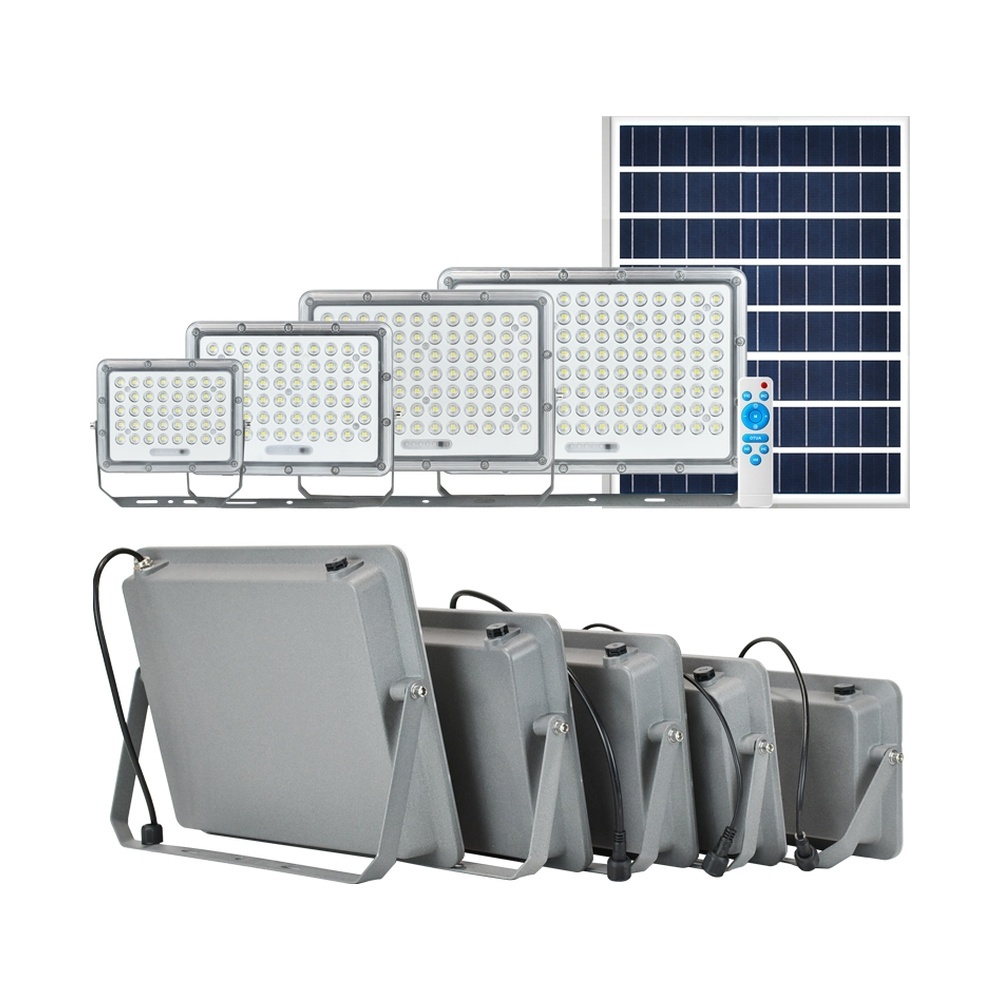

| Power | 50W | 100W | 200W | 300W | 400W |
| Model Number | HC-TTG-XL02-50 | HC-TTG-XL02-100 | HC-TTG-XL02-200 | HC-TTG-XL02-300 | HC-TTG-XL02-400 |
| Dimensions | 195x152x40mm | 230x172x40mm | 267x190x45mm | 305x208x45mm | 350x265x45mm |
| Solar Panel | 6V 8W Mono | 6V 15W Mono | 6V 20W Mono | 6V 30W Mono | 6V 40W Mono |
| Battery Capacity | 3.2V 5Ah | 3.2V 10Ah | 3.2V 15Ah | 3.2V 20Ah | 3.2V 30Ah |
| Battery | LiFePO4 | ||||
| Color Temperature | 6500K (Other CCT optional) | ||||
| Charging Time | 4-6 hours | ||||
| Beam Angle | 90° | ||||
| Chips | SMD | ||||
| CRI | CRI>80 | ||||
| Waterproof Rate | IP65 | ||||
| Light Time | 12hrs per night, 2-3 rainy days | ||||
| Controller | Intelligent light control / Remote Control | ||||
| Main Materials | Aluminium + PC lens | ||||
| Warranty | 2 years | ||||
| Functions | Automatic Charging In The Daytime, Automatic lighting at night | ||||
TTG-XL02 is suitable for courtyards, garages, driveways, entrances, patios, gardens and building surroundings, providing independent solar lighting without the need for underground wiring or grid power installation.
It can also be used around small parking areas, farms, workshops, storage areas and light commercial properties. The separate solar panel and adjustable fixture make it especially useful where the best solar charging direction differs from the required lighting direction.
FAQ:
A: An aluminum solar flood light provides a strong and durable housing for long-term outdoor installation. The HC-TTG-XL02 combines an aluminum body with a PC lens and IP65 protection, making it suitable for everyday outdoor lighting applications.

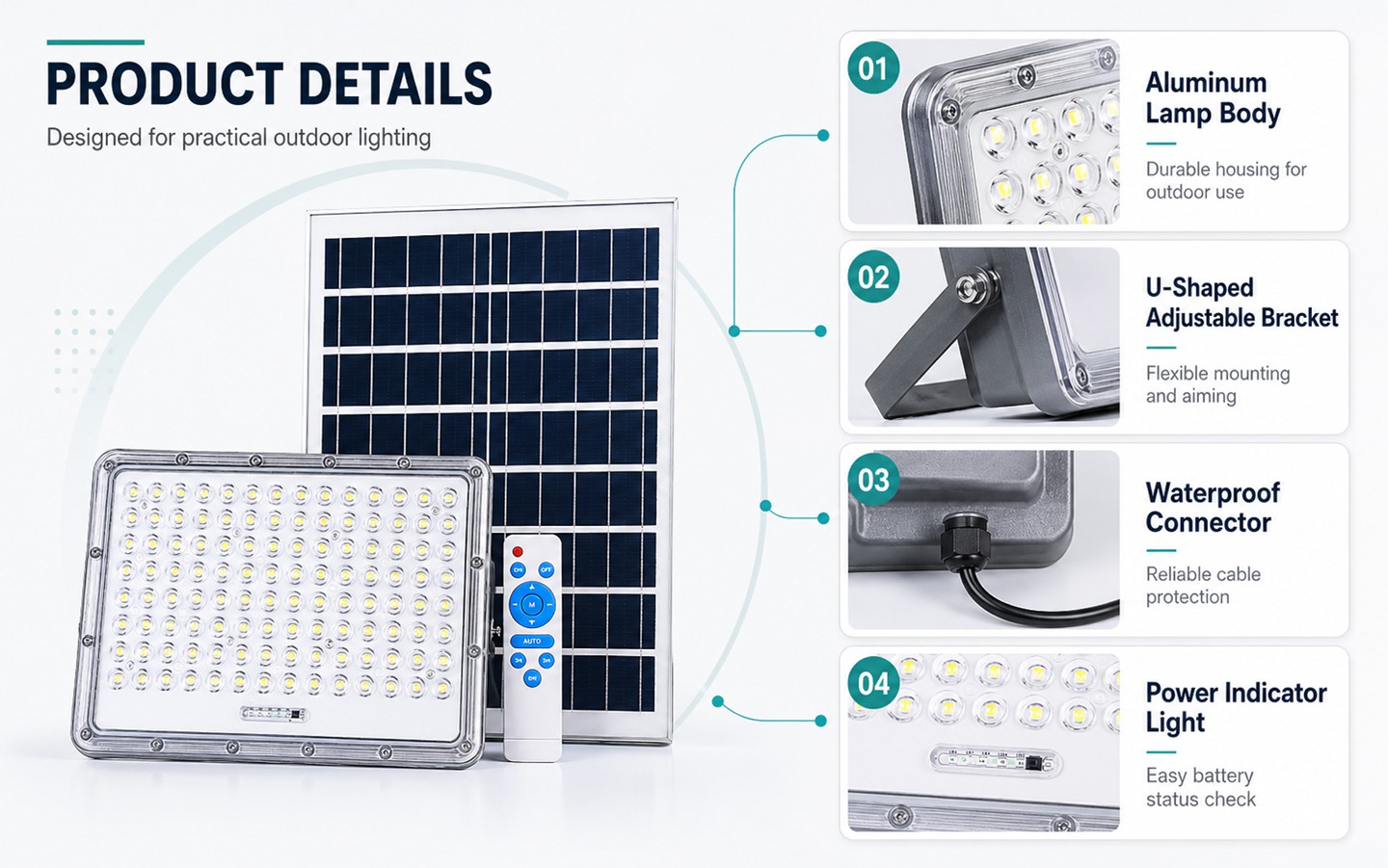

A: Yes. The HC-TTG-XL02 includes a battery power indicator that shows approximately 25%, 50%, 75% and full-charge status, allowing users to check remaining battery capacity more easily.

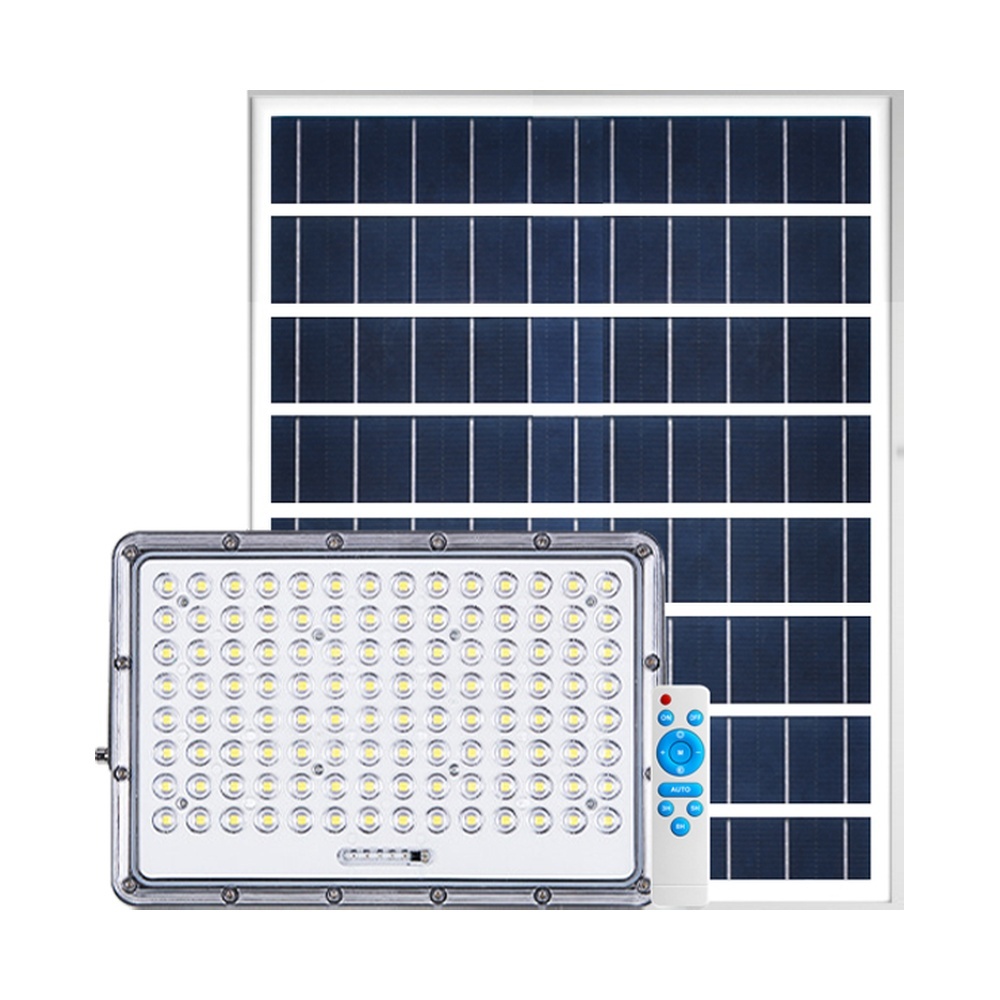

A: A split solar flood light allows the solar panel and LED fixture to be positioned independently. The panel can face the best available sunlight while the flood light is aimed toward the area that needs illumination, providing greater installation flexibility.
A: The specified lighting time is approximately 12 hours per night, with support for around 2–3 rainy days under suitable charging and operating conditions. Charging time is approximately 4–6 hours in adequate sunlight.
A: The HC-TTG-XL02 uses a 90° beam angle, providing a more defined area of illumination for courtyards, entrances, garages, yards and similar outdoor spaces.
