Description

Product Description

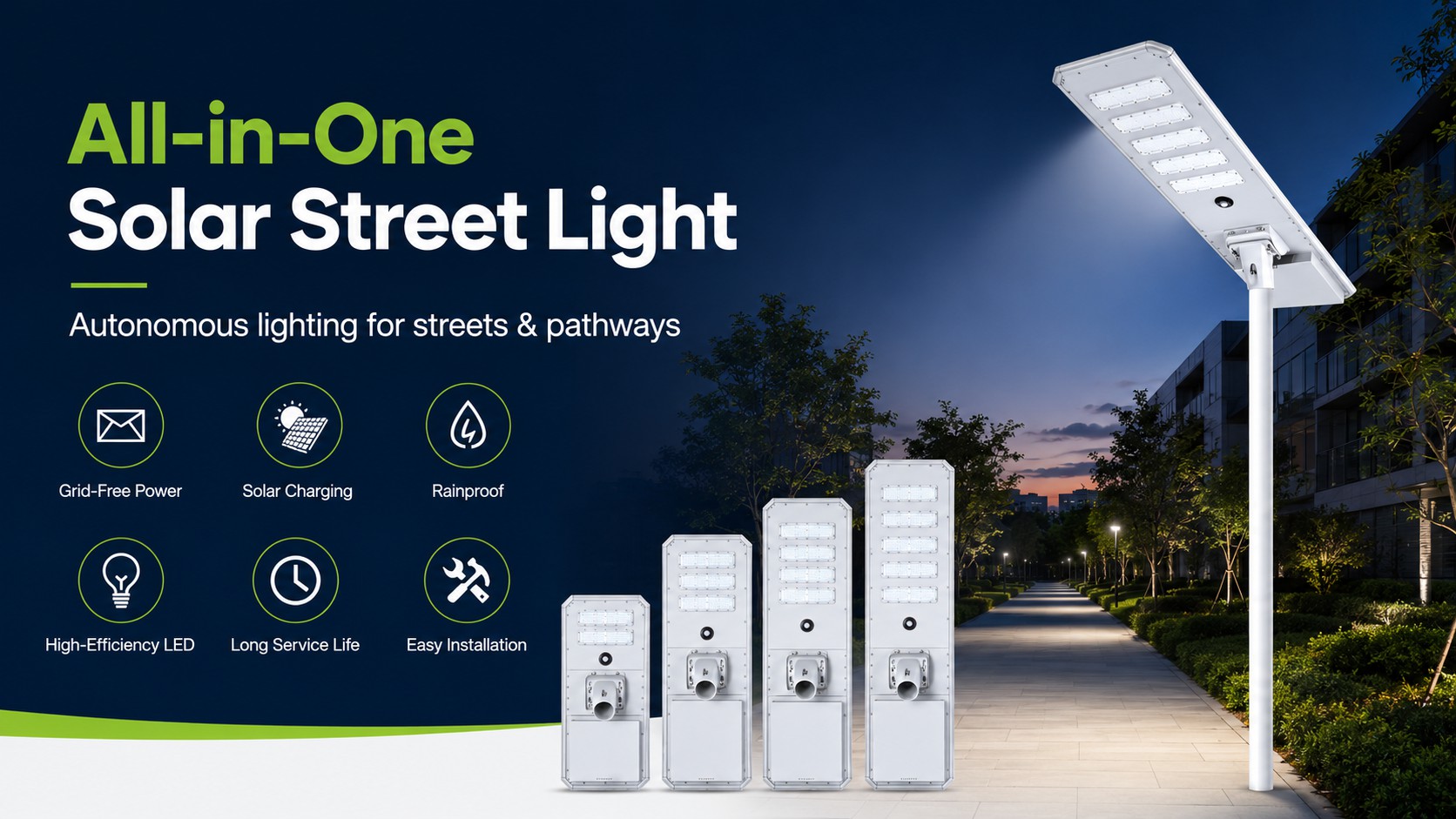

LDLY-DL-B all-in-one solar street light is developed for outdoor projects that need independent lighting without underground cabling or continuous grid power. A high-efficiency monocrystalline solar panel works with LiFePO4 battery storage and an MPPT controller to collect, manage and store solar energy for nighttime illumination

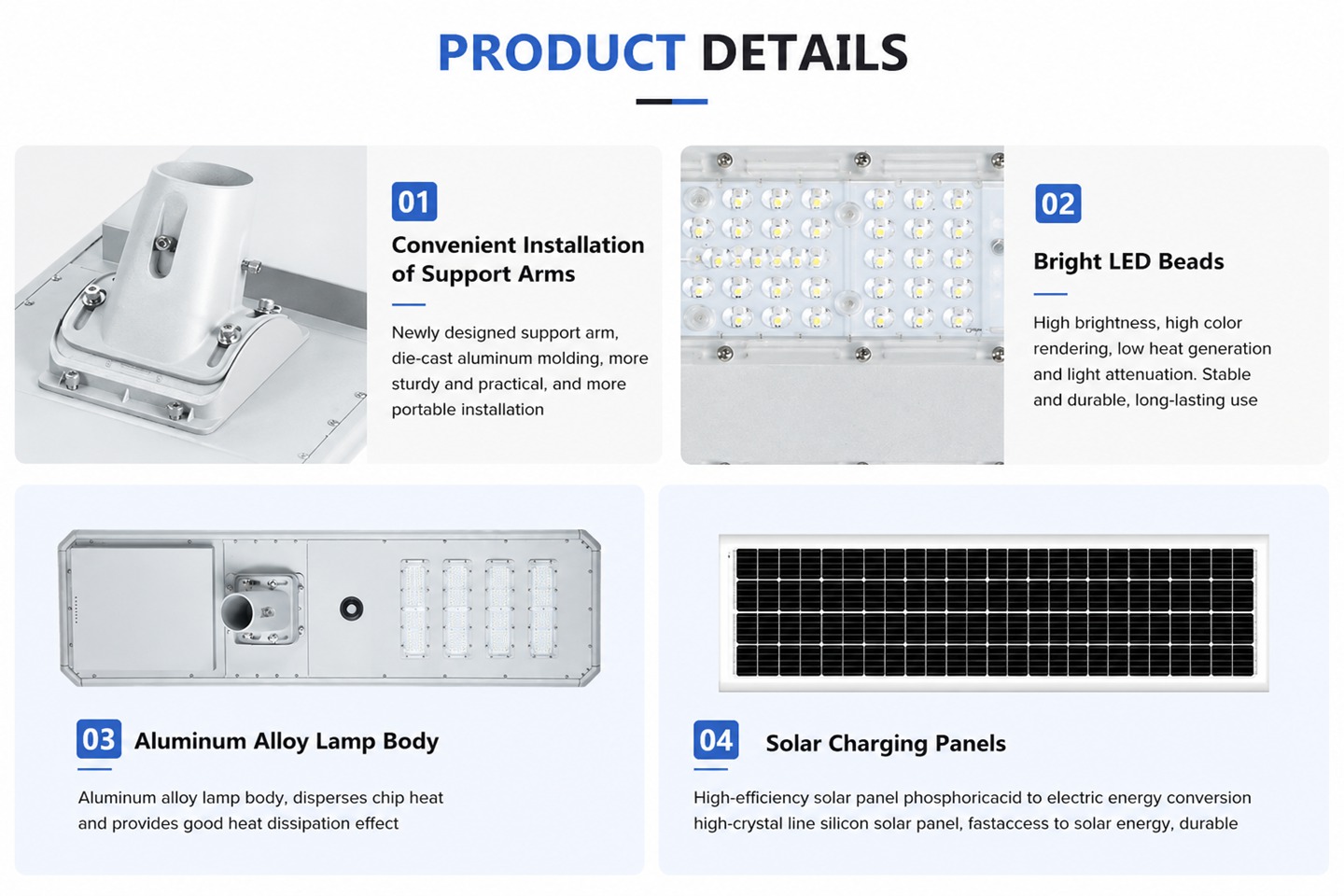

Its integrated aluminum housing, wide road-lighting distribution and configurable smart control make this solar LED street light suitable for road and public-area projects. Optional PIR or microwave sensing allows the operating mode to be adapted for improved energy management and longer nighttime operation

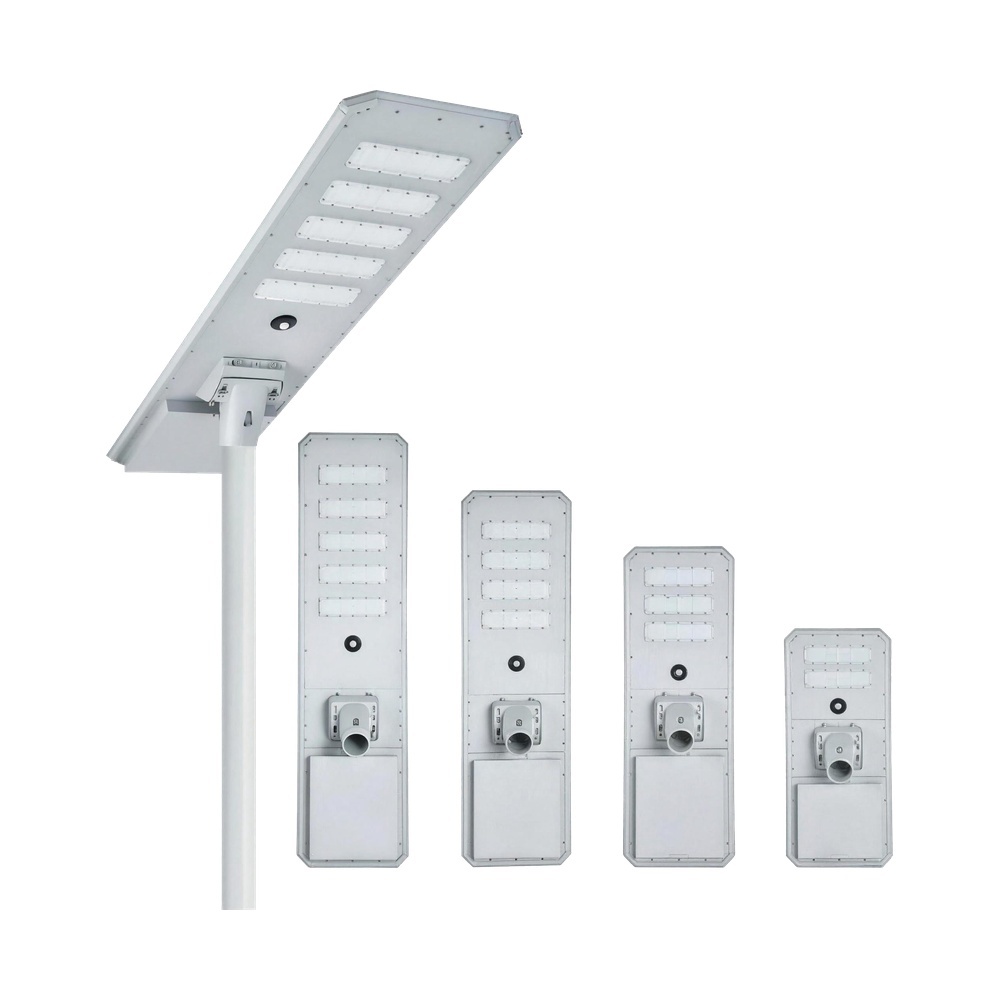

Power	500W	600W	700W	800W
Model Number	HC-LDLY-DL-500B	HC-LDLY-DL-600B	HC-LDLY-DL-700B	HC-LDLY-DL-800B
Dimensions	1340x430x80mm	1380x560x80mm	1610x550x80mm	1800x560x80mm

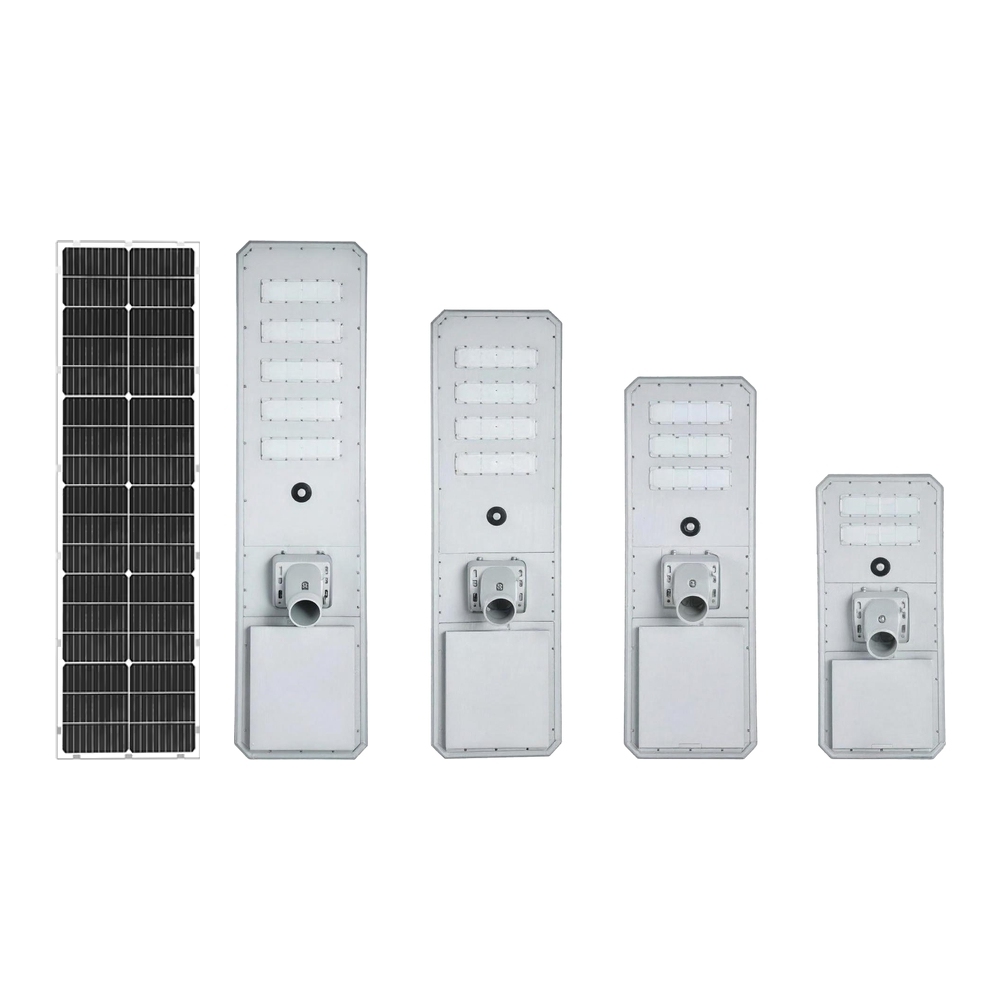

Solar Panel	18V / 100W / Mono	18V / 130W / Mono	18V / 160W / Mono	18V / 180W / Mono
Battery Capacity	3.2V / 120AH	12.8V / 45AH	12.8V / 60AH	12.8V / 75AH
Battery	LiFePO4
Color Temperature	6500K (Other CCT optional)
Charging Time	6-7 hours
Beam Angle	70x140°
Chips	SMD5054
CRI	CRI>80

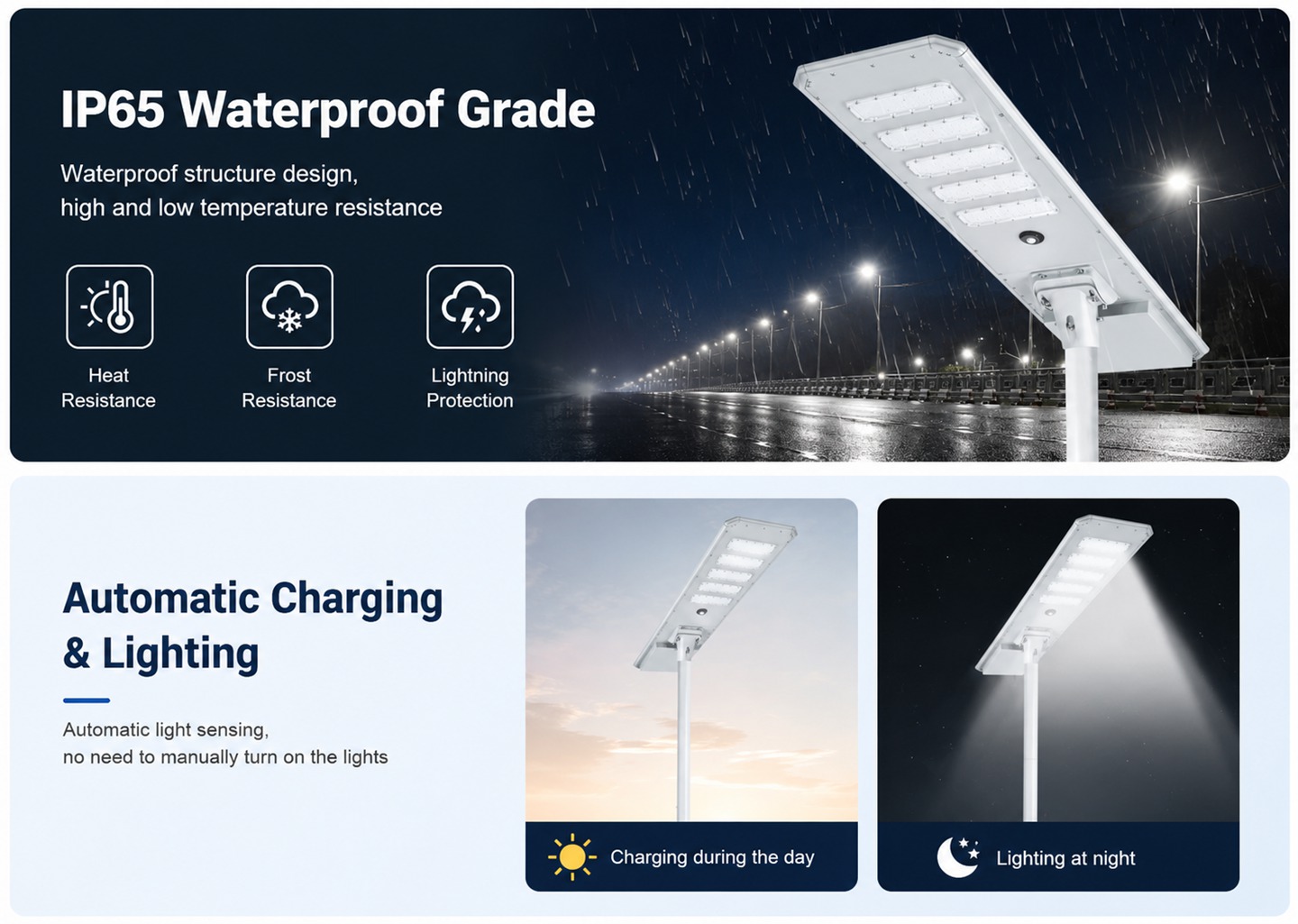

Waterproof Rate	IP65
Light Time	Up to 12 Hours/Night；Backup: 3–5 Rainy Days under Smart Lighting Mode
Controller	MPPT
Sensor Optional	PIR / Microwave optional
Working Mode	Time + Sensor / Custom
Installation Height	Recommended Installation Height: 6–9 m

Application:

LDLY-DL-B is suitable for urban roads, residential communities, campuses, parks, parking areas and public access roads, especially where conventional electrical wiring is difficult or expensive.
It can also be used for rural roads, industrial areas, remote sites and infrastructure projects requiring independent solar-powered lighting with flexible intelligent control.

FAQ:

Q1. What makes the LDLY-DL-B different from a standard all-in-one solar street light?
A: The LDLY-DL-B is designed with larger solar panel and battery configurations for applications requiring greater energy storage and dependable nighttime operation. It integrates the solar panel, LiFePO4 battery, LED lighting and MPPT control into one outdoor lighting system.

Q2. Does the LDLY-DL-B require grid electricity?
A: No. It operates as an independent solar lighting system, collecting solar energy during the day and using stored battery energy for nighttime illumination. This reduces the need for underground electrical cabling.

Q3. How long does this all-in-one solar street light operate at night?
A: The system is designed for up to approximately 12 hours of nighttime operation, with the listed configuration supporting around 3–5 rainy days under suitable smart lighting settings and solar conditions.

Q4. Does the LDLY-DL-B support automatic and sensor-based lighting?
A: Yes. The series uses an MPPT controller and supports time-based operating modes, with optional PIR or microwave motion sensing for intelligent energy management.

Q5. Where can the LDLY-DL-B solar street light be installed?
A: It is suitable for roads, residential communities, parks, campuses, parking areas, rural roads and other outdoor locations where reliable off-grid lighting and simplified installation are required.
