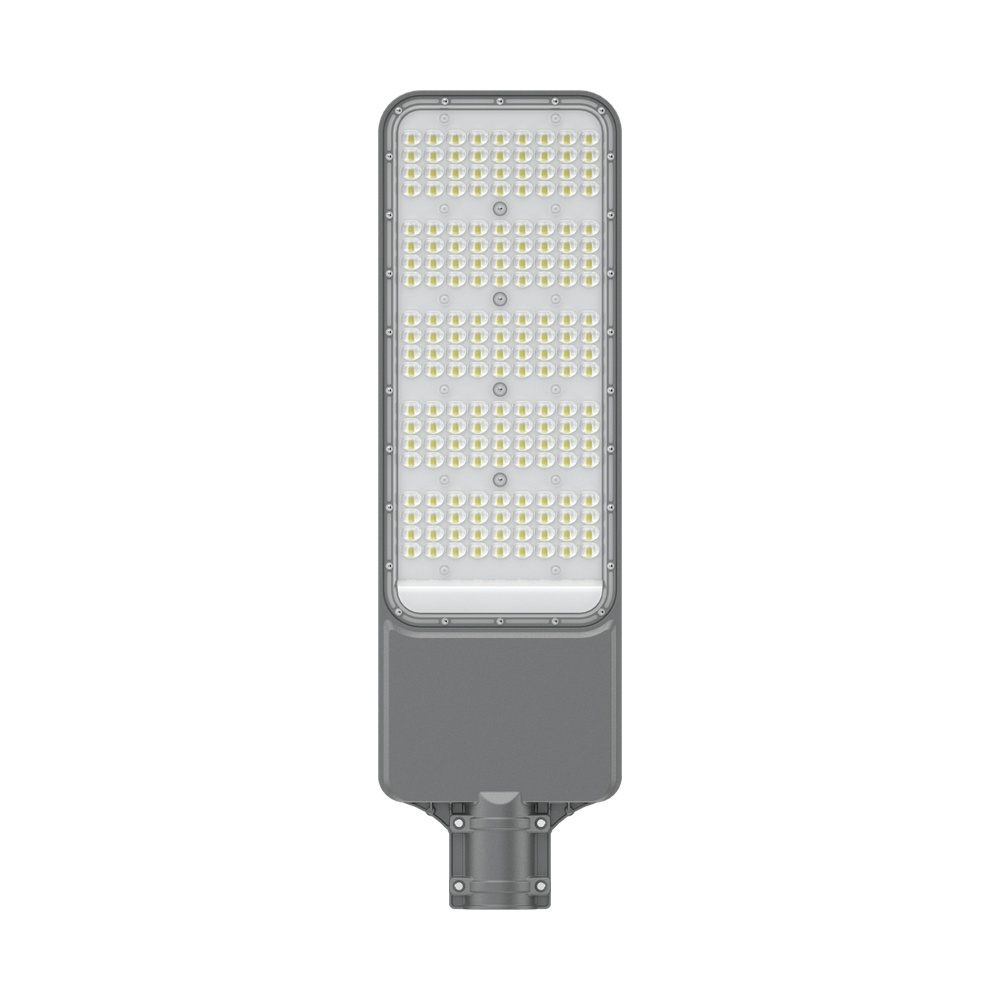

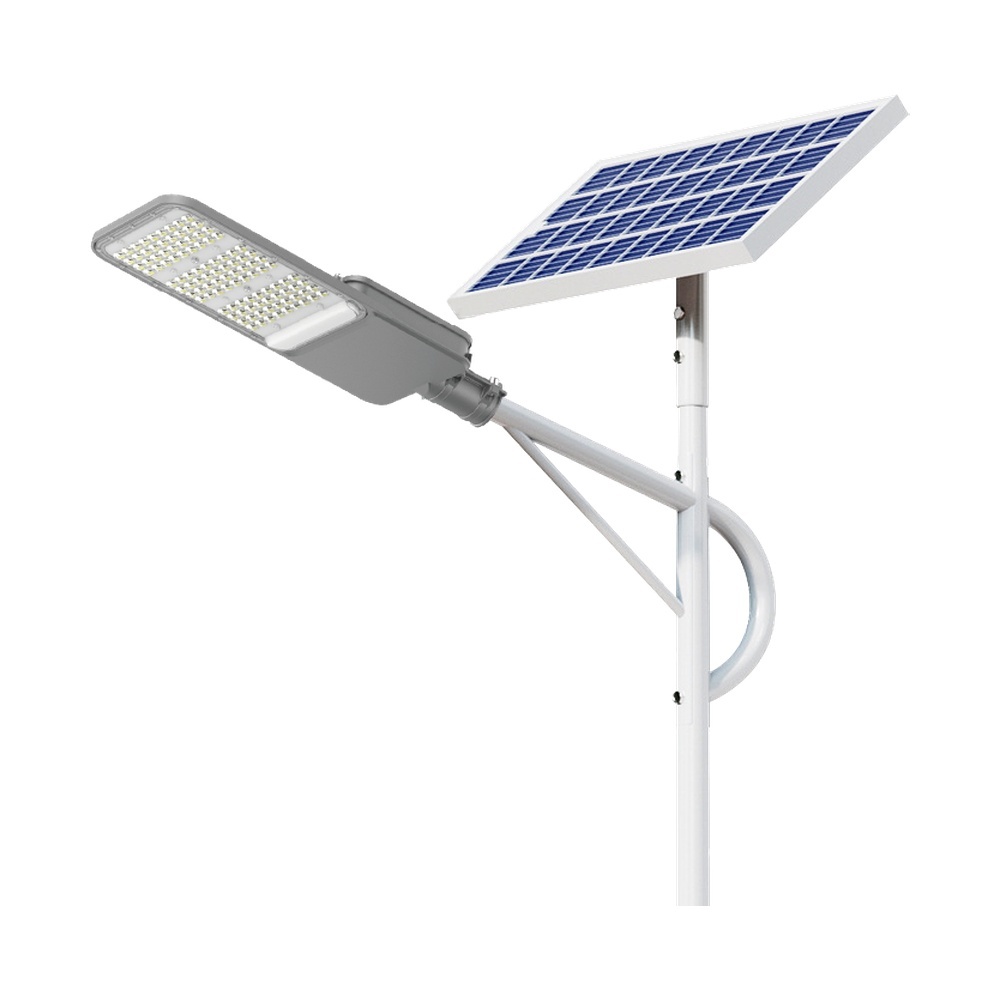

Hybrid LED Street Light provides a flexible solution for projects requiring either conventional AC-powered street lighting or solar street lighting. With power options from 50W to 250W and luminous efficacy up to 140 lm/W, the fixture combines SMD3030 LEDs with Type II optics to deliver efficient and controlled roadway illumination.

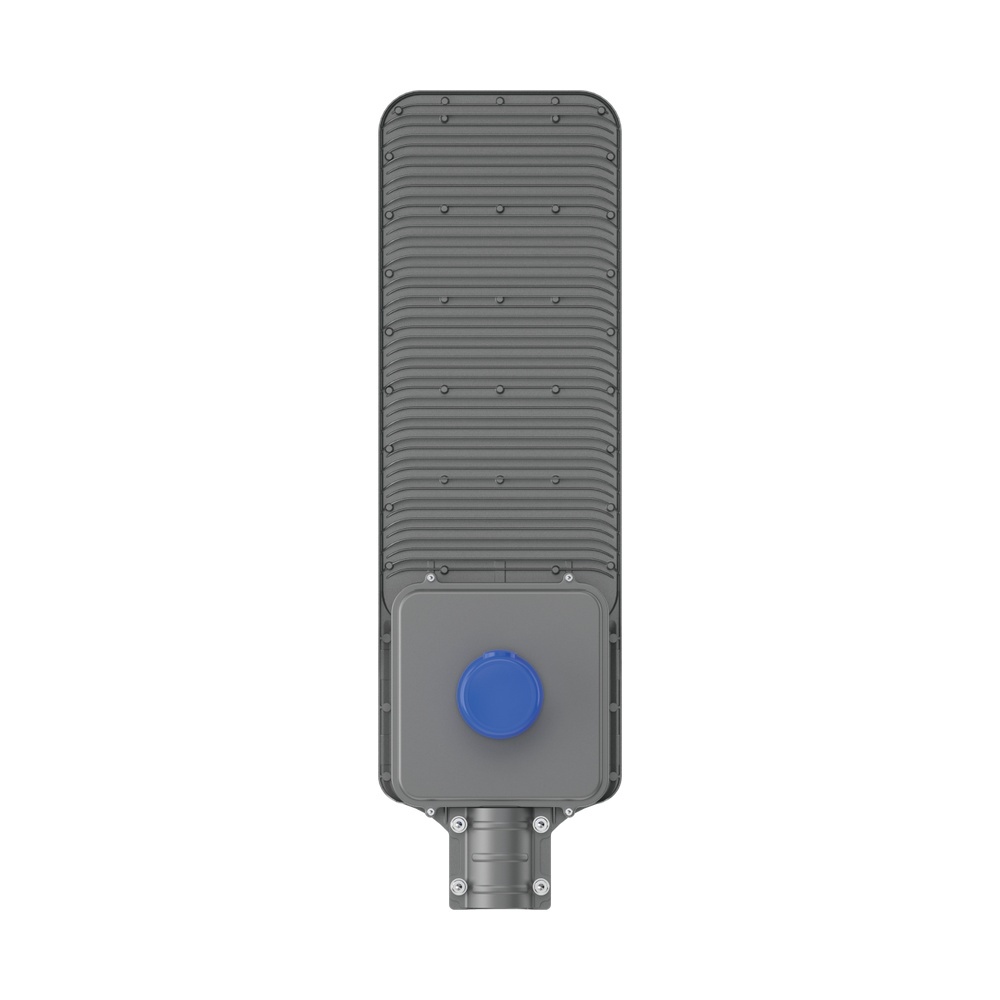

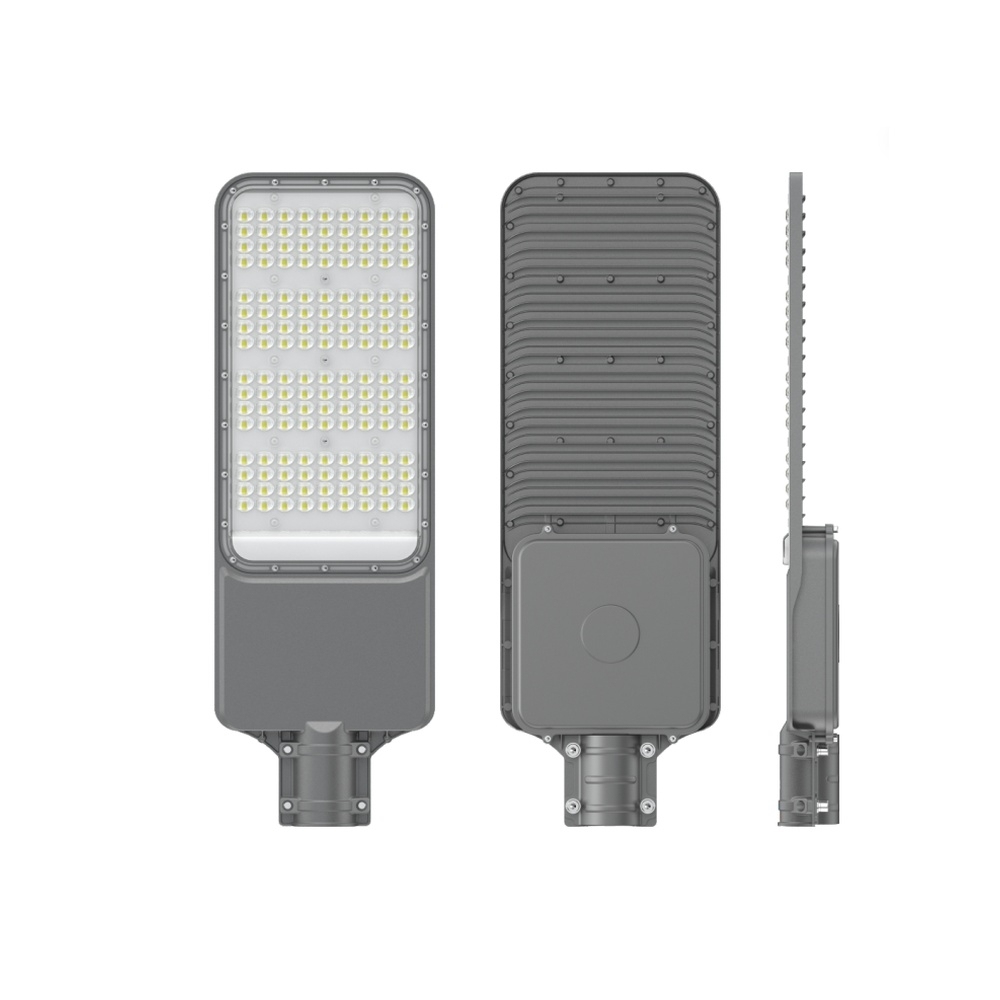

Designed for long-term outdoor use, the fixture features an IP65-rated die-cast aluminum housing, IK08 impact resistance and CRI>80. The AC version supports AC100–277V input, while optional 0–10V dimming and microwave sensor configurations provide additional flexibility for commercial, municipal and infrastructure lighting projects.
| Power | 50W | 100W | 150W | 200W | 250W |
| Model Number | HC-YZMH04-LD50 | HC-YZMH04-LD100 | HC-YZMH04-LD150 | HC-YZMH04-LD200 | HC-YZMH04-LD250 |
| Dimensions | 430*230*64mm | 515*230*64mm | 600*230*64mm | 685*230*64mm | 770*230*64mm |
| Efficacy | 140LM/W | ||||
| Color Temperature | 3000K 4000K 5000K 5700K 6500K | ||||
| Input Voltage | AC100-277V 50/60Hz | ||||
| Beam Angle | Type II | ||||
| Chips | SMD3030 | ||||
| CRI | CRI>80 | ||||
| Waterproof Rate | IP65 | ||||
| Dimmable | Non-dim, 0-10V dim, Microwave sensor options | ||||
| Life Time @L70 | >100,000Hrs | ||||
| Operating Temperature | -30°C to +45°C | ||||
| Impact resistance | IK08 | ||||

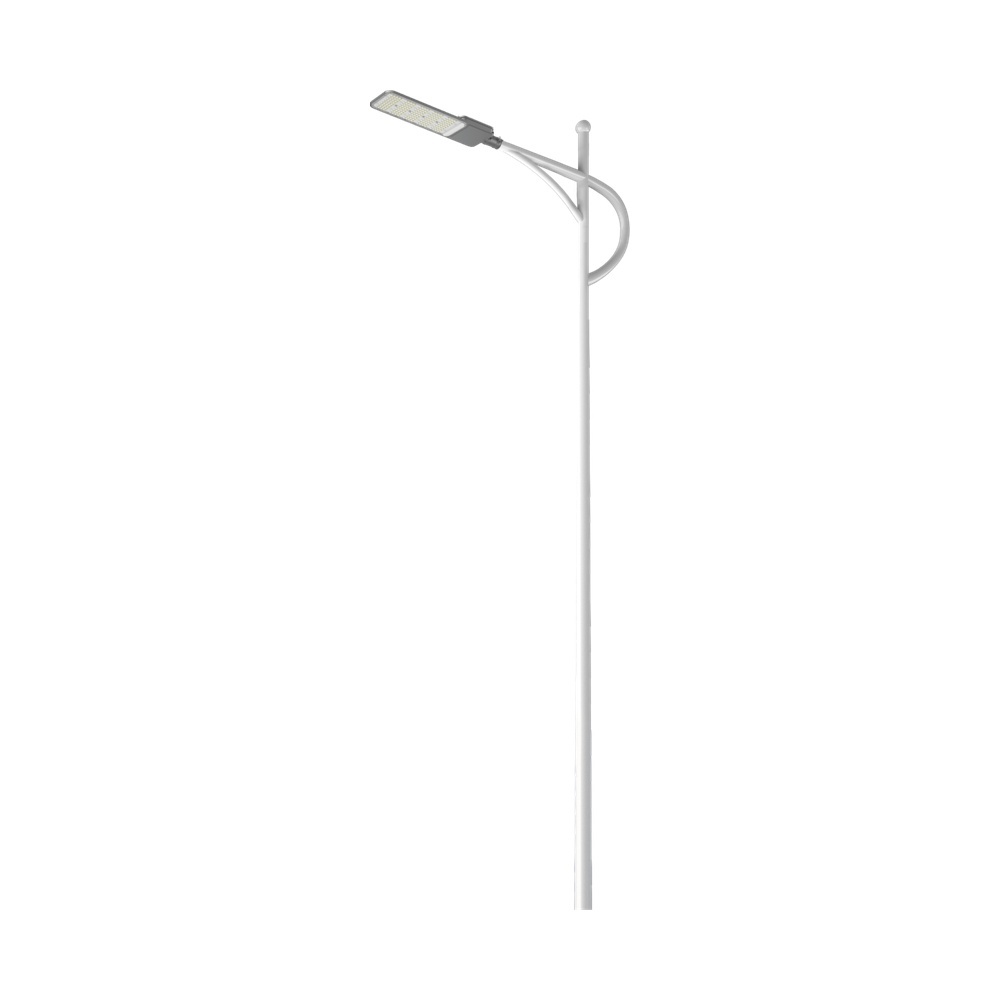

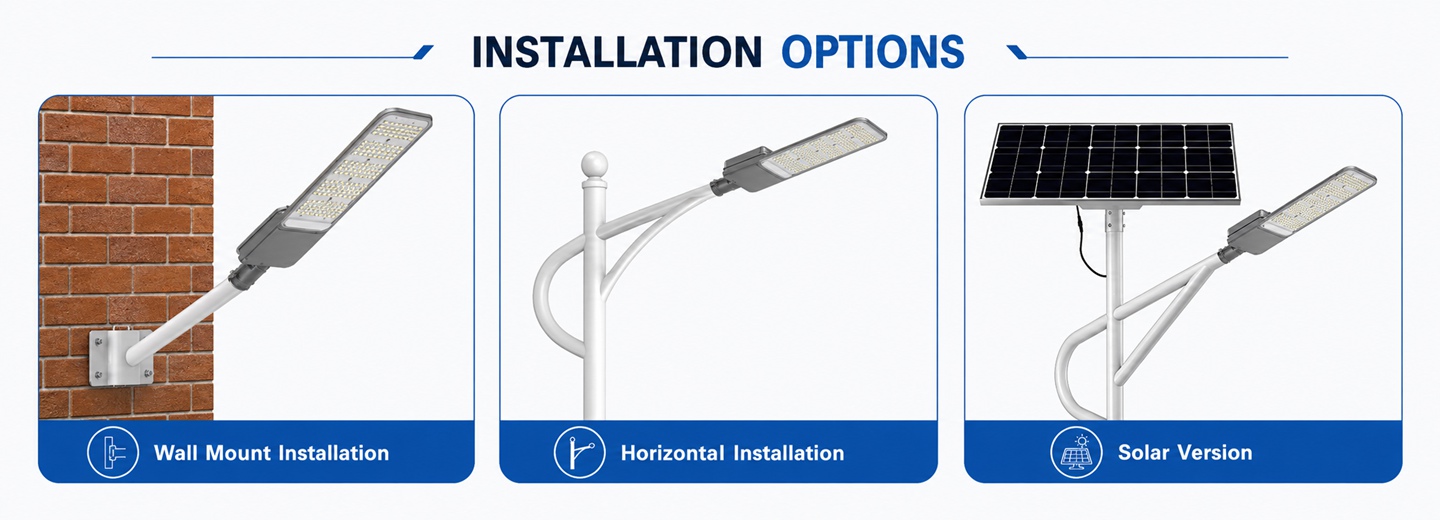

| Mounting Option | Pole / Wall Mounting | ||||
| Switching Cycles | ＞100,000 times | ||||

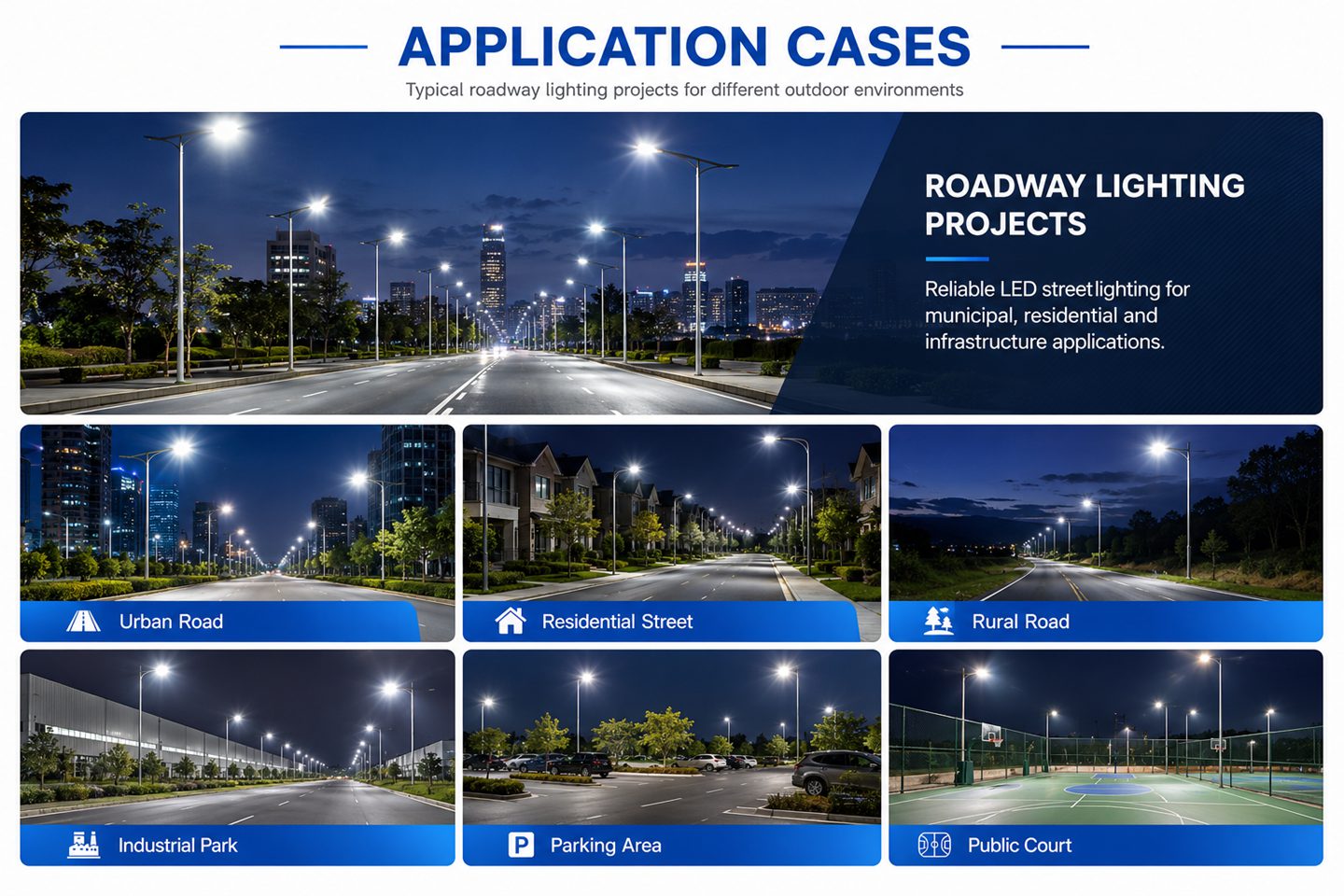

Hybrid LED Street Light is suitable for urban roads, residential streets, rural roads, industrial parks, parking areas, campuses and public infrastructure projects. Different wattages can be selected according to road width, pole height and required lighting levels.
Its AC and solar configuration flexibility also makes it useful for projects where grid conditions vary between locations, allowing contractors and distributors to use the same street light family for both conventional and solar-powered roadway lighting systems.
FAQ:
Q1. What is a hybrid LED street light?
A hybrid LED street light is a roadway fixture that can be configured for different power systems. The EZCOLED Hybrid LED Street Light can be used with AC mains or configured for solar lighting projects, giving contractors more flexibility when designing outdoor lighting systems.
Q2. What wattages are available for this Hybrid LED Street Light?

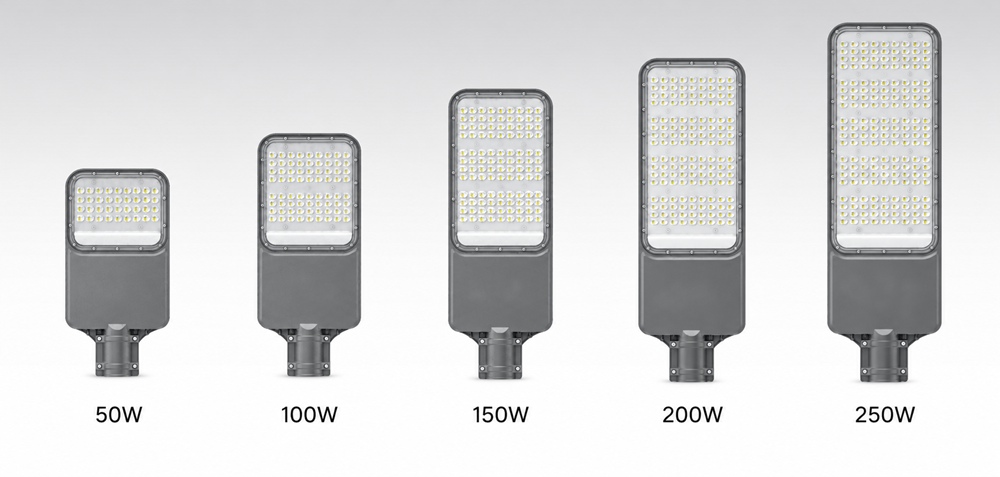

The series is available in 50W, 100W, 150W, 200W and 250W. Lower wattages are suitable for smaller roads and residential areas, while higher wattages can be considered for wider roads, industrial areas and larger outdoor projects.
Q3. Can the same street light be used for both AC and solar projects?

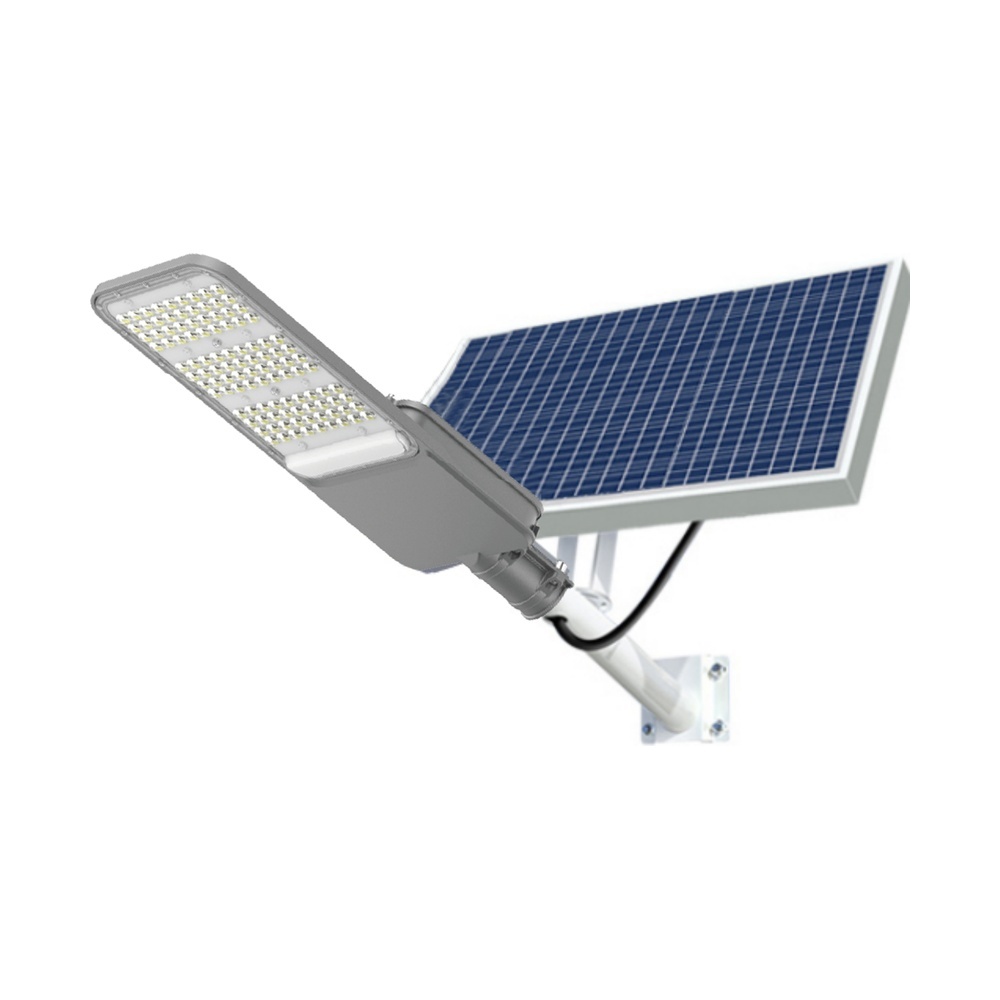

Yes. This fixture platform is designed with AC mains and solar configuration options. The final power configuration should be selected according to the project requirements, available grid power, solar panel and energy-storage system design.
Q4. Is this Hybrid LED Street Light suitable for rainy outdoor environments?
Yes. The fixture has an IP65 protection rating and an IK08 impact-resistant die-cast aluminum housing, making it suitable for normal outdoor exposure to rain, dust and demanding roadway environments.

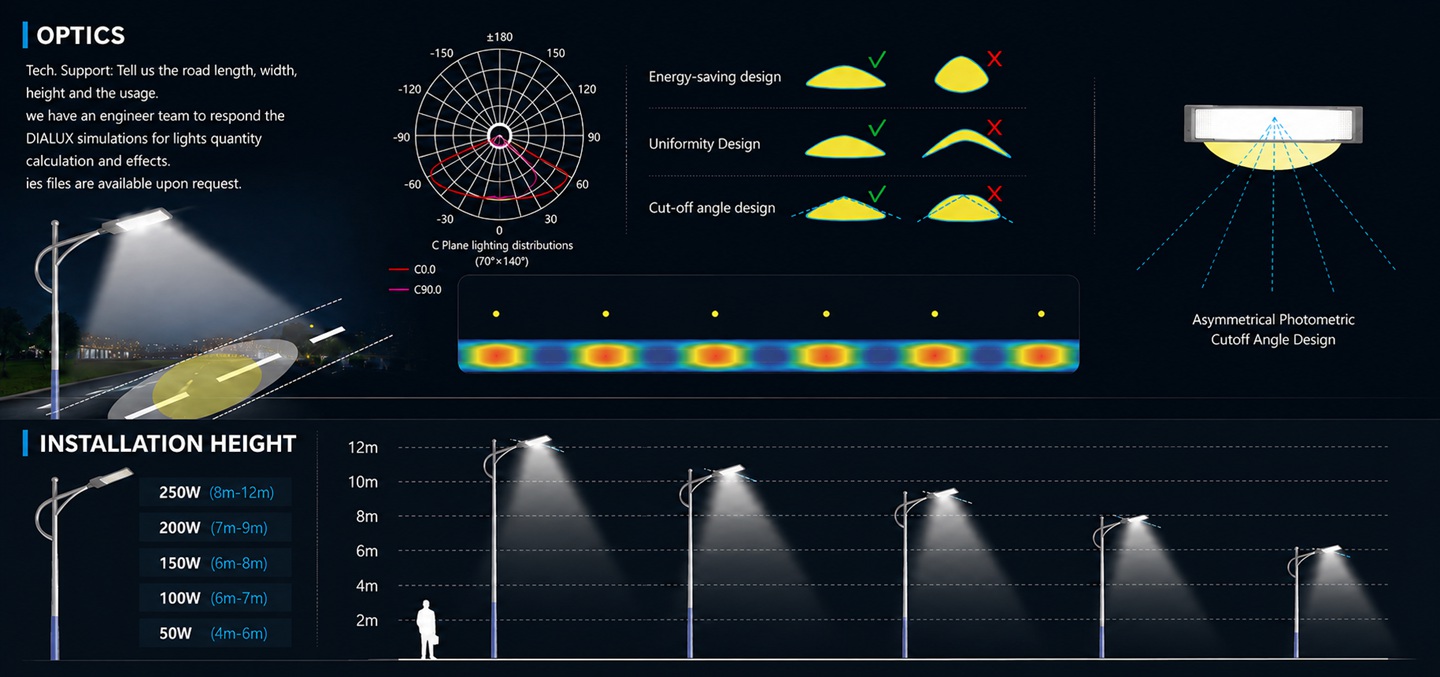

Q5. What type of optical distribution does this Hybrid LED Street Light use?
The fixture uses Type II roadway optics, designed to distribute light along streets and road surfaces. This helps improve useful illumination and lighting uniformity while reducing unnecessary light outside the target area. For professional projects, IES files can be used for DIALux or other photometric simulations.
