Housing & Design: Project-Grade Custom Exterior Housing (Architectural Shell Differentiation from E-Series)
Power Output Options: 100W / 150W / 200W / 240W
Luminous Efficacy: 140LM/W
Protection Ratings: IP65 Waterproof & Dustproof, IK08 Impact Resistance

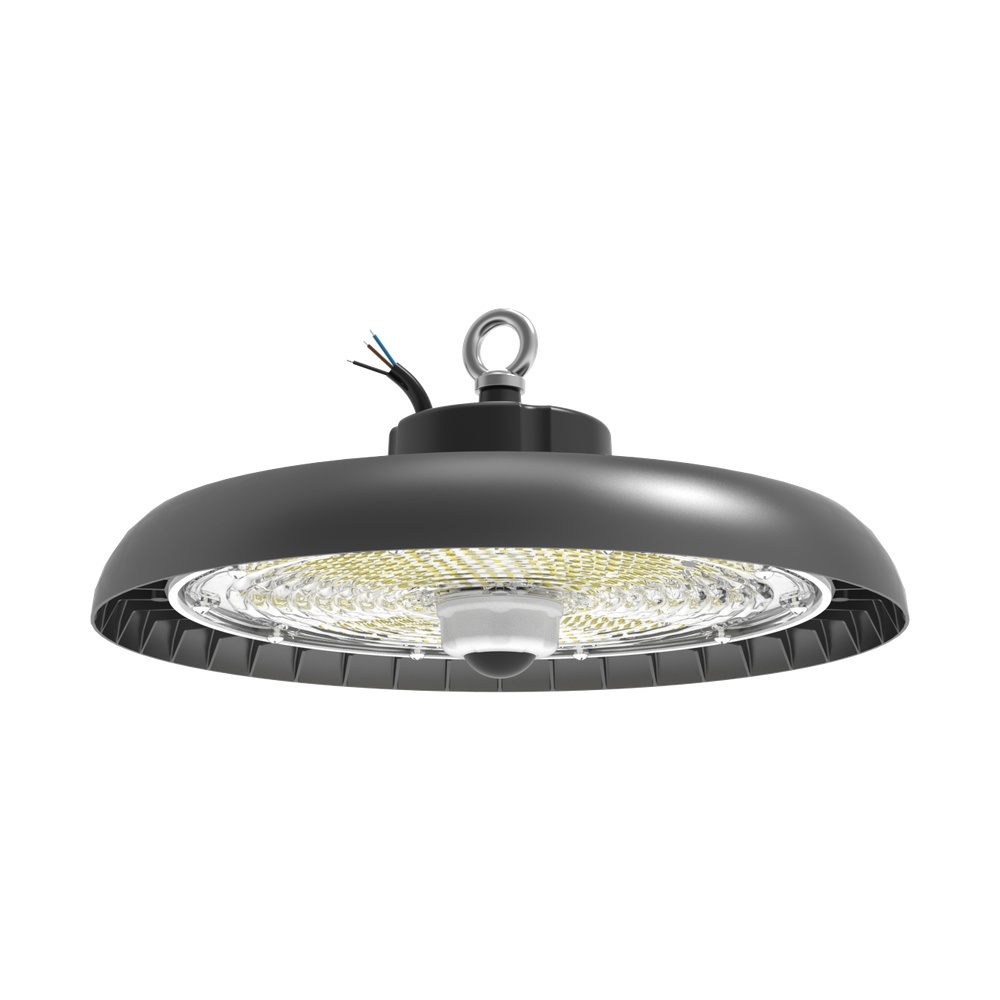

Control Features: 0-10V Dimming; Compatible with Plug-and-Play Zhaga / Microwave Sensors

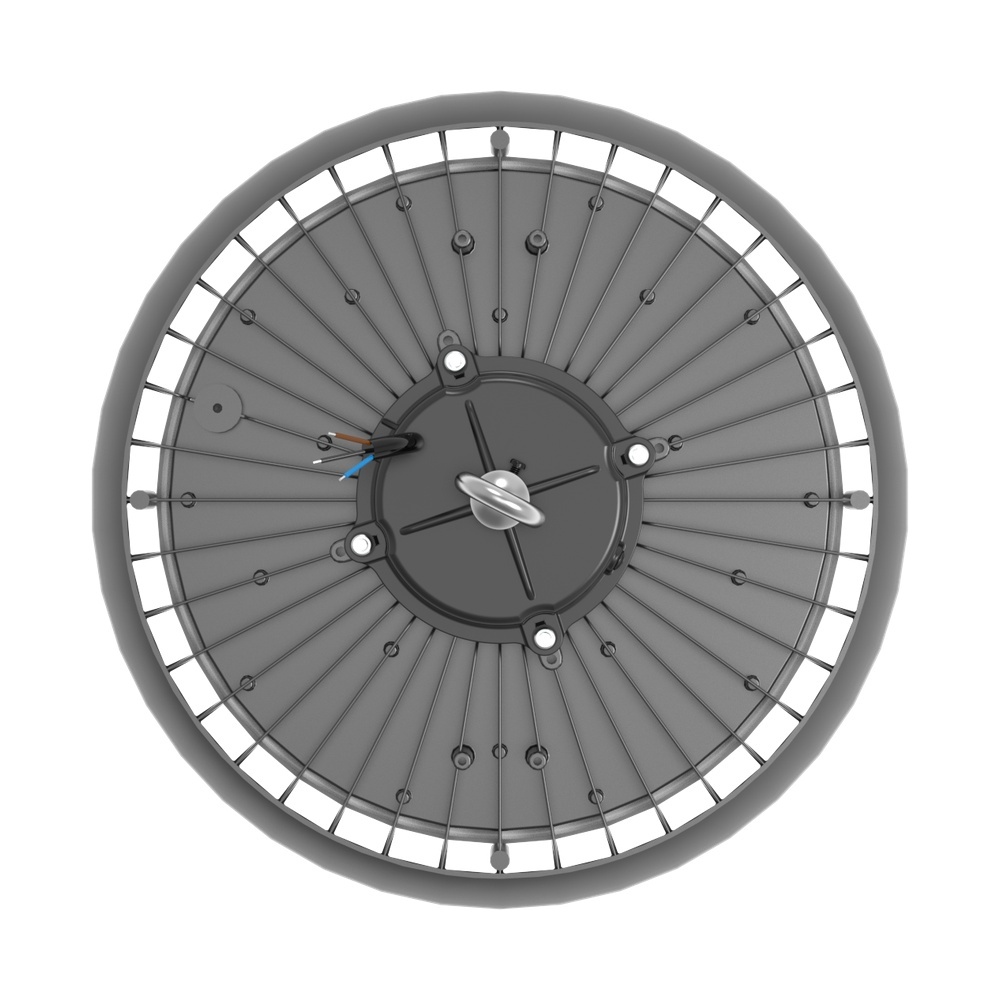

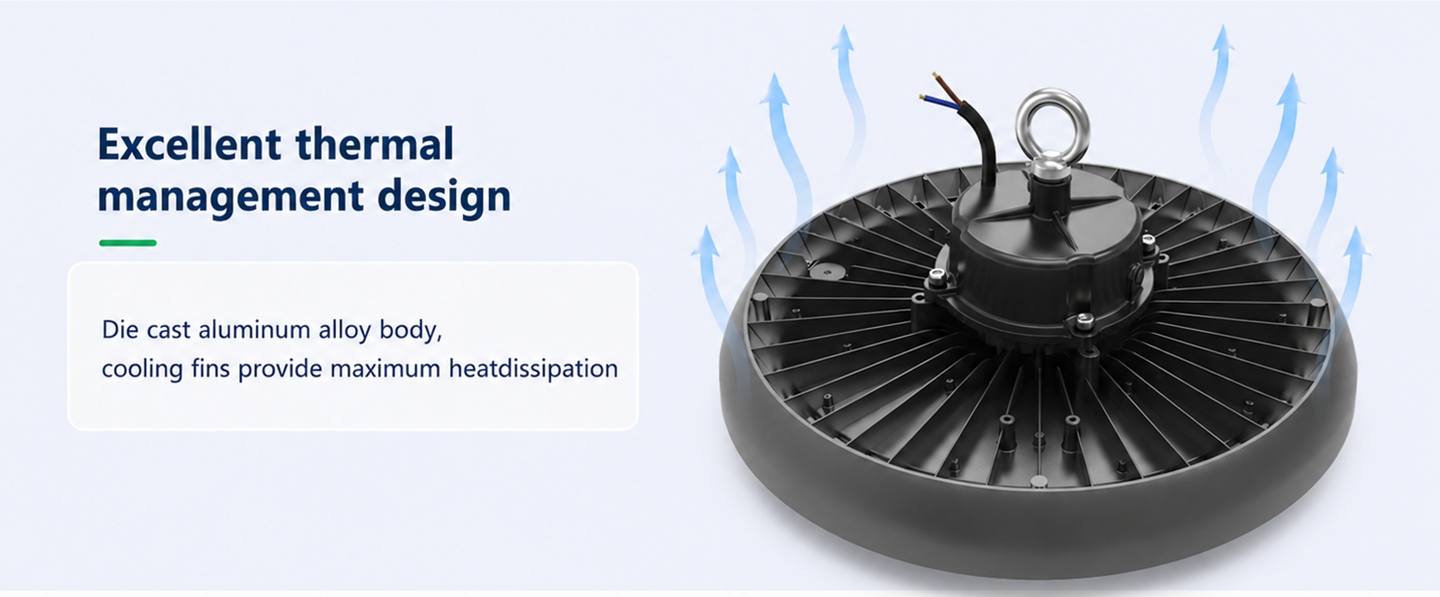

Thermal Management: Custom Die-Cast Aluminum Radiator Housing (-30°C to +50°C)
Warranty: 5-Year Factory Warranty
Product Description:
EZCOLED JL01 Series Industrial UFO LED High Bay Light combines a distinctive die-cast aluminum housing with reliable lighting performance for warehouses, factories and other high-ceiling applications. Available in 100W, 150W, 200W and 240W, it delivers 140 lm/W and supports 60°, 90° and 120° beam angles for different mounting heights and lighting layouts.
With IP65 protection, IK08 impact resistance and AC100–277V input, the JL01 Series is built for demanding industrial environments. Optional 0-10V dimming, microwave sensors, reflectors and bracket mounting provide additional flexibility for contractors, distributors and industrial lighting projects.
Specifications:
| Power | 100W | 150W | 200W | 240W |
| Model Number | HC-UFO-100JL01 | HC-UFO-150JL01 | HC-UFO-200JL01 | HC-UFO-240JL01 |
| Dimensions | Ø280*130mm | Ø325*125mm | Ø365*135mm | Ø365*135mm |
| Efficacy | 140LM/W | |||
| Color Temperature | 3000K 4000K 5000K 5700K 6500K | |||
| Input Voltage | AC100-277V 50/60Hz | |||
| Surge protection | 4KV-Line-Line | |||
| Beam Angle | 60°, 90°, 120° LENS optional | |||

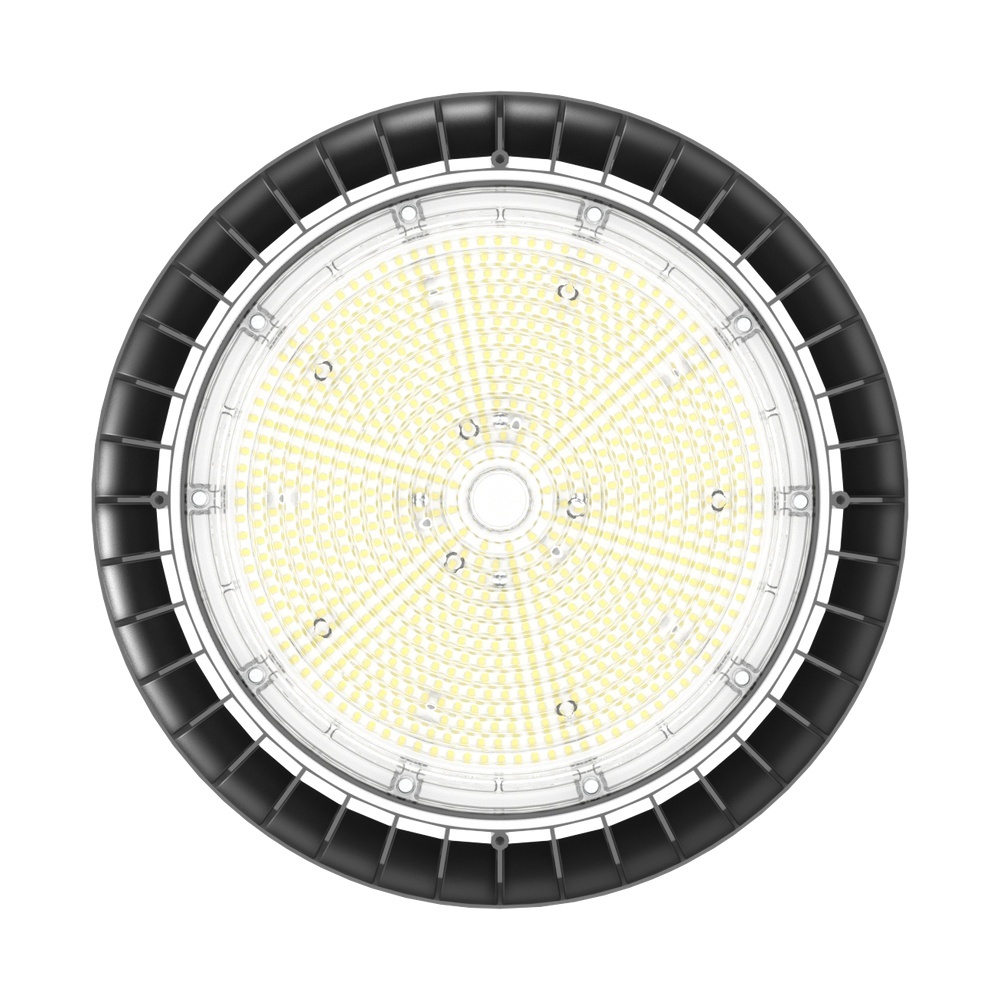

| Chips | SMD2835 | |||
| CRI | CRI>80 | |||
| Waterproof Rate | IP65 | |||
| Dimmable | Non-dim, 0-10V dim, Microwave sensor options | |||
| Life Time @L70 | >100,000Hrs | |||
| Operating Temperature | -30°C to +45°C | |||
| Impact resistance | IK08 | |||

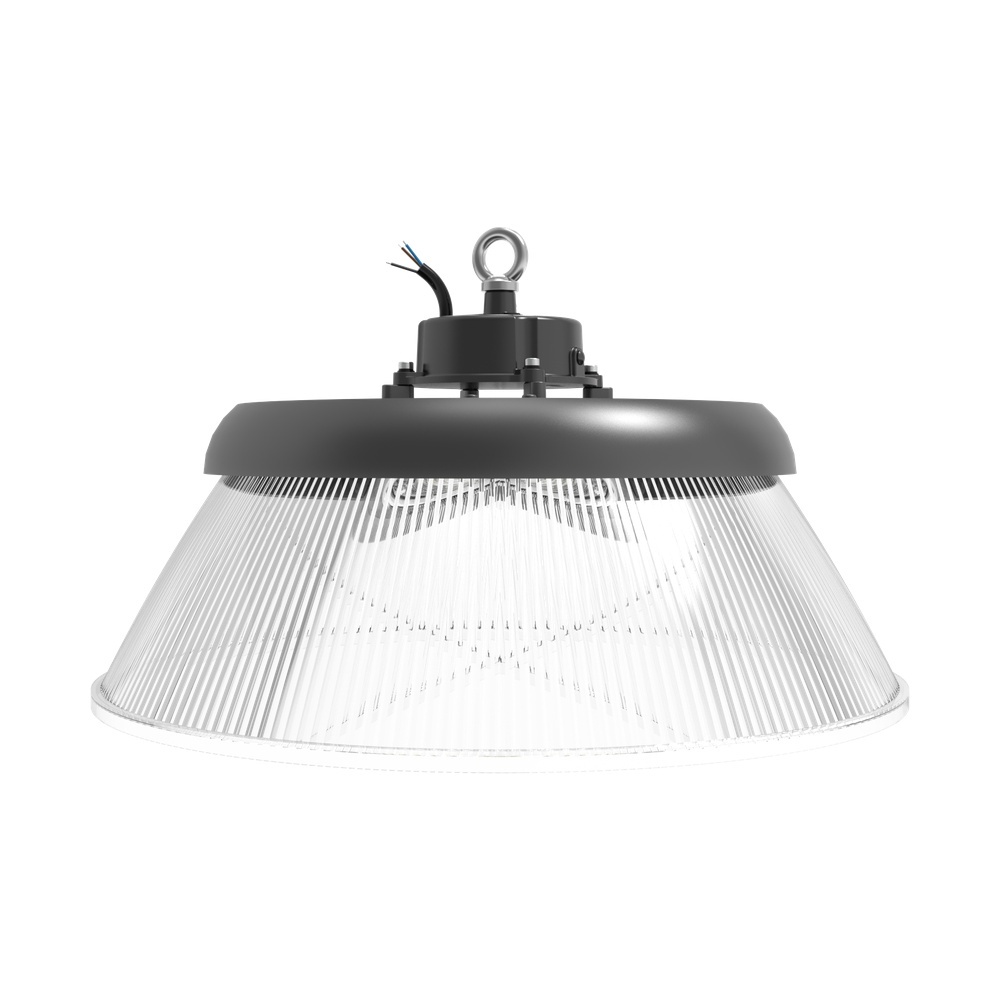

| Mounting Option | Reflector / Bracket Mounting | |||
| Switching Cycles | ＞100,000 times | |||
Scenario 1: Specified Industrial & Logistics Projects
Tailored for engineering bids, new logistics hubs, and large-scale industrial facility builds. The custom housing profile provides a distinct aesthetic for project specifications while ensuring high illuminance uniformity and glare control for warehouse operators.
Scenario 2: Modern Commercial & Athletic Arenas
Ideal for commercial centers, exhibition spaces, and indoor sports arenas where clean industrial design matters. Its premium fixture profile, flicker-free output, and smart dimming capabilities offer a sophisticated visual environment with low energy overhead.
FAQ：
1: What is the main difference between the JL01 Series and the E-Series UFO High Bay Light?
A1: The primary difference lies in the exterior housing design. While both series utilize the same proven LED chips, high-efficiency drivers, and light engines, the JL01 features a custom-designed outer shell. This unique housing allows contractors and project buyers to offer a distinctive product profile, protecting bid specs and avoiding competition with generic E-Series fixtures.
Q2: Does the custom housing of the JL01 Series affect thermal performance or lighting output?
A2: No. The JL01's specialized die-cast aluminum housing is thermally optimized using computer simulation to match or exceed the heat dissipation capabilities of the E-Series. It delivers identical high luminous efficacy (up to 210 lm/W) and operates stably in ambient temperatures up to +50°C.
Q3: Can smart sensors and dimming modules be installed on the JL01 Series?
A3: Yes. The JL01 Series includes standard 0-10V dimming leads and is fully compatible with twist-lock Zhaga microwave motion sensors, PIR sensors, and daylight harvesting controls for automated energy management.
Q4: Is the JL01 Series suitable for harsh or humid industrial environments?
A4: Absolutely. The JL01 Series features a fully gasketed IP65 waterproof and dustproof housing, along with an IK08 impact-resistant lens. It easily withstands dust, moisture, and vibration in demanding factory settings.
Q5: What warranty and mounting options are available for project orders?

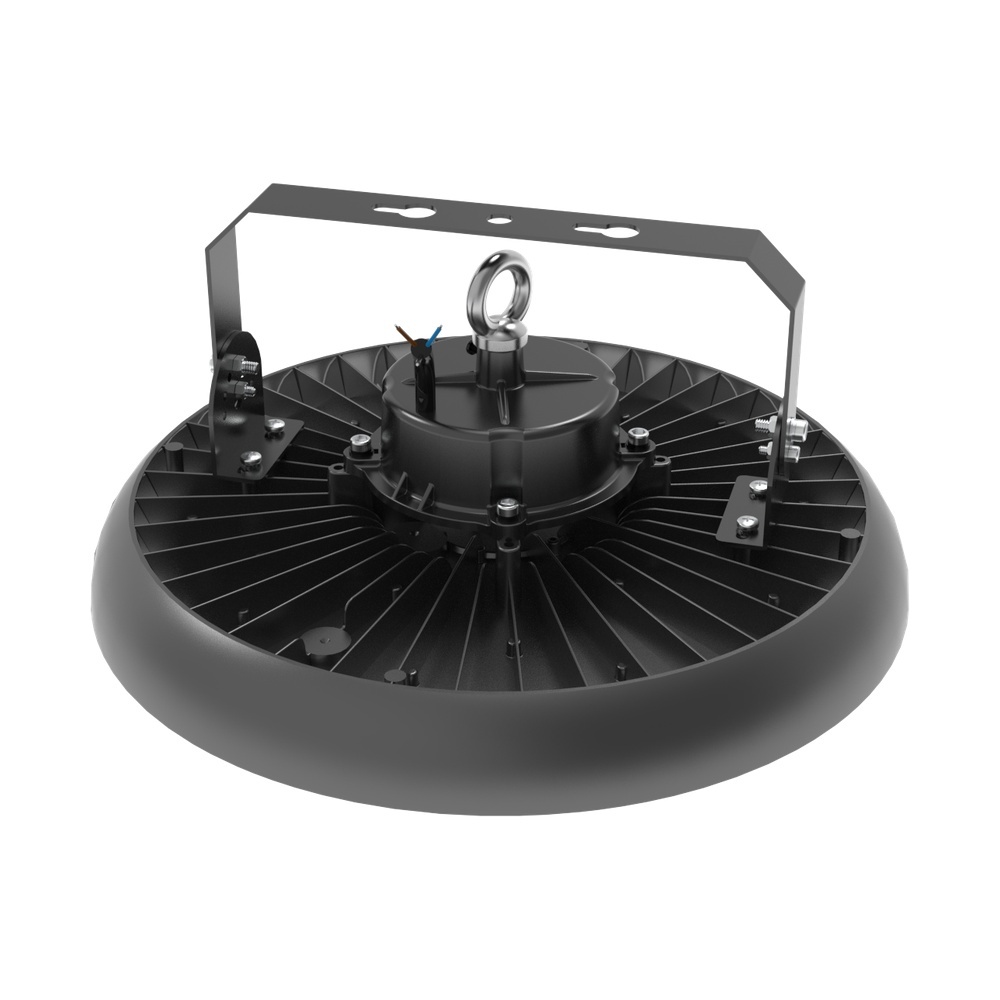

A5: The JL01 Series comes with an official 5-year factory warranty. It supports multiple installation methods, including ring/hook hanging mount, pendant rod mount, and adjustable U-bracket surface mounting for ceilings or walls.
