L Series Adjustable UFO LED High Bay Light for Industrial Applications
EZCOLED L Series UFO LED High Bay Light is a high-performance industrial lighting solution designed for warehouses, factories, workshops and other high-ceiling applications. Featuring adjustable power and CCT selection, it provides flexible lighting configurations for different project requirements, helping distributors and contractors reduce product variations and improve installation efficiency.
Reliable Performance & Flexible Installation

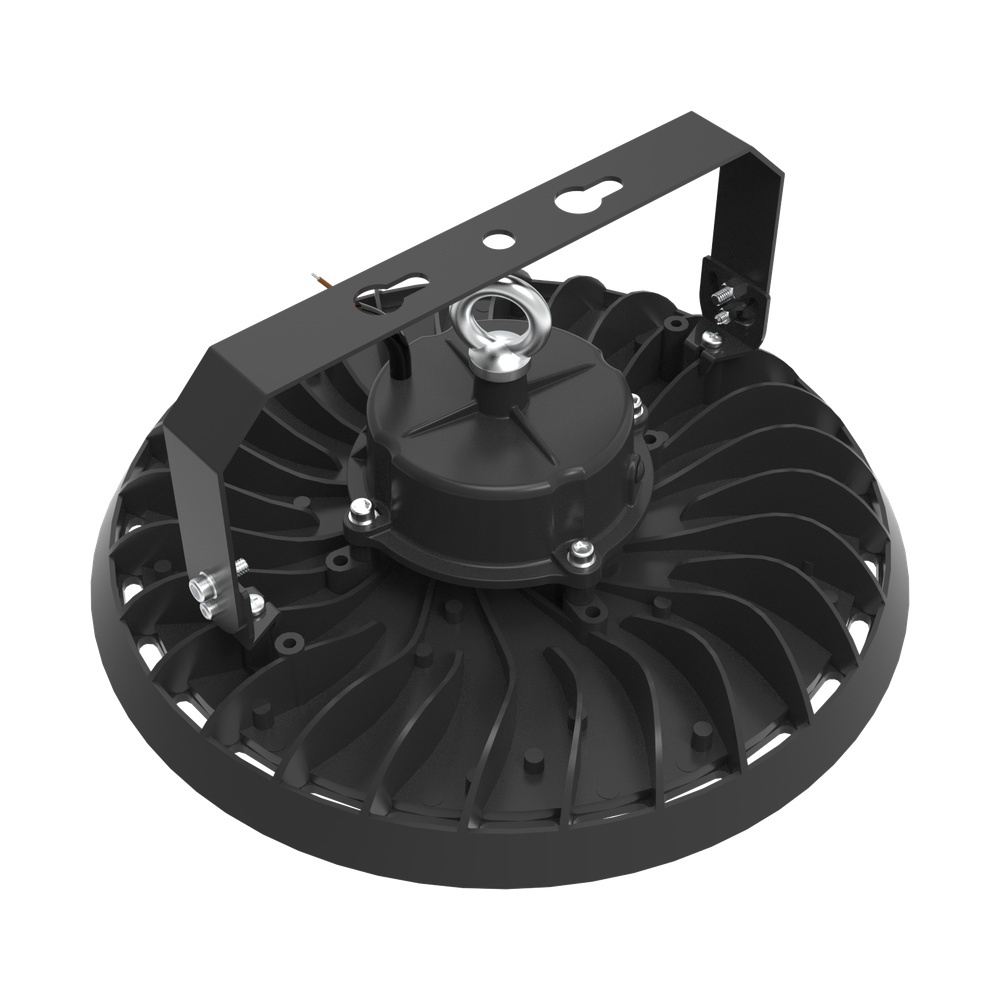

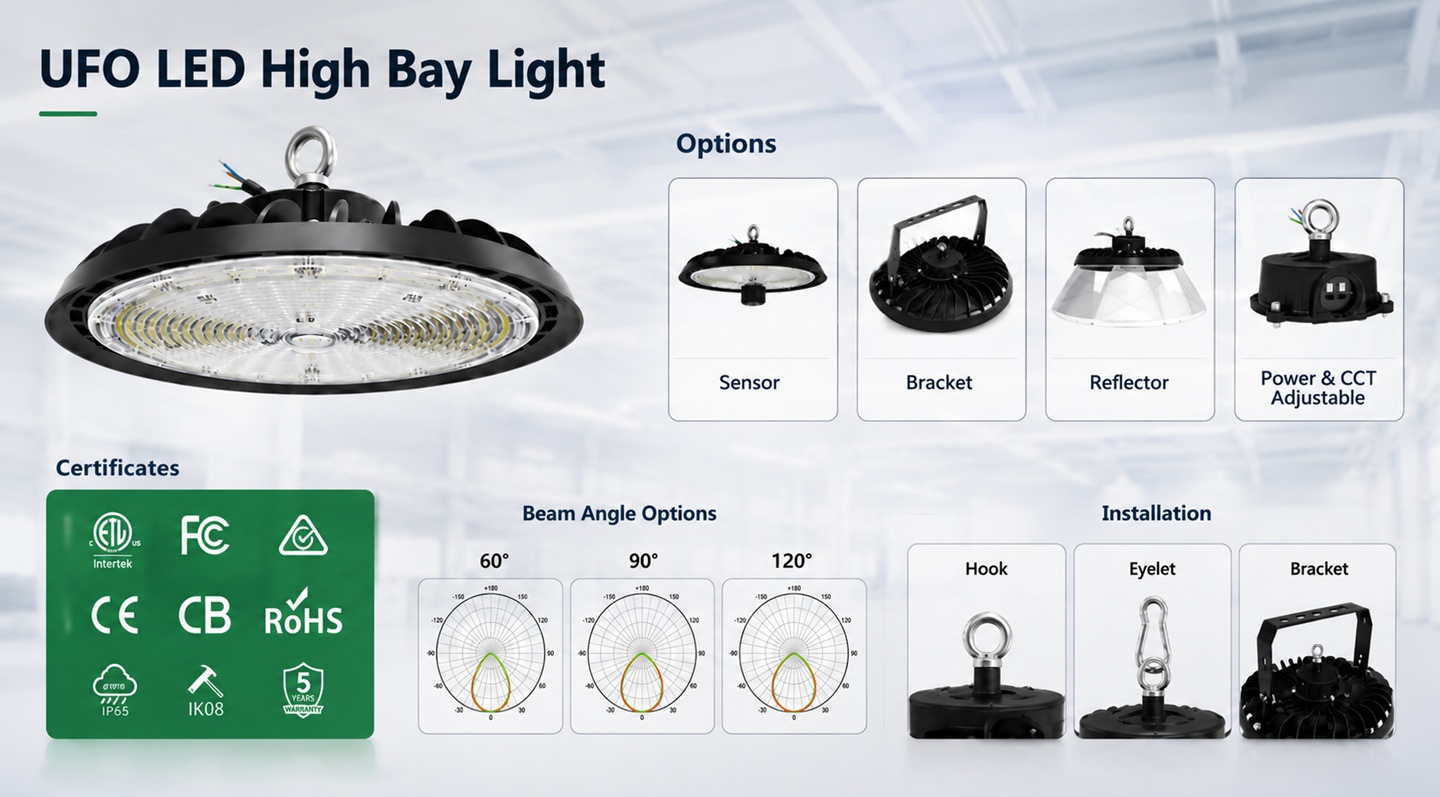

With a die-cast aluminum heat sink, optimized cooling fins and professional optical design, the L Series delivers excellent thermal management, stable illumination and long service life. Supporting multiple beam angles including 60°/90°/120° and flexible mounting options such as hook, eyelet and bracket installation, it is an ideal LED High Bay Lighting solution for industrial and commercial projects worldwide.
Specifications:
| Power |
100W |
150W |
200W |
240W |
| Model Number |
HC-UFO-100L |
HC-UFO-150L |
HC-UFO-200L |
HC-UFO-240L |
| Dimensions |
Ø225*115mm |
Ø268*115mm |
Ø310*115mm |
Ø310*115mm |
| Efficacy |
130-140LM/W (Standard) 150/185/210 LM/W optional |
| Color Temperature |
3000K 4000K 5000K 5700K 6500K |
| Input Voltage |
AC100-277V 50/60Hz |
| Surge protection |
4KV-Line-Line |
| Beam Angle |
60°, 90°, 120° LENS optional |
| Chips |
SMD2835 |
| CRI |
CRI>80 |
| Waterproof Rate |
IP65 |
| Dimmable |

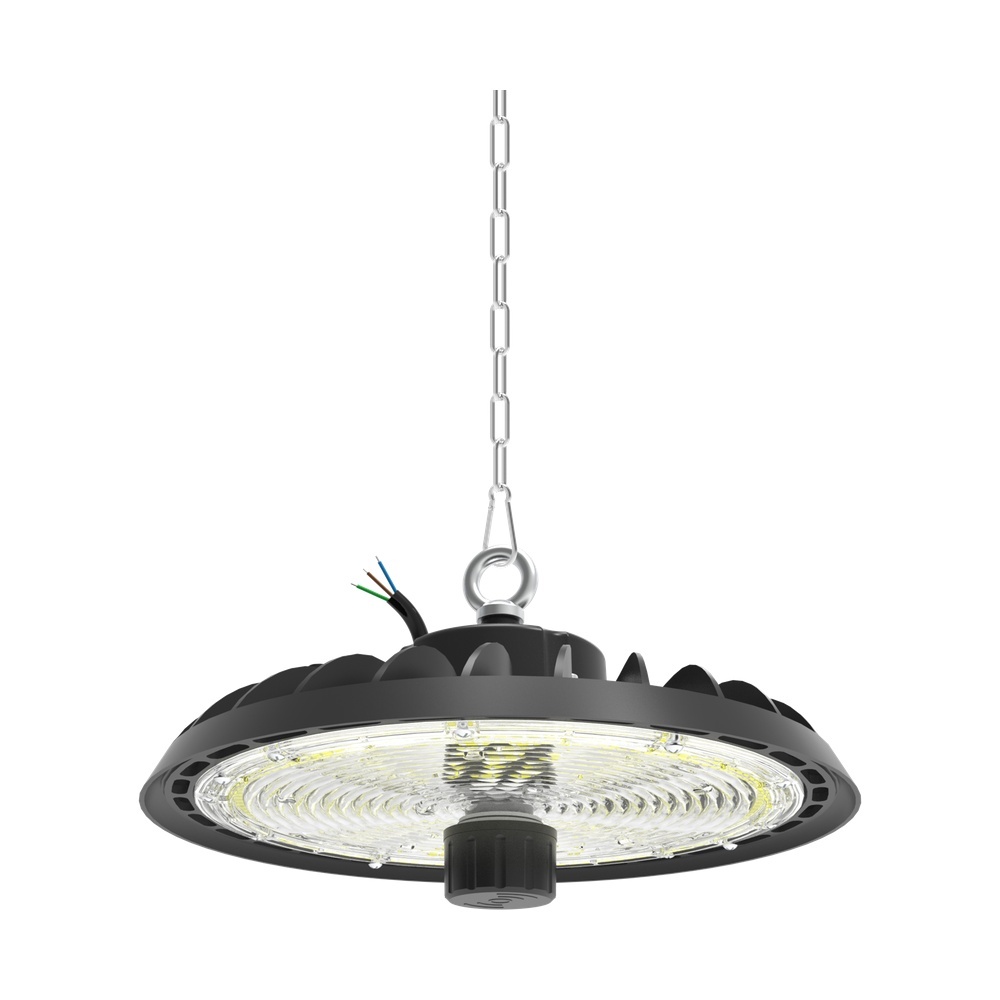

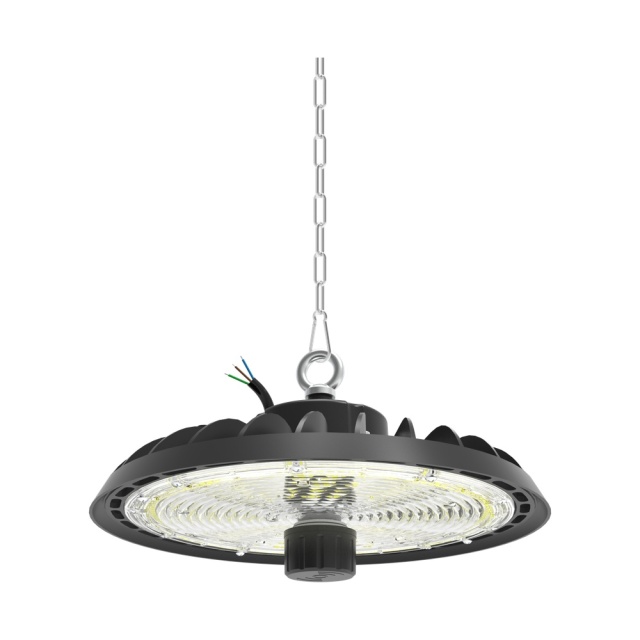

Non-dim, 0-10V dim, Microwave sensor options |
| Life Time @L70 |
>100,000Hrs |
| Operating Temperature |
-30°C to +45°C |
| Impact resistance |
IK 08 |
| Mounting Option |
Loop Hanging / Bracket Mounting |
| Switching Cycles |
＞100,000 times |

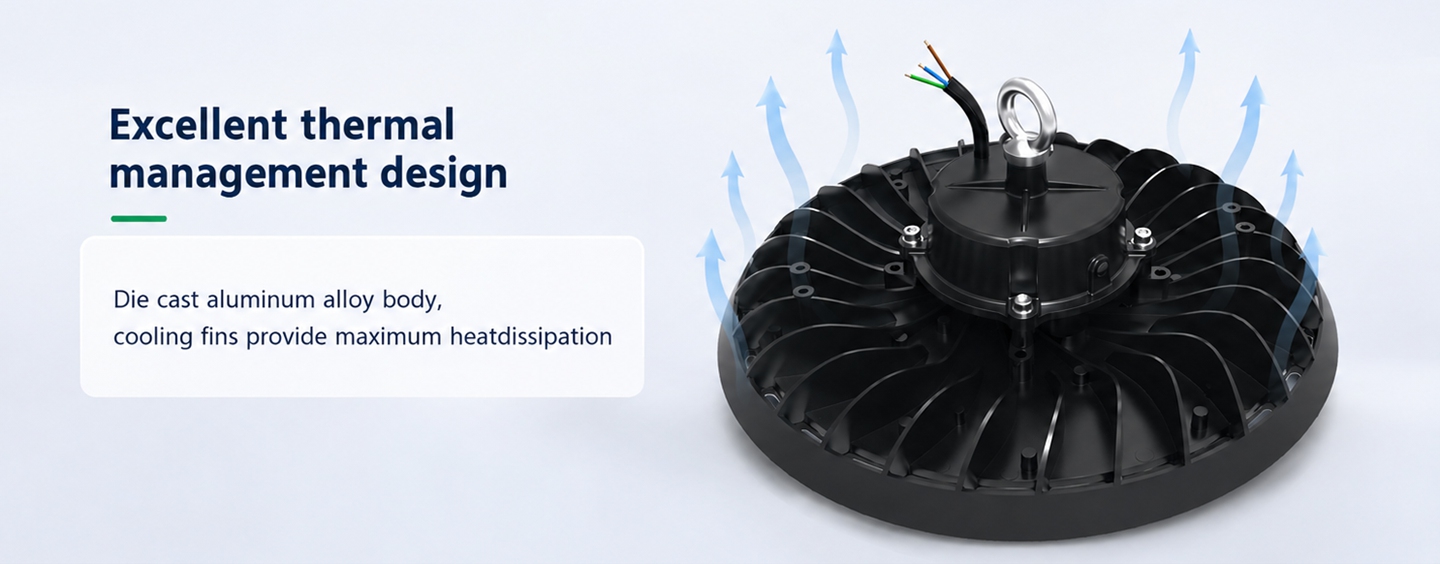

Great Heat Sink:Excellent thermal management design

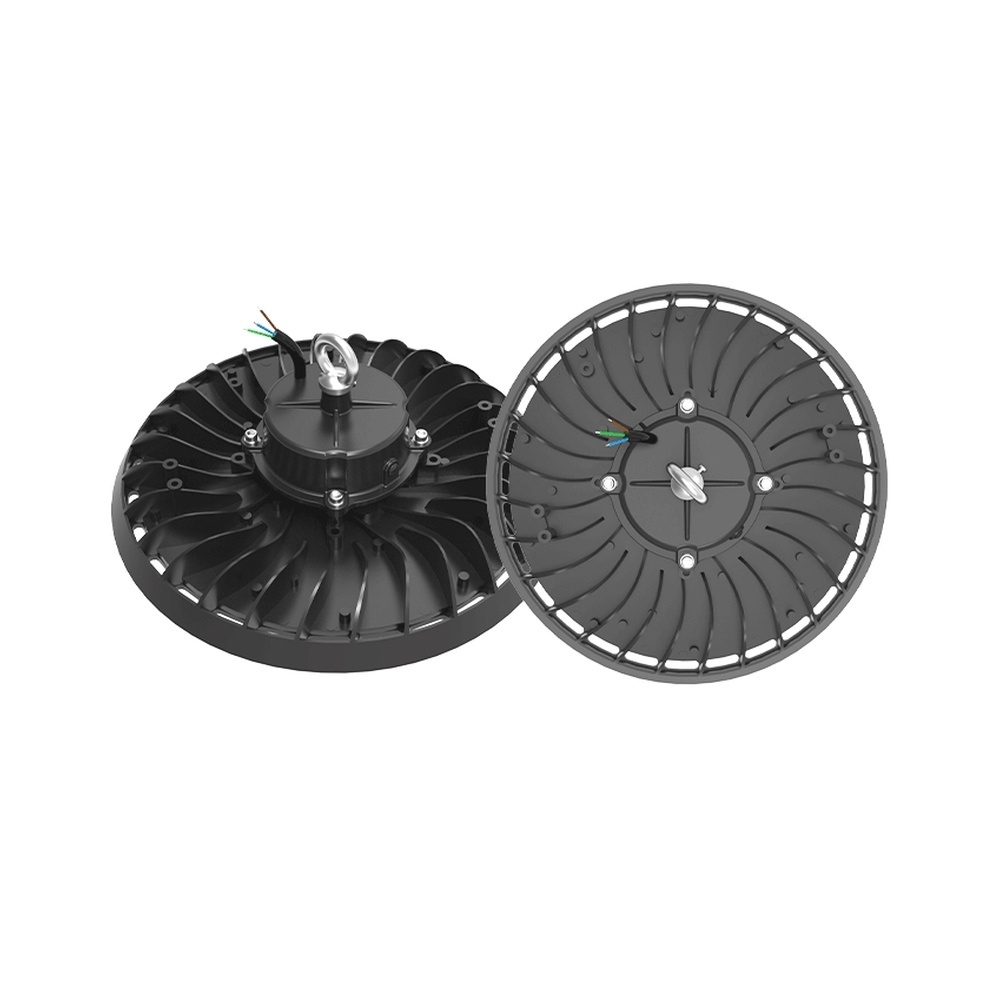

Die cast aluminum alloy body,cooling fins provide maximum heatdissipation
Exploded View:
Applications:
EZCOLED L Series UFO LED High Bay Light is designed for high-ceiling industrial and commercial applications, providing efficient and uniform illumination for warehouses, factories, workshops, logistics centers and distribution facilities.
It is also suitable for sports halls, supermarkets, exhibition spaces, parking areas and industrial sites, offering reliable lighting performance for different environments with flexible beam angle and installation options.
Warehouses,libraries,workshops,shopping malls, supermarkets,shops,restaurants,sports centers,cinemas,hospitals,clothing stores,bars and other indoor or outdoor lighting places.
FAQ：
Q1: What is a UFO LED High Bay Light?
A: A UFO LED High Bay Light is a high-efficiency industrial lighting fixture designed for high-ceiling applications such as warehouses, factories and workshops. Its round UFO-style design provides efficient heat dissipation and optimized light distribution.
Q2: What makes the L Series different from traditional high bay lights?
A: The L Series features adjustable power and CCT selection, allowing one fixture to meet different project requirements. It also combines advanced thermal management, flexible beam angles and multiple installation options.
Q3: Where can the L Series UFO High Bay Light be installed?
A: The L Series is suitable for warehouses, factories, workshops, logistics centers, supermarkets, sports halls and other large indoor spaces requiring high-performance industrial lighting.
Q4: Why is thermal management important for LED High Bay Lights?
A: Effective heat dissipation helps maintain LED efficiency and reliability. The L Series uses a die-cast aluminum heat sink with cooling fins to improve thermal performance and extend product lifespan.
Q5: What installation methods are available for the L Series?
A: The L Series supports multiple installation methods including hook mounting, eyelet mounting and bracket mounting, providing flexibility for different project requirements.
