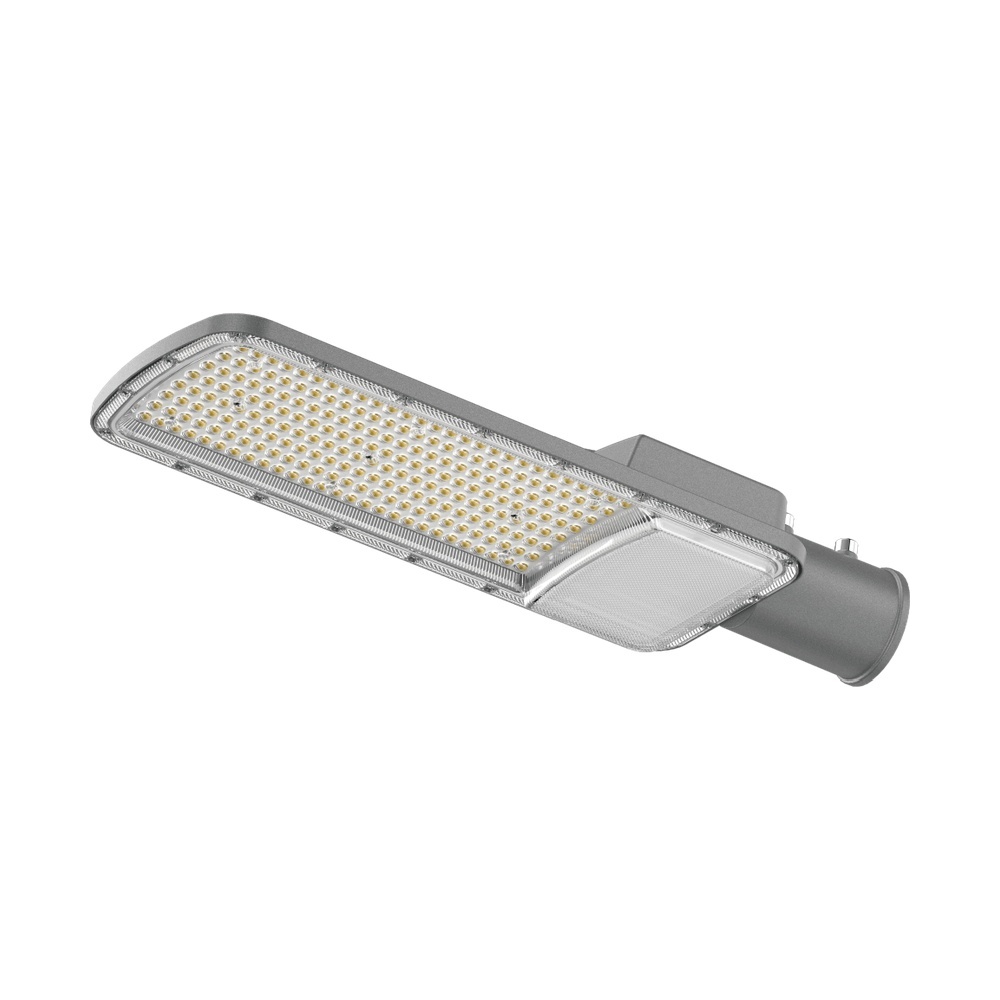

YZ04 Series LED Street Light | 50W–300W Die-Cast Aluminum Road Light

No.HC-YZ04-LD

YZ04 Series LED Street Light is a durable outdoor roadway lighting solution available in 50W, 100W, 150W, 200W and 300W. Its wide power range makes it suitable for residential streets, urban roads, industrial areas and larger infrastructure lighting projects.

Built with a die-cast aluminum housing, IP65 protection and IK08 impact resistance, the YZ04 delivers reliable outdoor performance with 130 lm/W efficacy, AC100–277V input and professional 70° × 140° roadway optics.

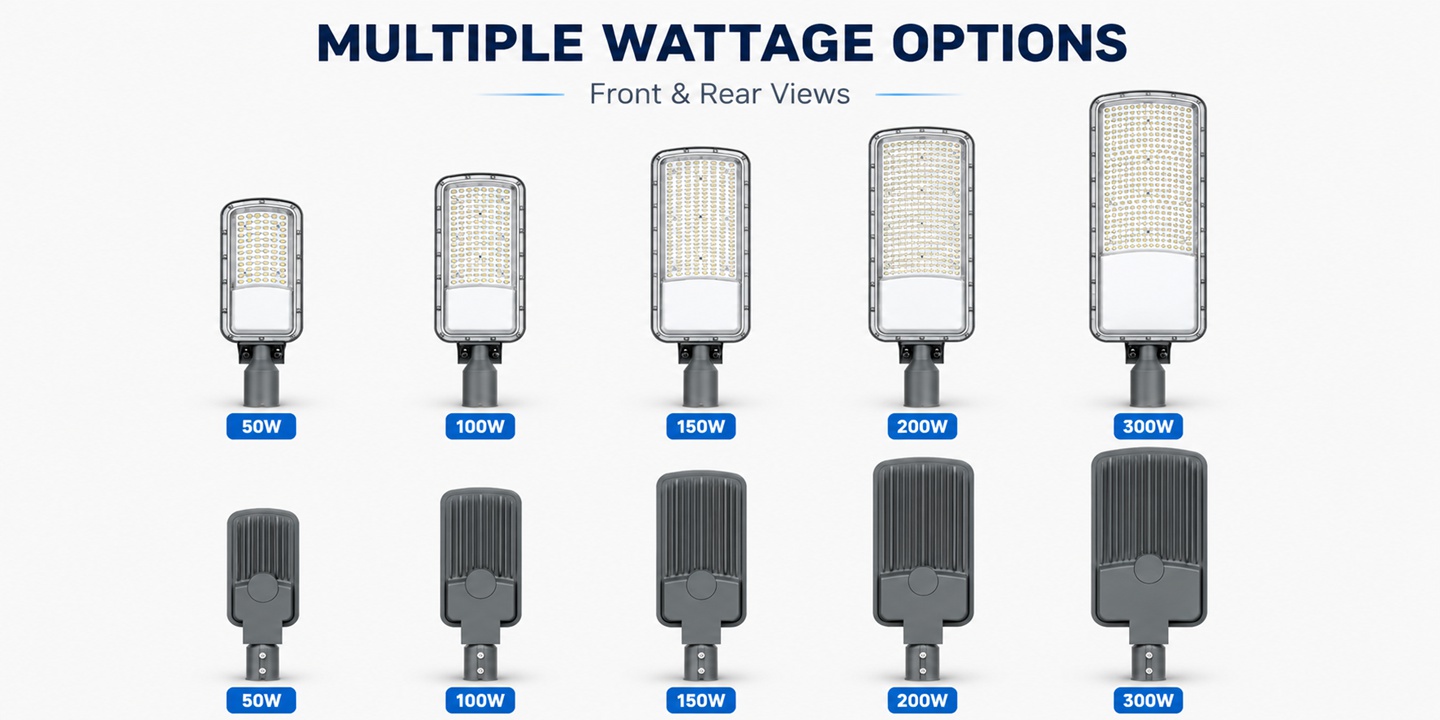

Wide Power Range: 50W–300W for different roadway and project requirements
Efficient Road Lighting: 130 lm/W with professional roadway light distribution
Outdoor Durability: IP65 + IK08 with robust die-cast aluminum construction

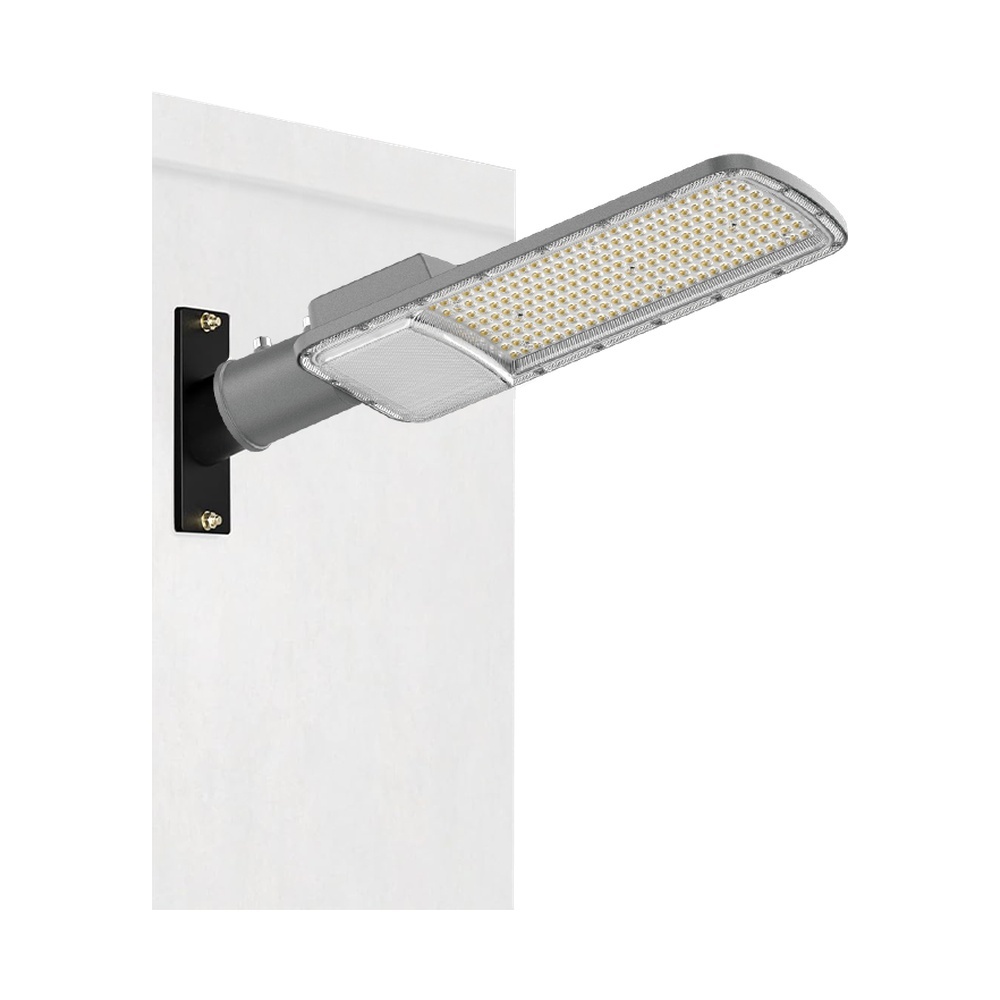

Flexible Installation: Suitable for both pole and wall mounting
Smart Control Ready: Optional photocell and NEMA / IoT controller configurations
Project-Friendly Design: Wide-voltage input and multiple CCT options for international projects

GET A QUOTE

Download

View all downloads

Product Description:

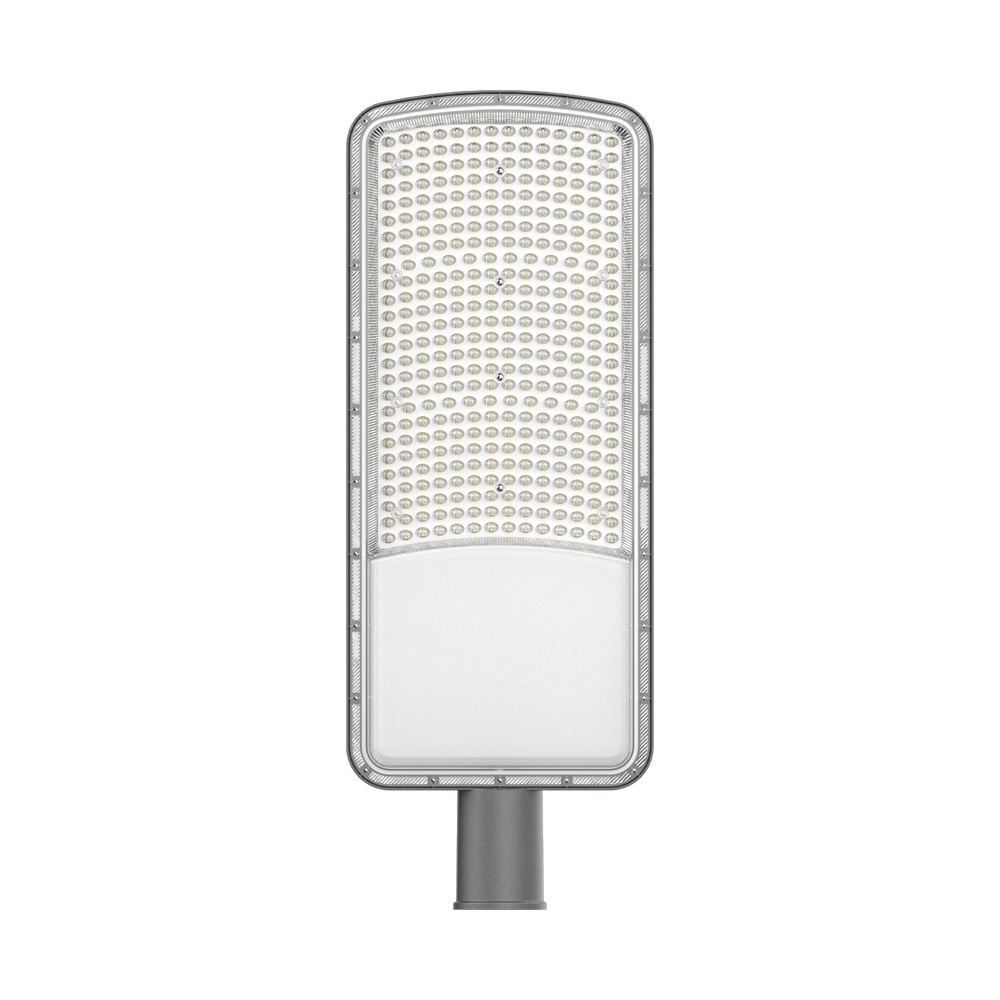

YZ04 outdoor LED street light combines high-output SMD3030 LEDs with precision 70° × 140° roadway optics to provide efficient and uniform illumination for streets and outdoor areas. With 130 lm/W luminous efficacy, it helps reduce energy consumption while delivering dependable visibility for roadway lighting projects.

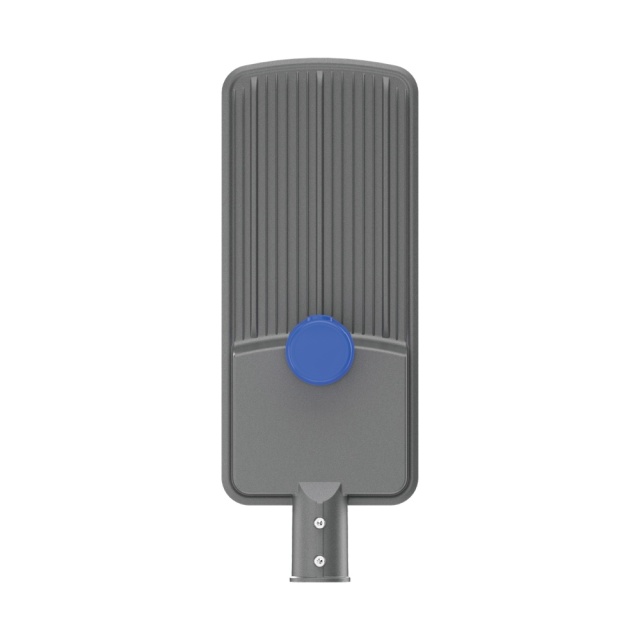

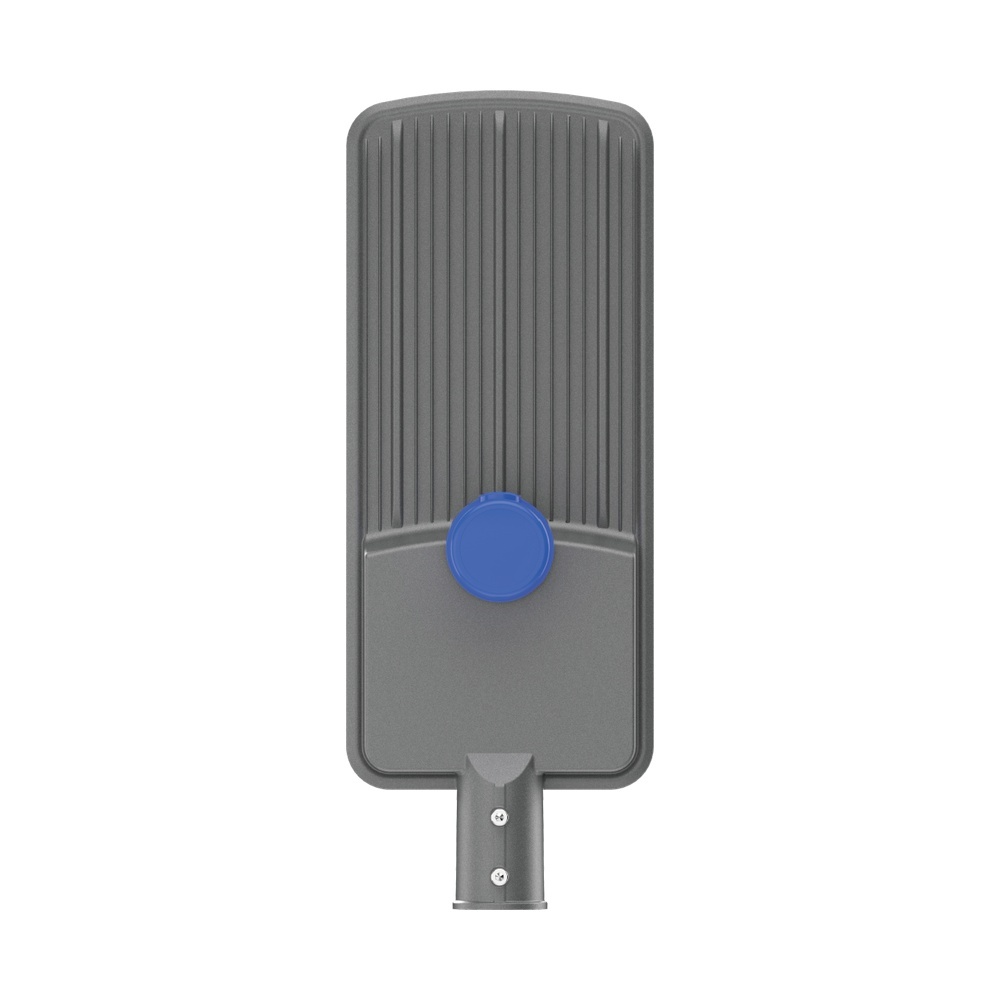

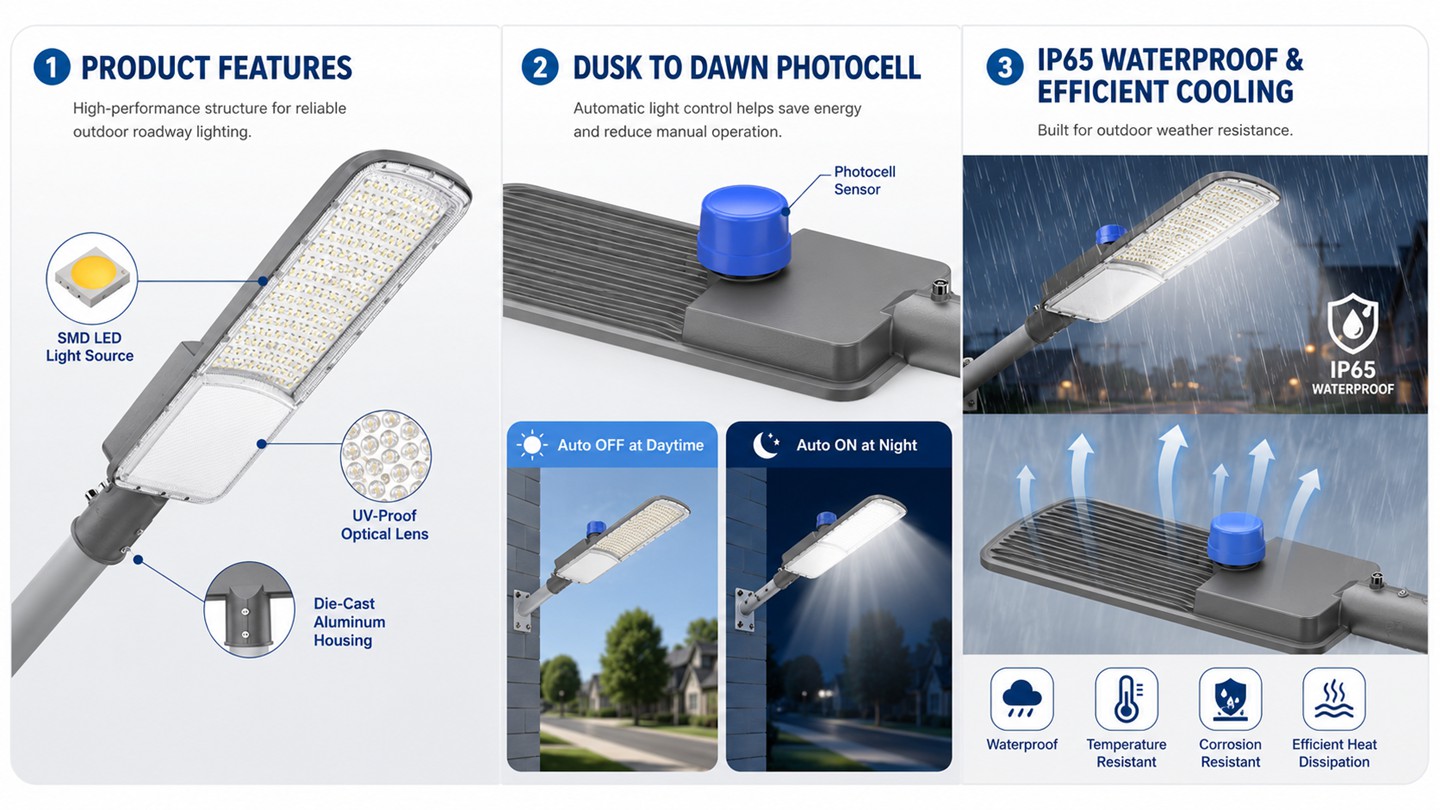

Its die-cast aluminum housing, IP65 weather protection and IK08 impact resistance provide durability for long-term outdoor operation. The fixture supports AC100–277V input and can be configured with optional photocell sensors or NEMA/IoT controllers, giving contractors and project designers greater flexibility for conventional or smart street lighting systems.

Power	50W	100W	150W	200W	300W
Model Number	HC-YZ04-LD50	HC-YZ04-LD100	HC-YZ04-LD150	HC-YZ04-LD200	HC-YZ04-LD300
Dimensions	35013070mm	42415580mm	48617280mm	54120380mm	62023380mm
Efficacy	130LM/W
Color Temperature	3000K 4000K 5000K 5700K 6500K
Input Voltage	AC100-277V 50/60Hz
Beam Angle	70x140°
Chips	SMD3030
CRI	CRI>80
Waterproof Rate	IP65
Smart Control optional	NEMA/loTController or Photocell sensor Optional
Life Time @L70	>100,000Hrs
Operating Temperature	-30°C to +45°C
Impact resistance	IK08

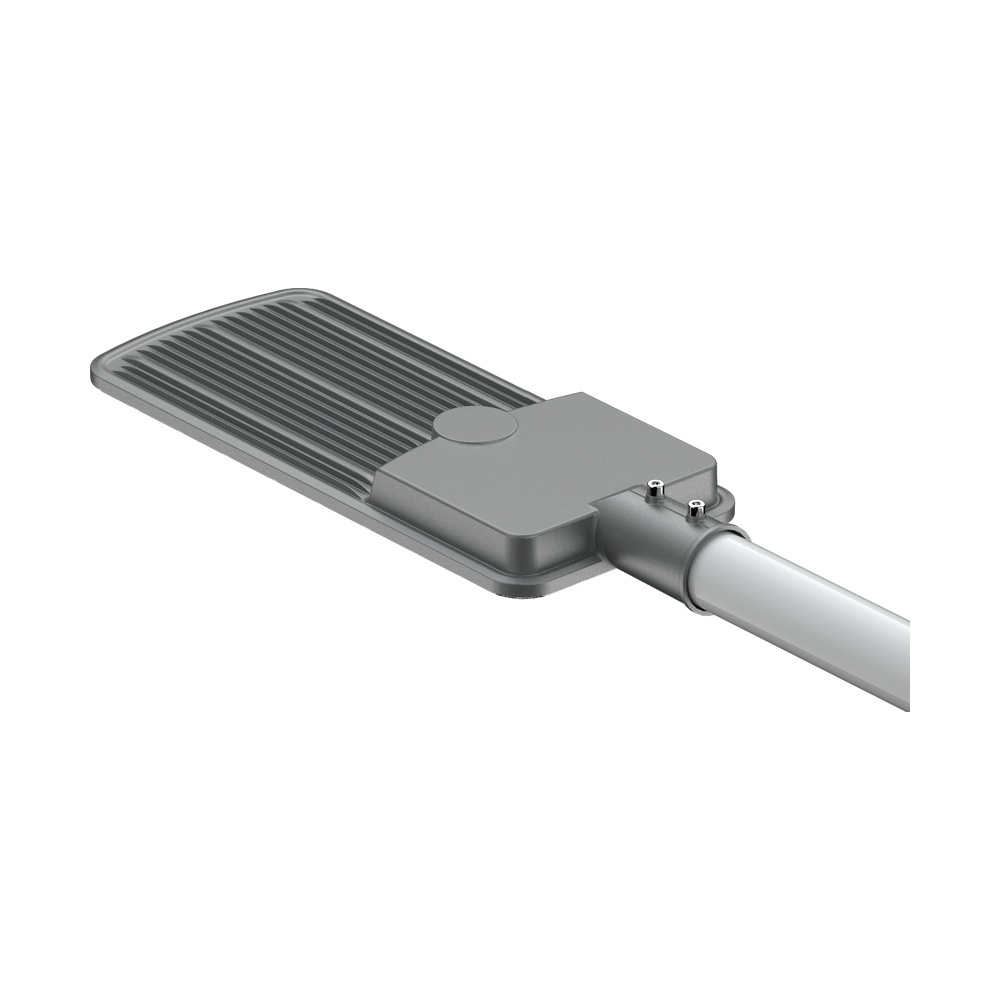

Mounting Option	Pole / Wall Mounting
Switching Cycles	＞100,000 times

Applications Case:

YZ04 Series is suitable for urban roads, residential streets, rural roads, parking areas, industrial parks, campuses and public infrastructure projects. Its 50W–300W range allows different configurations to be selected according to road width, pole height and required illumination.With both pole and wall mounting options, the fixture can also be used around factories, warehouses, commercial properties, perimeter roads and other outdoor spaces requiring reliable nighttime illumination.

FAQ:

Q1. What wattages are available for the YZ04 LED street light?

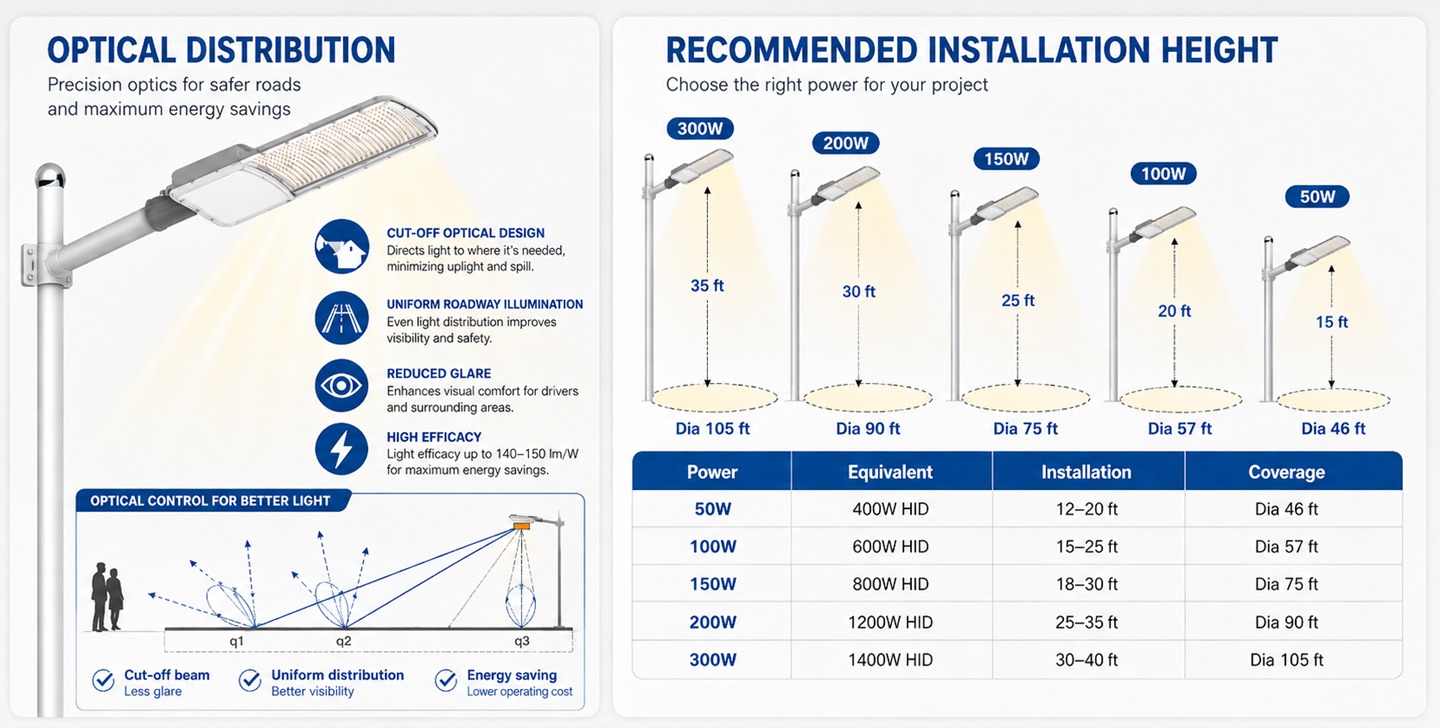

The YZ04 Series is available in 50W, 100W, 150W, 200W and 300W. The wide power range supports different roadway applications, from smaller residential streets to wider urban roads and industrial areas. Wattage selection should be based on pole height, road width, pole spacing and required illumination level.

Q2. How efficient is the YZ04 LED street light?
The YZ04 LED street light delivers approximately 130 lm/W luminous efficacy. This allows the fixture to provide strong outdoor illumination while using less electricity than traditional HID roadway lighting systems.

Q3. Is the YZ04 LED street light suitable for rainy outdoor environments?
Yes. The YZ04 has an IP65 protection rating, making it suitable for outdoor environments exposed to rain and dust. Its IK08 impact-resistant die-cast aluminum housing also provides additional mechanical durability for roadway applications.

Q4. Does the YZ04 support photocell or smart street lighting control?
Yes. The YZ04 can be configured with an optional photocell sensor or NEMA/IoT controller. A photocell can provide automatic dusk-to-dawn operation, while compatible IoT controllers can be used for more advanced smart street lighting projects.

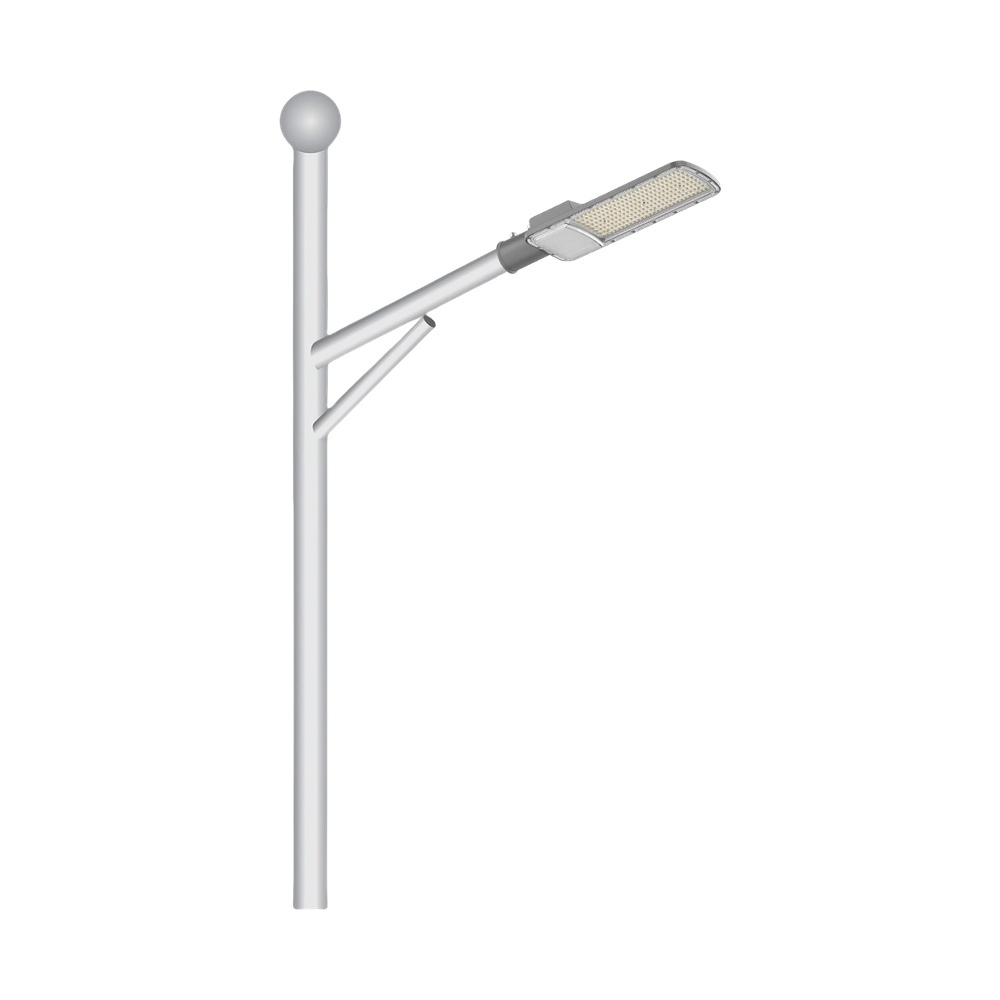

Q5. Can the YZ04 LED street light be installed on both poles and walls?
Yes. The YZ04 supports both pole mounting and wall mounting, providing greater installation flexibility for roads, parking areas, industrial facilities and perimeter lighting projects. For professional roadway projects, mounting height and fixture spacing should be confirmed through photometric or DIALux calculations.
