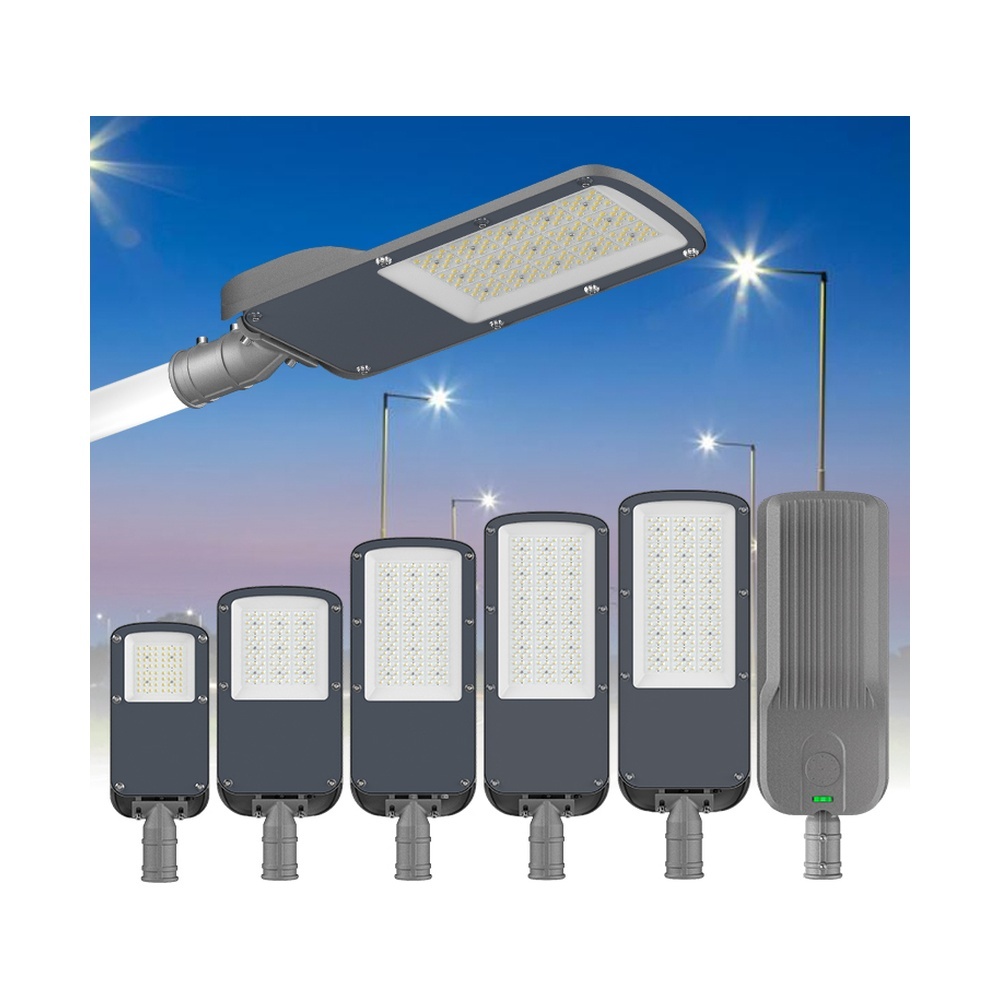

HC-YZTX-LD professional LED street light provides a complete 50W–300W range for different roadway widths, pole heights and project scales. With luminous efficacy of 130–140 lm/W and a 70° × 140° optical distribution, it delivers efficient roadway illumination while helping contractors standardize multiple project requirements around one street light family.

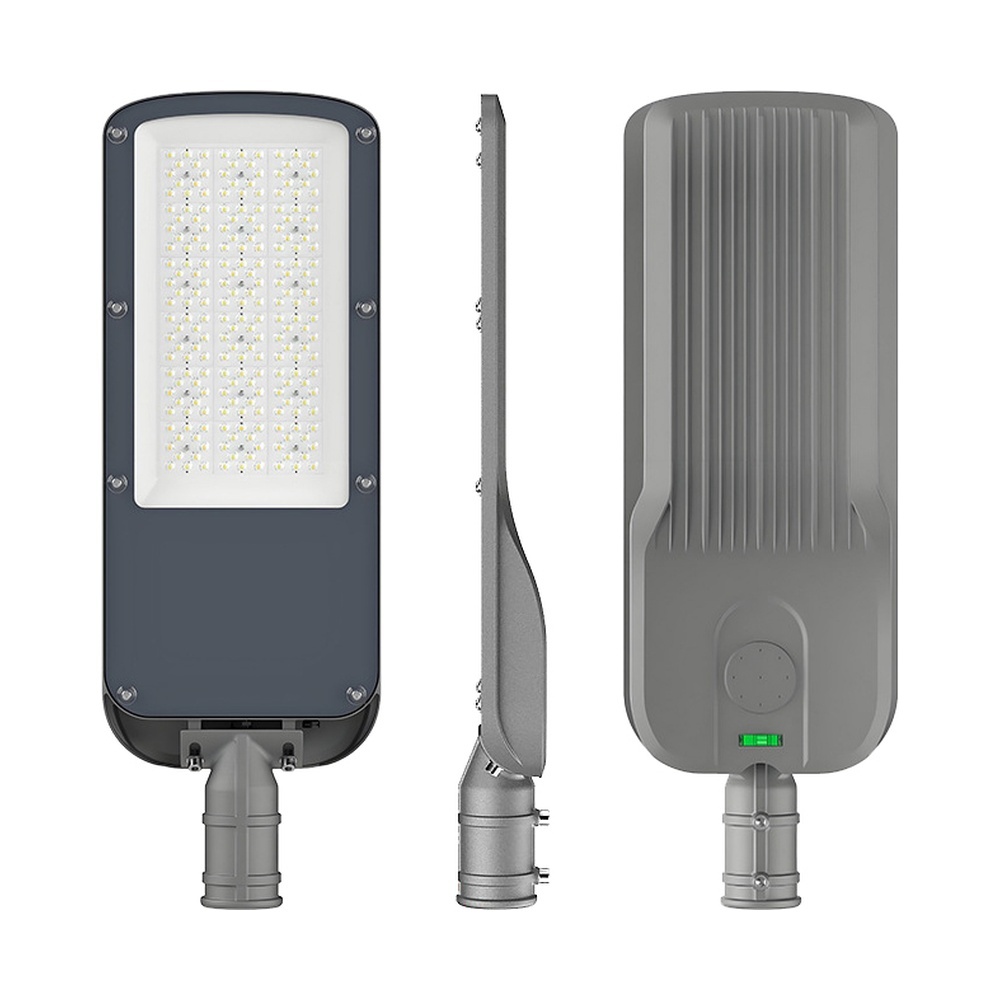

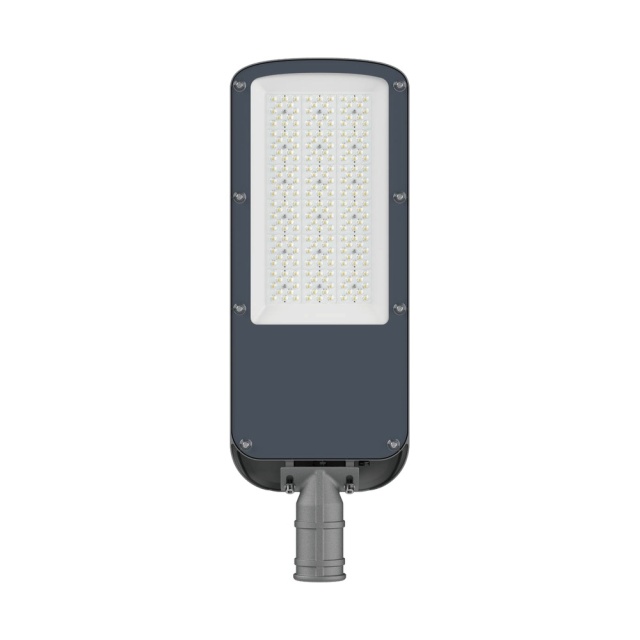

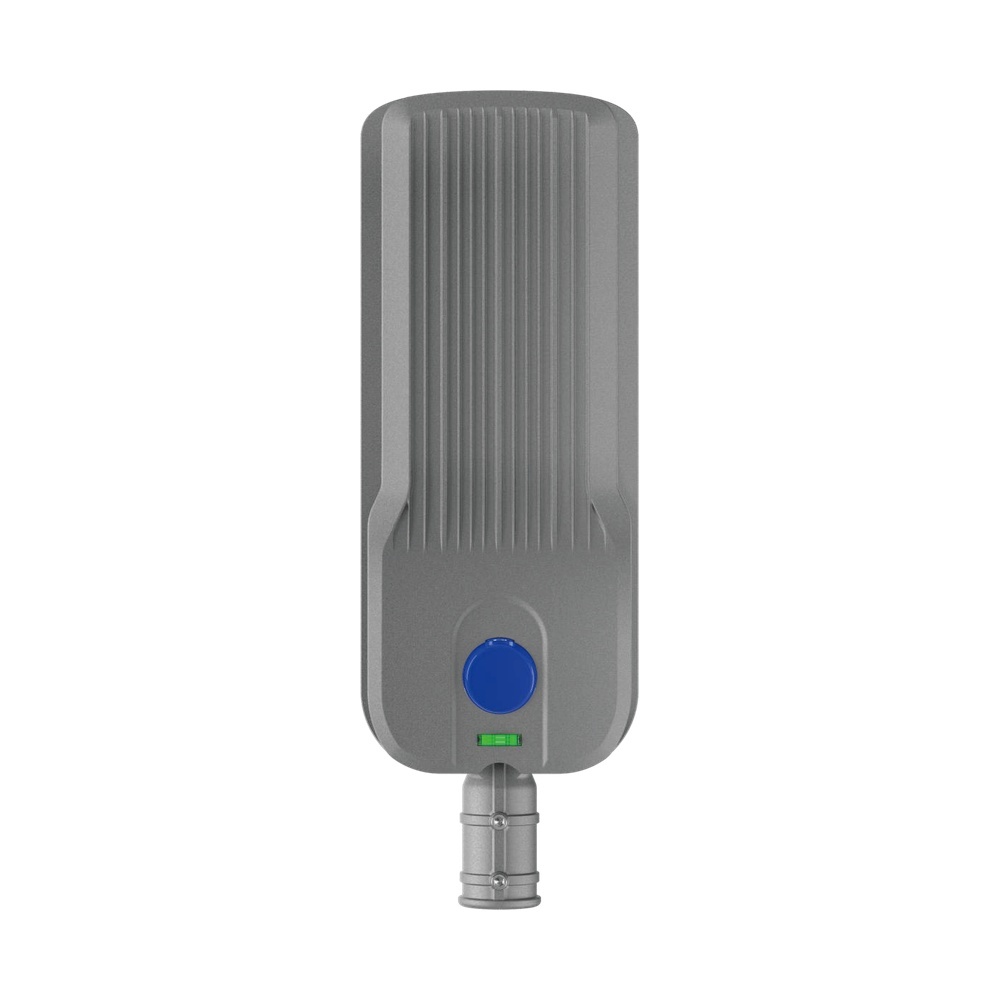

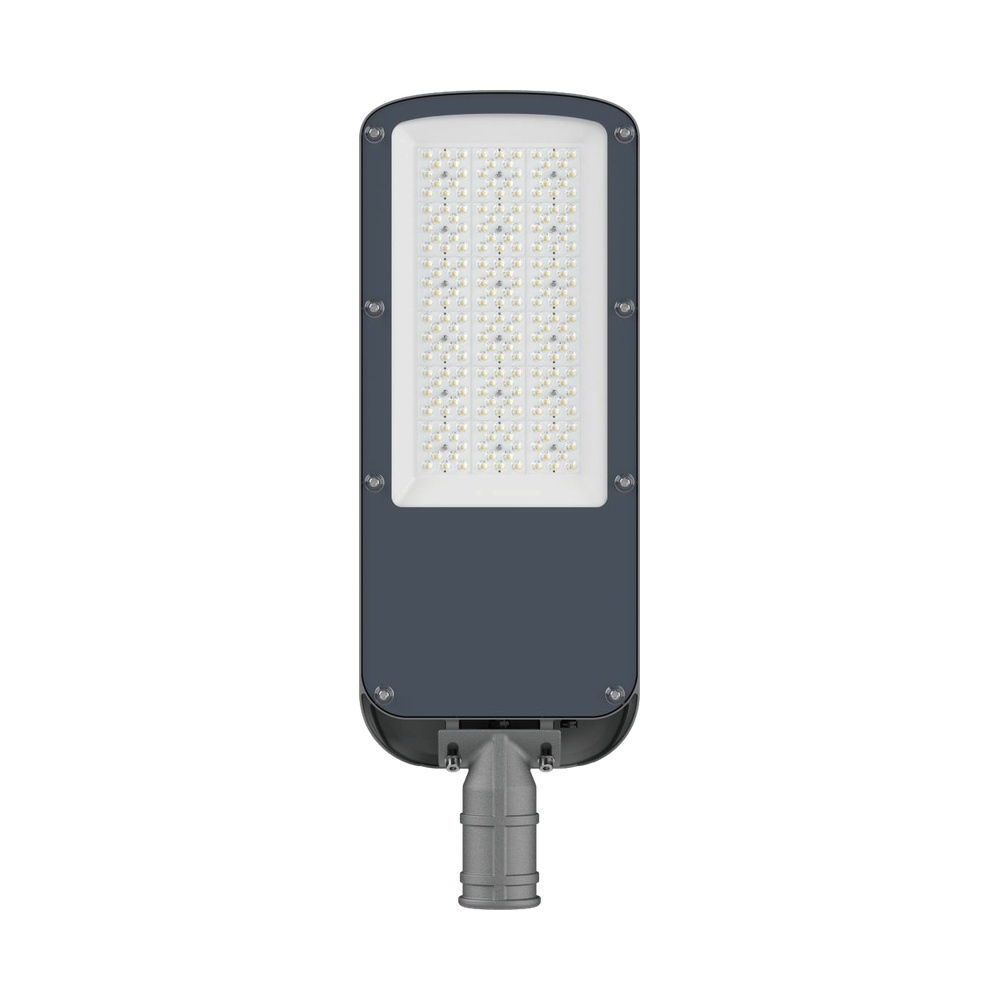

Built with a die-cast aluminum heat sink, PC optical lens and glass cover, the fixture supports AC100–277V input, IP65 weather protection and both horizontal and vertical installation. Customizable driver, CCT and packaging options make it especially suitable for distributors, OEM/ODM programs and project-based outdoor LED lighting supply.
| LAMP NAME | LED STREET LIGHT | ||||
| MODEL NO. | HC-YZTX-LD50 | HC-YZTX-LD100 | HC-YZTX-LD150 | HC-YZTX-LD200 | HC-YZTX-LD300 |
| POWER | 50W | 100W | 150W | 200W | 300W |
| INSTALL HEIGHT | 3-4m | 5-6m | 6-8m | 8-10m | 10-12m |
| LED QTY | 64pcs | 112pcs | 184pcs | 216pcs | 336pcs |
| LAMP SIZE | 535*205*80mm | 605*260*80mm | 705*260*80mm | 760*260*80mm | 810*305*80mm |
| HOLDER DIA. | Ø60mm | ||||
| LUMEN EFFICIENCY | 130-140lm/w | ||||
| BEAM ANGLE | 70*140° | ||||
| VOLTAGE | 100-277Vac | ||||
| PF | >0.95 | ||||
| DRIVER | Can be customized | ||||
| CCT | Default: 6500K Cold White (Warm White / Neutral White for option) | ||||
| C.R.I. | Ra>80 | ||||
| INSTALL WAYS | Horizontal Install / Vertical Install | ||||
| WATERPROOF | IP65 | ||||

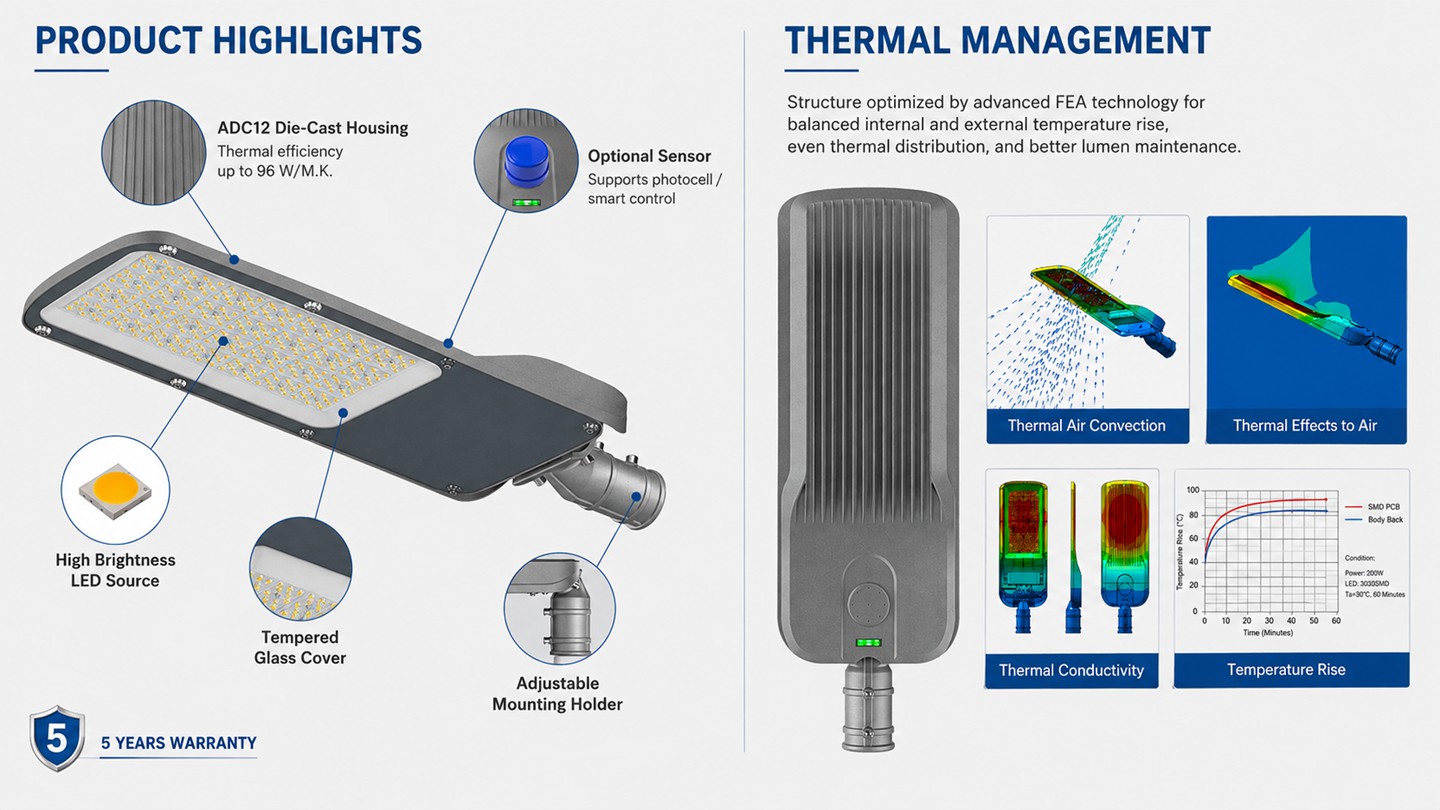

| MATERIAL | Die-casting Aluminum Heat Sink + PC lens + Glass Cover / Sand Grey | ||||
| PACKING Optional | Export Neutral Carton / Customizing Packing | ||||
This multi-wattage LED street light is suitable for urban roads, residential streets, highways, industrial roads, parking areas, factory roads and public infrastructure projects. Different wattages and fixture sizes allow the series to cover smaller local-road applications through to larger roadway lighting installations.
With recommended installation heights ranging from approximately 3–4m for 50W up to 10–12m for 300W, the series gives contractors greater flexibility when matching fixture output to pole height and project scale. Final wattage and spacing should be confirmed by road dimensions and photometric calculations.
FAQ:
Q1. What wattages are available for this professional LED street light?

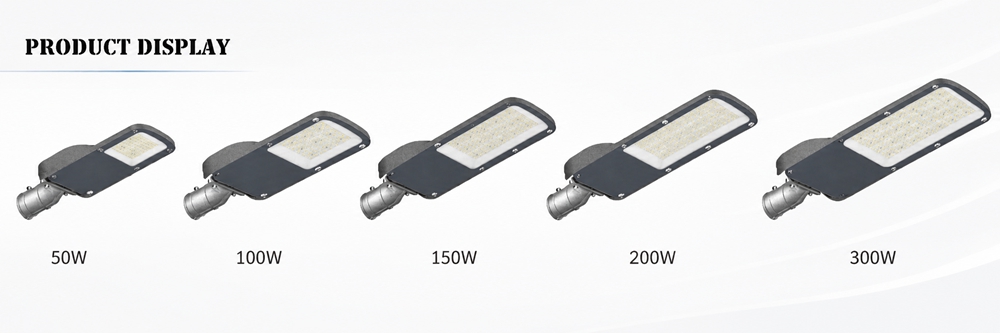

The HC-YZTX-LD Series is available in 50W, 100W, 150W, 200W and 300W. This broad power range allows one product family to cover smaller streets, residential roads, industrial areas and larger roadway projects.
Q2. What mounting height is recommended for each wattage?
EZCOLED lists approximate mounting heights of 3–4m for 50W, 5–6m for 100W, 6–8m for 150W, 8–10m for 200W and 10–12m for 300W. Actual mounting height and pole spacing should also consider road width, required lux level and photometric design.
Q3. Can this LED street light be installed horizontally or vertically?

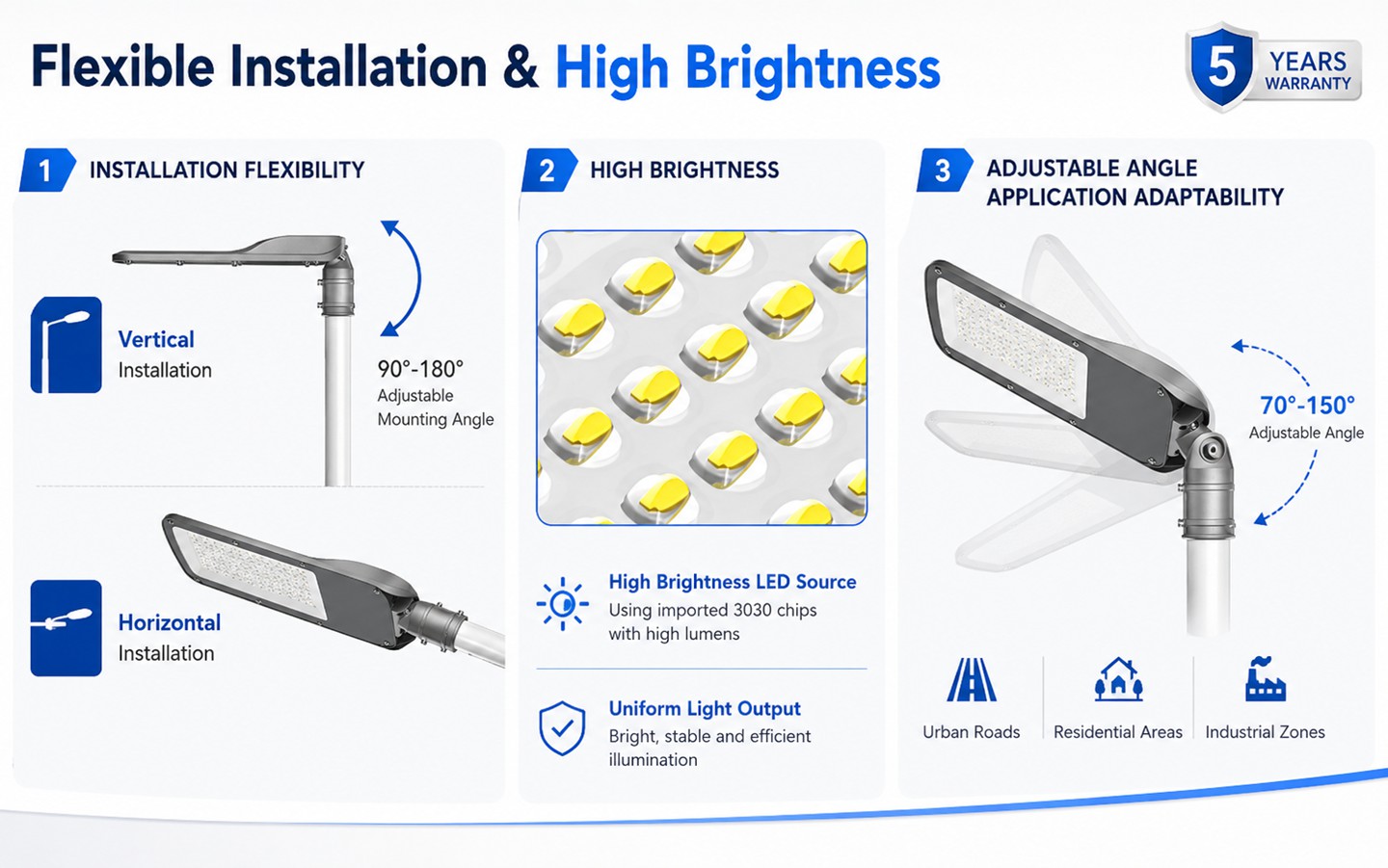

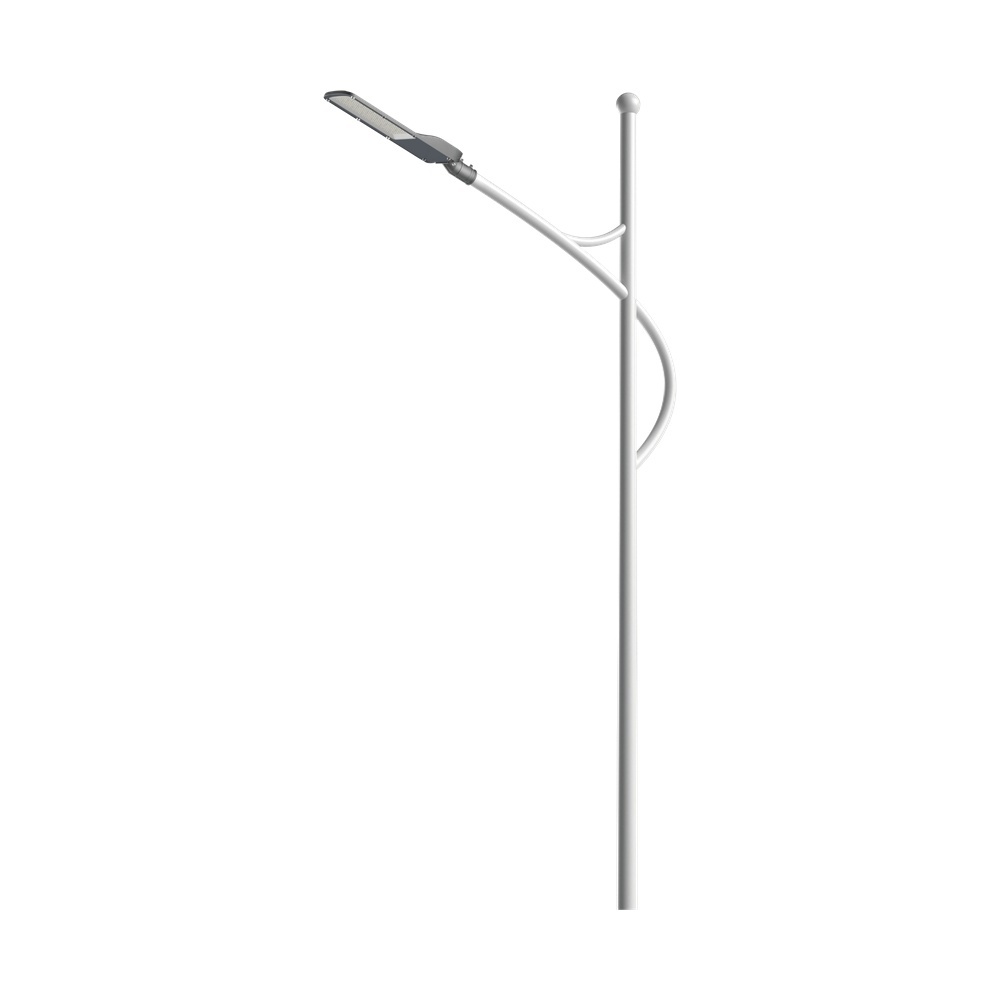

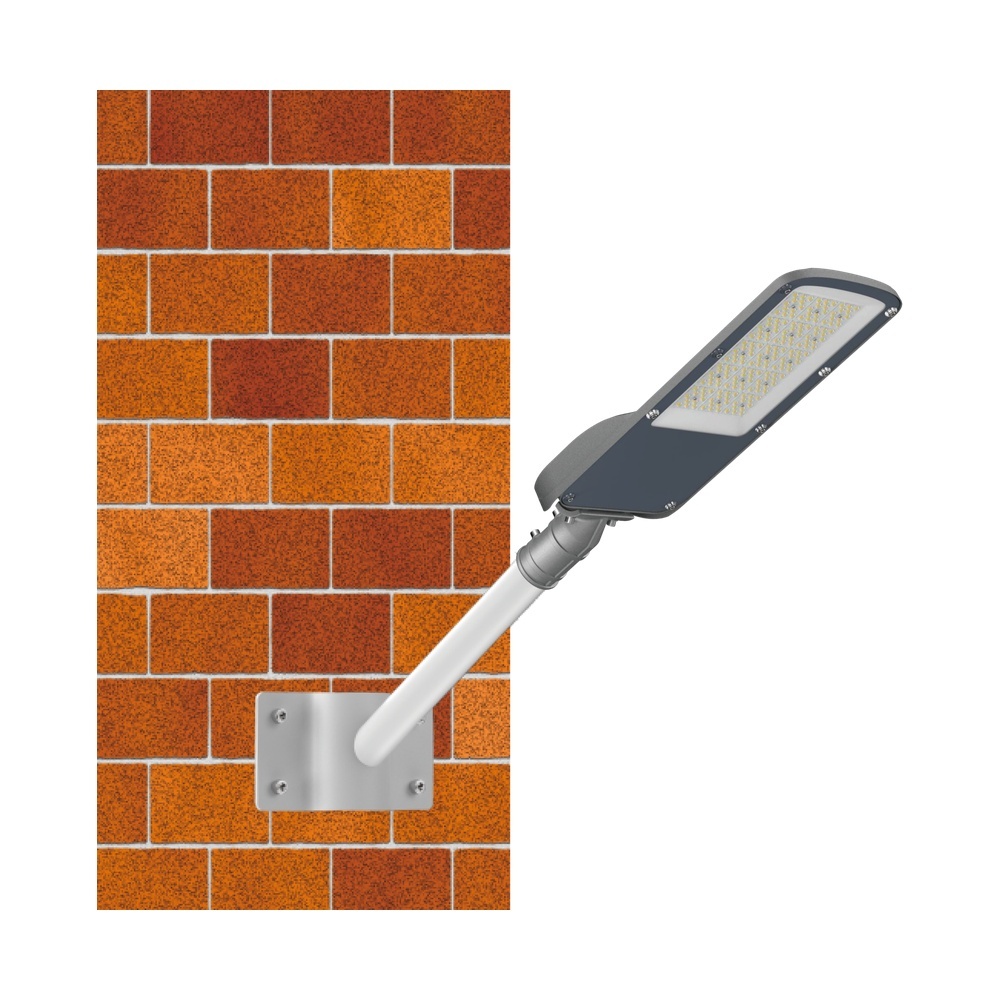

Yes. The fixture supports both horizontal and vertical installation, allowing contractors to adapt it to different poles and roadway configurations. The standard holder diameter is Ø60mm.
Q4. Is this LED street light suitable for OEM and project customization?
Yes. The product supports customizable drivers, multiple color-temperature options and customized packaging, making it suitable for distributors, OEM/ODM programs and project-specific street lighting requirements.
Q5. Is this street light suitable for outdoor highway and road projects?
Yes. It features IP65 protection, die-cast aluminum construction, AC100–277V input and 70° × 140° roadway optics, making it suitable for outdoor road, highway, parking and industrial lighting applications.
