Product Descriptions:

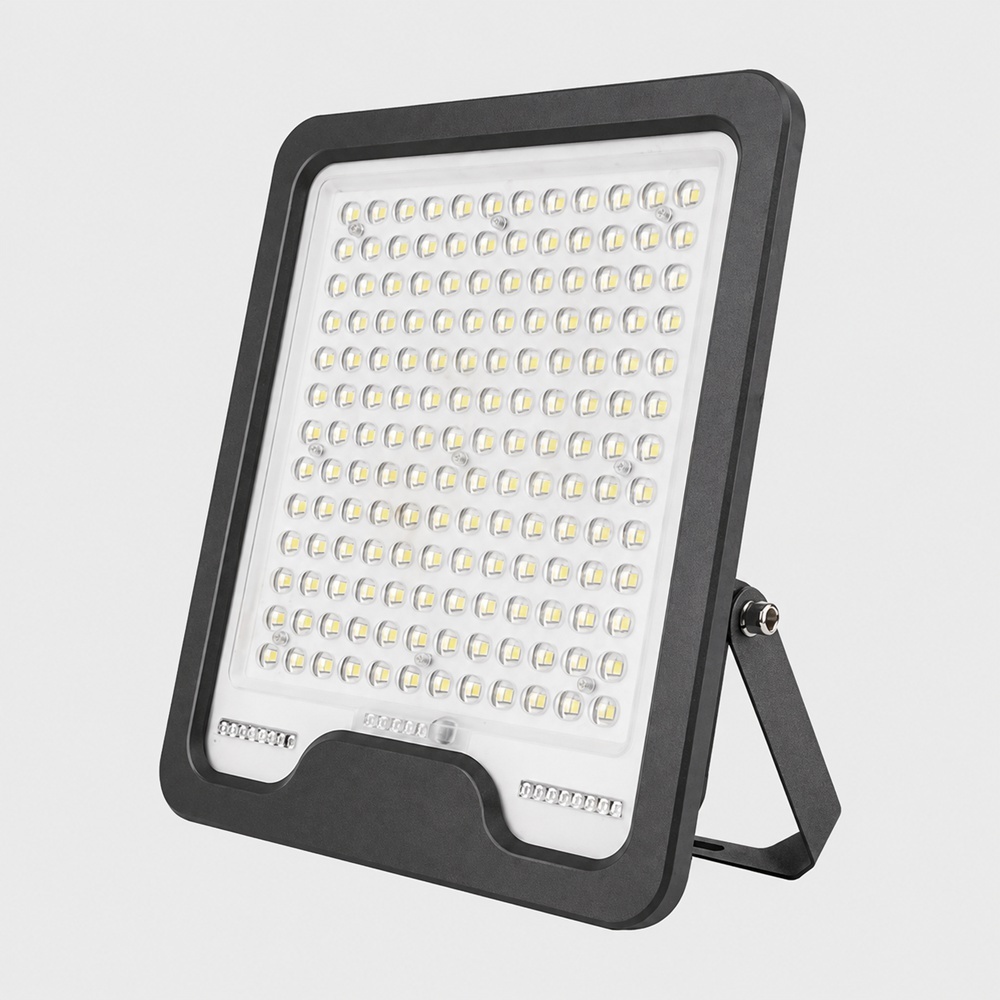

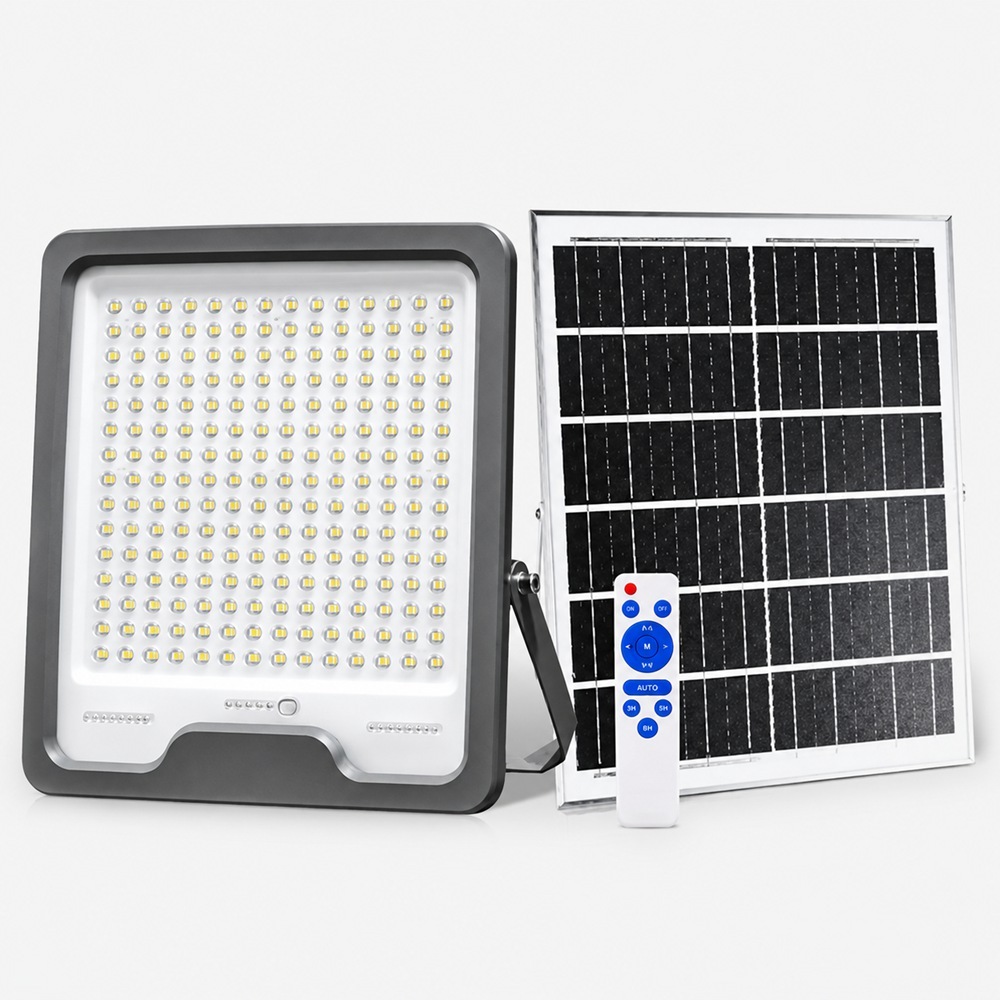

The HC-TTG-TLTJ outdoor solar LED flood light combines solar energy collection, battery storage and efficient LED illumination in one practical off-grid lighting system. A separate monocrystalline solar panel can be installed for effective sunlight exposure, while the flood light can be independently aimed toward the required lighting area. This makes the system suitable for locations where solar orientation and illumination direction are different.
Equipped with a LiFePO4 battery, intelligent light control and remote control, the solar-powered flood light operates automatically from daytime charging to nighttime illumination. IP65 outdoor protection, aluminum-and-glass construction and selectable 90° or 140° beam angles provide additional flexibility for residential, recreational and light commercial outdoor lighting.
| Power | 50W | 100W | 200W | 300W | 400W |
| Model Number | HC-TTG-TLTJ50 | HC-TTG-TLTJ100 | HC-TTG-TLTJ200 | HC-TTG-TLTJ300 | HC-TTG-TLTJ400 |
| Dimensions | 185x163x50mm | 237x204x55mm | 290x250x55mm | 294x330x55mm | 407x376x55mm |
| Solar Panel | 6V 8W Mono | 6V 15W Mono | 6V 20W Mono | 6V 30W Mono | 6V 40W Mono |
| Battery Capacity | 3.2V 5Ah | 3.2V 10Ah | 3.2V 15Ah | 3.2V 20Ah | 3.2V 30Ah |
| Battery | LiFePO4 | ||||
| Color Temperature | 6500K (Other CCT optional) | ||||
| Charging Time | 4-6 hours | ||||
| Beam Angle | 90° or 140° | ||||
| Chips | SMD | ||||
| CRI | CRI>80 | ||||
| Waterproof Rate | IP65 | ||||
| Light Time | 12hrs per night, 2-3 rainy days | ||||
| Controller | Intelligent light control / Remote Control | ||||
| Main Materials | Aluminium + Glass | ||||
| Warranty | 2 years | ||||
| Functions | Automatic Charging In The Daytime, Automatic lighting at night | ||||
Applications:
The HC-TTG-TLTJ solar flood light is suitable for gardens, patios, garages, driveways, entrances, courtyards and house surroundings. Automatic day/night control reduces daily operation requirements, while remote control provides convenient adjustment when needed.
It can also provide independent illumination for farms, small parking areas, recreational spaces, sports courts, building perimeters and remote outdoor locations. Selectable 90° or 140° beam angles allow the lighting distribution to be matched more closely to different mounting heights and coverage requirements.
FAQ:

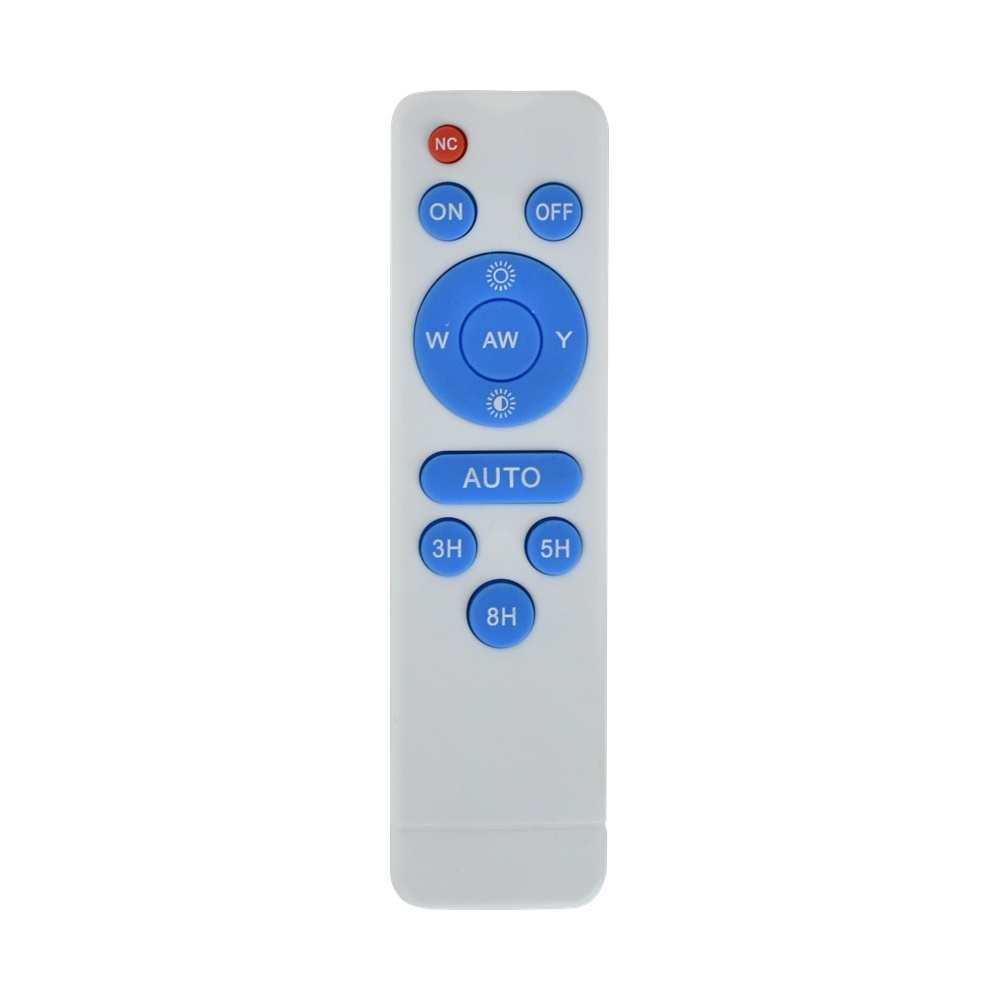

A: Yes. The HC-TTG-TLTJ solar LED flood light supports both intelligent light control and remote control, allowing convenient operation while still providing automatic daytime charging and nighttime lighting.
A: No grid power connection is required for normal solar operation. The separate solar panel collects sunlight during the day and stores energy in the LiFePO4 battery, making the system suitable for locations where electrical wiring is difficult or expensive.
A: The HC-TTG-TLTJ series offers 90° or 140° beam angle options. A narrower beam is useful when more concentrated illumination is needed, while a wider beam can cover a broader outdoor area.
A: The specified charging time is approximately 4–6 hours under suitable sunlight conditions. The system is designed for around 12 hours of lighting per night and can support approximately 2–3 rainy days, depending on solar conditions, model and operating mode.
A: Remote control solar flood lights are especially useful for gardens, entrances, garages, farms, courtyards, recreational areas and other outdoor locations where grid wiring is unavailable or inconvenient. The separate solar panel also allows the charging direction and lighting direction to be adjusted independently.
