Product Description:

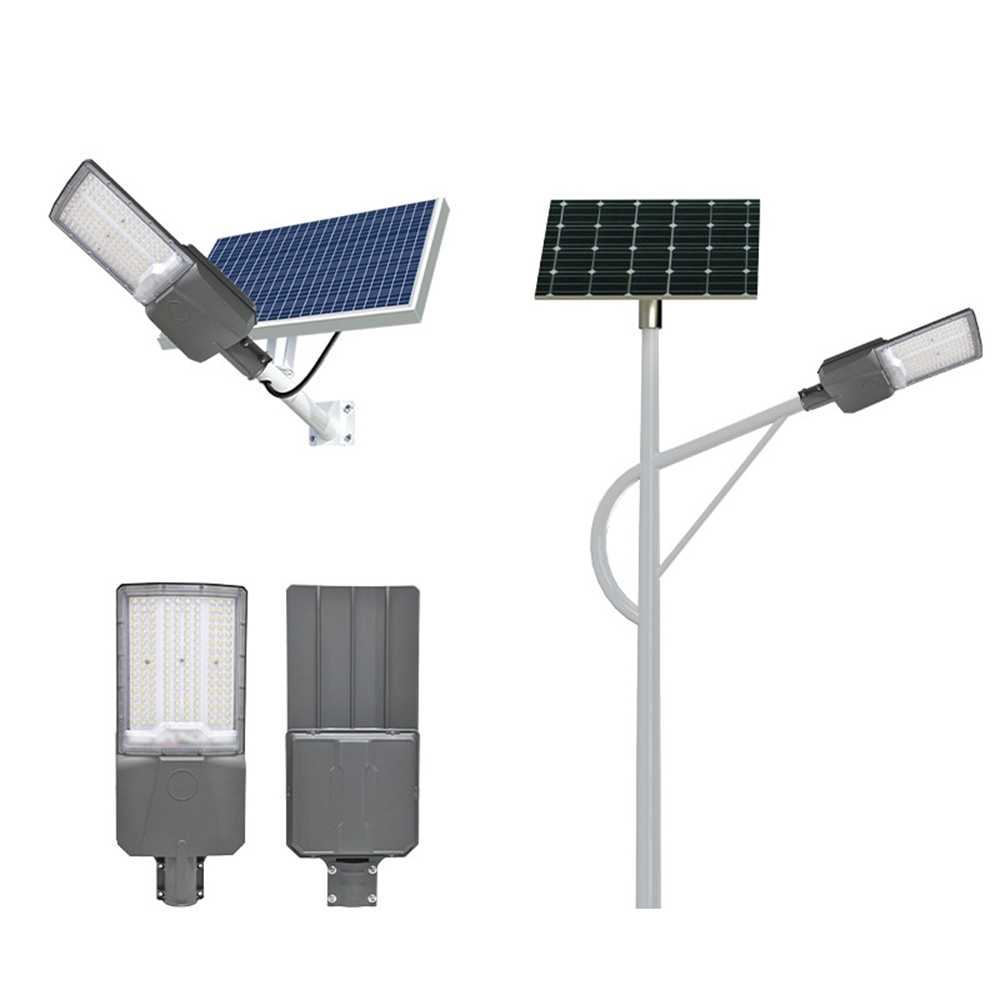

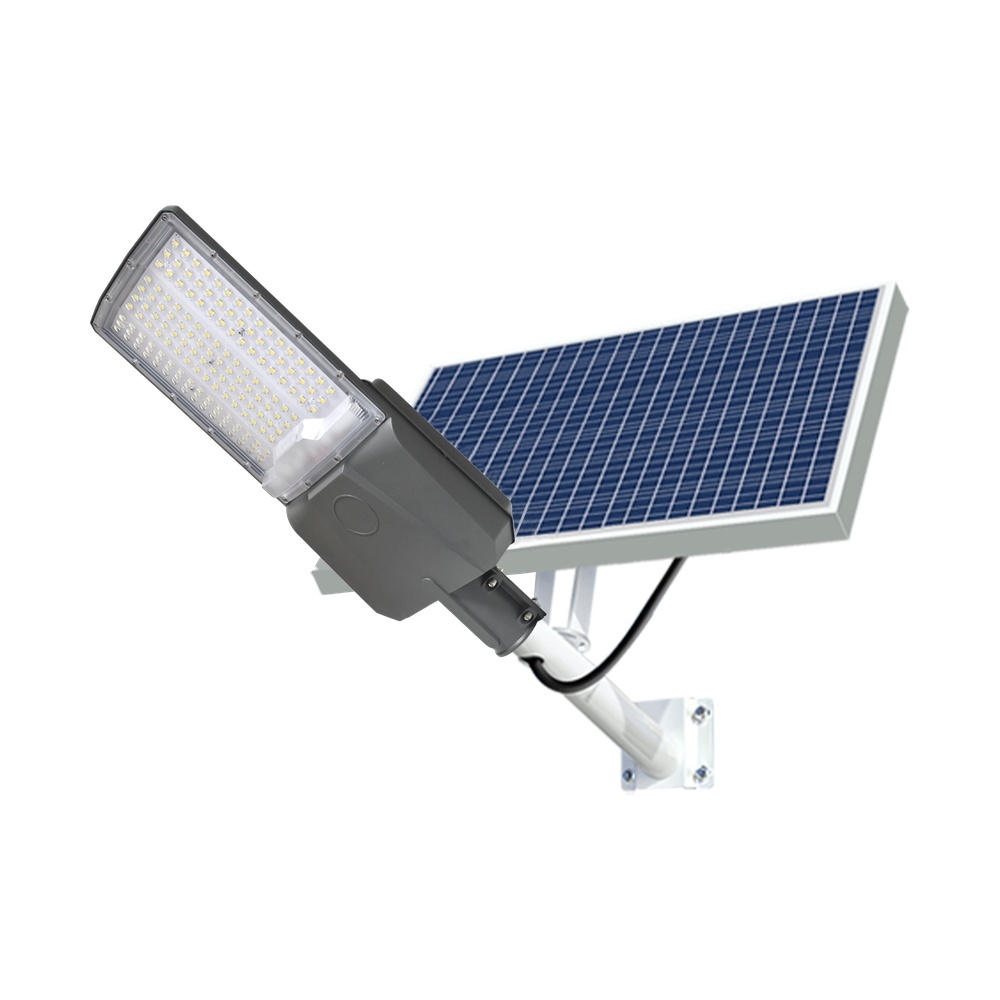

TLDF04 split solar street light is designed for outdoor lighting projects where the solar panel and LED luminaire need to be positioned independently. Compared with an integrated solar street light, the separate panel design provides greater flexibility for optimizing solar exposure according to site orientation and installation conditions.
Available in multiple configurations, the system combines monocrystalline solar charging, LiFePO4 battery storage and MPPT control to support dependable nighttime illumination. Optional PIR or microwave sensing and customizable working modes make this split solar LED street light suitable for municipal roads, rural infrastructure and remote off-grid lighting projects.
Specifications:
| Power | 100W | 200W | 300W | 400W |
| Model Number | HC-TLDF04-100 | HC-TLDF04-200 | HC-TLDF04-300 | HC-TLDF04-400 |
| Street Light Dimensions | 550x235x82mm | 550x235x82mm | 630x255x85mm | 630x255x85mm |
| Solar Panel Dimensions | 350x700mm | 670x450mm | 670x530mm | 670x640mm |
| Solar Panel Power | 6V/40W Mono | 6V/50W Mono | 6V/60W Mono | 6V/70W Mono |
| Battery Capacity | 3.2V-30AH | 3.2V-40.5AH | 3.2V-50AH | 3.2V-60AH |
| Battery | LiFePO4 | |||
| Color Temperature | 6500K (Other CCT optional) | |||
| Charging Time | 6-7 hours | |||
| Beam Angle | 70x140° | |||
| Chips | SMD5054 | |||
| CRI | CRI>80 | |||
| Waterproof Rate | IP65 | |||
| Light Time | 12hrs per night, 3-5 rainy days | |||
| Controller | MPPT/Remote Control | |||
| Sensor Optional | PIR / Microwave optional | |||
| Working Mode | Time + Sensor / Custom | |||
| Installation Height | 6-9M | |||
Applications:
TLDF04 is suitable for municipal roads, rural roads, village streets, residential access roads and community lighting, especially where underground grid cabling is difficult, costly or unavailable.
Its separate solar panel configuration also makes it practical for remote infrastructure, farms, industrial access roads and off-grid projects, where the solar panel may need to be positioned independently to achieve better sunlight exposure.
FAQ:
Q1. What is a split solar street light?

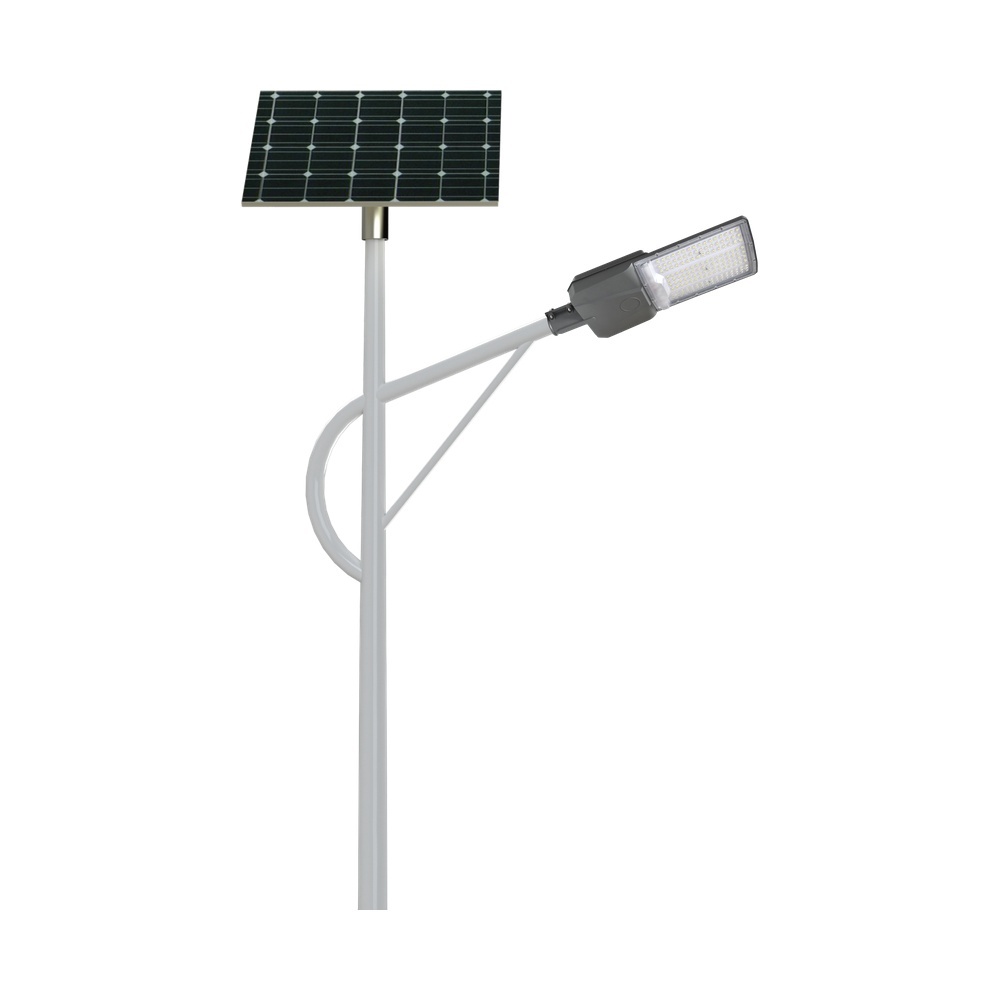

A: A split solar street light uses a separate solar panel and LED street-light assembly rather than integrating all components into one housing. This allows the solar panel to be positioned and oriented more flexibly according to local sunlight conditions.
Q2. What is the main advantage of the HC-TLDF04 compared with an all-in-one solar street light?
A: The main advantage is installation flexibility. Because the solar panel is separate from the light fixture, its position and angle can be optimized independently, making the HC-TLDF04 suitable for road projects with different pole layouts, orientations and solar conditions.
Q3. What configurations are available for the HC-TLDF04?
A: The HC-TLDF04 series currently includes 100W, 200W, 300W and 400W model options, with solar panels ranging from 40W to 70W and corresponding LiFePO4 battery configurations.
Q4. Does the HC-TLDF04 support intelligent lighting control?
A: Yes. The system uses MPPT control with remote-control capability and supports optional PIR or microwave sensing. Time-based, sensor-based and customized working modes can be selected according to project requirements.
Q5. Where is the HC-TLDF04 split solar street light commonly used?
A: It is suitable for municipal roads, rural roads, communities, village streets, farms, industrial access roads and remote areas where dependable off-grid lighting and flexible solar panel installation are required.
