YZ01 Series LED Street Light | 50W–300W Configurable Road Lighting

No.HC-YZ01-LD

YZ01 Series LED Street Light is a flexible outdoor lighting solution designed for road, parking and infrastructure projects. Its scalable product family makes it easy to match different lighting requirements while maintaining a consistent fixture design. Built for contractors, distributors and OEM/ODM projects, the YZ01 Series combines durable outdoor construction with flexible mounting, roadway optics and optional smart-control configurations.

One Series, Multiple Project Needs –A consistent fixture platform for different road and area-lighting projects.
Flexible Installation – Suitable for different pole and mounting requirements.
Project-Ready Configuration – Optional photocell and smart-control solutions available.

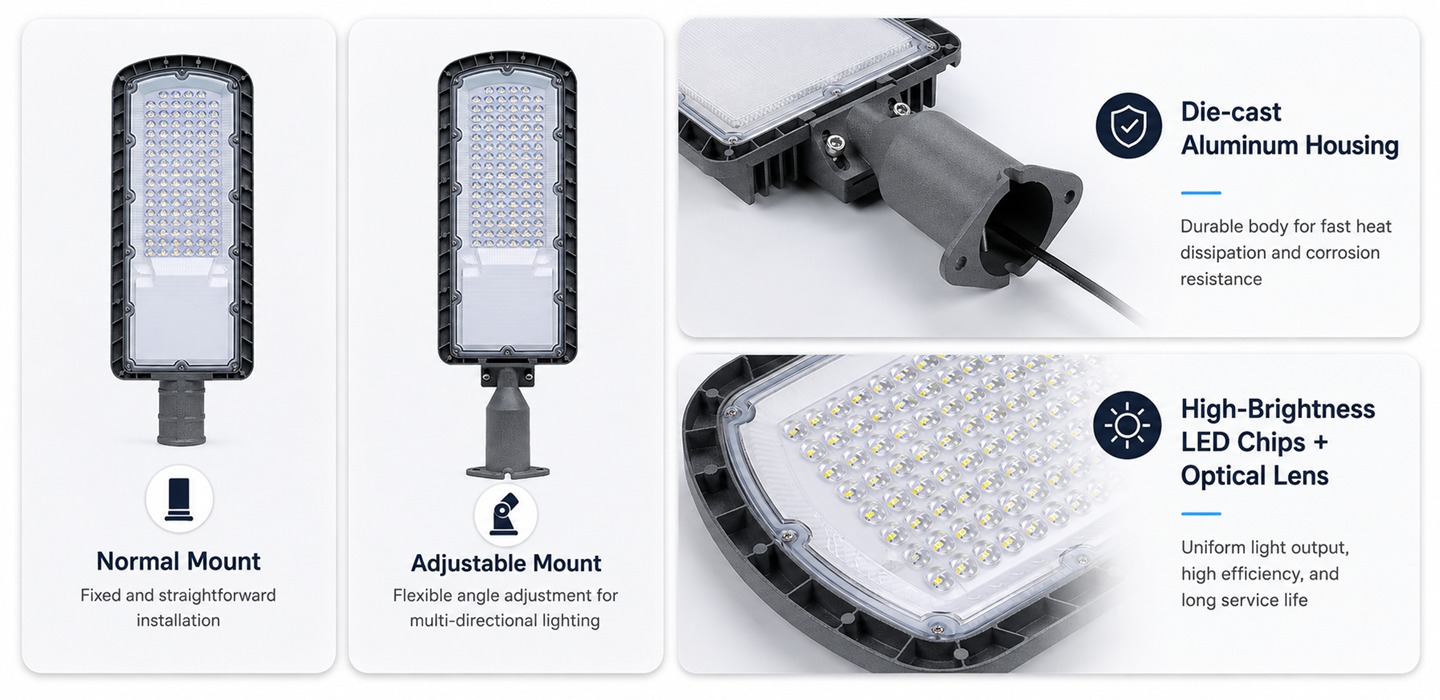

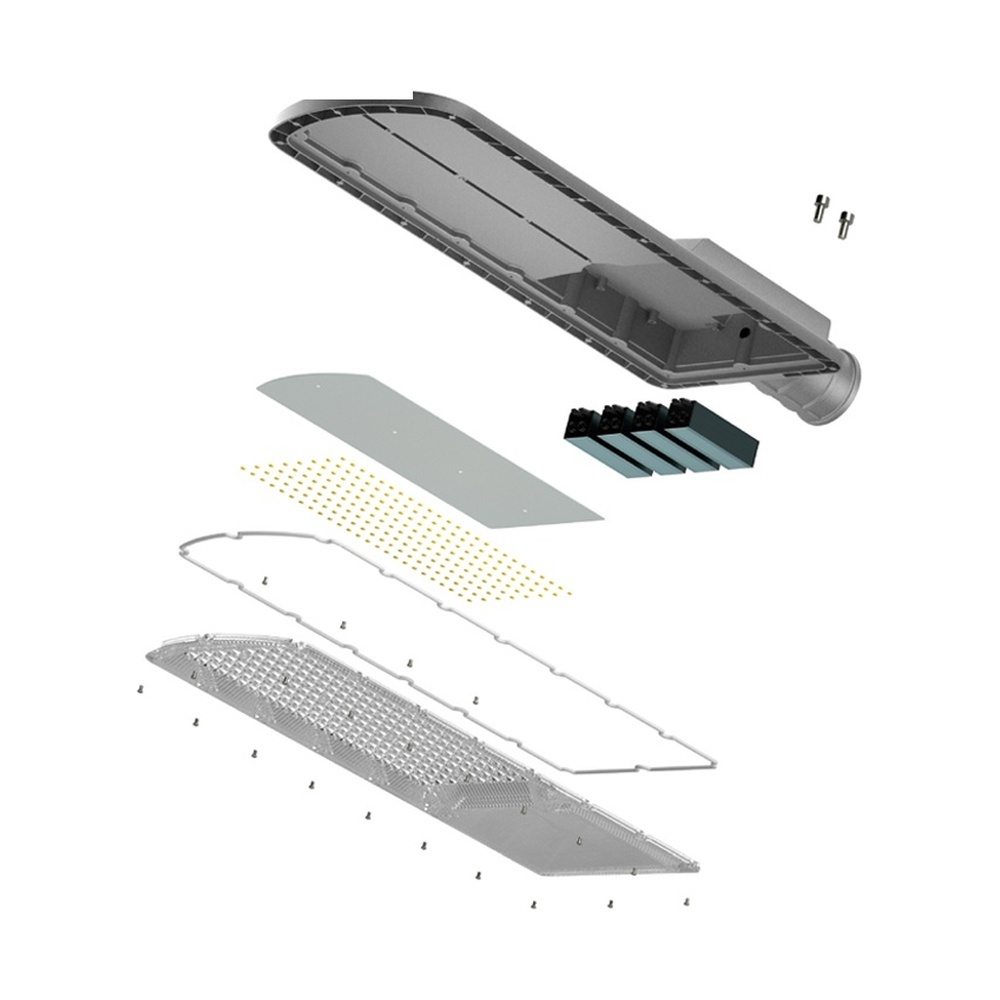

Efficient Thermal Design – Integrated die-cast aluminum construction supports reliable heat dissipation.
OEM / ODM Friendly – Suitable for customized lighting projects, private labels and distribution programs.

GET A QUOTE

Download

View all downloads

Product Description:

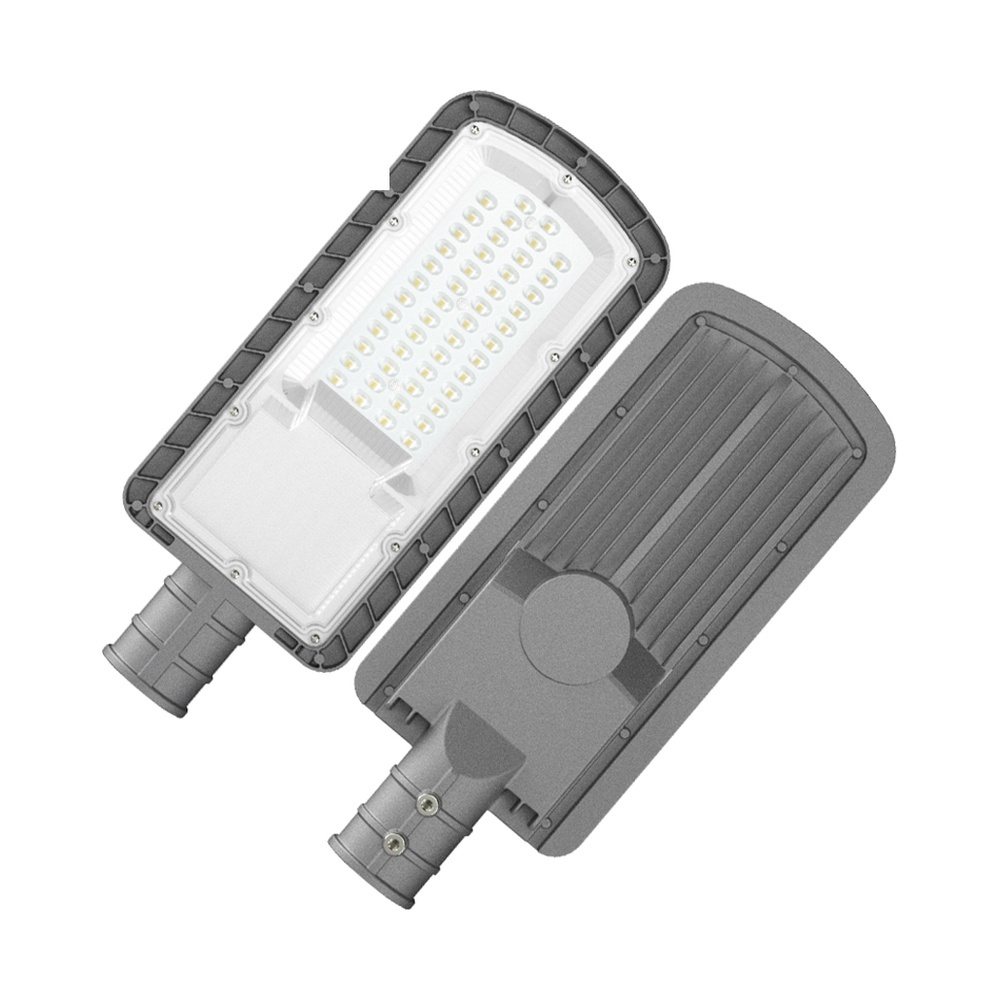

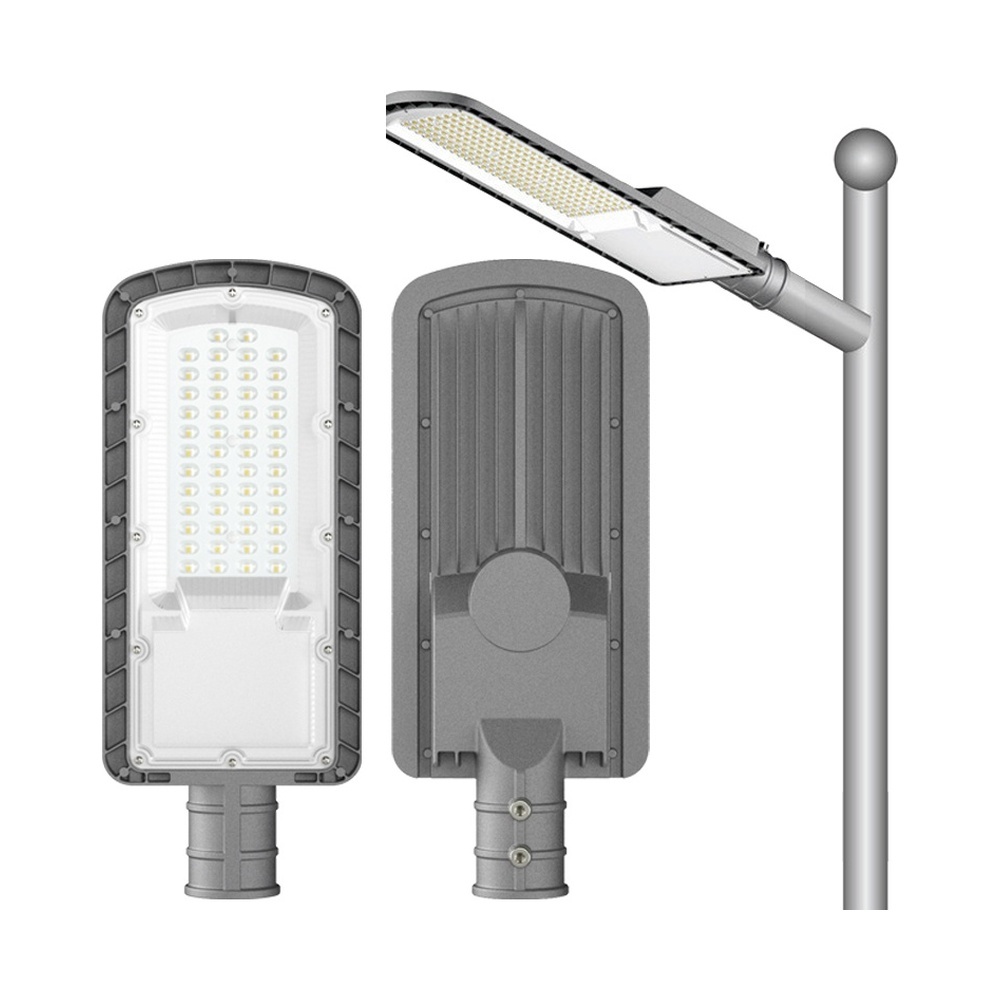

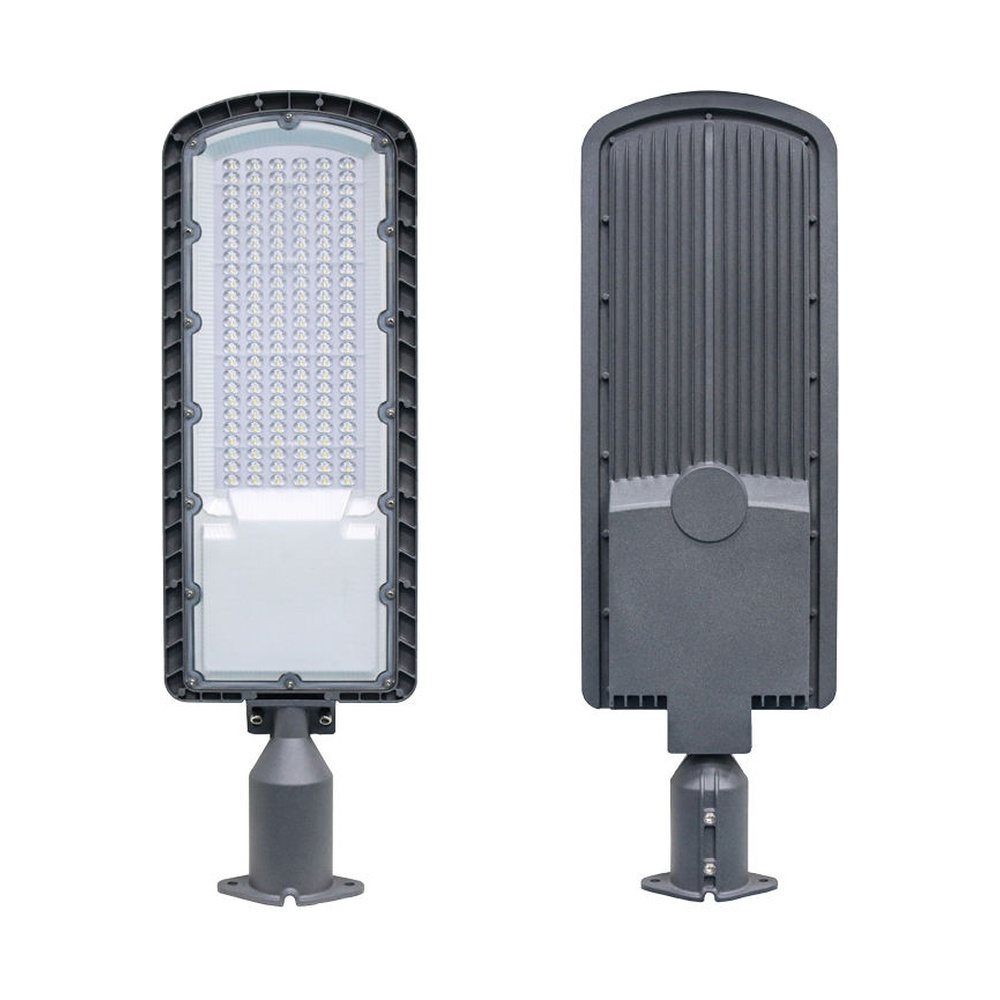

YZ01 LED Street Light is engineered for reliable outdoor roadway lighting with a durable die-cast aluminum housing, efficient LED technology and professional 70° × 140° roadway light distribution. Available from 50W to 300W, the series allows lighting designers and contractors to use one coordinated product family across projects with different road widths and illumination requirements.

With IP65 protection, IK08 impact resistance and AC100–277V input, YZ01 is designed for long-term outdoor operation. Optional photocell, NEMA or IoT control configurations can support automatic or intelligent lighting management, making the fixture suitable for both conventional LED street lighting and connected roadway projects.

Power	50W	100W	150W	200W	300W
Model Number	HC-YZ01-LD50	HC-YZ01-LD100	HC-YZ01-LD150	HC-YZ01-LD200	HC-YZ01-LD300
Dimensions	41517070mm	49519070mm	59521080mm	64523080mm	73025080mm
Efficacy	130LM/W
Color Temperature	3000K 4000K 5000K 5700K 6500K
Input Voltage	AC100-277V 50/60Hz
Beam Angle	70x140°
Chips	SMD3030
CRI	CRI>80
Waterproof Rate	IP65
Smart Control optional	NEMA/loTController or Photocell sensor Optional
Life Time @L70	>100,000Hrs
Operating Temperature	-30°C to +45°C
Impact resistance	IK08

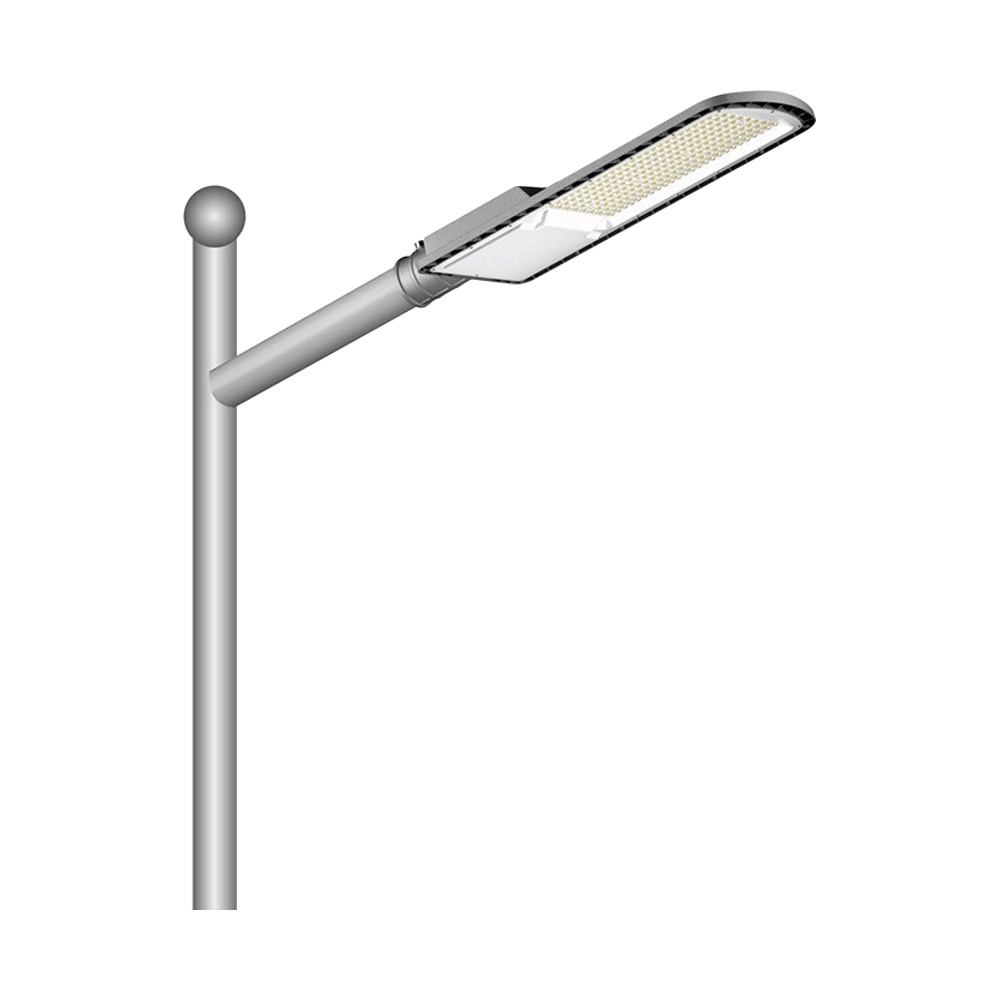

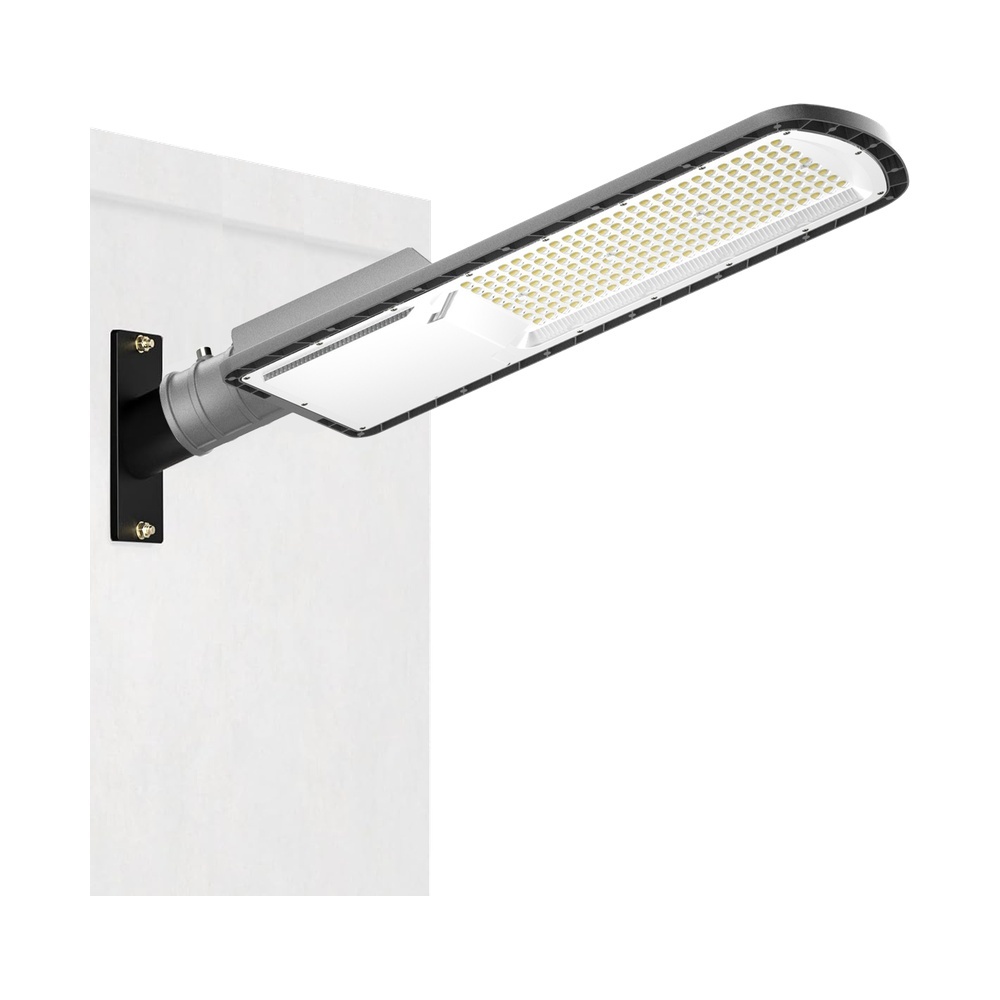

Mounting Option	Pole / Wall Mounting
Switching Cycles	＞100,000 times

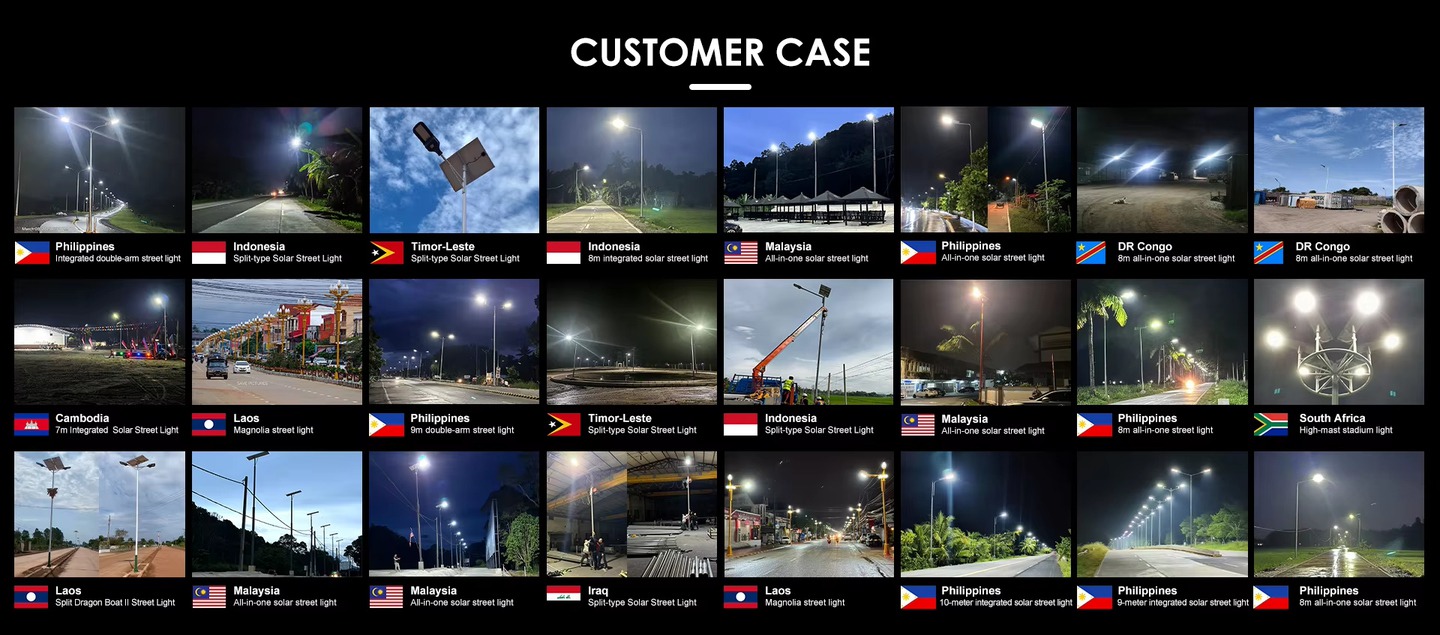

Applications Case:

YZ01 Series LED Street Light is suitable for urban roads, residential streets, industrial parks, campuses, parking areas, community roads and other outdoor traffic or public lighting environments.
Its wide wattage range and configurable installation options also make it suitable for contractors, distributors and infrastructure projects that require one adaptable LED roadway lighting platform for different project scales.

FAQ:

Q1. What applications is the YZ01 Series LED Street Light designed for?
The YZ01 Series is designed for urban roads, residential streets, industrial parks, parking areas, campuses and public outdoor lighting projects. Its scalable fixture family allows different wattages to be selected according to road width, mounting height and lighting requirements.

Q2. What wattages are available for the YZ01 LED Street Light?
The YZ01 Series is available in 50W, 100W, 150W, 200W and 300W versions. This range allows one product family to cover smaller residential roads through larger commercial and roadway lighting projects.

Q3. Does the YZ01 LED Street Light support photocell or smart control?
Yes. Photocell sensors, NEMA and IoT control solutions are available as optional configurations, allowing the street light to support automatic dusk-to-dawn operation or project-specific smart lighting control.

Q4. Is the YZ01 suitable for long-term outdoor use?
Yes. The fixture uses a die-cast aluminum housing with IP65 protection and IK08 impact resistance. Its integrated housing design helps manage heat while protecting the luminaire against demanding outdoor operating conditions.

Q5. Is the YZ01 Series suitable for OEM and ODM street lighting projects?
Yes. The YZ01 Series is well suited to distributors, contractors and project buyers requiring configurable LED street lighting. Depending on project requirements, options can include mounting configurations, controls, drivers, branding, color and packaging customization.
